Keterangan

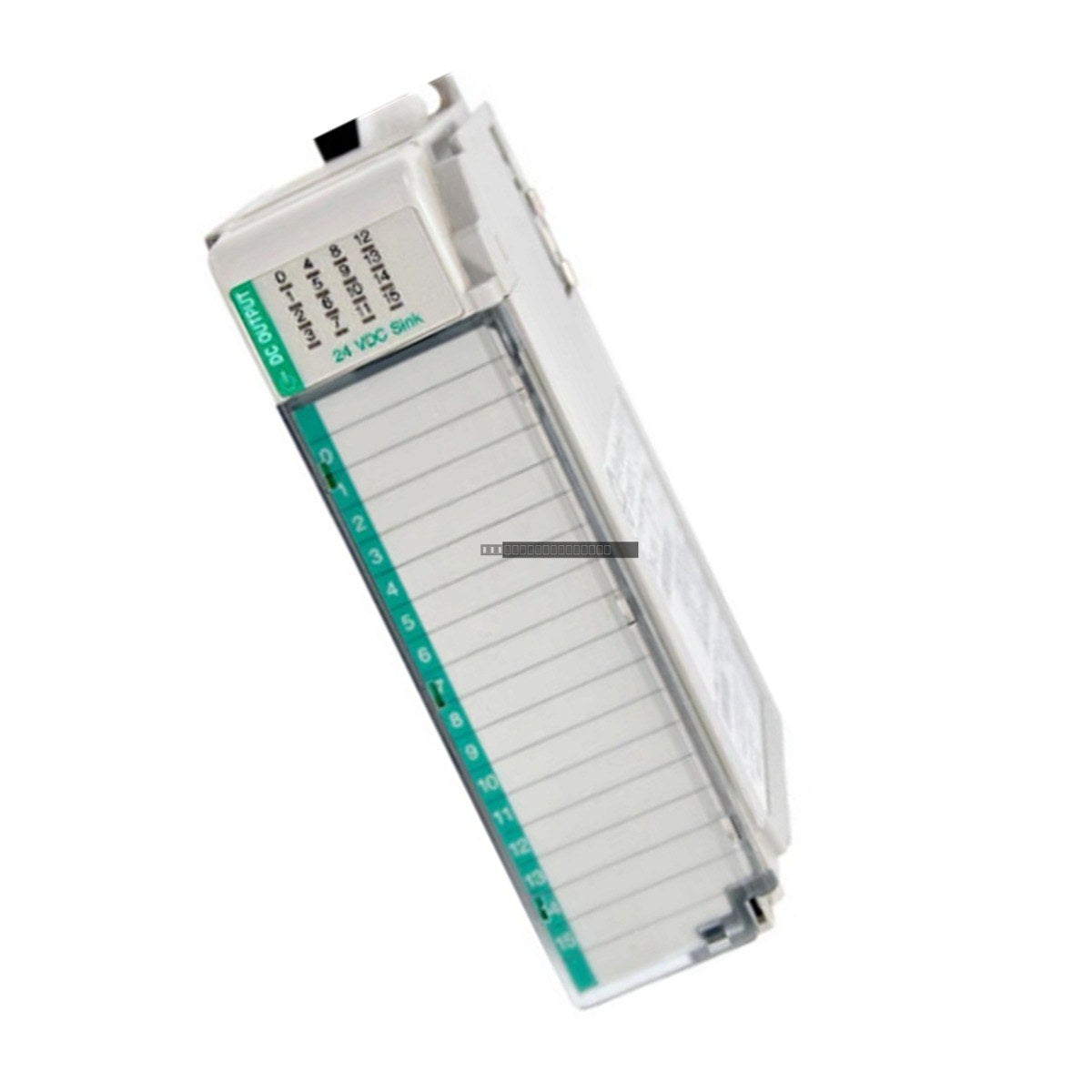

The Allen-Bradley 1769-OB16 is a 16-point digital output module designed for integration within the CompactLogix control platform. This module provides reliable switching for 24V DC field devices, serving as a standard component for distributed I/O or localized control cabinet automation.
Features
- 16 isolated output points for flexible control configurations.
- Operates on a 24V DC nominal voltage range.
- Designed for seamless mounting within the CompactLogix system architecture.
- Compact hardware footprint to optimize panel space.
- Supports high-speed digital switching for industrial control requirements.
Applications
This output module is primarily utilized in industrial automation environments for controlling actuators, relays, solenoid valves, and indicator lamps. It is commonly deployed in manufacturing, material handling, and process control systems where CompactLogix controllers manage discrete I/O operations.
Technical Specifications
| Model |
1769-OB16 |
| Manufacturer |
Allen-Bradley |
| Module Type |
Digital Output Module |
| Number of Points |
16 |
| Voltage Range |
24V DC |
| Weight |
0.18 kg |
Installation Guidelines
- Ensure the controller and I/O power are disconnected before installing or removing the module from the DIN rail or backplane.
- Verify that the module is securely latched into the adjacent 1769 series I/O block to maintain electrical continuity.
- Use appropriate shielded cabling for field wiring to minimize electromagnetic interference (EMI) in high-noise industrial environments.
- Maintain proper clearance around the module to allow for adequate airflow and heat dissipation.
- Follow standard ESD (Electrostatic Discharge) procedures when handling the module to prevent damage to internal circuitry.
FAQ
What is the primary function of the 1769-OB16?
The 1769-OB16 is a digital output module that provides 16 points of 24V DC output control for devices connected to a CompactLogix PLC system.
Is this module compatible with all CompactLogix controllers?
The 1769-OB16 is designed for use within the 1769 Compact I/O system; please verify your specific controller's I/O capacity and firmware compatibility prior to installation.
