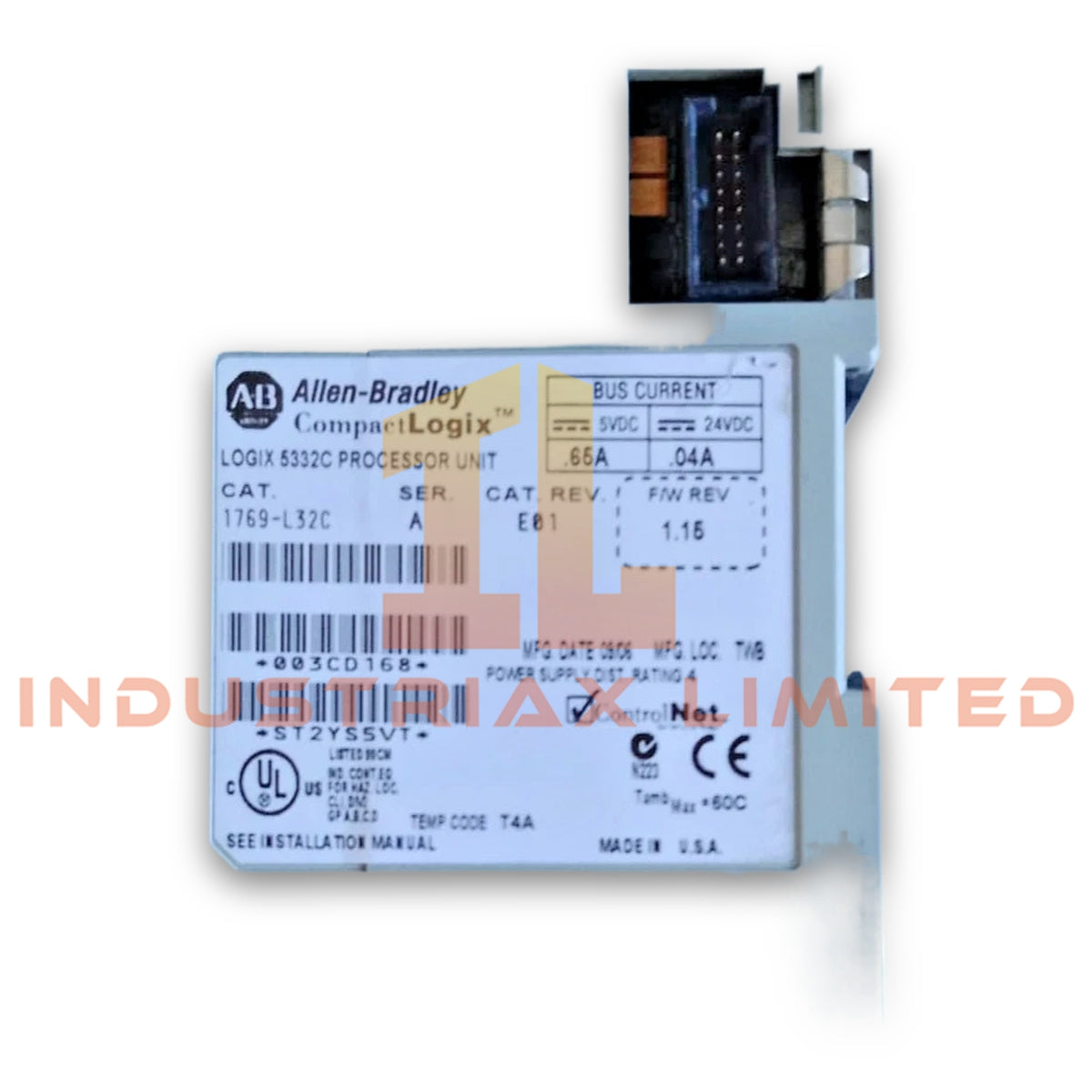

Allen-Bradley 1769-L32C CompactLogix Processor Module The Allen-Bradley 1769-L32C, also cataloged as the 1769-L32C Processor Module, operates as a dedicated hardware...
Baca selengkapnya
The Allen-Bradley 1769-L32C, also cataloged as the 1769-L32C Processor Module, operates as a dedicated hardware component for executing control logic and serial data communication within CompactLogix controller platforms.
Hardware Specifications
Parameter
Specification
Model
1769-L32C
Brand
Allen-Bradley
Origin
USA
Product Line
CompactLogix
Module Type
Processor Module
Category
PLCs
Communication
Serial
User Memory
750 KB
Series
A and B
Weight
0.40 kg (0.88 lbs)
Dimensions
Not specified in provided data
Operating Temp
0 to 60 deg C
Storage Temp
-40 to 85 deg C
Power Supply Distance Rating
4 modules
Operating Shock, DIN Rail Mount
20 g
Operating Shock, Panel Mount
30 g
Wire Type
Copper, 90 deg C
Solid Wire Size
22 to 14 AWG
Stranded Wire Size
22 to 16 AWG
Industrial Control Platform Integration
The 1769-L32C processor module communicates through the CompactLogix backplane architecture and manages controller operations through embedded processing resources. In addition, the module supports system configurations where the processor installation position remains within four modules of the power supply.
Furthermore, Allen-Bradley CompactLogix controllers apply structured firmware and hardware compatibility management to maintain communication between processor modules and connected I/O assemblies. The 1769-L32C supports PLC control tasks through its 750 KB user memory capacity and serial communication interface.
Frequently Asked Questions
Q: What is the maximum operating shock rating of the 1769-L32C module? A: The 1769-L32C withstands 20 g operating shock when installed on a DIN Rail and 30 g when installed on a panel.
Q: How far can the 1769-L32C processor module be installed from the system power supply? A: The processor module supports a power supply distance rating of four modules, allowing installation up to four modules away from the power supply.
Q: What communication interface does the 1769-L32C provide? A: The 1769-L32C provides serial communication capability for CompactLogix control system applications.
Field Installation Guidelines
Install the 1769-L32C module according to the CompactLogix system assembly requirements and maintain correct module positioning within the power supply distance limitation.
Use copper conductors with the specified wire temperature rating and verify that wire sizes match the terminal requirements before energizing the system.
Maintain proper separation between communication wiring and high-voltage power conductors to reduce electrical interference. Connect shielding and grounding according to the installation standards of the control cabinet and the connected equipment.
Verify DIN Rail or panel mounting conditions before operation. Confirm that the installation environment remains within the specified operating temperature range of 0 to 60 deg C.
