Keterangan

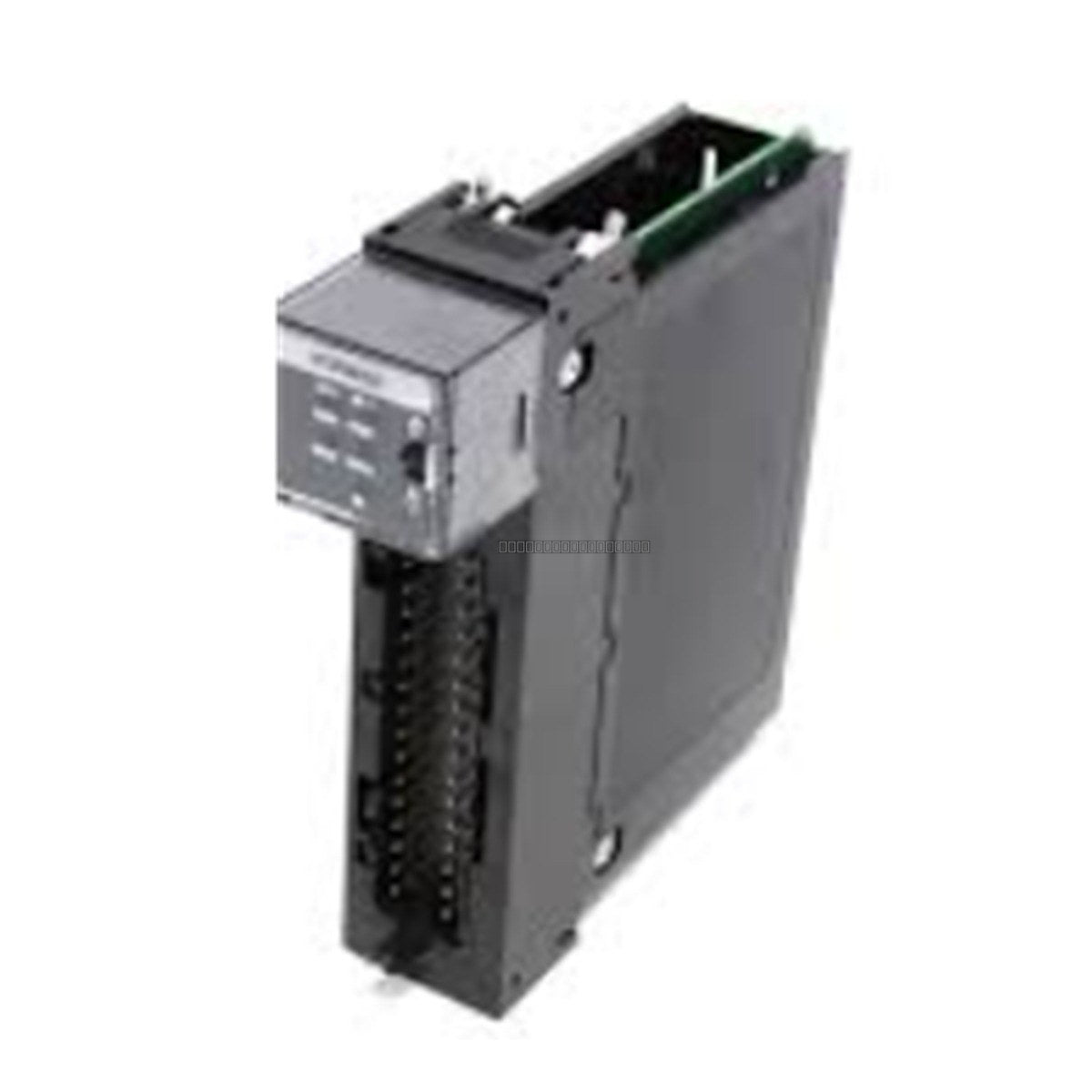

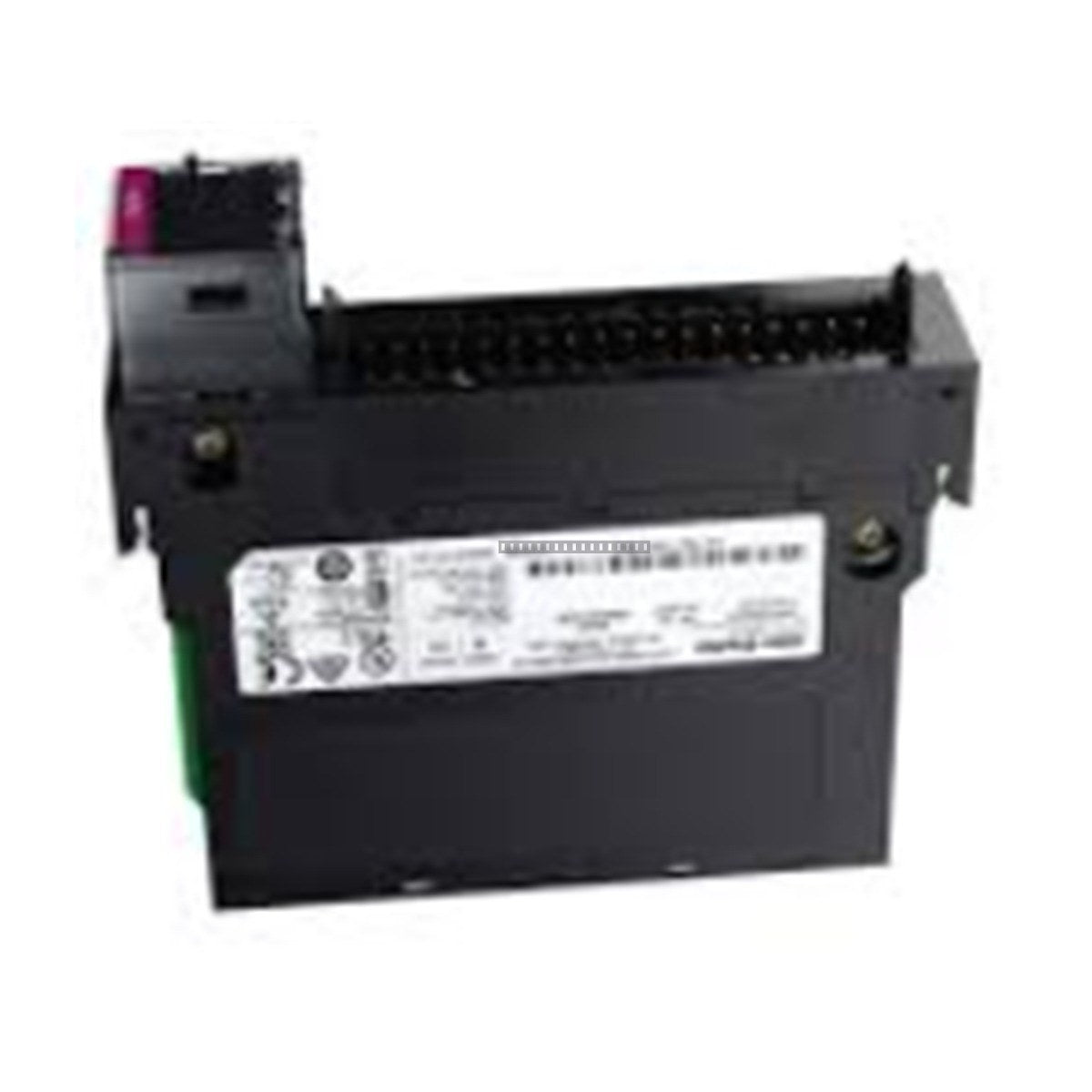

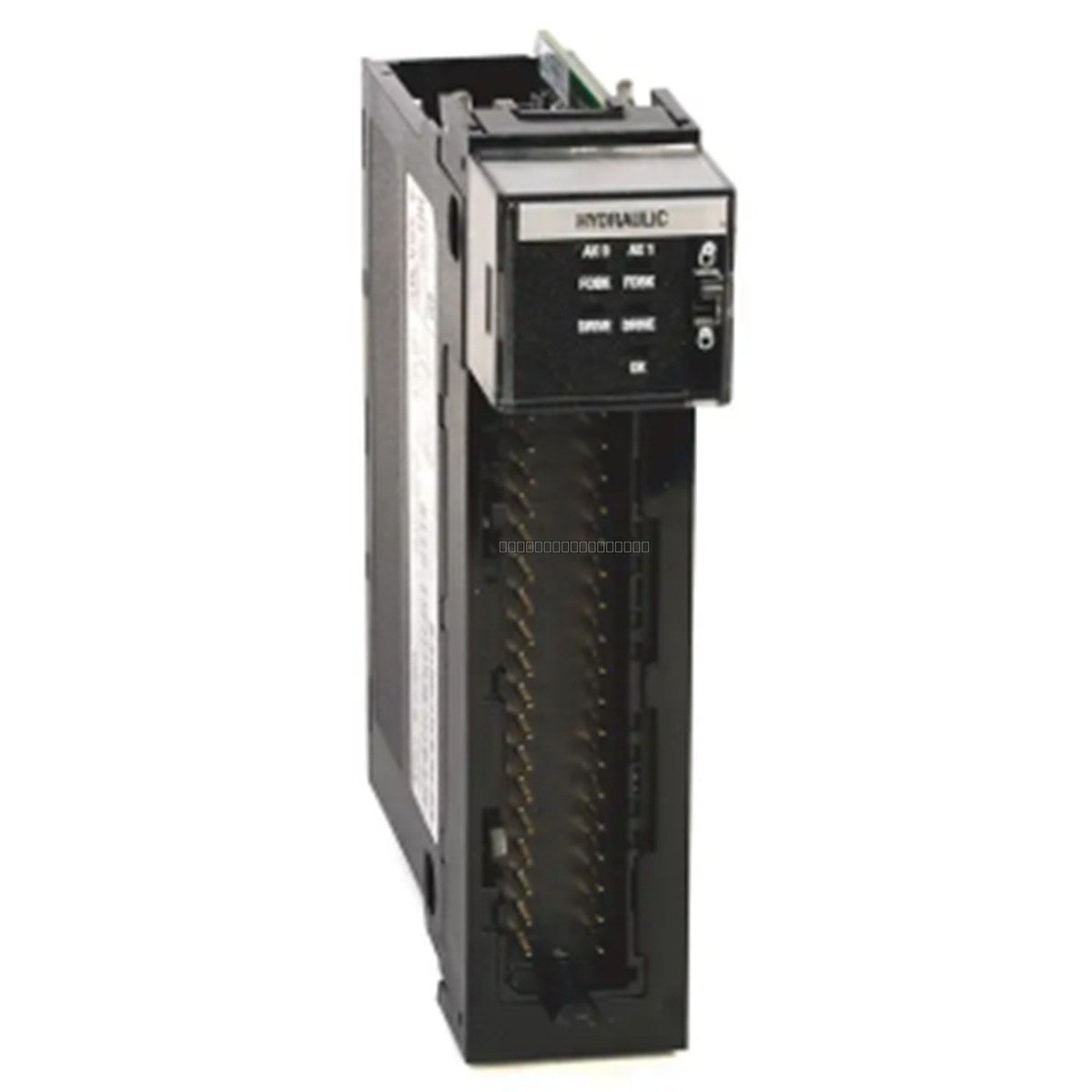

The Allen-Bradley 1756-M02AS is a ControlLogix Integrated Motion module designed to provide high-performance motion control for industrial automation applications. This module supports two axes per module and is compatible with the ControlLogix platform, allowing for up to 32 axes per controller.
Features
- Supports 2 axes per module.
- Integrated motion control with 32-bit floating-point gain resolution.
- Analog voltage servo output with a range of +/- 10V DC.
- 16-bit analog output resolution for precise control.
- Includes solid-state isolated relay contacts for discrete outputs.
- Discrete output operating voltage: 24V DC nominal.
Applications
This module is typically used in complex motion control systems requiring high-speed, synchronized axis management, such as packaging machinery, material handling, and precision assembly lines within the ControlLogix architecture.
Technical Specifications
| Product Model |
1756-M02AS |
| Axes per Module |
2 |
| Axes per Controller |
32 |
| Servo Output Type |
Analog Voltage |
| Voltage Range |
+/- 10V DC |
| Analog Output Resolution |
16 bits |
| Gain Resolution |
32-bit floating point |
| Backplane Current (5V) |
700 mA |
| Backplane Current (24V) |
2.5 mA |
Installation Guidelines
- Ensure the ControlLogix chassis is powered down before inserting or removing the module.
- The module is designed for standard ControlLogix backplane mounting.
- Use shielded cables for analog signal connections to minimize electromagnetic interference (EMI).
- Ensure proper grounding of the chassis to a common earth ground to maintain signal integrity.
- Maintain adequate clearance around the module to ensure proper airflow and cooling within the cabinet.
FAQ
What is the primary function of the 1756-M02AS?
It is a motion control module that interfaces with servo drives using analog voltage signals to control axis movement within a ControlLogix system.
How many axes can this module control?
The 1756-M02AS supports 2 axes per module.
