Description

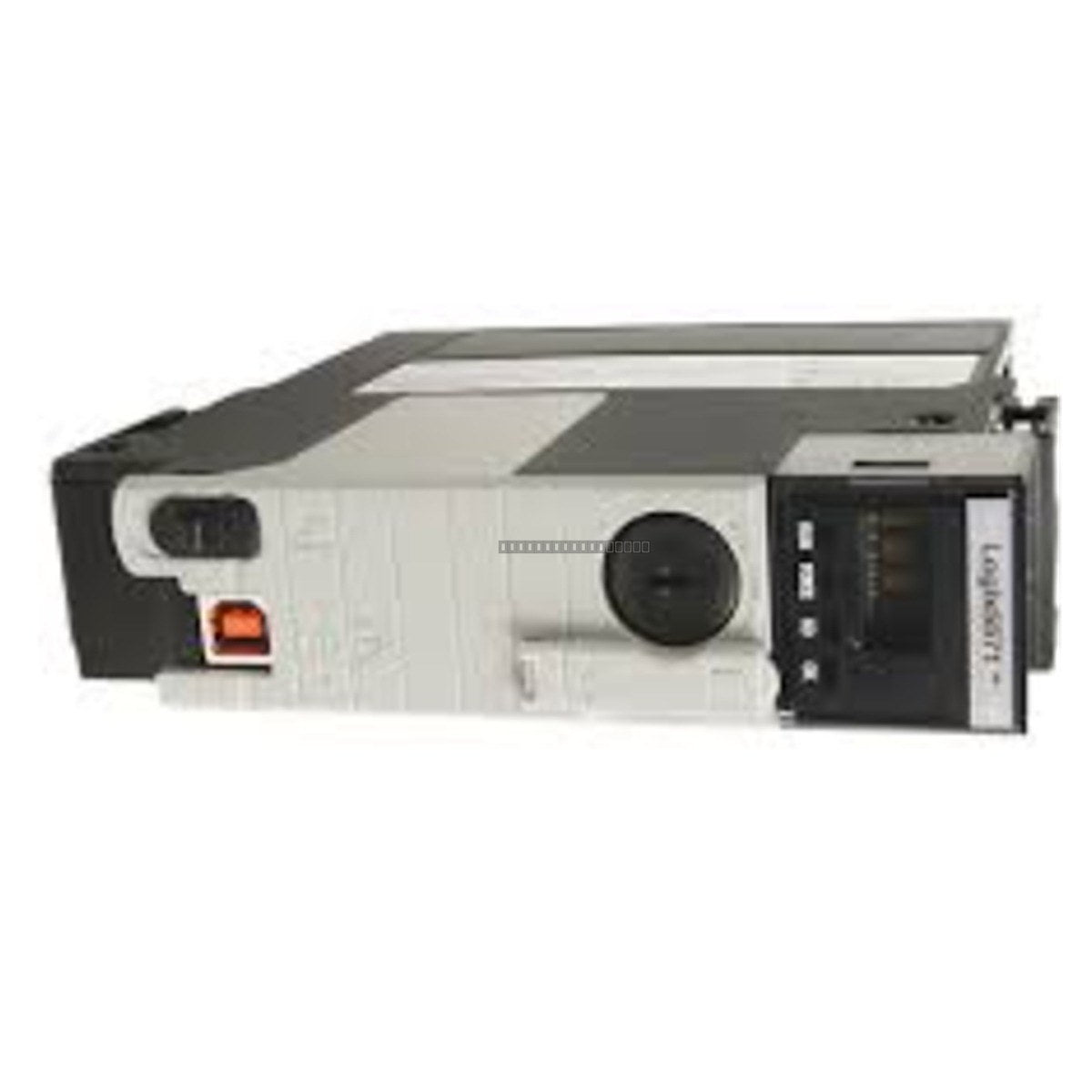

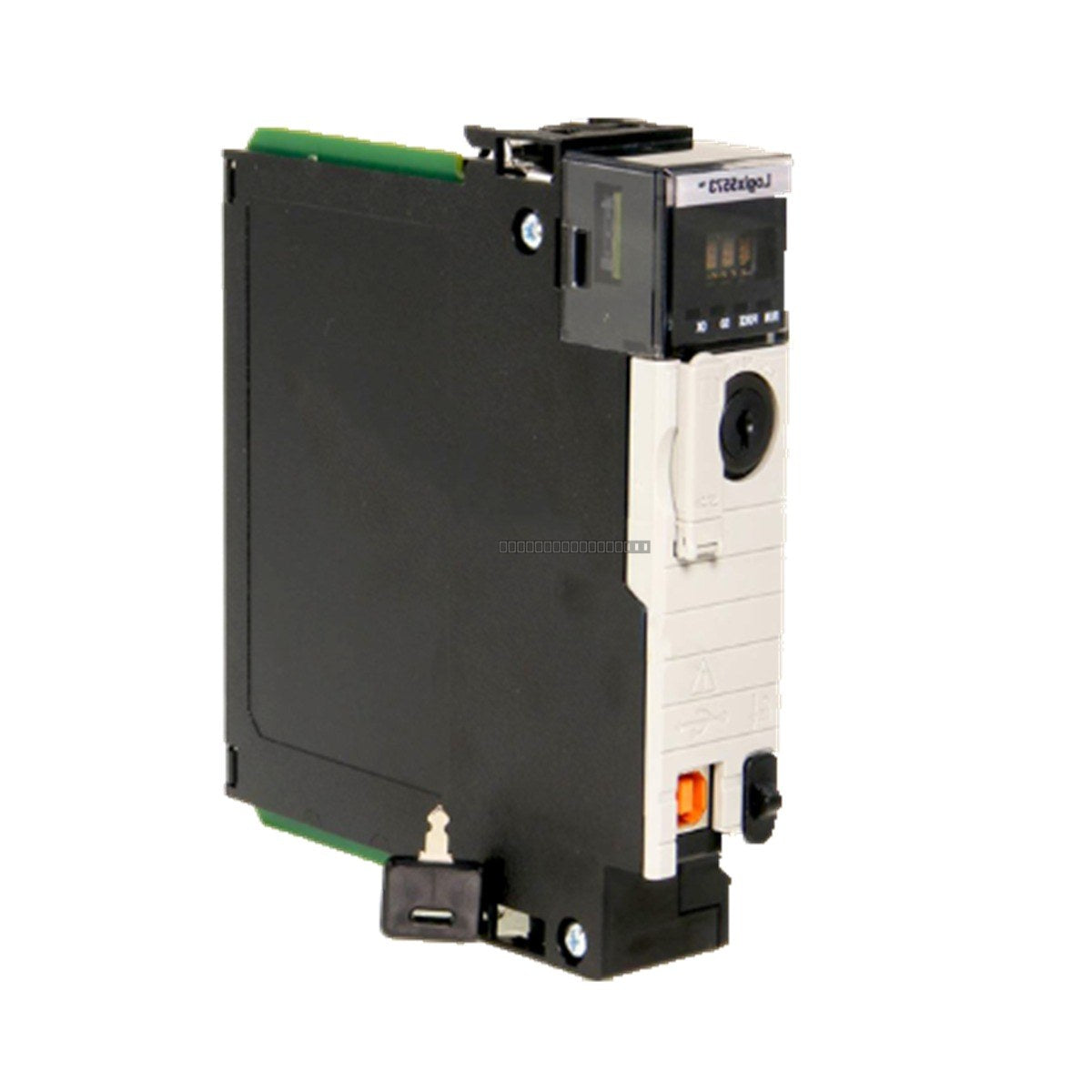

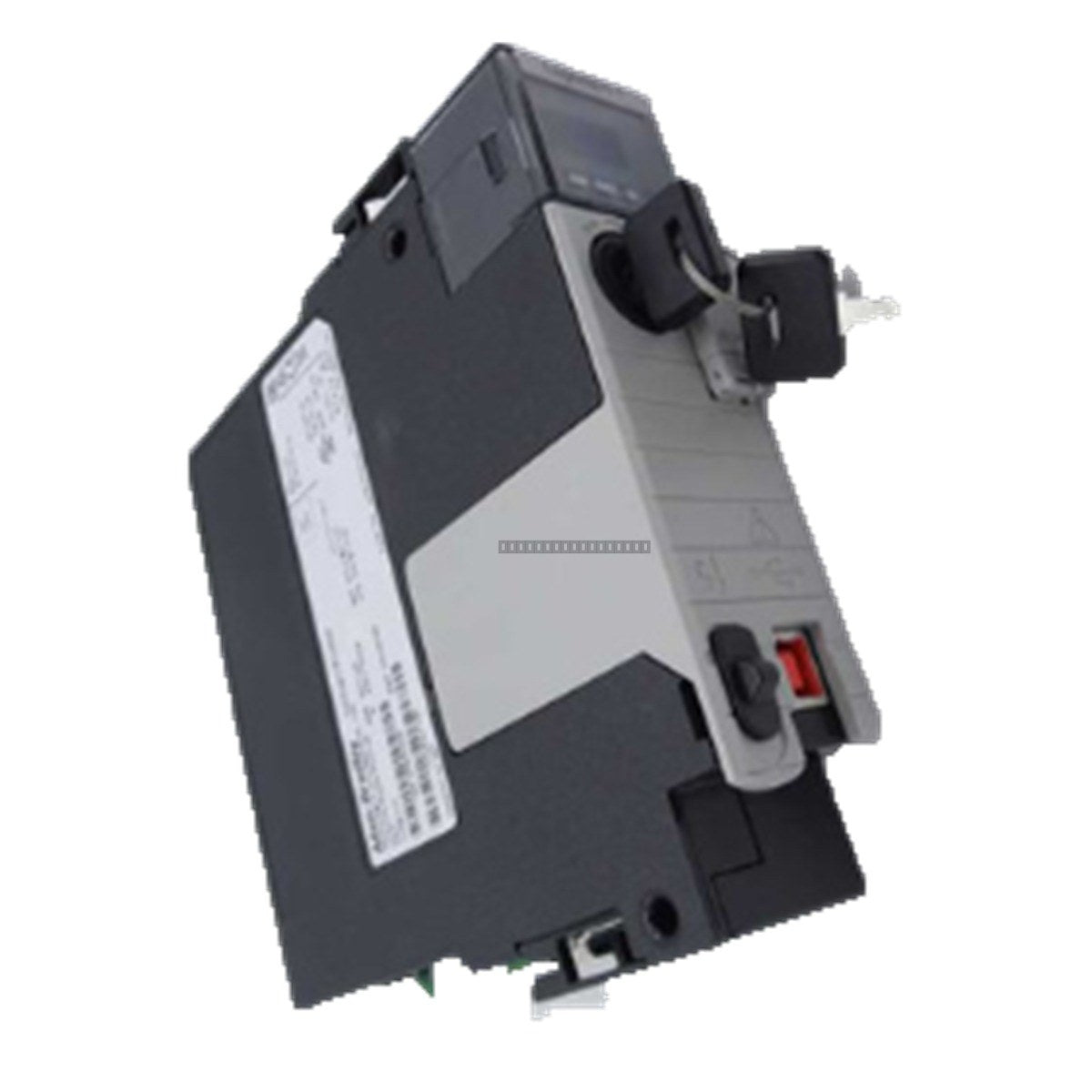

The Allen-Bradley 1756-L75 is a high-performance Logix5575 controller from the ControlLogix series. Designed for demanding industrial automation environments, this processor provides robust control, communication, and data processing capabilities. It features 32 MB of user memory and 0.98 MB of I/O memory, supporting complex logic, motion control, and high-speed data handling requirements in large-scale manufacturing systems.
Features
- 32 MB user memory for complex application logic and data storage.
- Integrated USB port for local programming, configuration, and diagnostics.
- 4-character alpha/numeric display for status monitoring and troubleshooting.
- Supports up to 500 controller connections for extensive network integration.
- Designed for seamless integration into the ControlLogix 1756 chassis system.
Technical Specifications
| Product Model |
1756-L75 |
| Controller Type |
Logix5575 Processor |
| User Memory |
32 MB |
| I/O Memory |
0.98 MB |
| Current Draw @ 1.2VDC |
5 mA |
| Current Draw @ 5.1VDC |
800 mA |
| Display |
4-character alpha/numeric |
| Communication Port |
USB |
Installation Guidelines
- Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-L75 module to prevent electrical damage.
- Verify that the module is fully seated in the chassis slot and the locking tab is engaged to ensure proper backplane connection.
- Follow standard ESD (Electrostatic Discharge) protection practices when handling the module to avoid damage to sensitive internal components.
- Ensure adequate ventilation around the chassis to maintain operating temperatures within the manufacturer's specified range.
- Use shielded communication cables for USB connections in high-EMI industrial environments to maintain signal integrity.
FAQ
What is the primary function of the 1756-L75?
The 1756-L75 is a central processing unit for the ControlLogix platform, responsible for executing user-defined control logic, managing I/O data, and facilitating communication across industrial networks.
Can this module be hot-swapped?
ControlLogix modules are generally designed for Removal and Insertion Under Power (RIUP), but it is recommended to follow your specific plant safety protocols and verify system status before performing any maintenance on a live rack.
