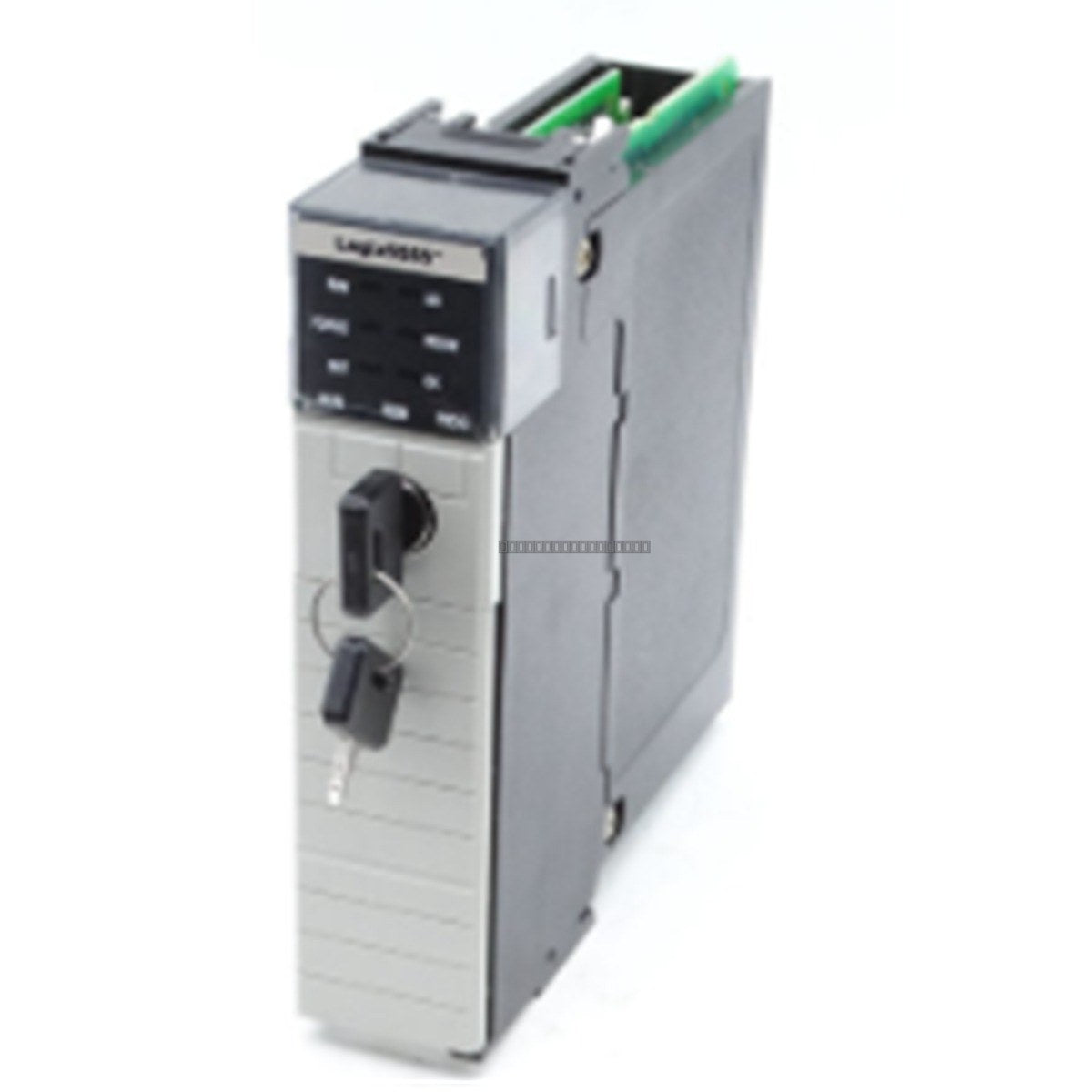

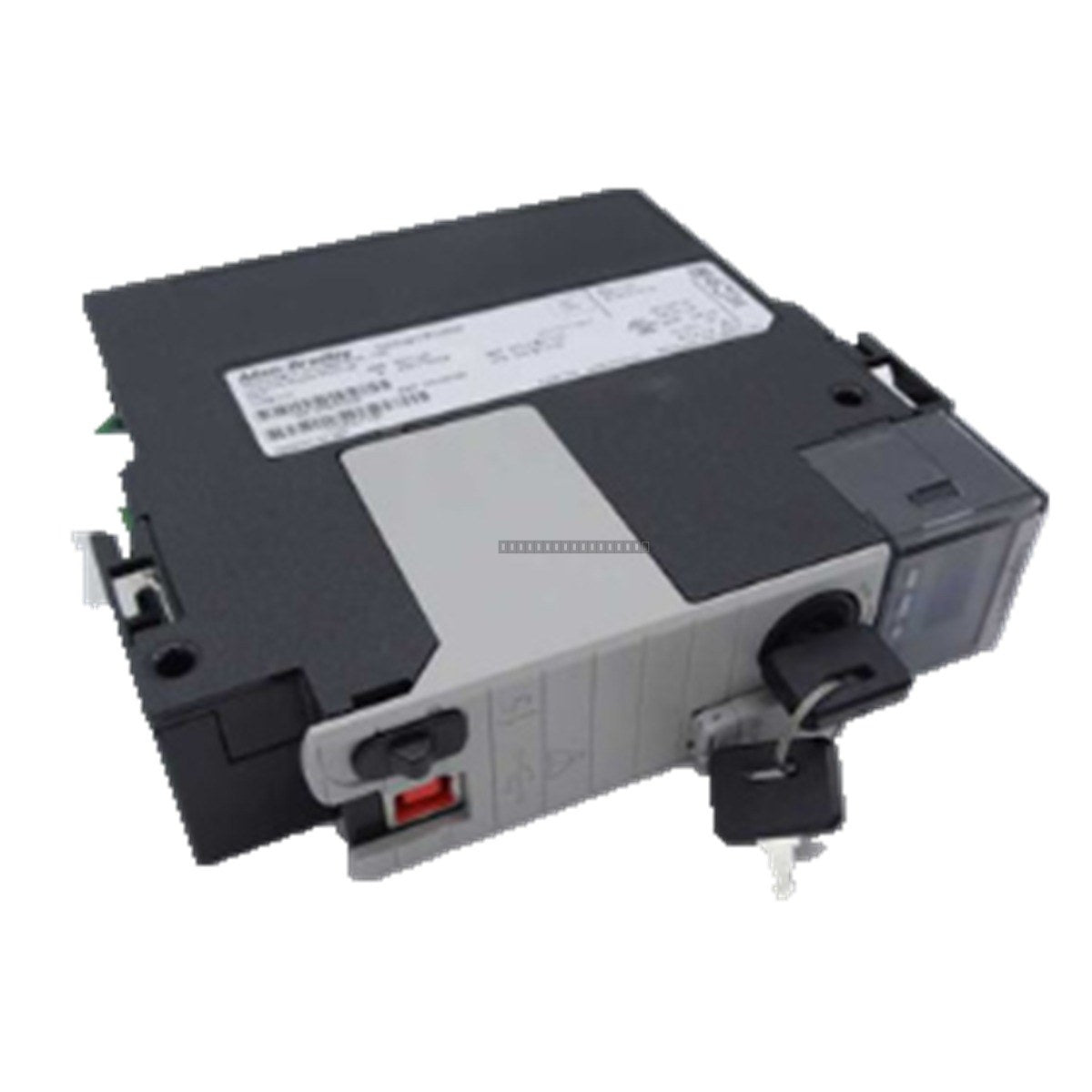

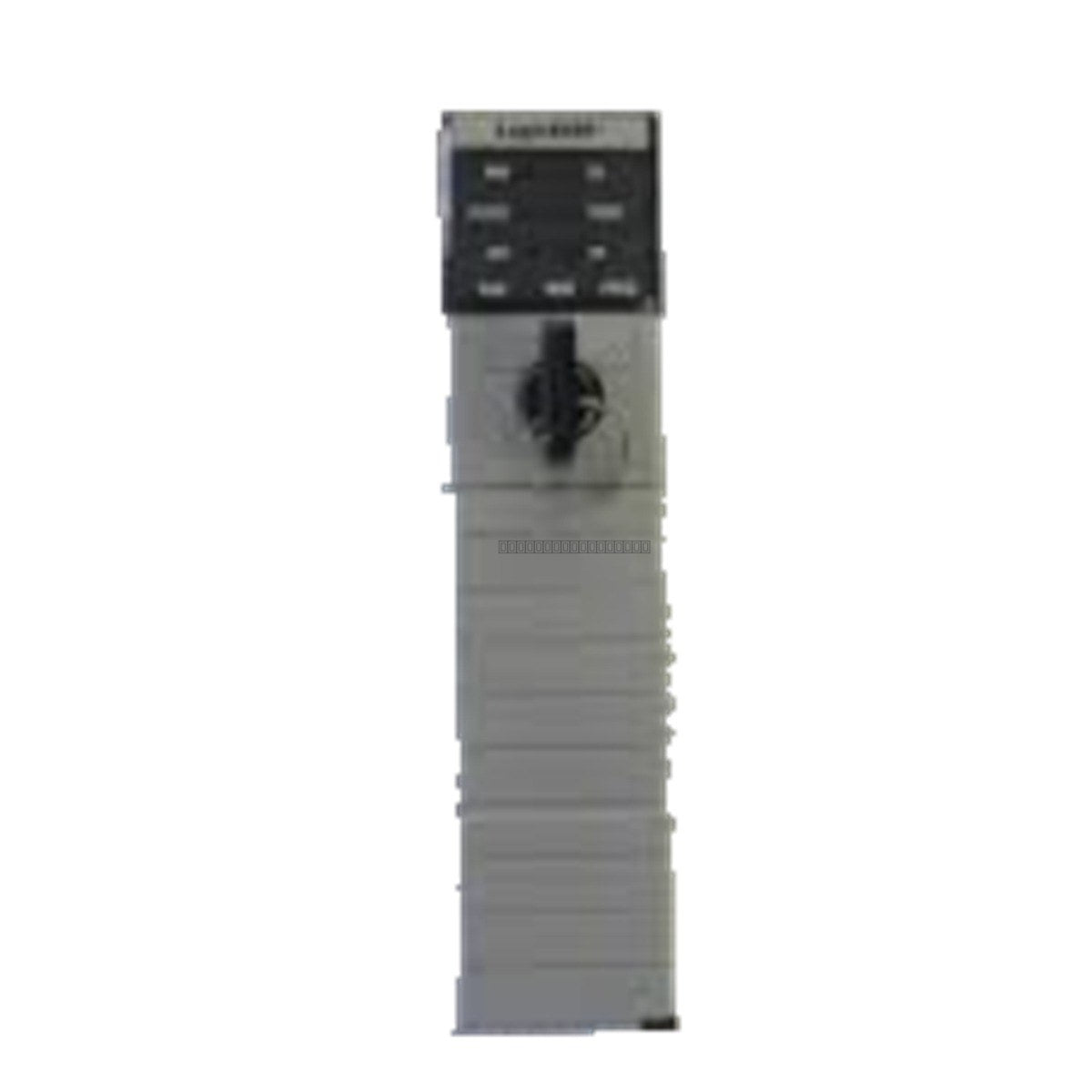

The 1756-L71/B (1756L71B) is a high-performance programmable automation controller designed for the Allen-Bradley ControlLogix platform. This Series B logic module is engineered to execute complex discrete automation, multi-axis motion control, and high-speed process tasks across distributed industrial networks. It provides deterministic processing for demanding environments, including automotive manufacturing, petroleum refining, and municipal infrastructure. The module utilizes advanced energy storage technology, eliminating the need for traditional internal batteries and reducing long-term maintenance requirements.
Features
- High-speed processing architecture supporting up to 32 independent controller tasks.
- Integrated USB 2.0 port on the front faceplate for local configuration, diagnostics, and firmware updates.
- Scalable connectivity supporting up to 500 concurrent controller connections.
- Seamless integration with EtherNet/IP, ControlNet, DeviceNet, and Data Highway Plus via the backplane.
- Optimized for low power consumption and high thermal efficiency in rack-mounted configurations.
Applications
This controller is suitable for large-scale industrial automation, including:
- Automated assembly and manufacturing lines.
- Process control in water and wastewater treatment facilities.
- Complex motion control and high-speed discrete logic applications.
- Distributed control systems requiring high network connectivity.
Technical Specifications
| Model |
1756-L71/B |
| Series |
B |
| Controller Tasks |
32 |
| Max Connections |
500 |
| Communication Port |
1 x USB 2.0 |
| Current Draw (1.2V DC) |
5 mA |
| Current Draw (5.1V DC) |
800 mA |
| Power Dissipation |
2.5 W |
| Thermal Dissipation |
8.5 BTU/hr |
| Isolation Voltage |
30V Continuous |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
Installation Guidelines
- Ensure the ControlLogix chassis is properly grounded before installing the module.
- Power down the chassis before inserting or removing the controller to prevent electrical arcing or damage to the backplane pins.
- Ensure adequate airflow within the cabinet; maintain clearance around the module to prevent overheating.
- Use shielded cables for communication interfaces to minimize EMI in high-noise industrial environments.
- Handle with care to prevent electrostatic discharge (ESD) damage to internal components.
FAQ
Does this module require a battery?
No, the 1756-L71/B utilizes advanced energy storage technology, which eliminates the maintenance requirements associated with traditional internal batteries.
Can this controller be used for motion control?
