Description

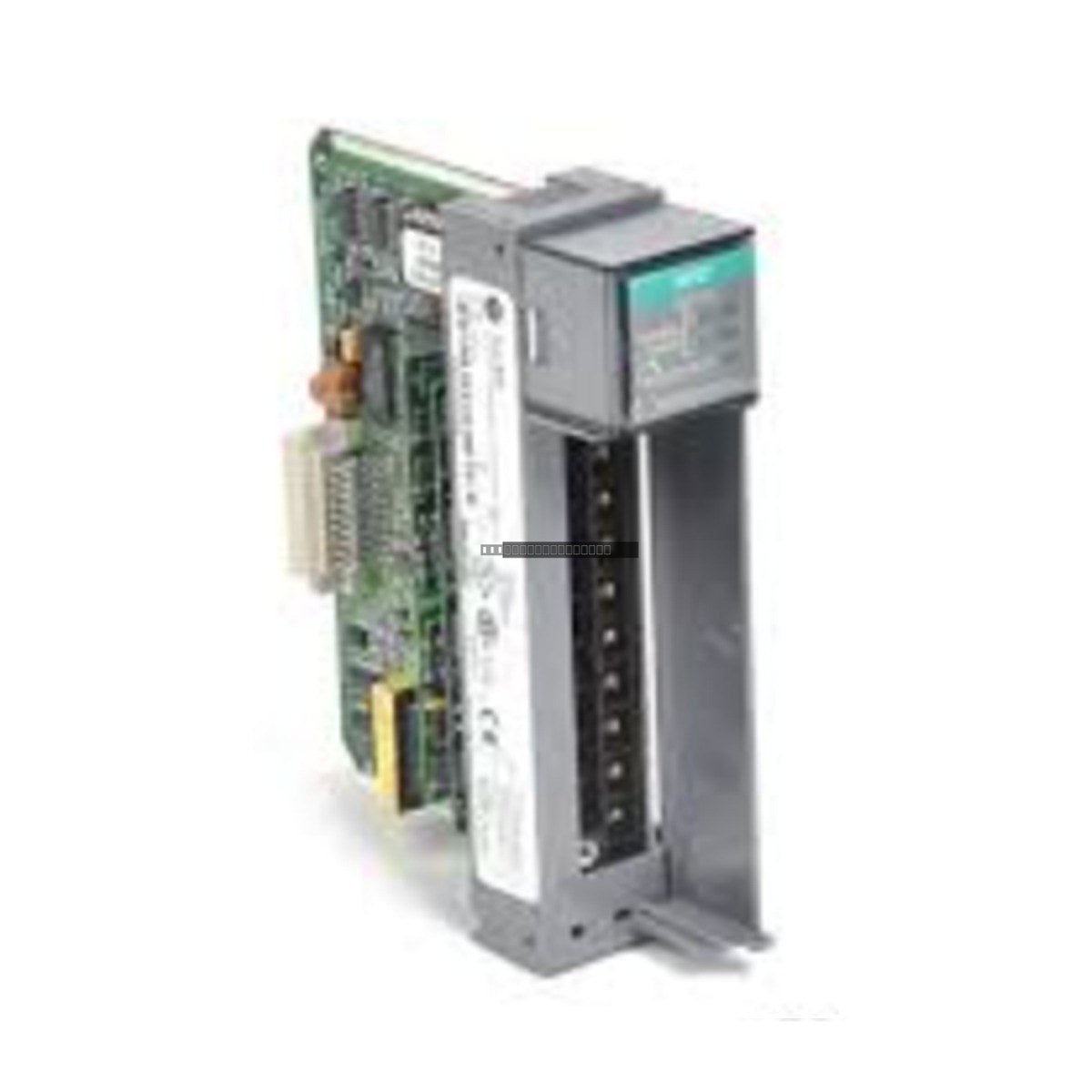

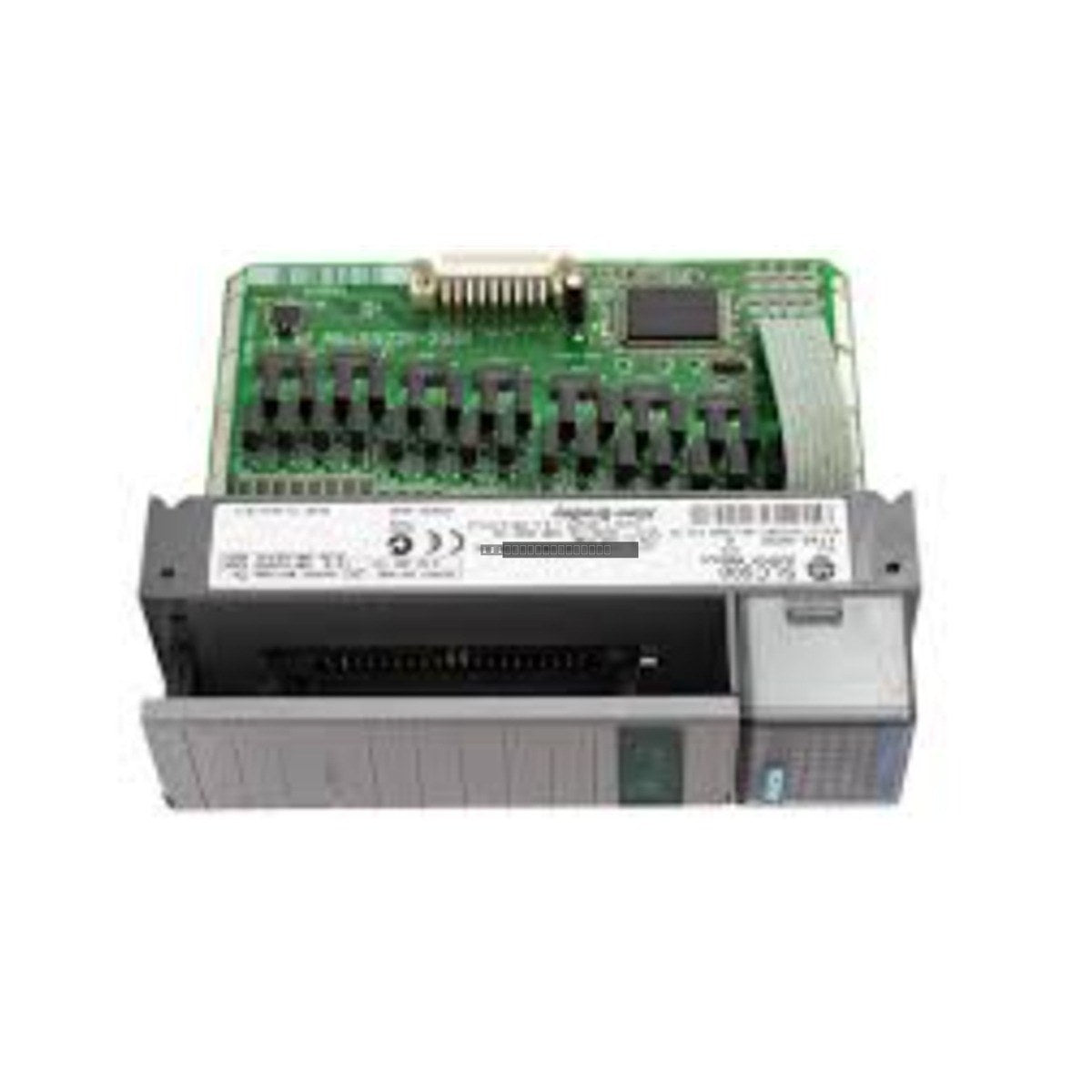

The Allen-Bradley 1746SC-INI4VI is an isolated analog input module designed for use with the SLC 500 controller platform. This module provides four high-resolution, isolated input channels capable of measuring both voltage and current signals, making it suitable for demanding industrial instrumentation and process control applications where signal isolation is required to prevent ground loops and noise interference.
Features
- Four isolated analog input channels
- Supports multiple voltage ranges: 0-10 VDC, +/- 10 VDC, 0-5 VDC, and 1-5 VDC
- Supports multiple current ranges: 0-20 mA and 4-20 mA
- High-resolution 16-bit analog-to-digital conversion
- Designed for seamless integration into the SLC 500 I/O chassis
Applications
This module is typically utilized in process control environments requiring precise monitoring of sensors, transmitters, and transducers. It is commonly deployed in applications involving flow, pressure, temperature, and level monitoring where electrical isolation between channels or between the field devices and the backplane is necessary for system stability.
Technical Specifications
| Product Model |
1746SC-INI4VI |
| Module Type |
Isolated Current/Voltage Input |
| Number of Inputs |
4 |
| Resolution |
16 Bits |
| Current Consumption |
570 mA @ 5 VDC |
| Supported Voltage Ranges |
0-10 VDC, +/- 10 VDC, 0-5 VDC, 1-5 VDC |
| Supported Current Ranges |
0-20 mA, 4-20 mA |
Installation Guidelines
- Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
- Handle the module by the edges to avoid contact with sensitive electronic components; use proper ESD grounding practices.
- Verify that the module is firmly seated in the chassis slot and secured with the provided mounting screws.
- Use shielded twisted-pair cabling for all analog signal connections to minimize EMI/RFI noise.
- Ensure proper grounding of cable shields at the source or module end as per standard industrial control wiring practices.
- Check that the input signal ranges are correctly configured in the PLC software before applying field power.
FAQ
Does this module require external power?
The 1746SC-INI4VI draws its operational power from the SLC 500 backplane (570 mA at 5 VDC). Ensure your power supply capacity is sufficient to support the addition of this module.
Is this module compatible with all SLC 500 chassis?
This module is designed for the standard SLC 500 I/O chassis. Please verify your specific chassis power budget and slot availability before installation.
