Product Overview

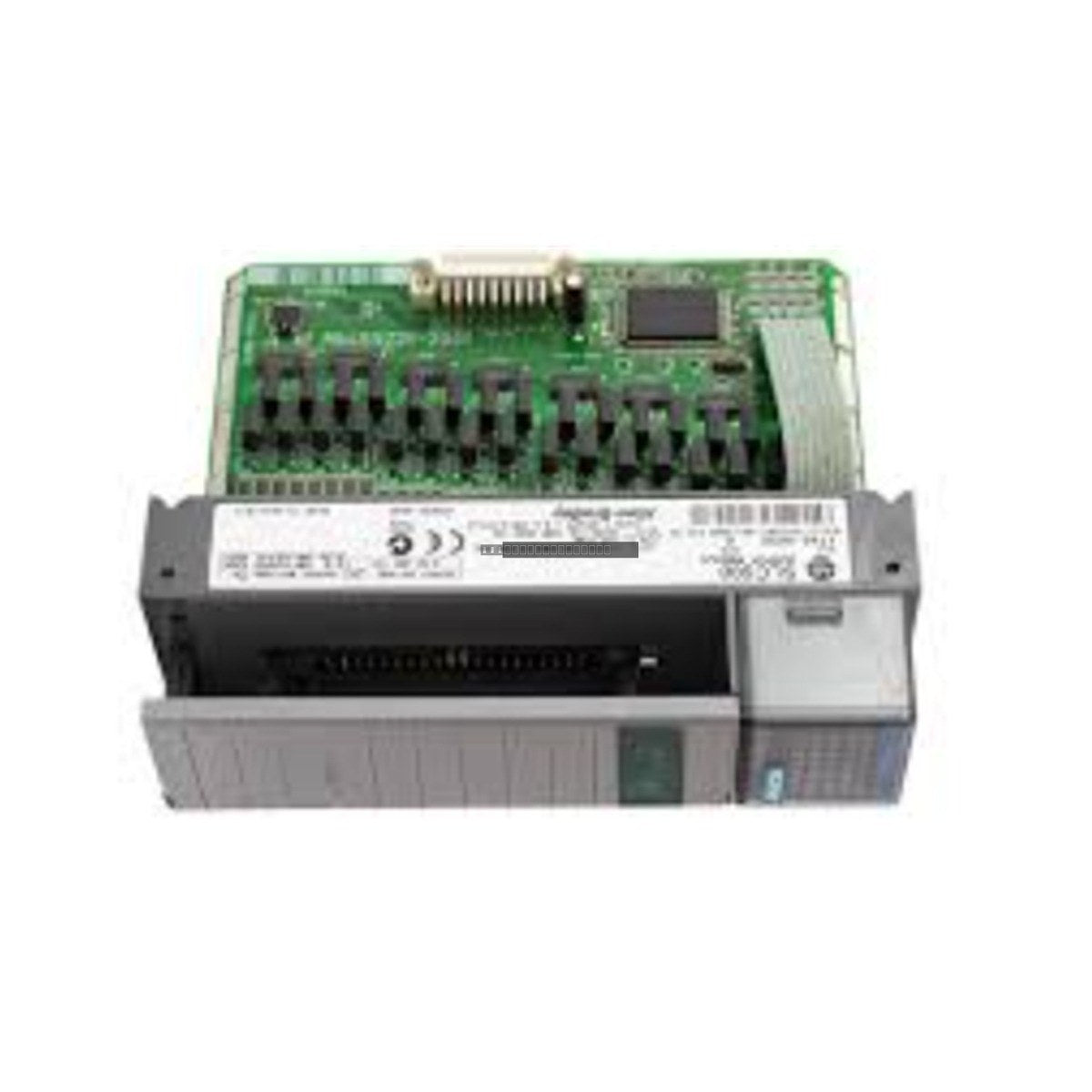

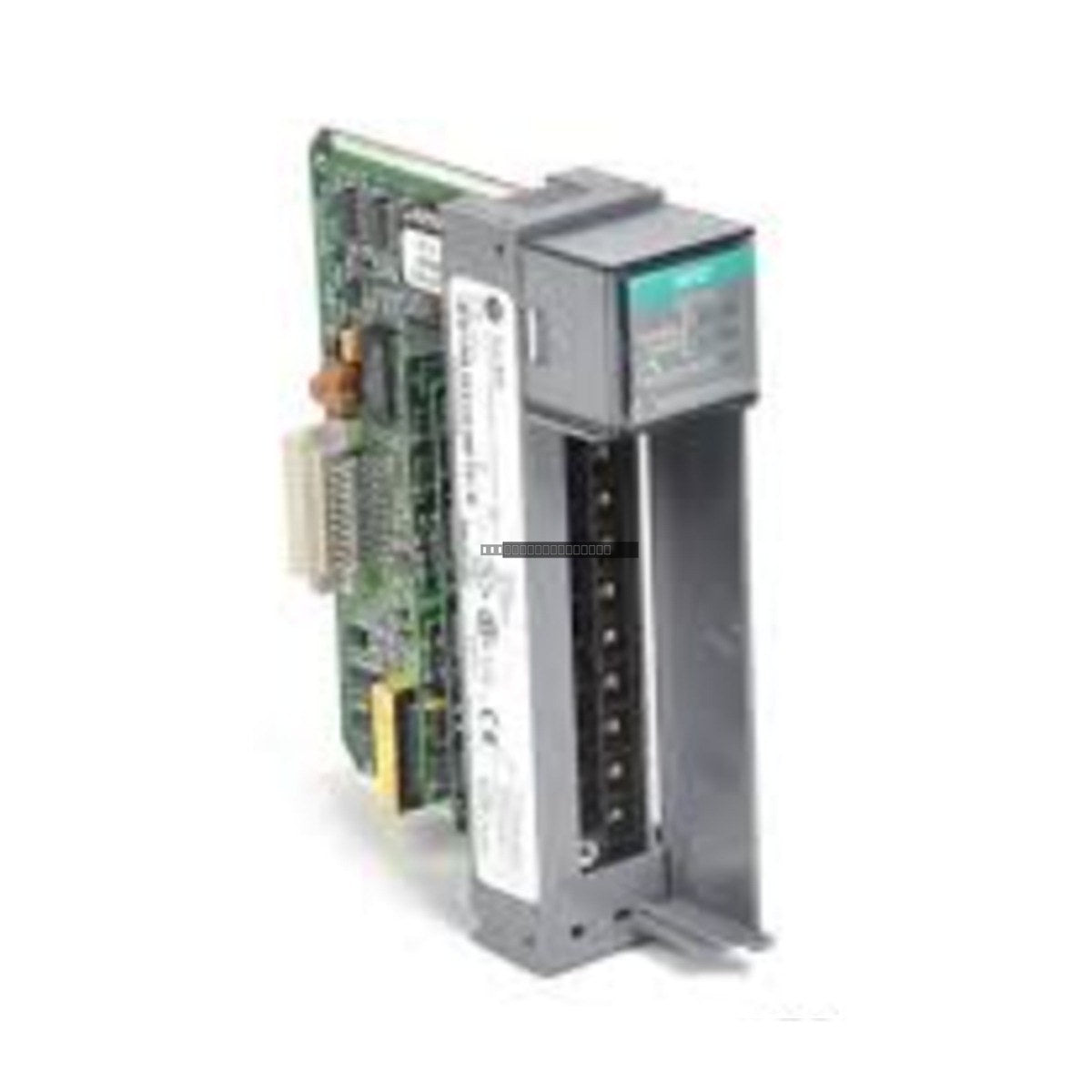

The Allen-Bradley 1746SC-INI4I is a specialized 4-channel isolated analog input module engineered by Spectrum Controls for integration within the Allen-Bradley SLC 500 control platform. This module is specifically designed to handle high-precision measurement tasks in industrial environments where electrical noise, ground loops, or potential signal interference are concerns. By providing full channel-to-channel isolation, the 1746SC-INI4I ensures that individual sensor loops remain independent, preventing cross-talk or fault propagation between channels.
Features
- Four fully isolated differential input channels for robust signal integrity.
- 16-bit resolution providing high-granularity data for process monitoring.
- Supports both voltage and current signal inputs for flexible sensor connectivity.
- Selectable digital filtering to balance between rapid response times and noise rejection.
- Designed for seamless integration into the SLC 500 rack system.
Applications
This module is ideal for critical instrumentation tasks, including monitoring pressure, flow, temperature, and level in harsh environments. Its isolation capabilities make it particularly suitable for distributed sensor networks where ground potential differences could otherwise impact measurement accuracy.
Technical Specifications
| Manufacturer |
Spectrum Controls |
| Platform |
SLC 500 |
| Channels |
4 (Isolated, Differential) |
| Resolution |
16-bit |
| Accuracy |
+/- 0.1% of full scale |
| Isolation |
1500V DC channel-to-channel |
| Update Rate |
10 ms per channel |
| Voltage Impedance |
1 MΩ |
| Current Impedance |
250 Ω |
Installation Guidelines
- Ensure the SLC 500 rack is powered down before inserting or removing the module to prevent electrical damage.
- Verify that the module is firmly seated into the backplane connector and secured with the chassis screws.
- Use shielded twisted-pair cabling for all analog inputs to minimize EMI pickup.
- Ensure that cable shields are grounded at a single point to prevent ground loops.
- Maintain proper ventilation in the control cabinet to keep ambient temperatures within the specified operating limits for the SLC 500 system.
FAQ
Does this module require external power for the inputs?
The 1746SC-INI4I derives its operational power from the SLC 500 backplane, though sensor loops may require external loop power depending on the specific transmitter type used.
Can I mix current and voltage inputs on the same module?
Yes, the module is designed to support both current and voltage inputs, allowing for versatile configurations across its four channels.
