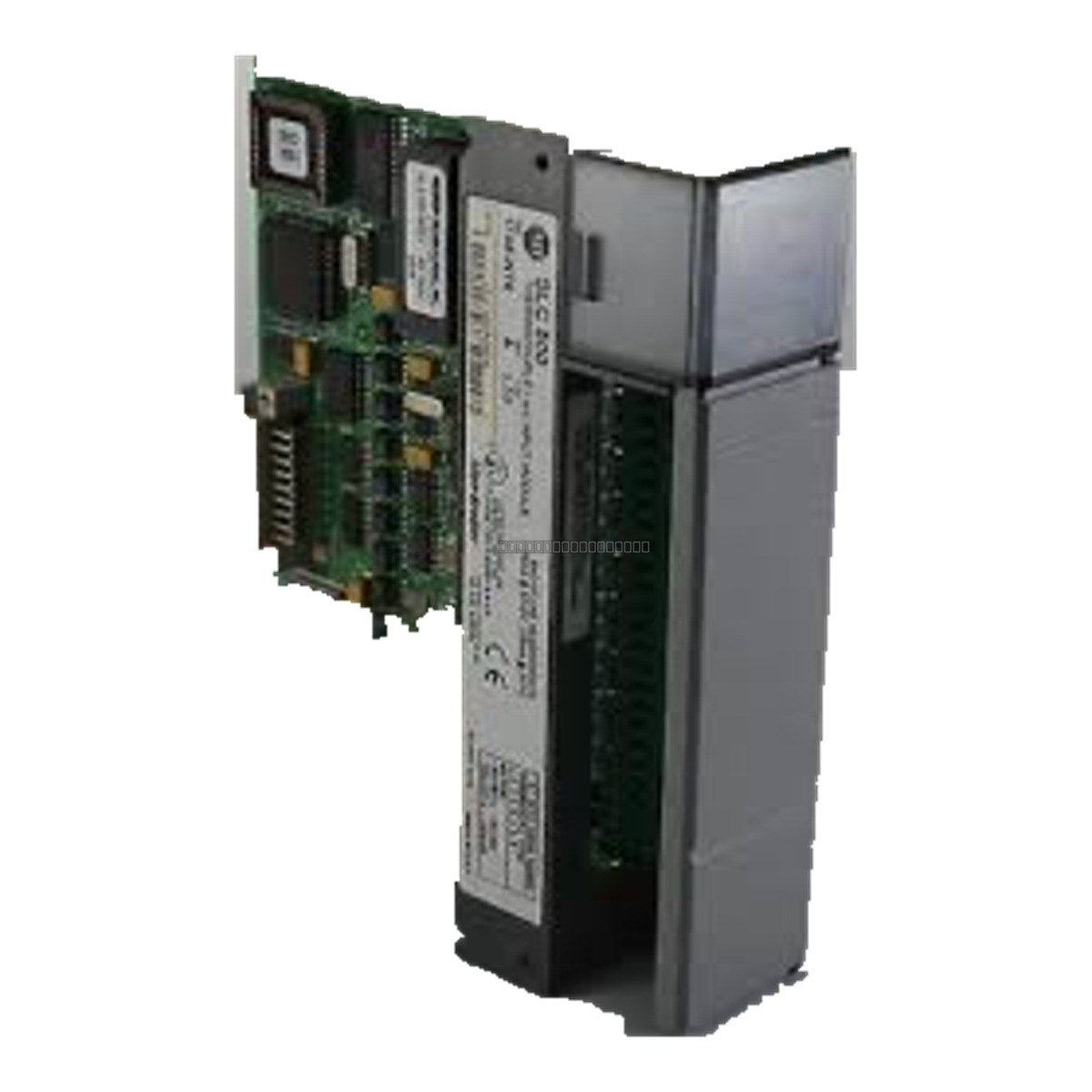

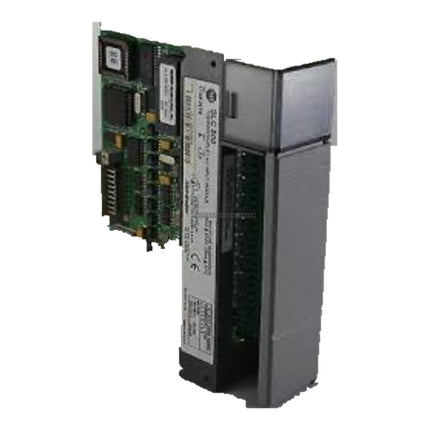

The Allen-Bradley 1746-IV8 is a high-performance discrete DC input module engineered for the SLC 500 programmable controller series. This module provides eight (8) current-sourcing input channels, designed to interface seamlessly with sinking (NPN) field devices such as proximity sensors, limit switches, and pushbuttons. It serves as a critical bridge between industrial field signals and the SLC 500 processor, ensuring reliable data acquisition in demanding automation environments.
Features
- Eight (8) independent current-sourcing input channels.
- Nominal operating voltage of 24V DC, compatible with a wide 10-30V DC range.
- Integrated status LEDs for each channel, providing real-time visual diagnostics.
- Standard 8 ms signal delay for both ON and OFF transitions to mitigate signal noise and contact bounce.
- Compact, modular design specifically for SLC 500 I/O chassis mounting.
Applications
The 1746-IV8 is widely utilized in factory automation, process control, and machine monitoring systems. It is ideal for applications requiring the integration of multiple DC-powered field devices into a centralized control architecture, including conveyor control, assembly line monitoring, and safety-interlocked machine operation.
Technical Specifications
| Brand |
Allen-Bradley |
| Product Line |
SLC 500 |
| Module Type |
Digital DC Input (Sourcing) |
| Number of Inputs |
8 (1 group of 8) |
| Nominal Voltage |
24V DC |
| Operating Range |
10-30V DC |
| Max Off-State Voltage |
5.0V DC |
| Max Off-State Current |
1 mA |
| Nominal Input Current |
8 mA @ 24V DC |
| Backplane Current (5V) |
50 mA |
| Signal Delay |
8 ms (ON/OFF) |
| Operating Temperature |
0 to 60 degC (32 to 140 degF) |
Installation Guidelines
- Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
- Align the module carefully with the chassis slot guides to prevent damage to the backplane connector.
- Secure the module using the top and bottom retaining screws to ensure proper grounding and mechanical stability.
- Route signal wiring away from high-voltage AC lines and high-EMI sources to prevent signal interference.
- Use shielded cabling for long runs to maintain signal integrity.
- Verify that field device polarity matches the sourcing configuration of the module (NPN/sinking devices).
FAQ
What is the primary function of the 1746-IV8?
The 1746-IV8 is a digital input module that detects 24V DC signals from field devices and converts them into logic levels for the SLC 500 PLC processor.
Is this module compatible with sinking field devices?
Yes, the 1746-IV8 is a current-sourcing module, which means it is designed to work with sinking (NPN) field devices.
What does the 8 ms signal delay do?
The 8 ms delay acts as a hardware filter, preventing the PLC from registering false triggers caused by electrical noise or mechanical contact bounce in field switches.
