Keterangan

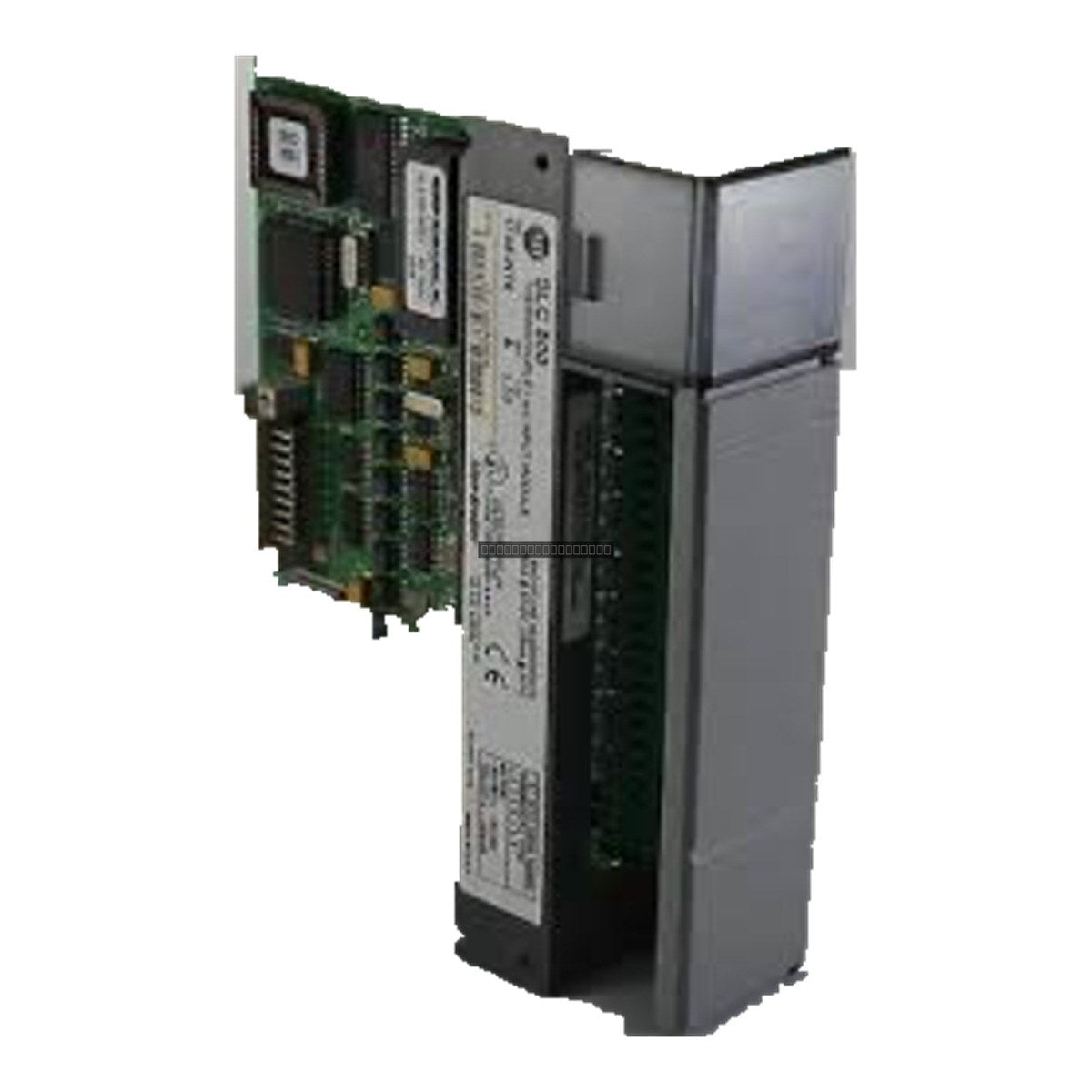

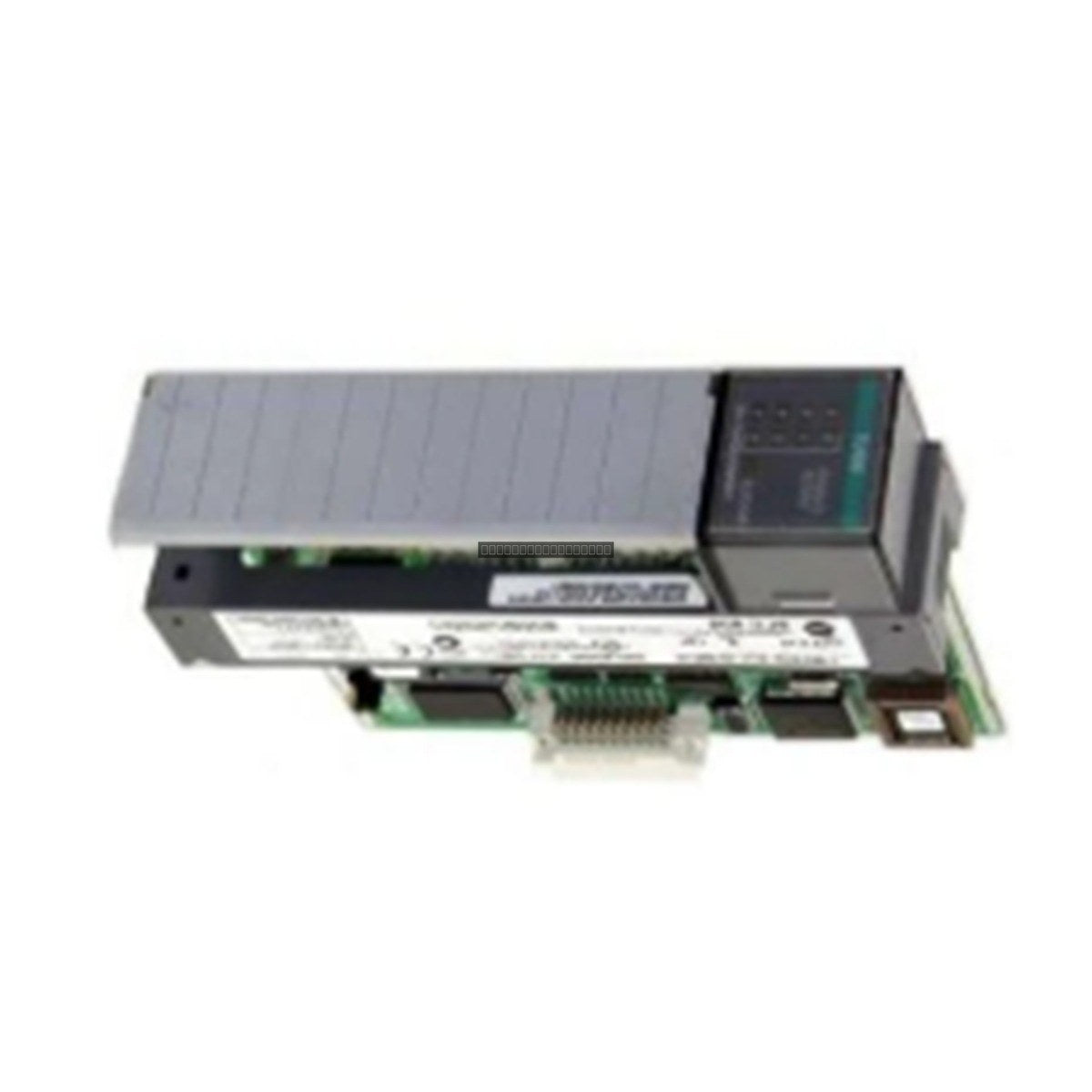

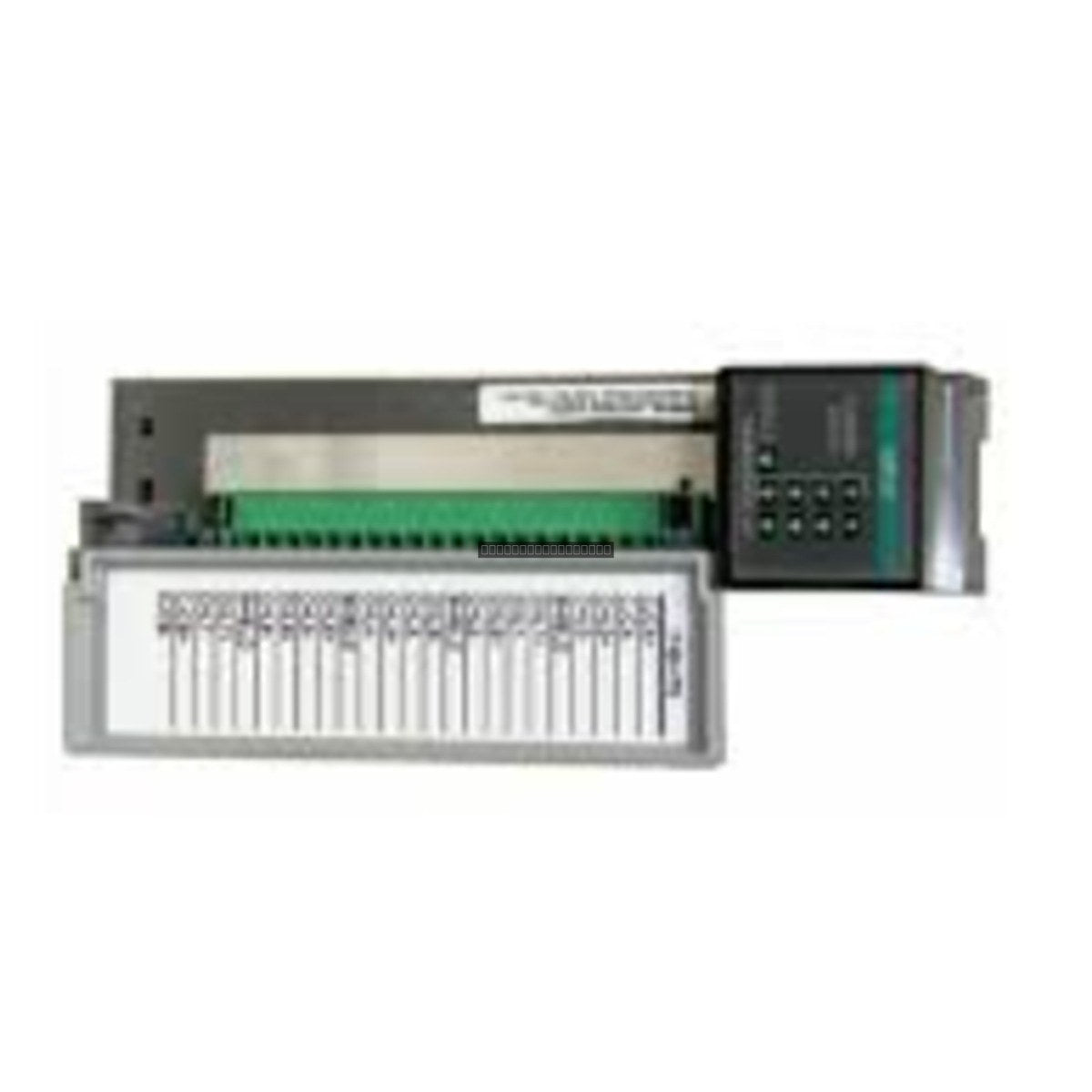

The Allen-Bradley 1746-HSRV is a specialized servo control module designed for the SLC 500 programmable controller system. This module provides precise motion control capabilities by outputting an analog velocity command, allowing for seamless integration with a variety of Rockwell Automation servo drives and motion control components.
Features
- Single-slot module design for efficient SLC 500 chassis utilization.
- Provides one analog velocity command output with programmable limits up to +/- 10 V DC.
- Features 3 integrated 24 VDC inputs for status monitoring or feedback.
- Supports flexible integration with standard Rockwell Automation servo drive interfaces.
Applications
This module is primarily utilized in industrial motion control applications where precise velocity regulation is required. It is commonly deployed in packaging machinery, material handling systems, and automated assembly equipment where SLC 500 platforms manage coordinated motion.
Technical Specifications
| Model |
1746-HSRV |
| Module Type |
Servo Control Module |
| Inputs |
3 x 24 VDC |
| Outputs |
1 x Analog Velocity Command (+/- 10 V DC) |
| Slot Requirement |
Single Slot |
| Operating Temperature |
0 to 60 degC (32 to 140 degF) |
| Storage Temperature |
-40 to 85 degC (-40 to 185 degF) |
| Relative Humidity |
5 to 95% (non-condensing) |
Installation Guidelines
- For optimal performance and to minimize signal interference, install the 1746-HSRV module as close as possible to the processor in the SLC 500 chassis.
- Ensure the system power is disconnected before inserting or removing the module from the backplane to prevent electrical damage.
- Verify that all field wiring is properly shielded to protect the analog velocity command signal from electromagnetic noise.
- Maintain proper ventilation in the control cabinet to ensure operating temperatures remain within the specified 0 to 60 degC range.
FAQ
Is the 1746-HSRV compatible with all SLC 500 processors?
The module is designed for the SLC 500 series, but compatibility should be verified against your specific processor firmware and chassis power supply capacity.
What is the primary function of the analog output?
The output provides a programmable +/- 10 V DC signal used to command the velocity of an external servo drive system.
