Description

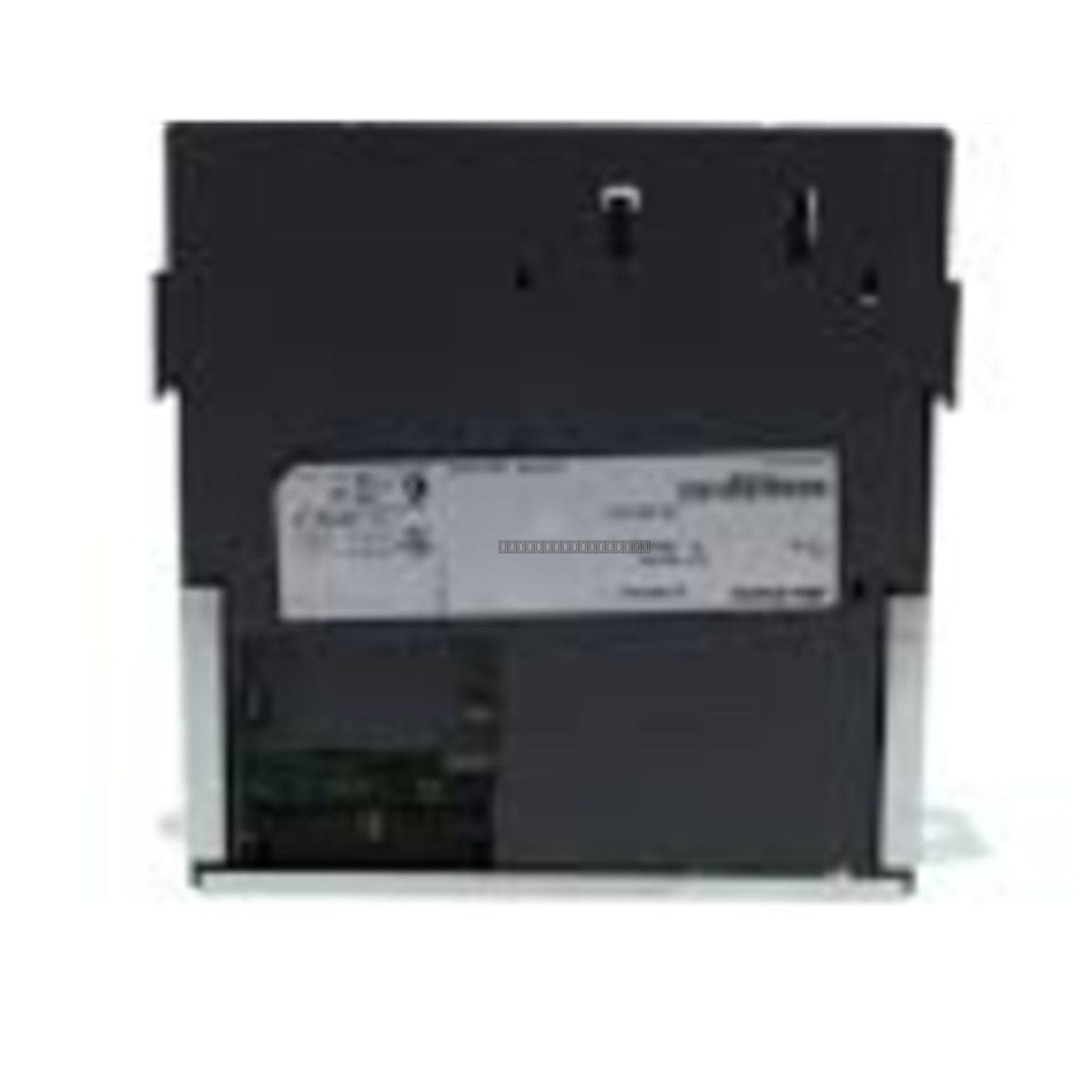

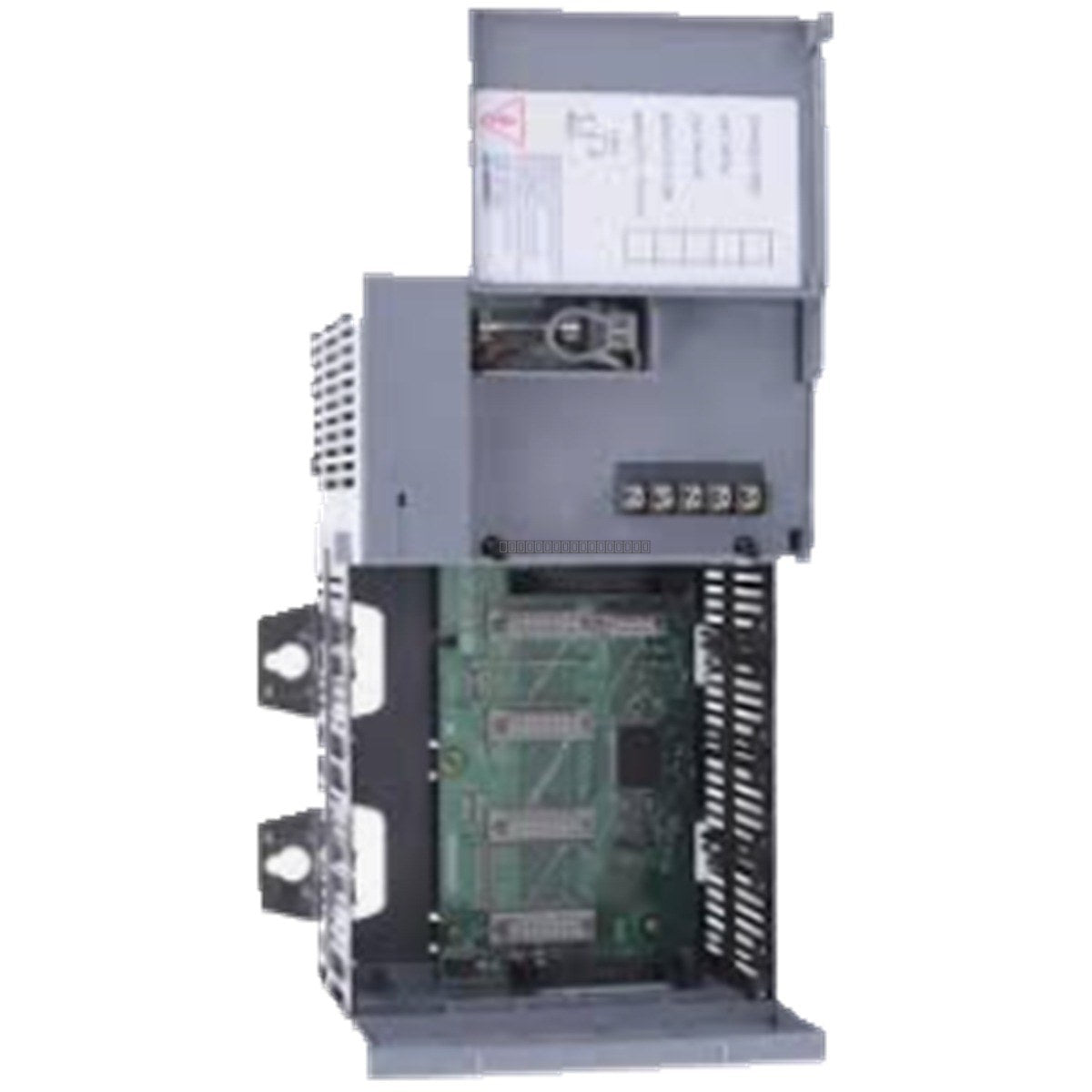

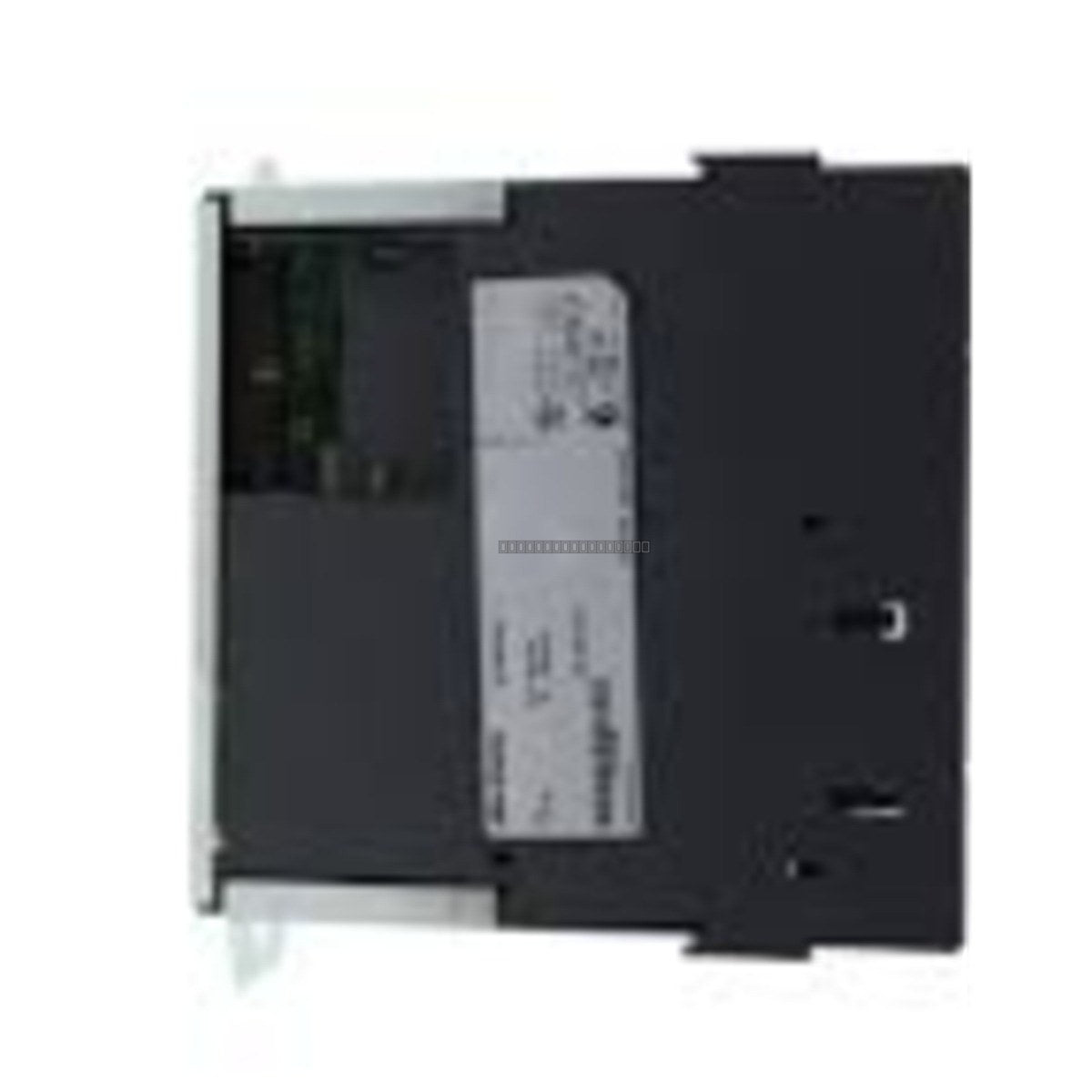

The Allen-Bradley 1746-A4 is a 4-slot modular chassis designed to house and provide backplane communication for the SLC 500 series programmable logic controller systems. It serves as the physical and electrical backbone of the PLC assembly, facilitating the integration of one processor (typically in Slot 0) and up to three additional I/O or specialty modules. Its compact form factor is ideal for small-scale automation tasks, distributed I/O, or as a remote expansion rack in larger control architectures.
Features
-
Modular Design: Provides 4 slots for flexible configuration of processors, I/O modules, and specialty communication or motion modules.
-
Scalability: Supports expansion via 1746 series interconnect cables (e.g., 1746-C7), allowing for the linkage of up to three chassis in a single local system.
-
Robust Backplane: Integrated backplane bus ensures high-speed communication between the processor and all installed modules.
-
Compact Footprint: Optimized for space-constrained control cabinets and machine-mount applications.
Applications
The 1746-A4 is widely utilized in industrial automation environments requiring the SLC 500 control platform, including machine control, process monitoring, and small-scale manufacturing line automation. It is commonly deployed in both standalone configurations and as part of a multi-rack expansion system.
Technical Specifications
| Brand |
Allen-Bradley |
| Product Line |
SLC 500 |
| Slot Capacity |
4 Slots (Slot 0 reserved for Processor/Adapter) |
| Mounting Type |
Panel Mount (4 mounting tabs) |
| Backplane Voltage |
5.1V DC and 24V DC |
| Max Backplane Current (5.1V) |
10 Amps |
| Max Backplane Current (24V) |
2.88 Amps |
| Expansion Support |
Up to 3 total linked chassis |
| Operating Temperature |
0 to 60 degC (32 to 140 degF) |
Installation Guidelines
-
Mounting: Secure the chassis to a flat, grounded metal panel using all four mounting tabs to ensure structural stability and proper electrical bonding.
-
Grounding: Ensure the chassis is properly connected to a common system ground via the mounting screws to mitigate EMI and ensure safety.
-
Module Insertion: Always power down the system before inserting or removing any I/O or processor modules to prevent damage to the backplane connectors.
-
Environment: Maintain adequate clearance around the chassis for heat dissipation and airflow; avoid installation near high-EMI sources or excessive vibration.
-
Cabling: When linking multiple chassis, use approved 1746 interconnect cables and ensure they are routed away from high-voltage power lines.
FAQ
Is the 1746-A4 compatible with all SLC 500 processors?
Yes, the 1746-A4 is designed to support the standard SLC 500 processor family. Ensure the processor is installed in the designated Slot 0 position for proper backplane initialization.
Can I mix different types of I/O modules in this chassis?
Yes, the 1746-A4 backplane supports a mix of digital I/O, analog I/O, and specialty modules, provided the total power consumption of the modules does not exceed the chassis backplane current ratings.
