Keterangan

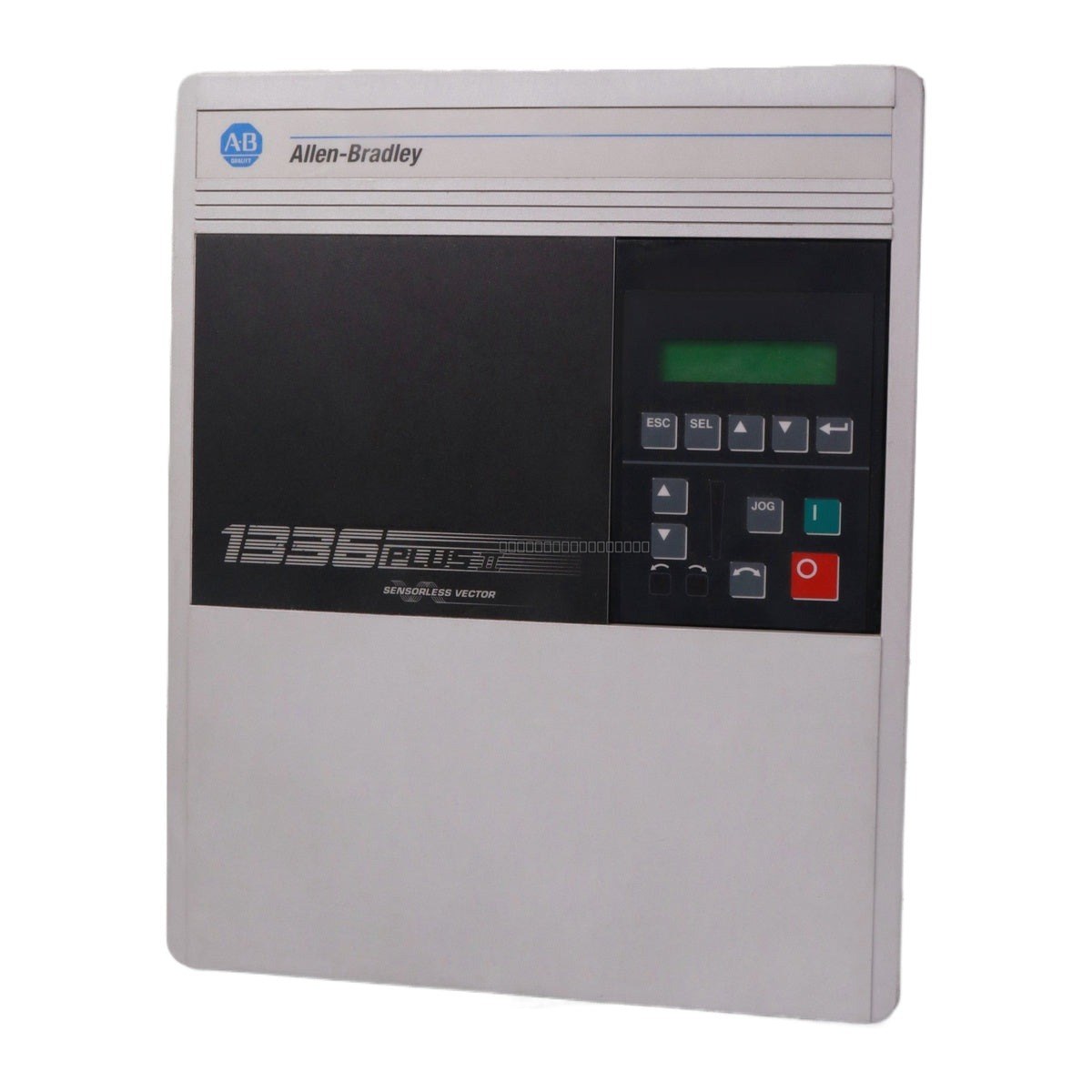

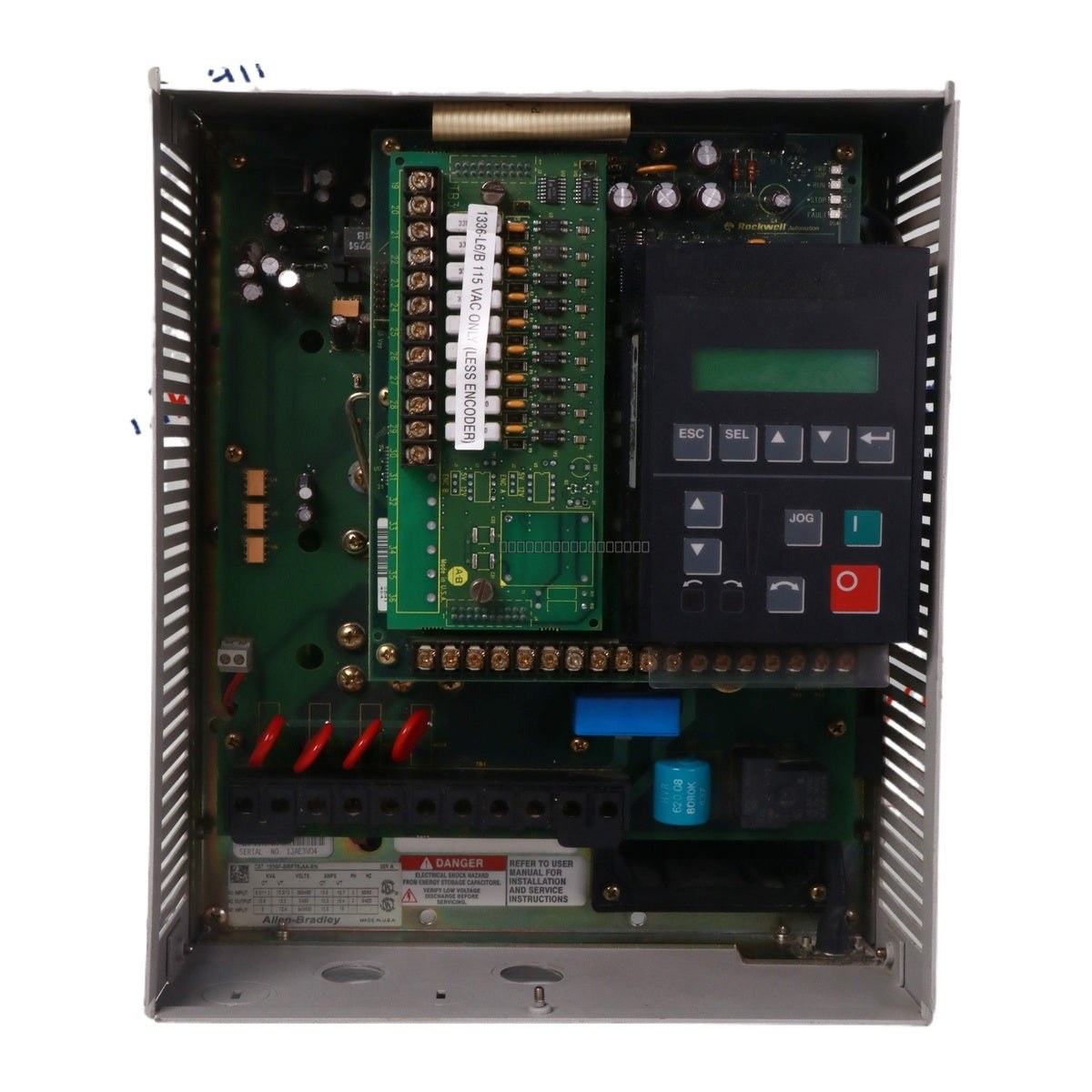

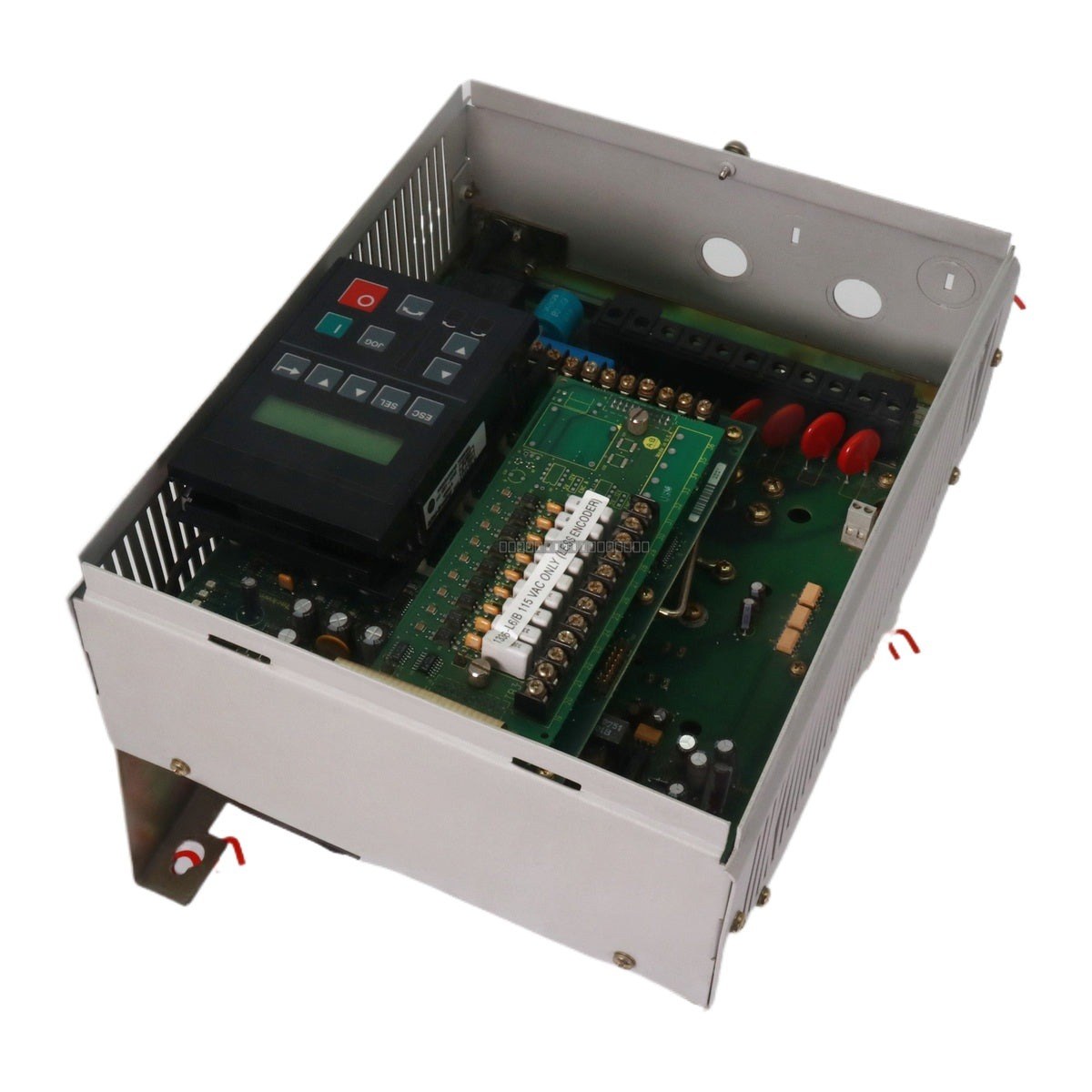

The Allen-Bradley 1336F-BRF75-AA-EN is a member of the 1336 PLUS II series of adjustable frequency AC drives. Designed for precise motor control in industrial environments, this unit provides reliable performance for a wide range of variable speed applications. Please note that this product has been discontinued by the manufacturer.
Features
- Adjustable frequency control for optimized motor performance
- Input voltage range: 380-480V AC or 513-620V DC
- Power rating: 5.5 kW / 7.5 HP
- Enclosure rating: IP20 / NEMA 1
- Frame size: A4
Technical Specifications
| Manufacturer |
Allen-Bradley |
| Series |
1336 PLUS II |
| Model Number |
1336F-BRF75-AA-EN |
| Power Rating |
5.5 kW / 7.5 HP |
| Input Voltage |
380-480V AC / 513-620V DC |
| Enclosure Type |
IP20 / NEMA 1 |
| Frame Size |
A4 |
Installation Guidelines
- Ensure the drive is mounted in a vertical position to allow for proper heat dissipation.
- Maintain adequate clearance around the unit for airflow; refer to the user manual for specific spacing requirements.
- Verify that the input power supply matches the voltage specifications of the drive before connection.
- Ensure all wiring is properly shielded and grounded to minimize electromagnetic interference (EMI).
- Always disconnect and lock out power before performing any installation, wiring, or maintenance tasks.
- Handle the unit with care to avoid damage to internal components; use ESD-safe practices when handling the drive electronics.
FAQ
Is the 1336F-BRF75-AA-EN still in production? No, this model has been discontinued by Allen-Bradley. We provide refurbished or surplus units to support legacy systems.
What is the enclosure rating for this drive? This unit features an IP20 / NEMA 1 enclosure, suitable for indoor use in controlled environments.
