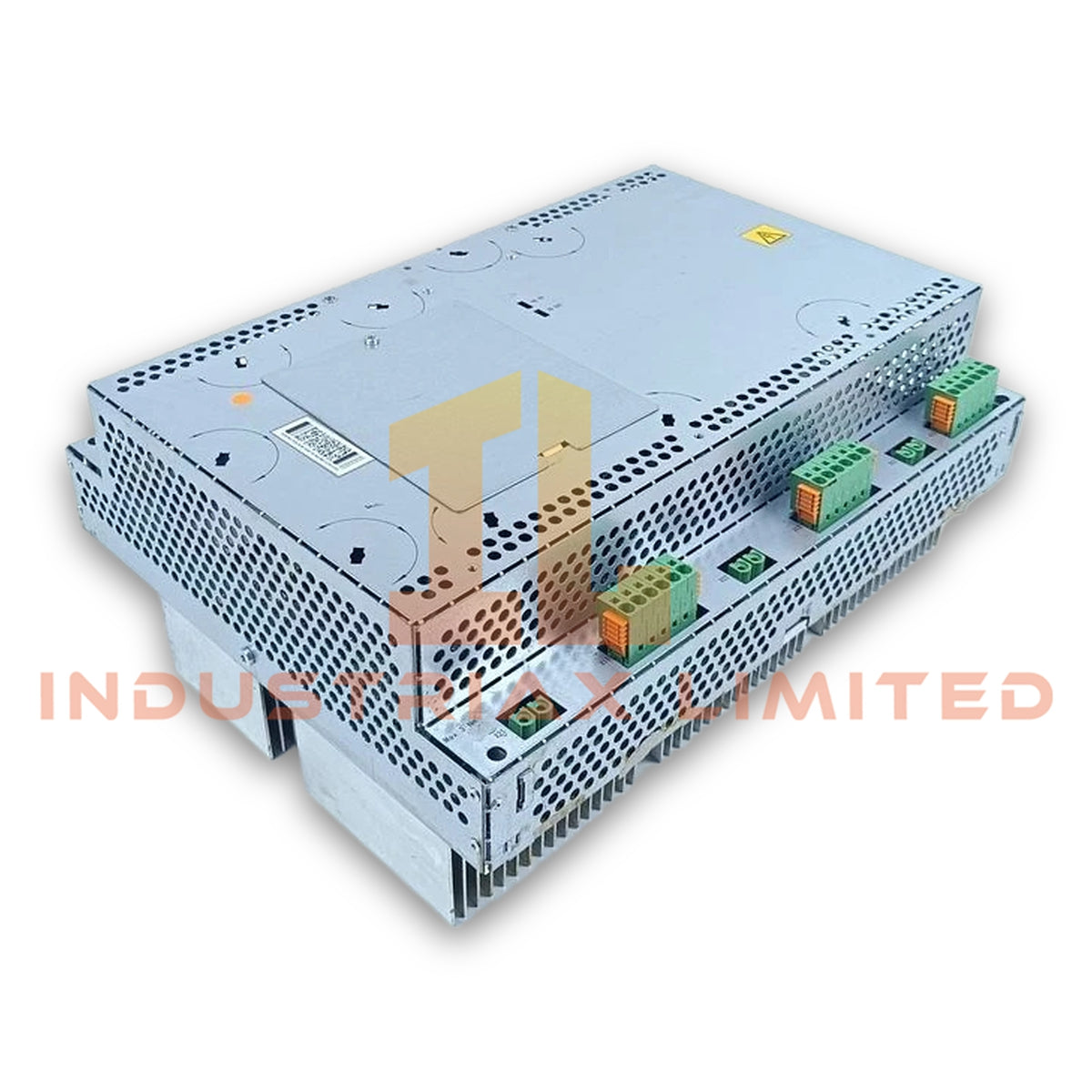

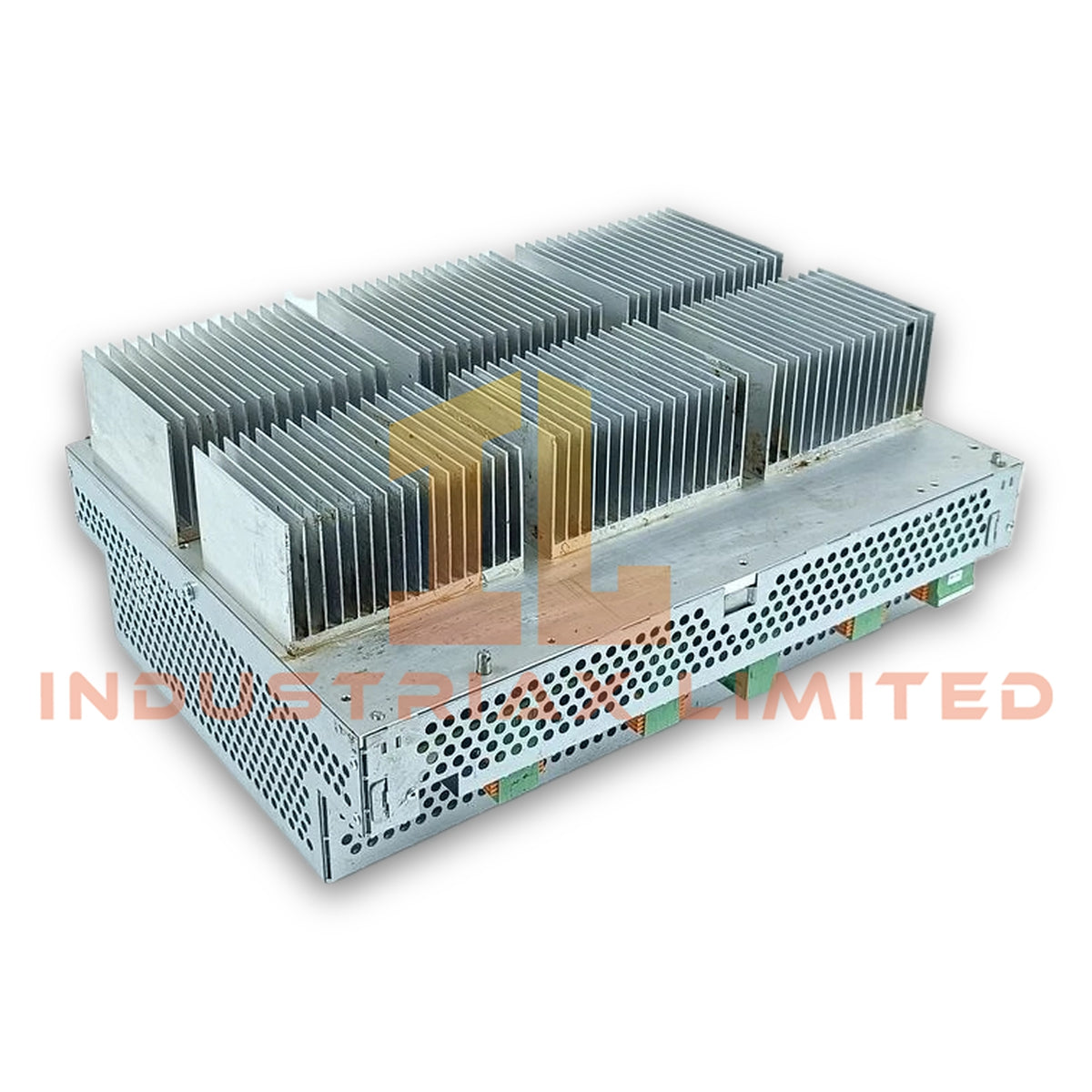

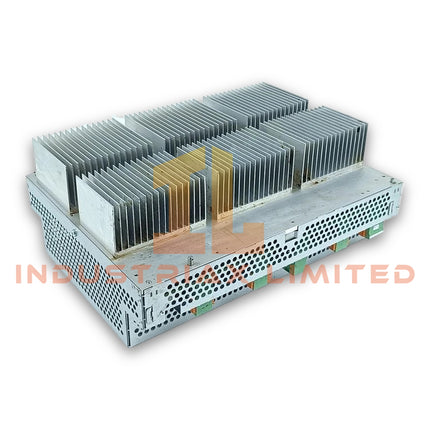

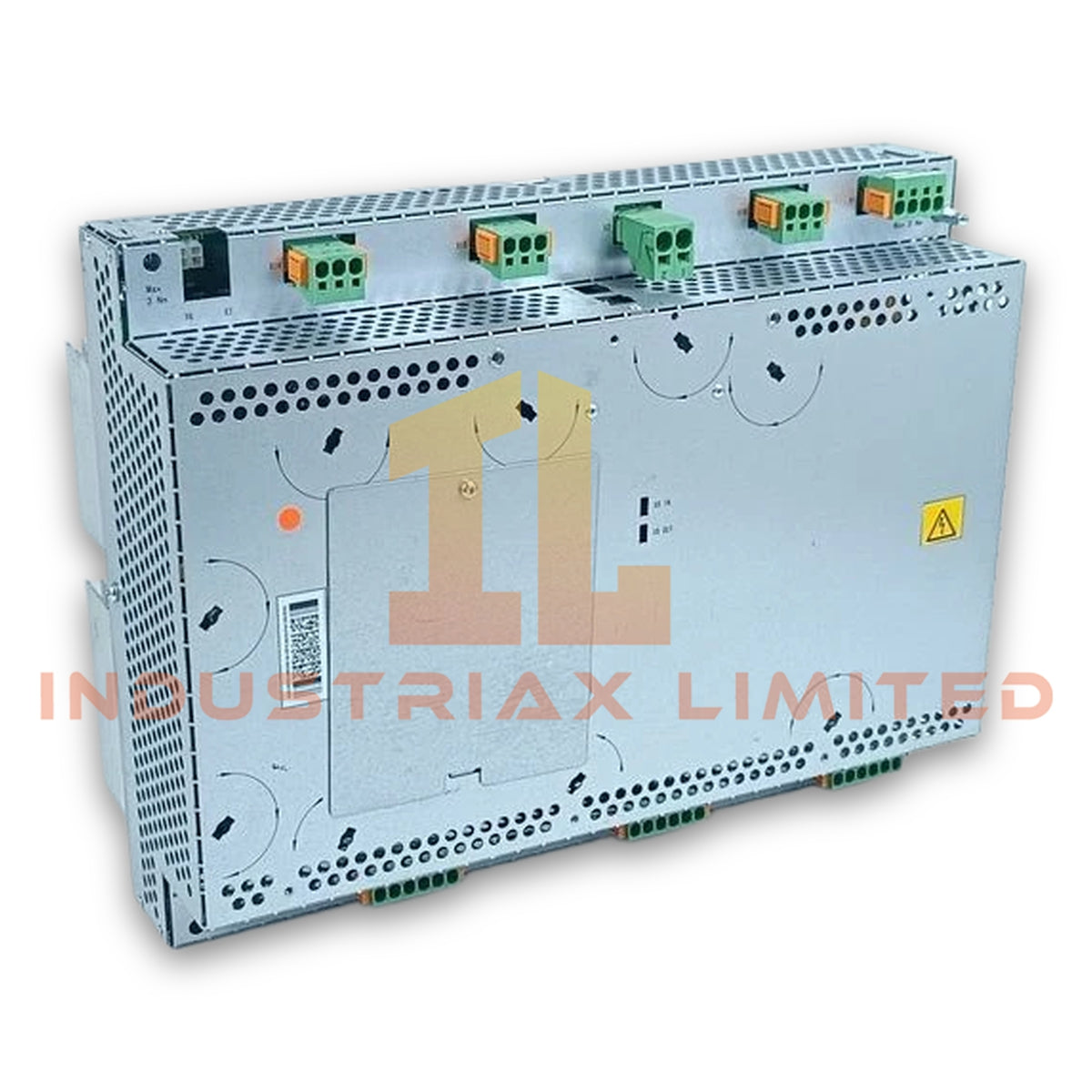

ABB DSQC663 3HAC029818-001 Drive Unit
The ABB DSQC663 3HAC029818-001, also cataloged as the 3HAC029818-001 Drive Unit, operates as a dedicated hardware component for AC motor drive control and power conversion within ABB robot controller platforms.
Hardware Specifications
Parameter
Specification
Model
DSQC663 3HAC029818-001
Brand
ABB
Product Type
Drive Unit
Spare Model
3HAC029818-001
Origin
Sweden
Weight
12.45 kg
Dimensions
43.5 x 33.5 x 18.3 cm
Operating Temp
0 deg C to +55 deg C
Storage Temp
-25 deg C to +70 deg C
Power Consumption
15-45 kVA power rating
Supply Voltage
3-phase AC
DC Link Voltage
600-800 V DC
Output Current
50-100 A
Humidity
5-95% RH non-condensing
Tariff Code
8537101190
ABB Drive Control and Backplane Integration
The ABB DSQC663 drive unit manages AC motor power conversion and DC link energy distribution inside ABB robotic control systems. The module receives three-phase AC input power and provides controlled output current for servo motor operation.
Additionally, the drive unit integrates with ABB controller backplane communication structures to exchange control commands, feedback signals, and operational status data. Therefore, correct firmware compatibility and controller configuration are required during replacement procedures.
The DSQC663 supports ABB industrial drive architectures with high current output capability. The module design allows integration with servo axis control systems requiring coordinated motion execution and power regulation.
Frequently Asked Questions
Q: What electrical input does the ABB DSQC663 3HAC029818-001 support? A: The DSQC663 accepts three-phase AC supply input and processes power through an internal DC link circuit rated at 600-800 V DC.
Q: What installation conditions apply to the DSQC663 drive unit? A: The module requires installation inside a compatible ABB controller cabinet with appropriate grounding, ventilation, and cable routing practices.
Q: Does the DSQC663 require firmware compatibility checks during replacement? A: Yes. Replacement units should match the controller hardware configuration and firmware requirements to maintain correct drive communication and axis operation.
Field Installation Guidelines
Verify that the cabinet power supply is isolated before removing or installing the drive unit.
Confirm connector positions and cable identification before disconnection.
Maintain proper protective earth grounding between the drive unit chassis and cabinet grounding system.
Route power cables separately from low-level signal cables to reduce electromagnetic interference.
Inspect DC link connections and terminal conditions before system energization.
Follow ABB controller service documentation for parameter loading and functional verification after installation.
