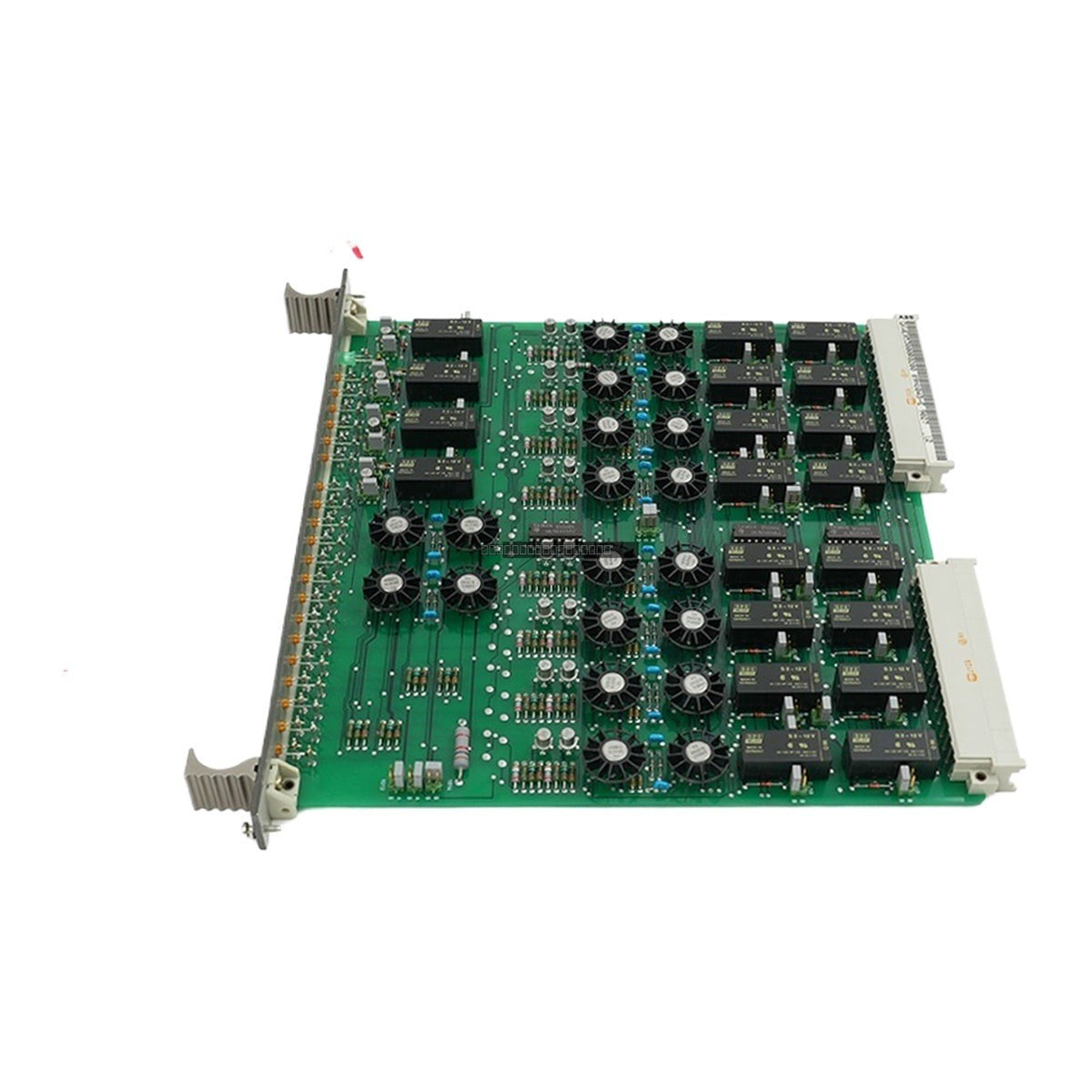

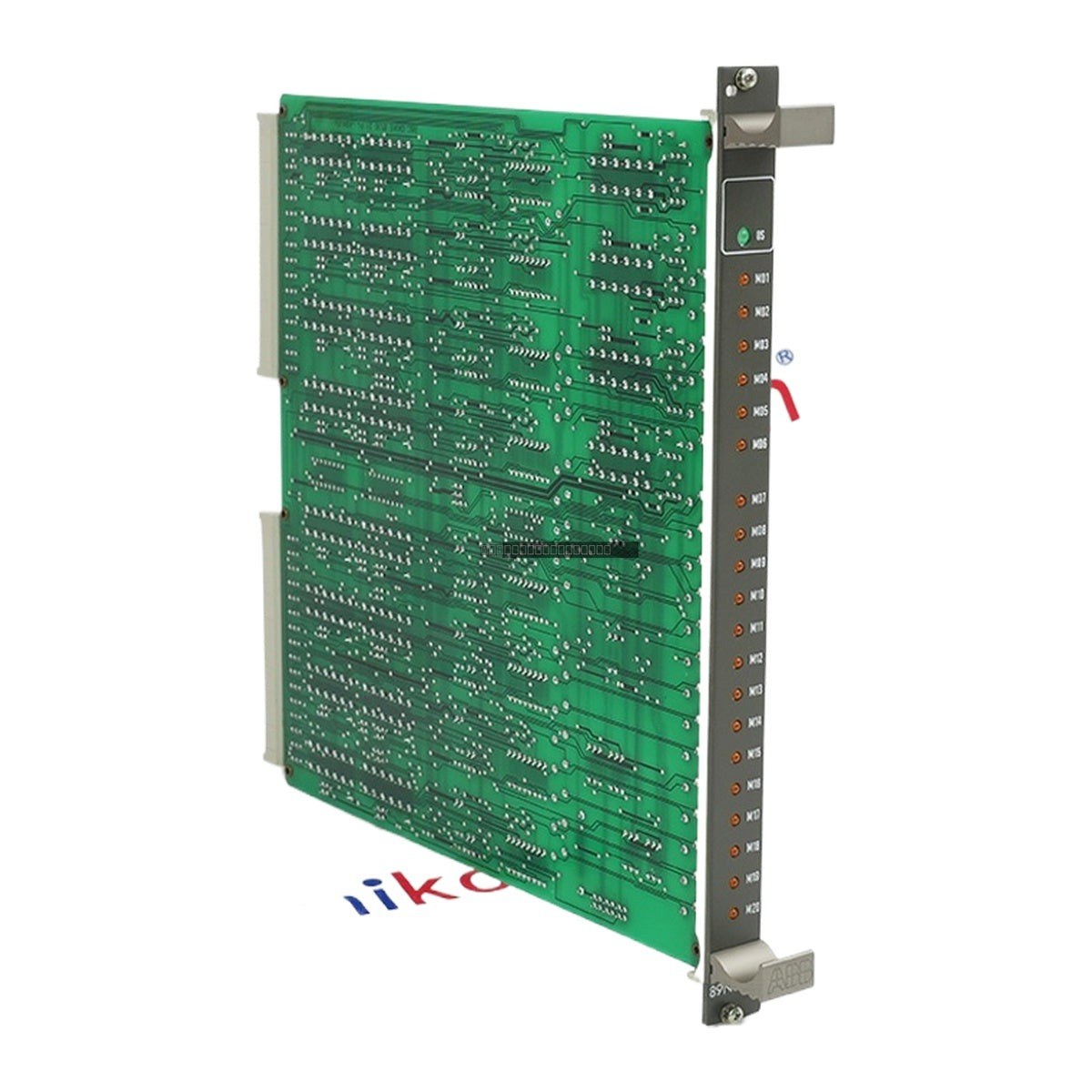

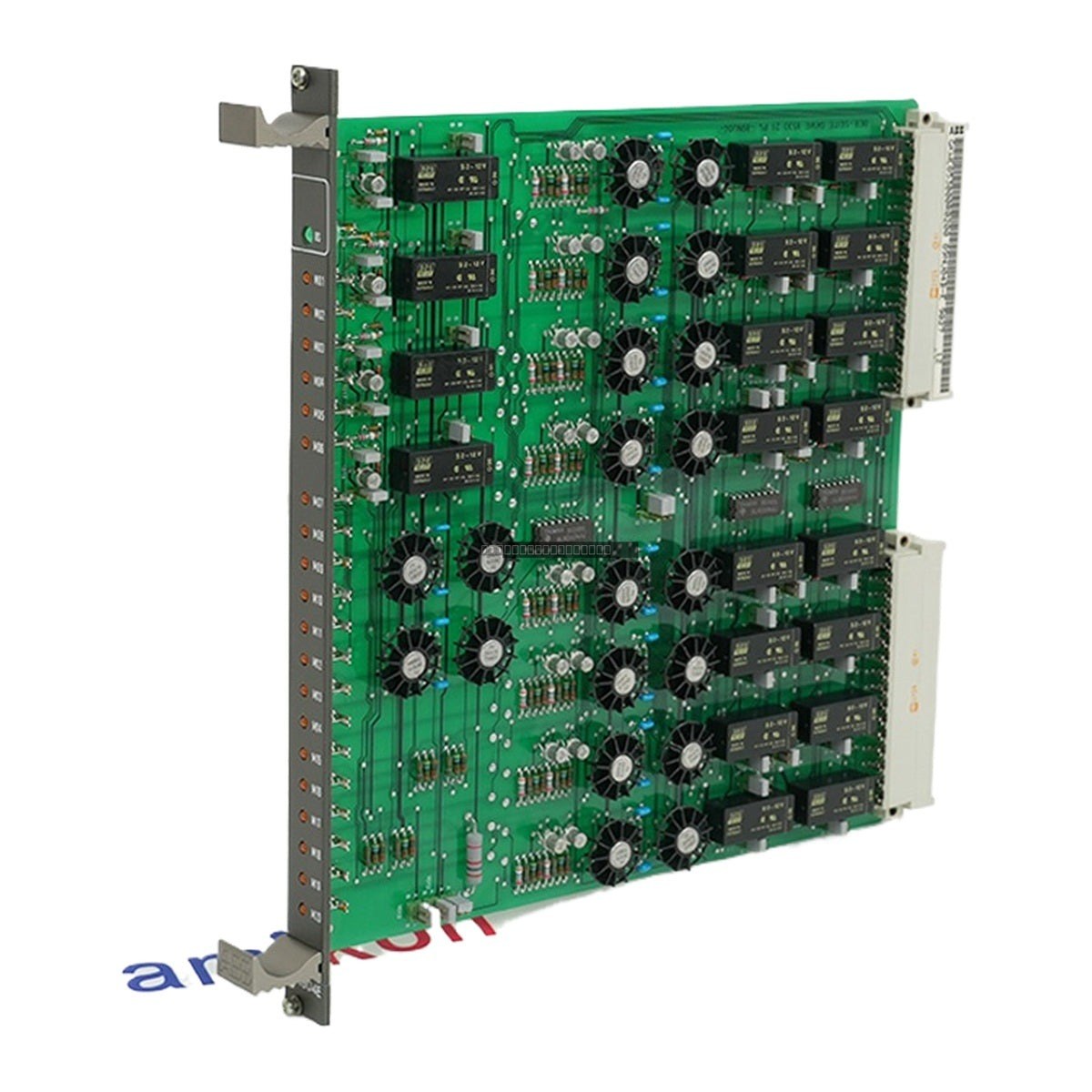

The ABB GKWE853000R0200 (89NU04B-E) is a specialized coupling module engineered for integration within Procontrol P14 and Advant OCS with Master SW industrial automation environments. This module serves as a critical communication interface, facilitating data exchange and monitoring within the control system architecture.
Features
- Designed for Procontrol P14 and Advant OCS system compatibility.
- Supports diagnostic monitoring via mobile or desktop interfaces.
- Provides isolated segment communication for robust signal integrity.
- Features a dedicated front-facing 9-pole (X1) connector for local terminal or PC-based diagnostics.
Applications
This coupling module is primarily utilized in industrial control networks to manage telegram transfers and act as a communication link between field devices and the central control system. It is suitable for environments requiring reliable data processing and system-wide diagnostic visibility.
Technical Specifications
| Model |
GKWE853000R0200 / 89NU04B-E |
| Manufacturer |
ABB |
| System Compatibility |
Procontrol P14, Advant OCS |
| Power Supply |
24 V DC |
| Channels |
2 isolated segments |
| Cable Length |
Max 1,200 m per segment |
| Isolation |
1500 V DC segment-to-segment |
| Operating Temperature |
-20 degC to +70 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Weight |
0.55 kg |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the rack.
- Use shielded cabling for all communication segments to minimize EMI interference, especially when approaching the 1,200 m limit.
- Maintain proper grounding practices for the rack and module chassis to ensure effective isolation.
- Verify that the 9-pole X1 connector is securely seated if utilizing local terminal emulation.
- Ensure adequate ventilation in the cabinet to maintain ambient temperatures within the specified operating range.
FAQ
What are the main functions of the GKWE853000R0200 89NU04B-E?
The module monitors telegram transfers to the PROCONTROL system, manages internal data processing, and provides a communication link for user interfaces via the front-mounted 9-pole X1 connector.
What equipment can be used for the user interface?
A standard terminal (VT100 or higher) or a computer running terminal emulation software can be connected to the X1 interface for system configuration and diagnostics.
Is this module compatible with Advant OCS?
Yes, it is designed for use in both PROCONTROL systems and Advant OCS environments with Master SW.
