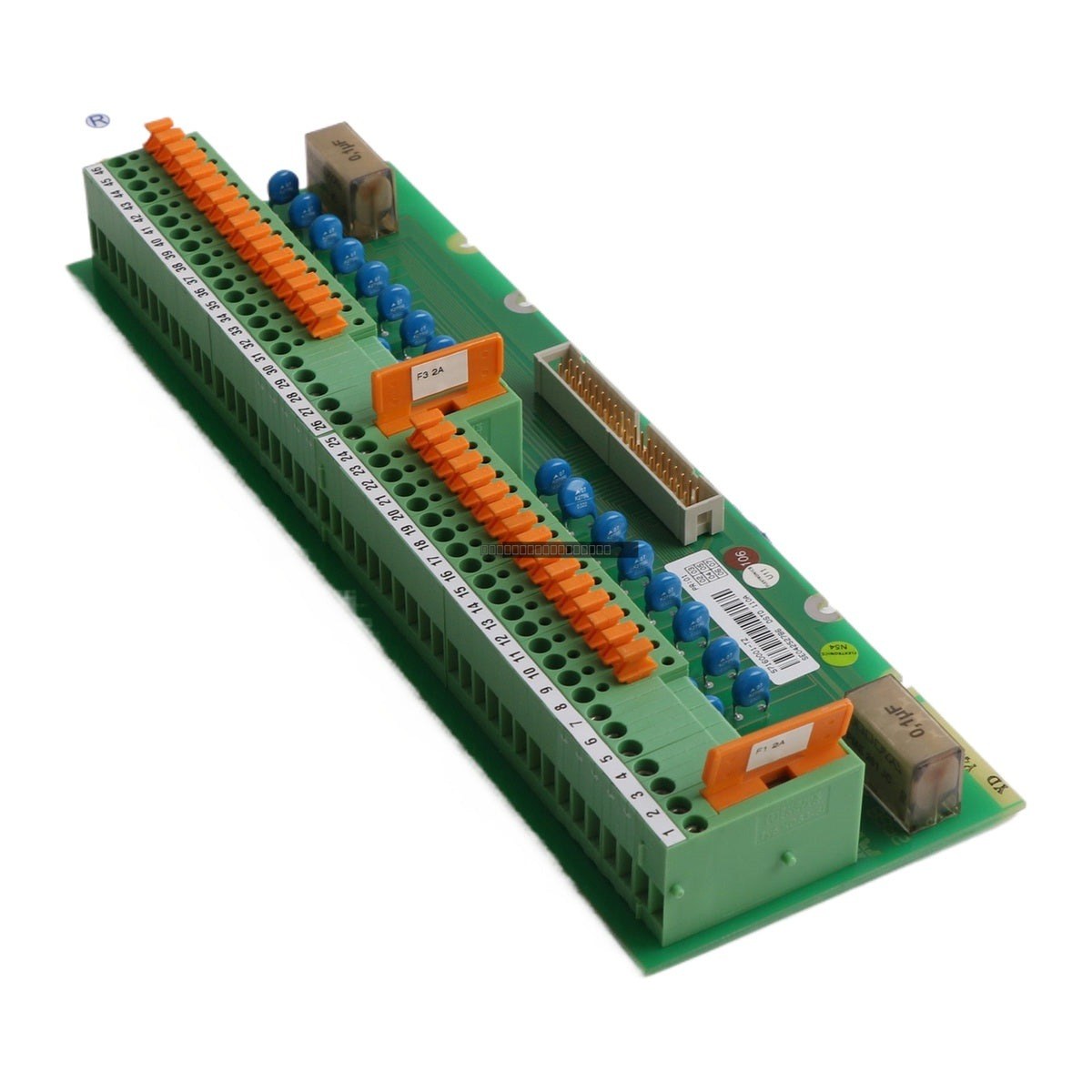

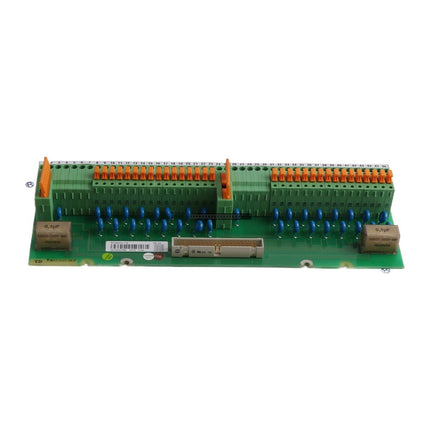

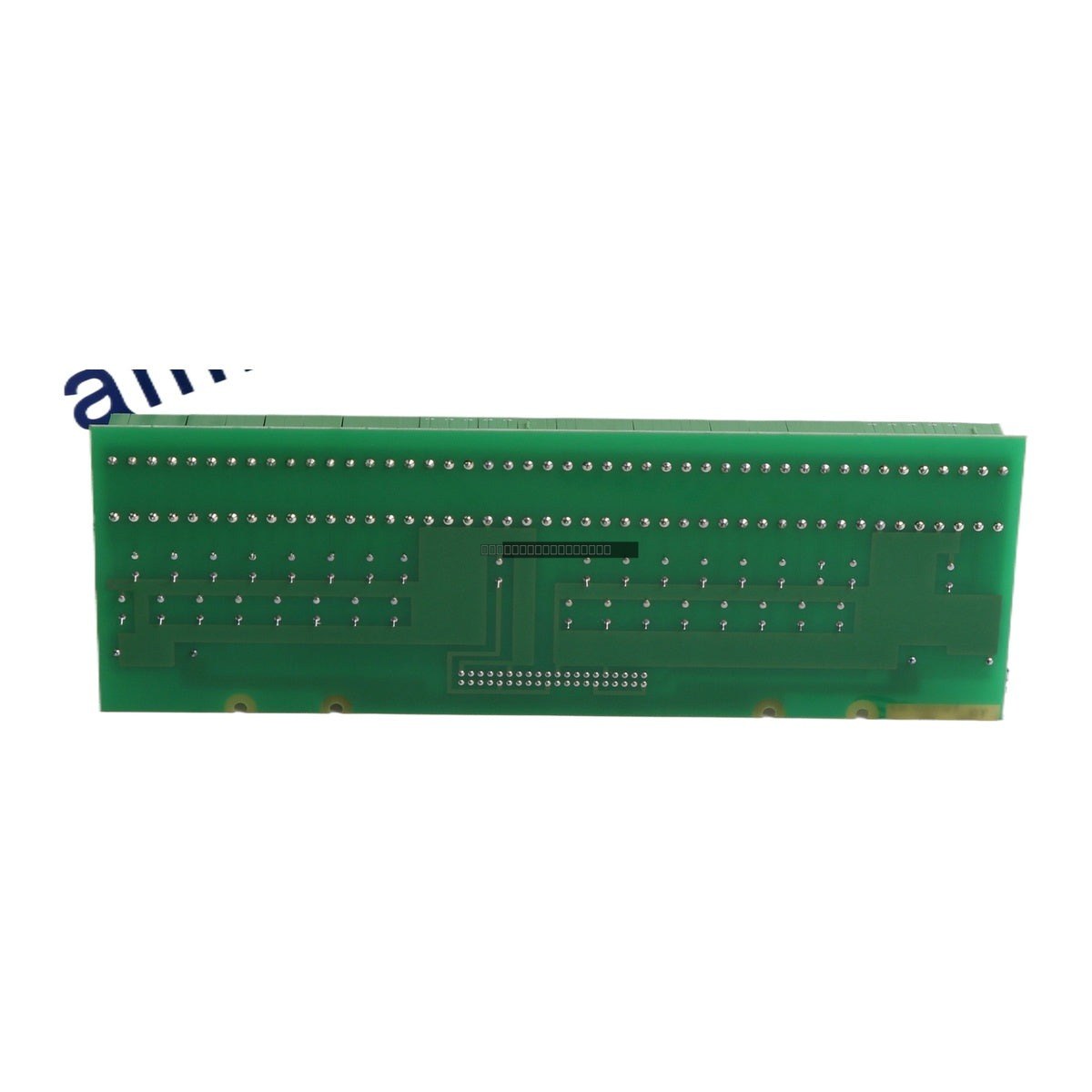

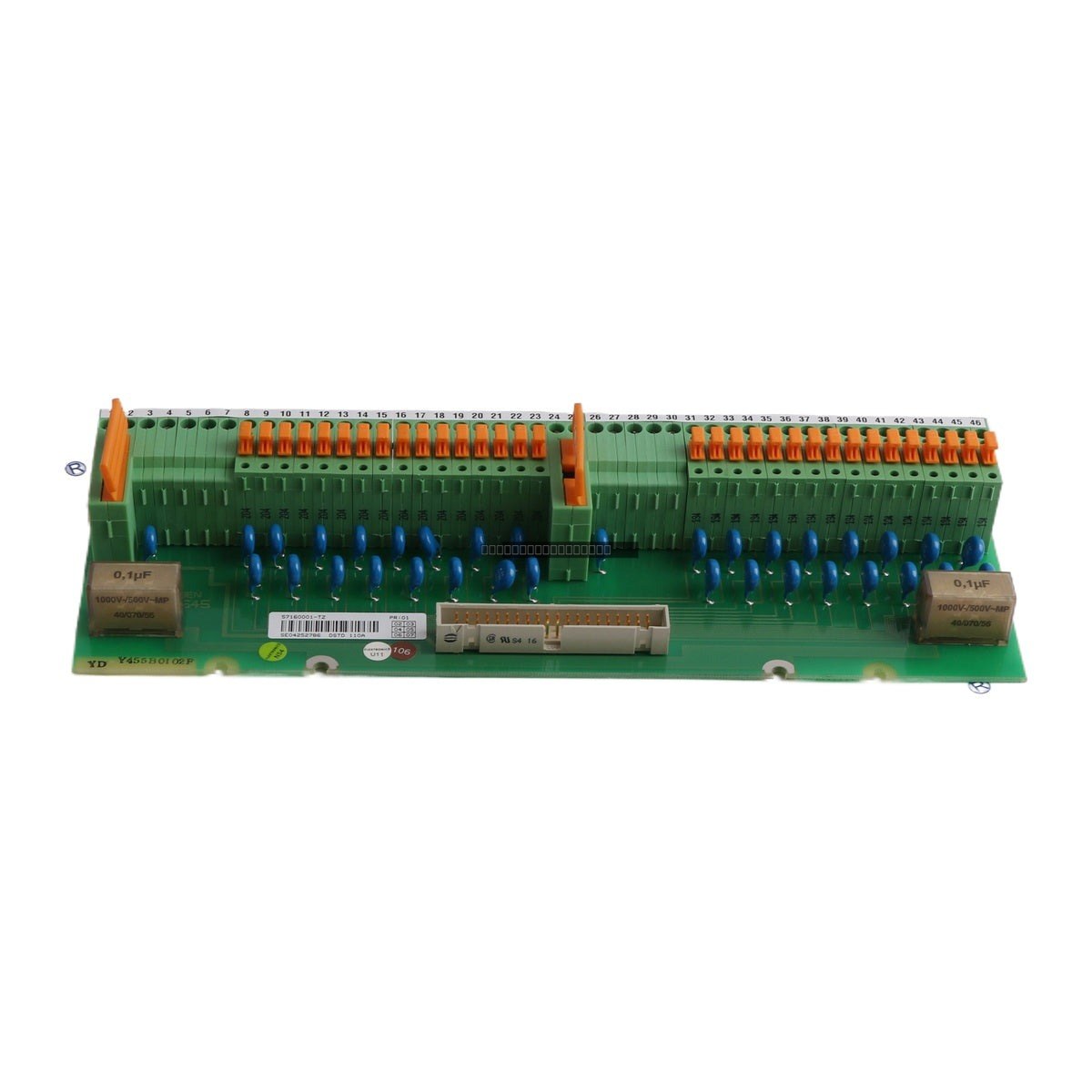

The ABB DSTD110A (57160001-TZ) is a digital output connection unit designed for use within the ABB Master control system architecture. This module serves as a high-density interface for digital output signals, providing robust signal distribution and termination for industrial automation applications.
Features
- 32-channel digital output capacity for high-density control requirements.
- Supports a maximum output voltage of 60 V DC per channel.
- Robust current handling with a capacity of 3 A per channel.
- Total unit continuous current rating of 10 A.
- Galvanic isolation of 500 V DC between channels and the system bus to ensure signal integrity and protection.
- Wide operating temperature range suitable for harsh industrial environments.
Technical Specifications
| Product Model |
DSTD110A 57160001-TZ |
| Channels |
32 Digital Outputs |
| Max Output Voltage |
60 V DC per channel |
| Max Current per Channel |
3 A |
| Total Unit Current |
10 A continuous |
| Isolation |
500 V DC channel-to-bus |
| Operating Temperature |
-25 degC to +70 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Relative Humidity |
5 - 95 % RH (non-condensing) |
Installation Guidelines
- Ensure the system power is completely disconnected before installing or removing the DSTD110A module.
- Mount the unit in a clean, dry environment, ensuring adequate ventilation to maintain operating temperatures within the specified range.
- Use shielded cables for signal wiring to minimize electromagnetic interference (EMI) in high-noise industrial environments.
- Verify that all field wiring connections are secure and properly torqued to prevent intermittent signal loss.
- Handle the module using proper electrostatic discharge (ESD) prevention techniques to avoid damage to internal components.
FAQ
What is the primary function of the DSTD110A?
The DSTD110A is a digital output connection unit used to interface field devices with the ABB Master control system, managing up to 32 digital output channels.
Can this module be used in extreme temperatures?
The module is rated for an operating temperature range of -25 degC to +70 degC, making it suitable for most standard industrial control room and cabinet environments.
