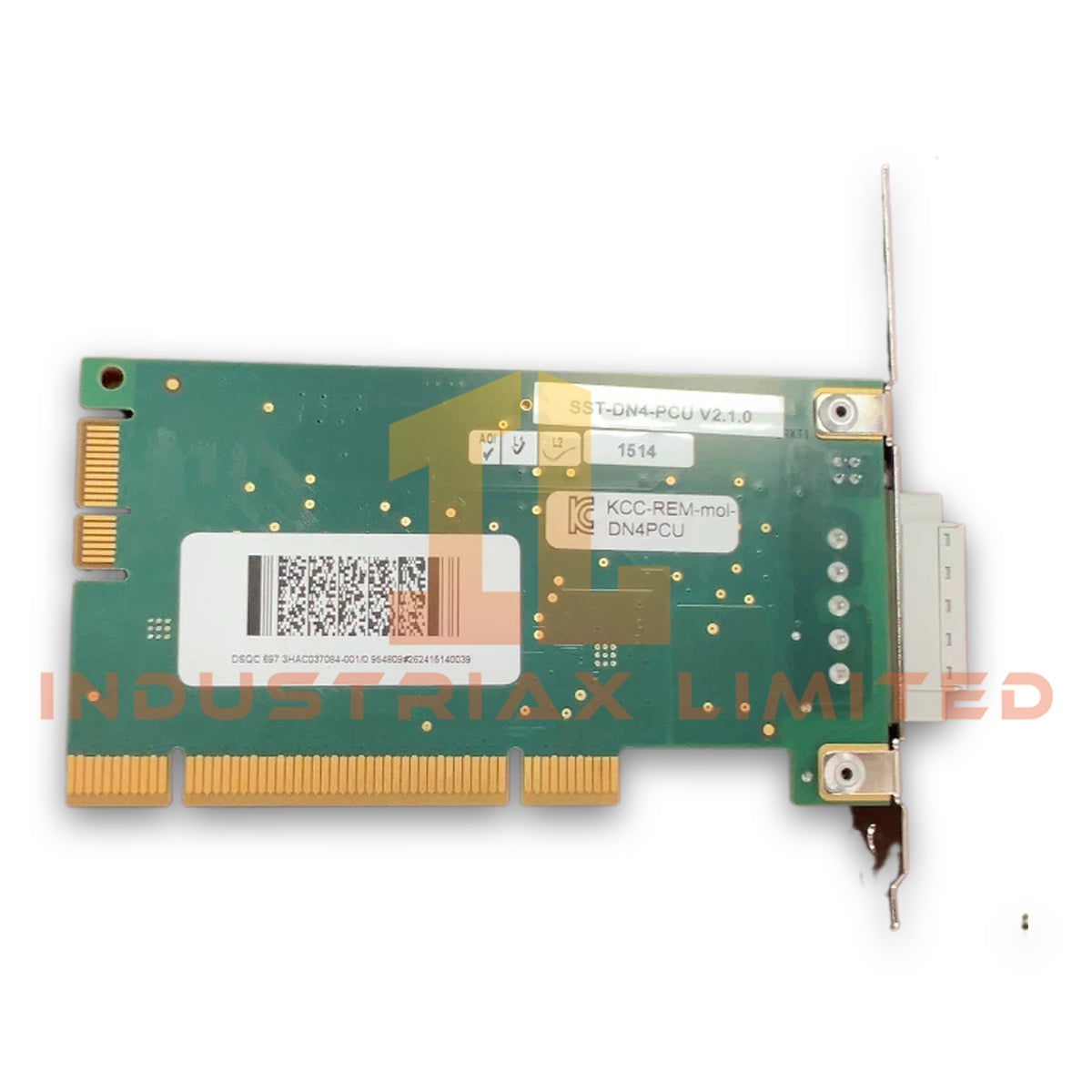

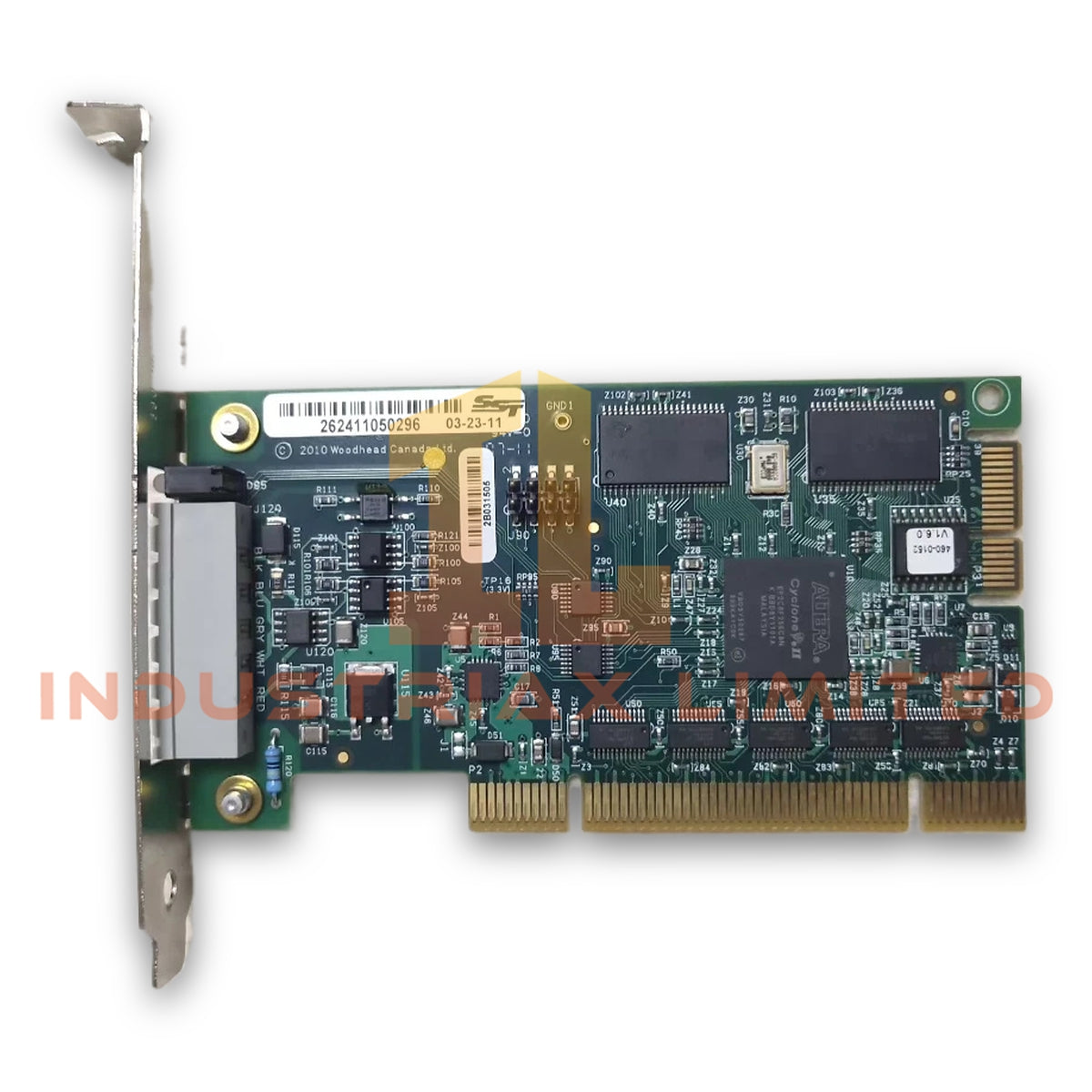

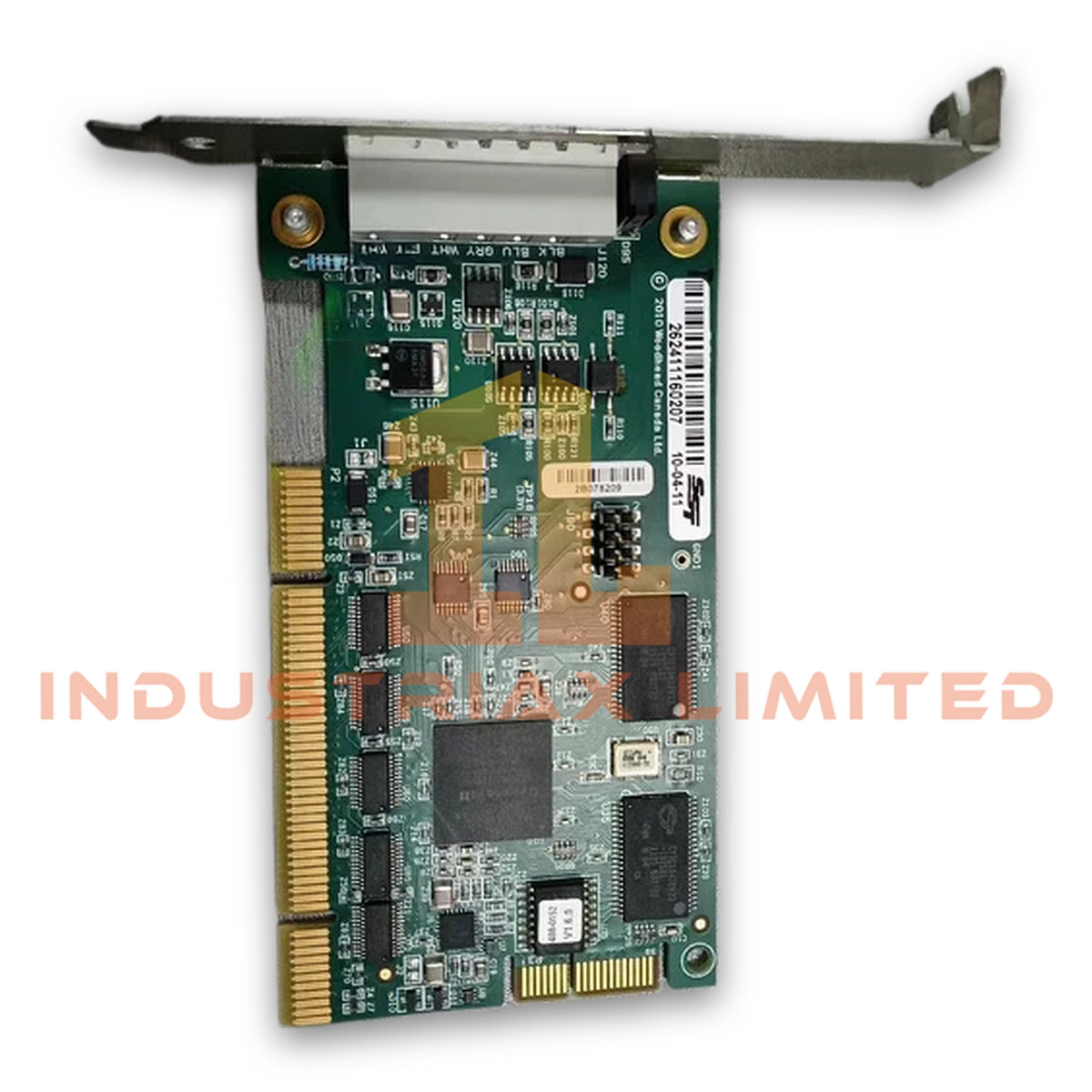

ABB DSQC697 DeviceNet Board 3HAC037084-001
The ABB DSQC697 3HAC037084-001, also cataloged as the DSQC697 DeviceNet Board, operates as a dedicated communication hardware component for DeviceNet data exchange within ABB IRC5 robot controller platforms.
Hardware Specifications
Parameter
Specification
Model
DSQC697 3HAC037084-001
Brand
ABB
Product Type
Robot Communication / Fieldbus Module
Origin
Sweden
Communication Protocol
DeviceNet
Compatible Controller System
ABB IRC5 Industrial Robot Controllers
Component Function
DeviceNet network interface board
Weight
0.04 kg
Dimensions
Approx. 130 mm x 140 mm x 10 mm
Industrial Network Communication and Backplane Integration
The ABB DSQC697 provides DeviceNet communication between ABB robot controllers and external automation devices. The board transfers fieldbus data through the robot controller architecture and supports network expansion for connected industrial equipment.
The module integrates with ABB controller hardware through internal communication interfaces. Therefore, correct firmware compatibility and controller configuration are required before installation. The DeviceNet interface supports deterministic industrial data exchange for robot cells, I/O devices, and automation peripherals.
For ABB industrial control platforms, communication modules depend on backplane bus communication velocity, firmware flash compatibility, and controller configuration parameters. These factors define the supported network behavior and available I/O density scaling within the robot system.
Frequently Asked Questions
Q: Is the DSQC697 compatible with ABB IRC5 robot controllers? A: Yes. The DSQC697 is designed as a DeviceNet communication board for ABB IRC5 industrial robot controller systems.
Q: Does the DSQC697 provide direct connection for external DeviceNet devices? A: Yes. The module provides a DeviceNet communication interface for connecting compatible field devices and automation components.
Q: Does the DSQC697 support hot-swap replacement during controller operation? A: Hot-swap operation depends on the ABB controller hardware configuration. The controller should be powered down before replacing communication boards unless the system documentation specifies otherwise.
Field Installation Guidelines
Verify the ABB controller model and firmware compatibility before mounting the DSQC697 module.
Install the board according to ABB robot controller hardware procedures.
Ensure DeviceNet cable routing avoids high-voltage power lines and sources of electromagnetic interference.
Connect DeviceNet shielding according to industrial grounding practices.
Confirm communication parameters and node configuration before returning the robot system to operation.
Check connector seating and mechanical fixation after installation.
