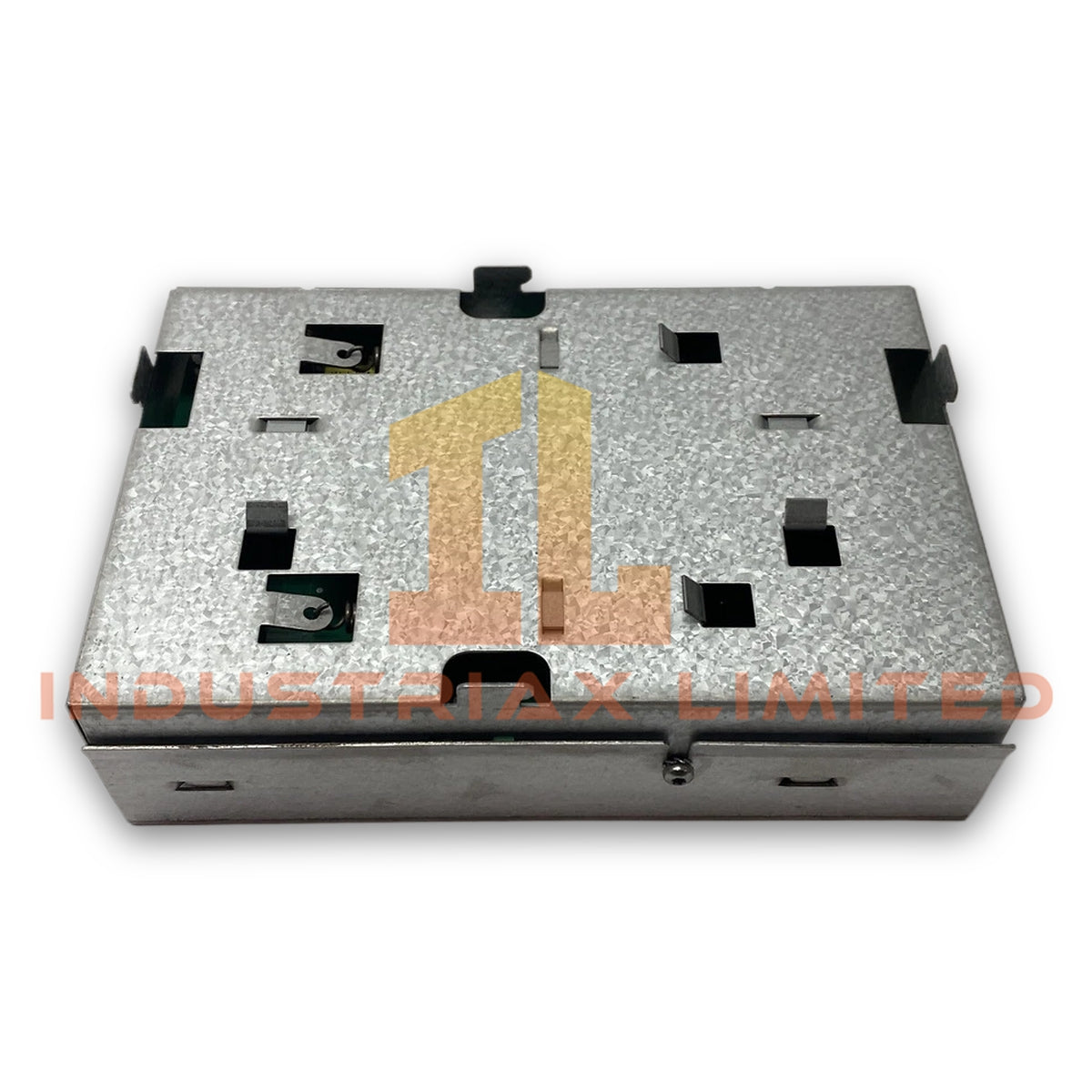

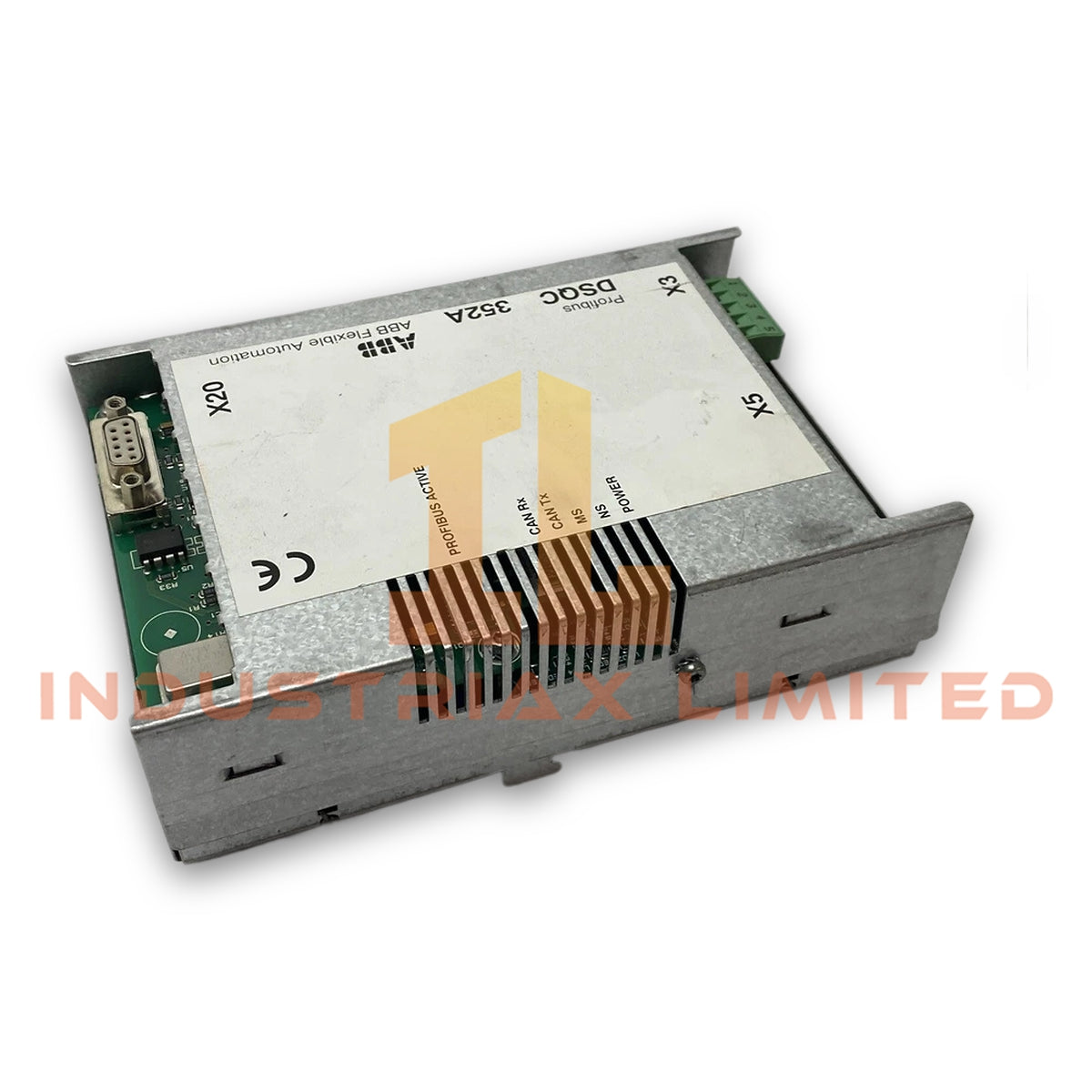

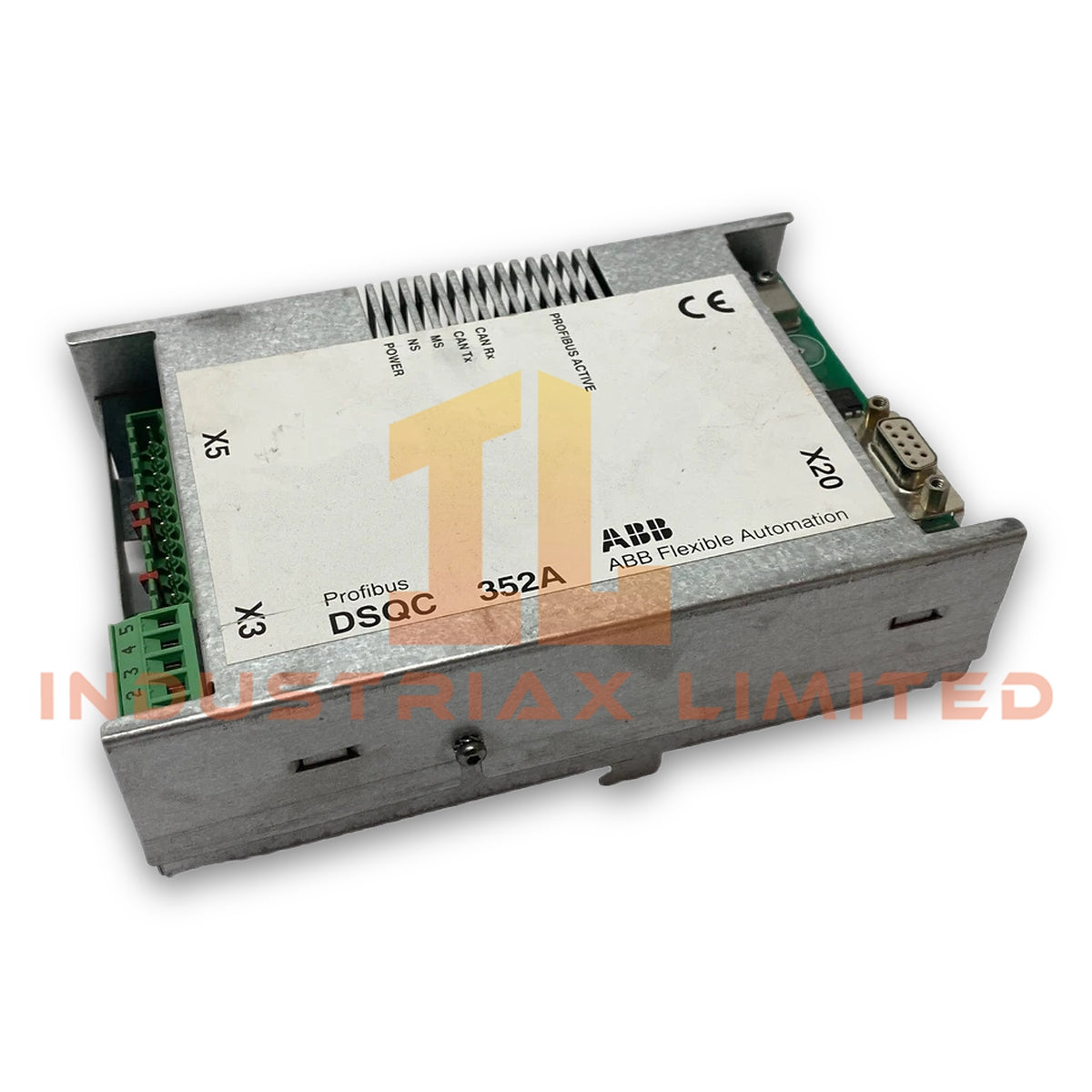

ABB DSQC352A PROFIBUS Communication / I/O Module
The ABB DSQC352A, also cataloged as the 3HNE00009-1 PROFIBUS Communication / I/O Module, operates as a dedicated hardware component for deterministic fieldbus data exchange and I/O integration within ABB industrial robot controller platforms.
Hardware Specifications
Parameter
Specification
Model
DSQC352A
Brand
ABB
Origin
Sweden
Weight
1.43 kg
Dimensions
Standard ABB controller slot factor
Operating Temp
0 deg C to 55 deg C
Power Consumption
Derived from controller backplane bus
Core Performance
PROFIBUS-DP master/slave protocol support
Industrial Control Communication Architecture
Configured to execute deterministic data transfer across multi-axis robotic environments, the module interfaces directly with controller generations including S4C, S4C+, and IRC5 systems. Furthermore, backplane bus communication velocity handles high-speed telegram processing, maintaining low-latency data exchange between the central processing unit and remote fieldbus nodes, sensors, and actuators.
Frequently Asked Questions
Q: What are the primary controller generations compatible with this module?
A: The module is engineered specifically for deployment within ABB S4C, S4C+, and IRC5 robot controller environments.
Q: Does this hardware support hot-swapping during active operation?
A: No, power must be completely removed from the controller rack before inserting or extracting the communication module to prevent backplane bus damage.
Field Installation Guidelines
Ensure the controller main power supply is completely disconnected before handling the hardware. Mount the module securely into the designated slot within the controller chassis, and fasten all retention screws to guarantee proper mechanical grounding and backplane interface engagement. Route PROFIBUS communication cables away from high-voltage power lines to minimize electromagnetic interference, and verify correct bus termination settings at both ends of the network segment prior to system startup.
