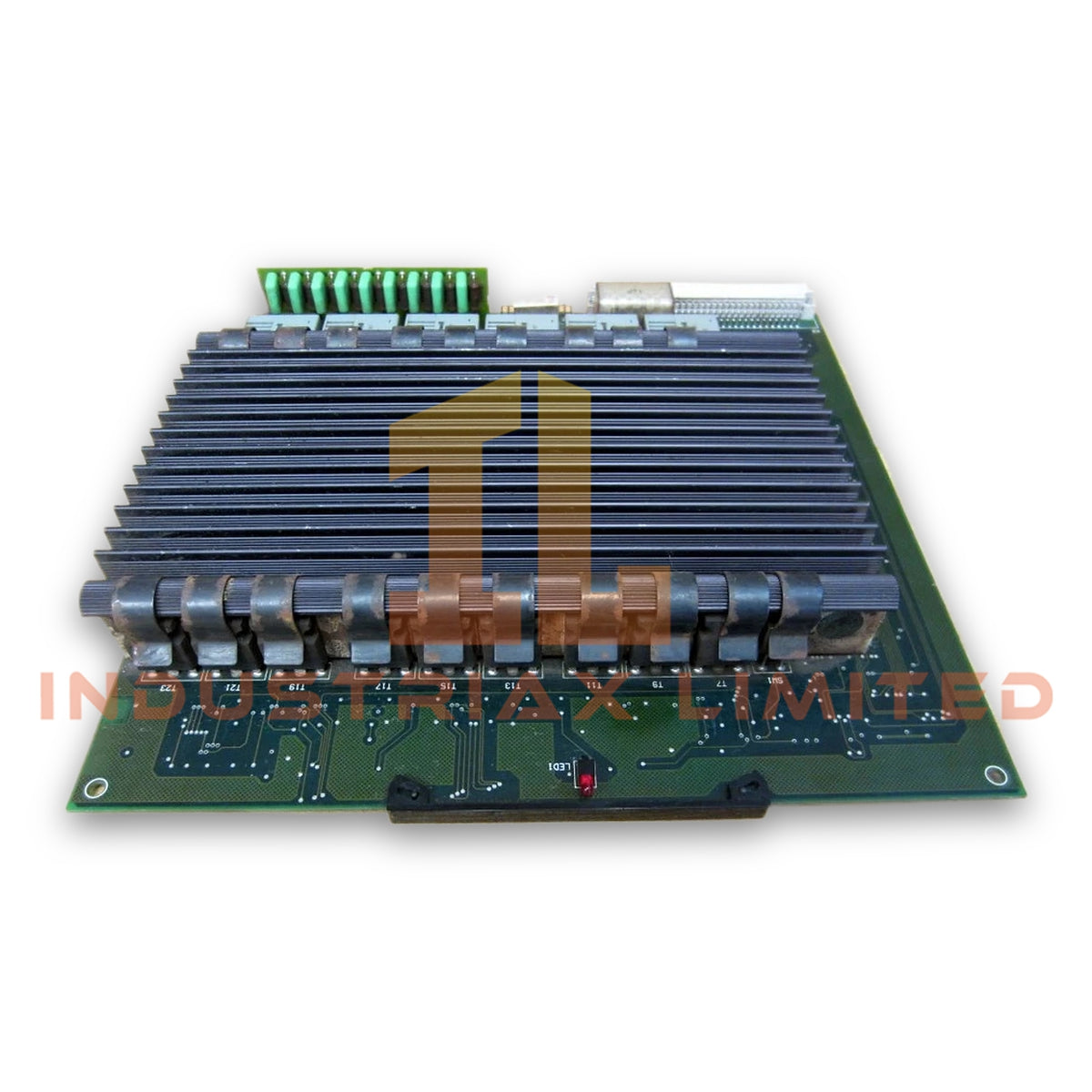

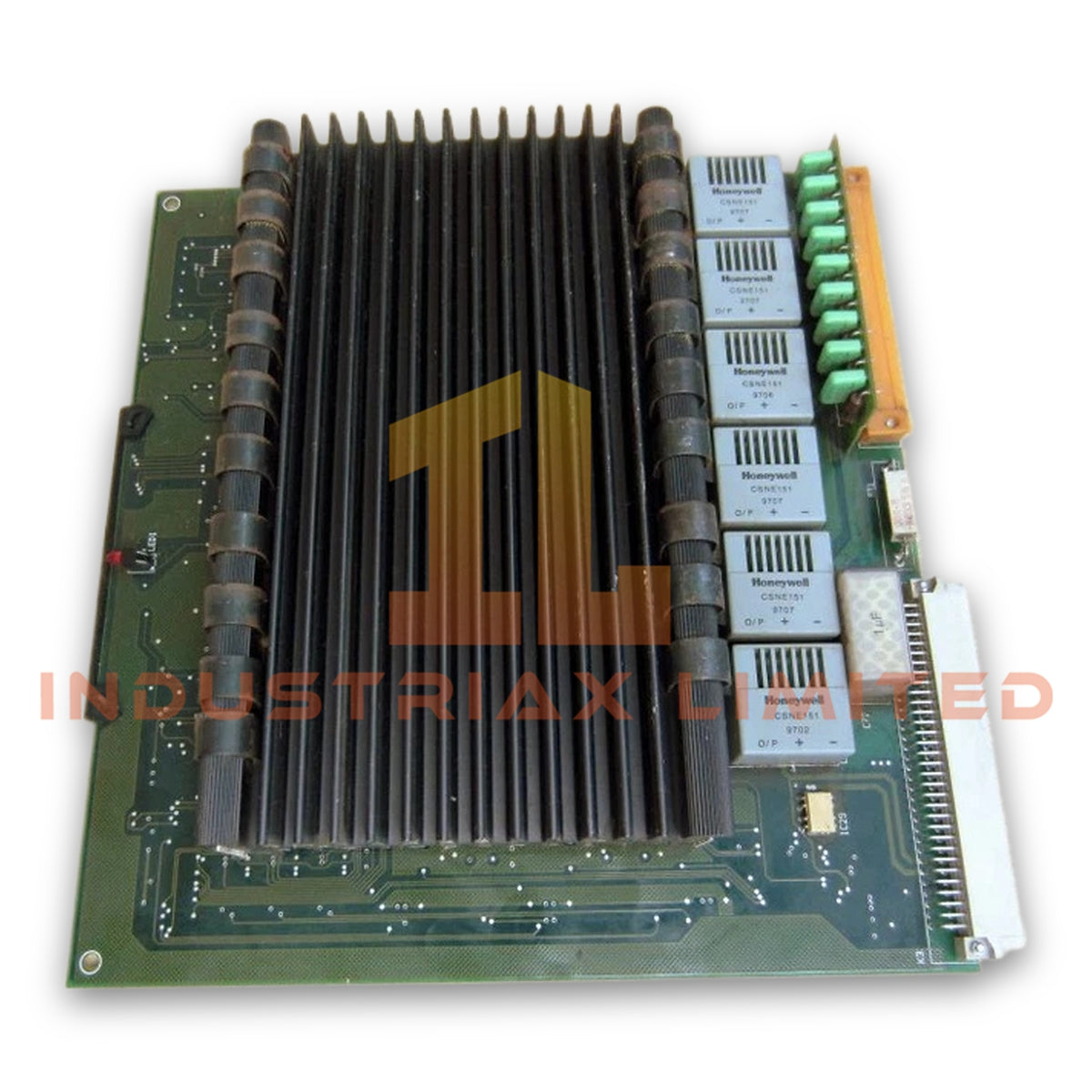

ABB DSQC236D Communication Interface Module

The ABB DSQC236D 3HAB2207-1, also cataloged as the DSQC236D Communication Interface Module, operates as a dedicated hardware component for data exchange and controller communication within ABB S4 and S4C robot controller platforms.

Hardware Specifications

Parameter	Specification
Model	DSQC236D 3HAB2207-1
Brand	ABB
Product Type	Communication Interface Module / Board
Application	ABB industrial robot controller communication hardware
Origin	Sweden
Weight	Approx. 1.43 kg
Operating Temp	Standard industrial cabinet operating environment
Controller Platform	ABB S4 / S4C robot controller generations
Function	Internal communication and data interface processing

Backplane Bus Communication and Controller Interface

The ABB DSQC236D provides internal communication functions between controller subsystems through the ABB robot controller hardware architecture. The module supports structured data transfer between control units, enabling signal exchange required for coordinated robot operation.

Furthermore, the DSQC236D follows ABB industrial control hardware design principles, including backplane bus communication velocity management and firmware compatibility within supported controller configurations. Proper module identification and controller software matching are required before installation.

Frequently Asked Questions

Q: What is the primary function of the ABB DSQC236D module?
A: The DSQC236D functions as a communication interface module that manages internal data exchange within ABB S4 and S4C robot controller systems.

Q: Can the DSQC236D be installed in any ABB robot controller?
A: No. The module requires compatibility verification with the specific ABB controller generation, hardware configuration, and firmware environment.

Q: Does the DSQC236D support hot-swap replacement?
A: Hot-swap operation depends on the controller architecture. Standard practice requires removing power and following ABB maintenance procedures before replacing controller boards.

Field Installation Guidelines

Install the ABB DSQC236D inside the designated controller rack position according to the applicable ABB service documentation. Verify that the controller power supply is isolated before removing or inserting the module.

Maintain proper grounding between the controller cabinet and module chassis. Keep communication wiring separated from high-voltage power conductors to reduce electrical interference. Confirm connector seating, board alignment, and locking mechanisms before system restart.

After installation, check controller diagnostics and communication status indicators to verify correct module recognition and data exchange operation.
