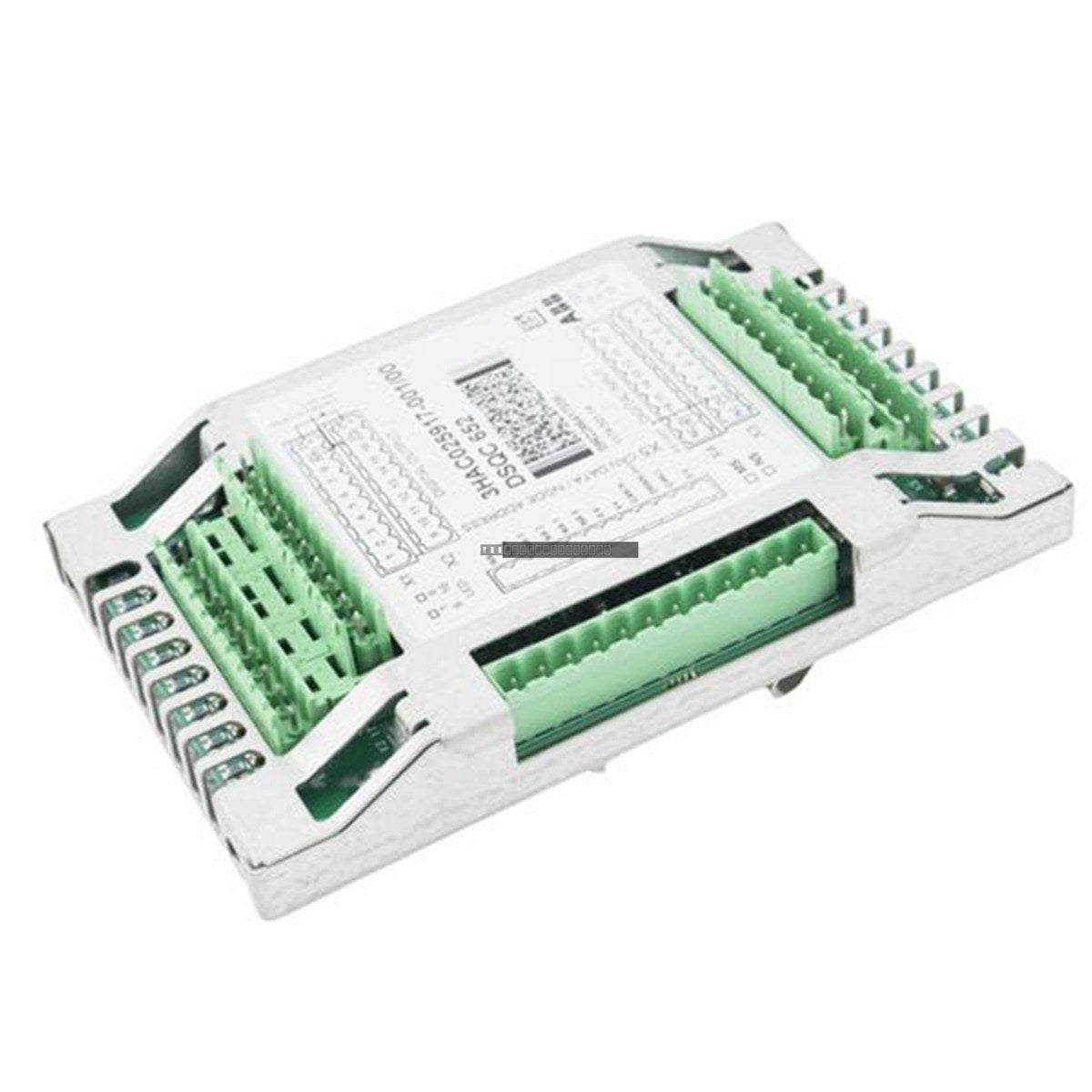

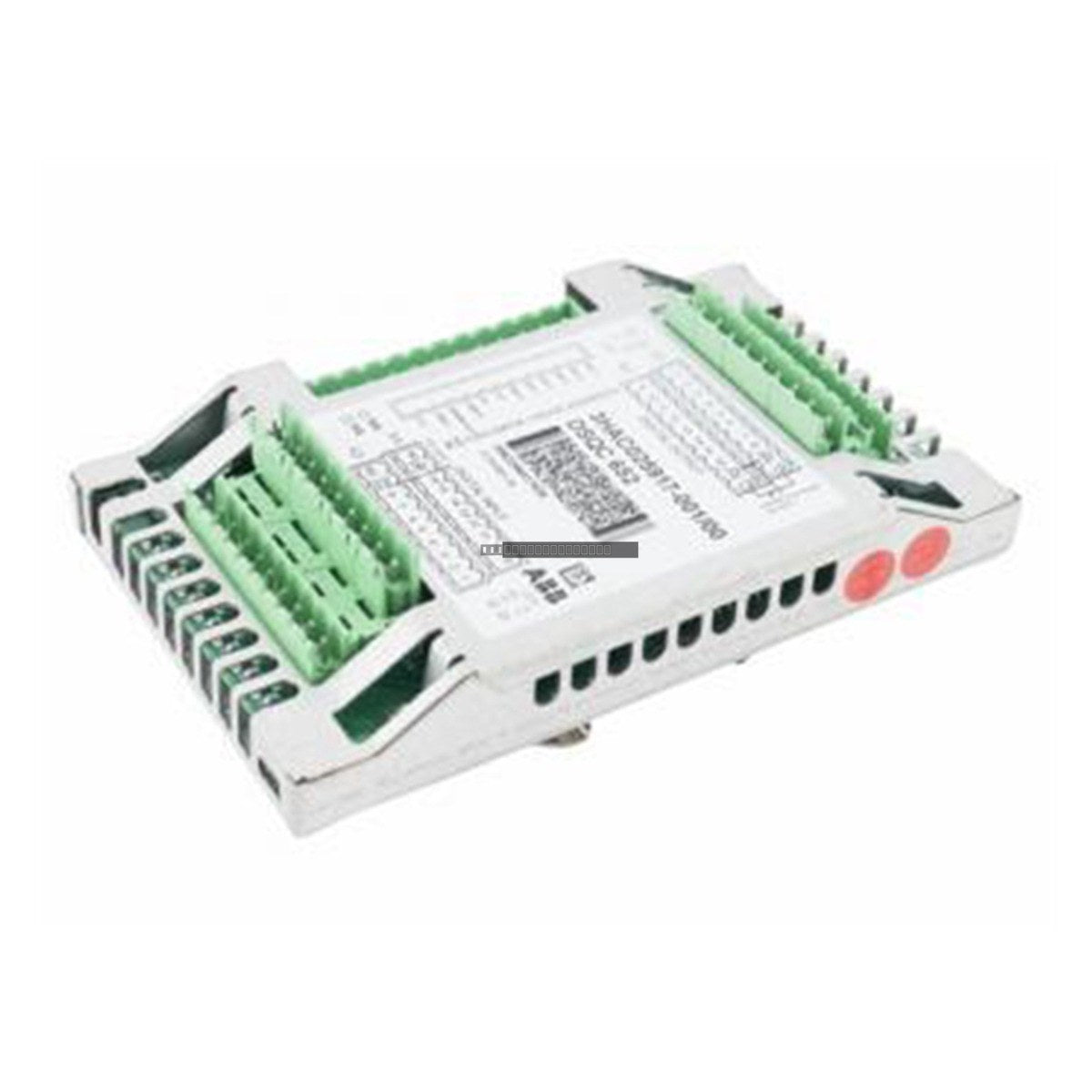

The ABB DSQC652 (3HAC025917-001) is a specialized digital I/O unit designed for integration within ABB robotic control systems. This module provides essential input/output functionality, facilitating reliable communication between the robot controller and peripheral field devices. Engineered for robust performance in industrial automation environments, it ensures precise signal processing and high-speed response times required for complex robotic operations.
Features
- Equipped with 16 digital input channels for versatile signal monitoring.
- Standardized 24V DC operating voltage suitable for common industrial control architectures.
- Optimized response delay of ≤0.5 ms for real-time control applications.
- Low power dissipation of 150 mW per channel to minimize thermal load within the control cabinet.
- Designed for durability in demanding factory floor conditions.
Technical Specifications
| Model |
DSQC652 (3HAC025917-001) |
| Manufacturer |
ABB |
| Digital Input Channels |
16 |
| Rated Voltage |
24 V DC |
| Input Voltage Threshold |
15 to 35 V |
| Input Current |
Approx. 5 mA (at rated voltage) |
| Operating Temperature |
-10 degC to +55 degC |
| Humidity |
5% to 95% (non-condensing) |
| Weight |
0.44 kg |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the DSQC652 module to prevent electrical damage.
- Mount the unit securely within the designated robot controller rack, ensuring proper ventilation to maintain operating temperatures below 55 degC.
- Verify that all field wiring is properly shielded and routed away from high-voltage cables to mitigate electromagnetic interference (EMI).
- Ensure correct polarity when connecting 24V DC power to the module terminals.
- Handle with standard ESD precautions to protect internal circuitry during installation.
FAQ
What is the primary function of the DSQC652 module?
The DSQC652 acts as a high-performance digital I/O interface for ABB robot controllers, allowing the system to process up to 16 digital inputs from external sensors or switches.
What are the input voltage requirements for this unit?
The unit is rated for 24V DC operation, with an input voltage threshold range of 15V to 35V.
Is this module compatible with all ABB robots?
The DSQC652 is specific to certain generations of ABB robotic control systems. Please verify your controller's hardware compatibility list or check the exact part number (3HAC025917-001) against your existing system documentation before installation.
