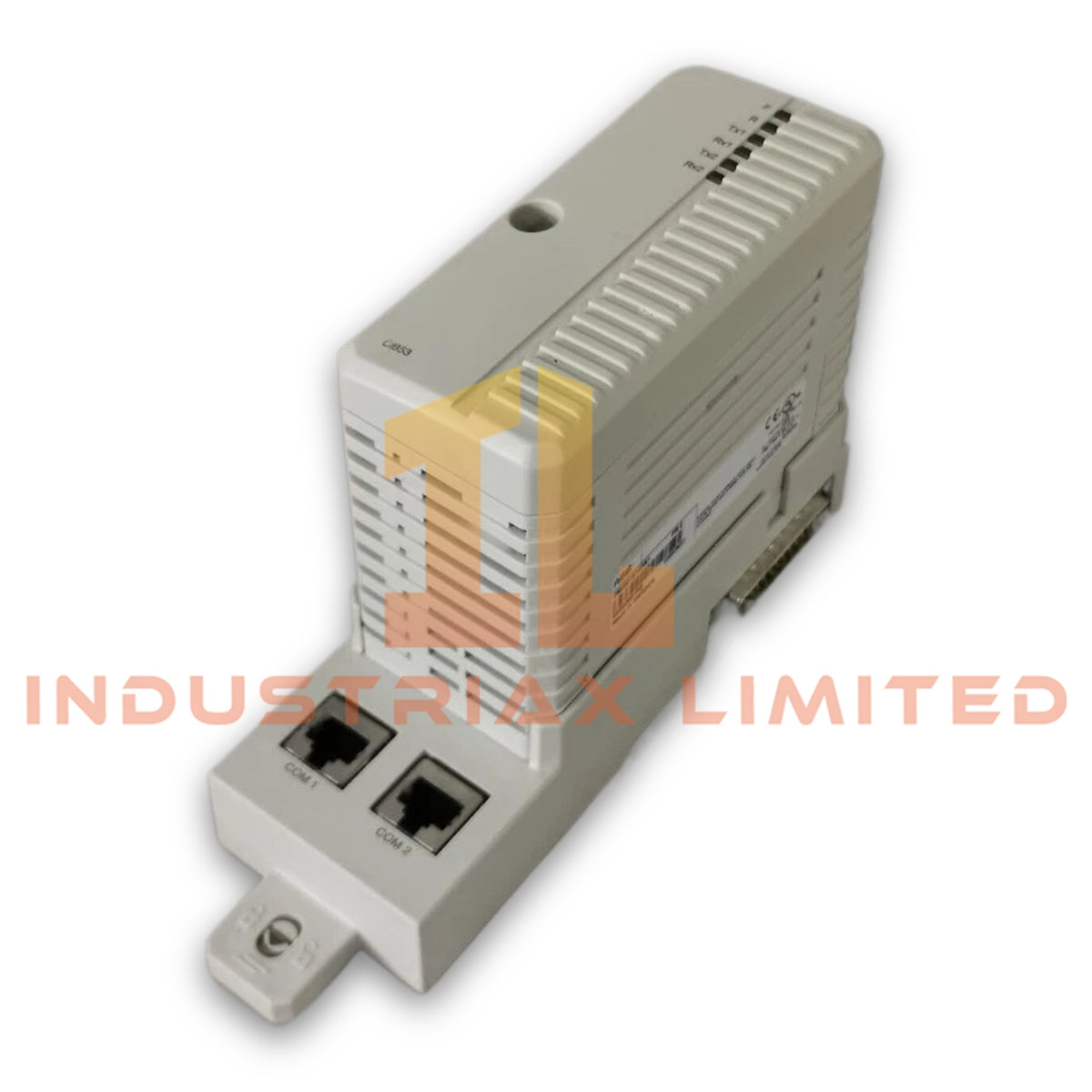

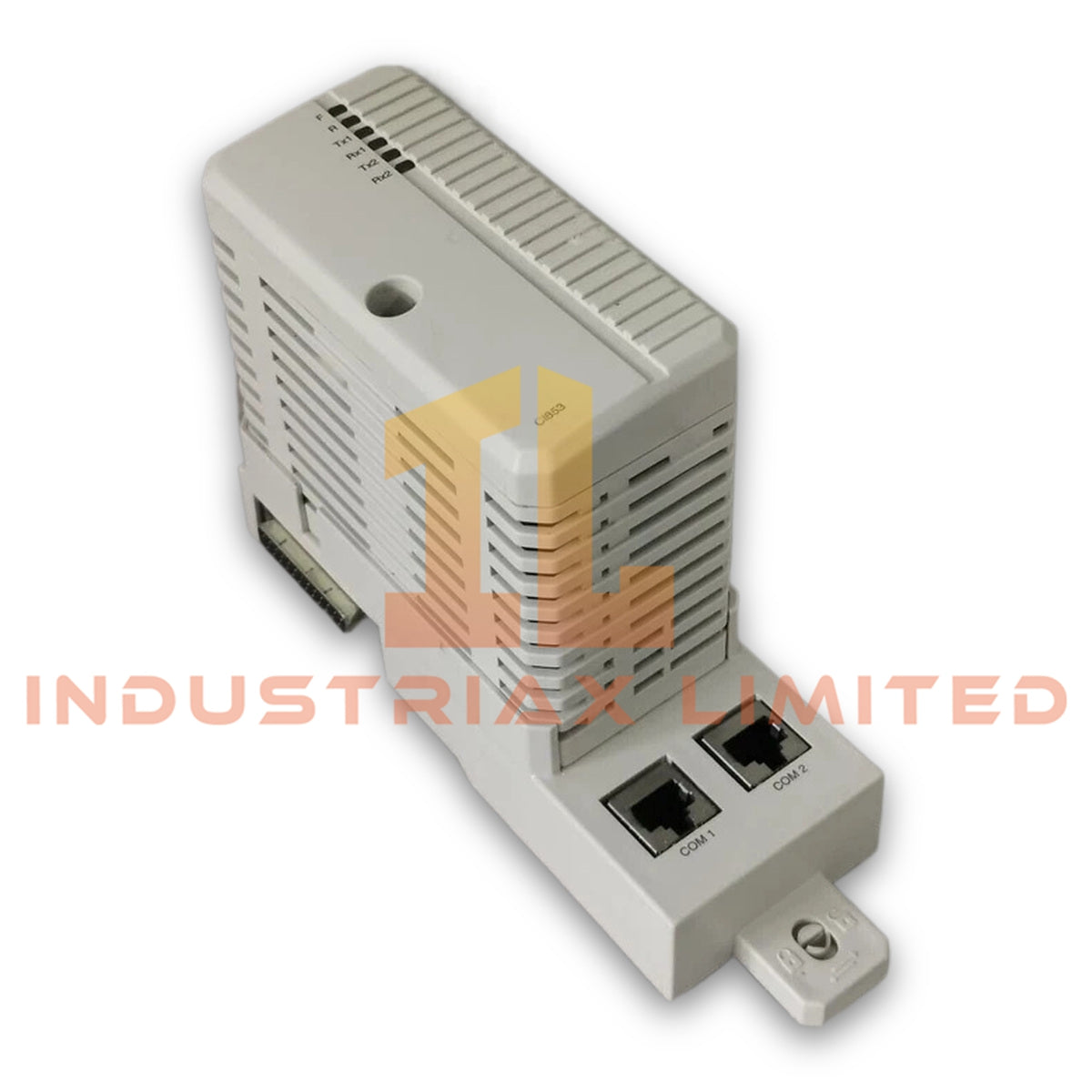

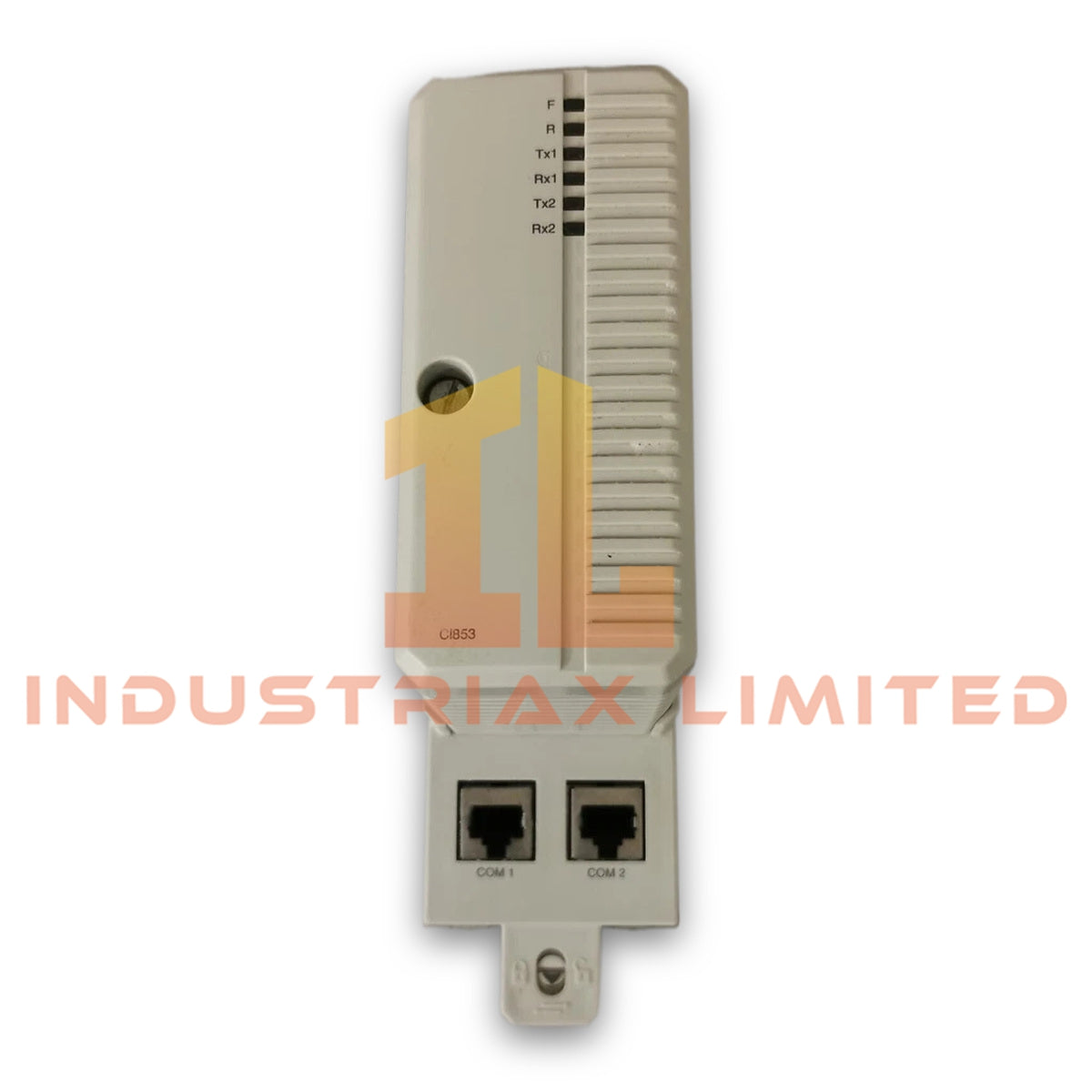

ABB CI870K01 VIP Communication Interface

Configured for VIP data communication in the AC 800M controller environment, the ABB CI870K01 (CI870 VIP Communication Interface) provides two Ethernet ports for TCP/IP and UDP/IP based communication. The package includes the CI870 interface module and its TP853 baseplate. ABB identifies CI870K01 as the replacement for CI861. (ABB Library)

Hardware Specifications

Parameter	Specification
Model	CI870K01
Base Module	CI870
Product Type	VIP Communication Interface
Brand	ABB
Article Number	3BSE088499R1
System Compatibility	AC 800M / AC 800PEC
Communication Function	VIP communication
Network Ports	2 Ethernet ports
Network Protocols	TCP/IP and UDP/IP based VIP communication
Package Contents	CI870 VIP Interface Module + TP853 Baseplate
Mounting	System baseplate installation
Dimensions	59 mm W x 185 mm H x 127.5 mm D
Weight	0.5 kg
Origin	United States or Sweden, depending on product record

The 59 mm x 185 mm x 127.5 mm dimensional data and 0.5 kg net weight correspond to the listed CI870K01 product configuration. (Quad Industry)

ABB VIP Ethernet Communication

The CI870 provides a dedicated VIP communication interface with two Ethernet ports. The interface supports TCP/IP and UDP/IP based VIP communication between AC 800M or AC 800PEC controllers and compatible VIP-enabled equipment. Therefore, the module handles Ethernet data exchange rather than discrete or analog I/O signal conditioning. (ABB Library)

The CI870K01 package also includes the TP853 baseplate. Consequently, installation requires the corresponding controller-side hardware arrangement rather than direct field wiring to conventional I/O channels. (Quad Industry)

Frequently Asked Questions

Q: What communication function does the CI870K01 provide?
A: It provides VIP communication through two Ethernet ports and supports TCP/IP and UDP/IP based VIP data exchange. (ABB Library)

Q: Does the CI870K01 provide analog or digital I/O channels?
A: No. The CI870K01 is a communication interface. It does not function as an analog input, analog output, digital input, or digital output module.

Q: What is included in the CI870K01 package?
A: The package includes the CI870 VIP Interface Module and TP853 baseplate. (Quad Industry)

Field Installation Guidelines

• Install the CI870 module on the specified TP853 baseplate and secure the assembly according to ABB installation procedures.
• Verify the controller hardware configuration before applying system power.
• Route Ethernet communication cables separately from high-voltage power and high-current switching conductors where practical.
• Maintain appropriate cable shielding and bonding practices for the installed Ethernet network.
• Check Ethernet connector seating and cable condition before commissioning.
• Confirm the configured VIP communication parameters at the controller and connected equipment.
• Do not apply unverified field wiring or external supply voltages to the communication interface.
• For replacement work, verify the controller firmware and system software compatibility before removing the existing communication module.
