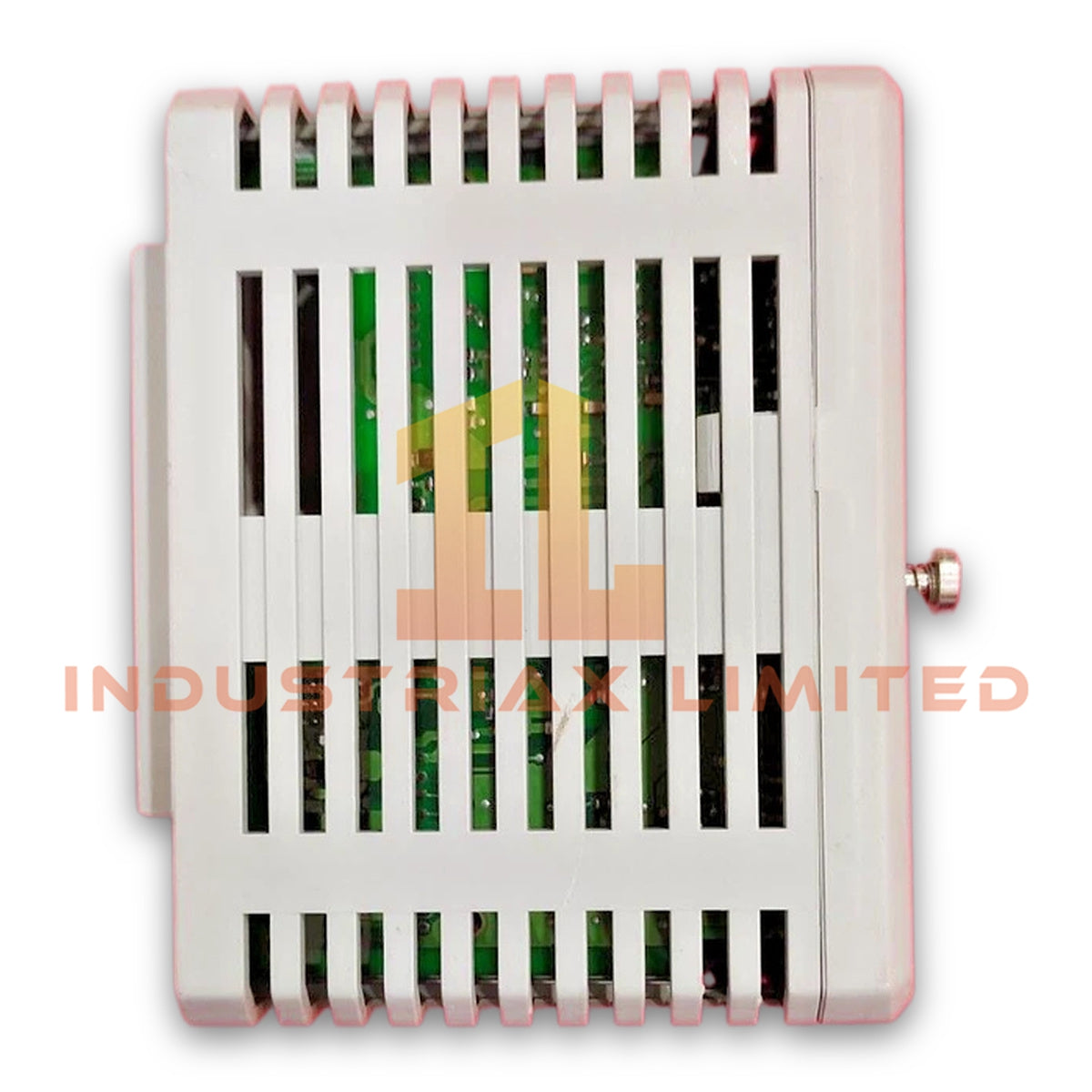

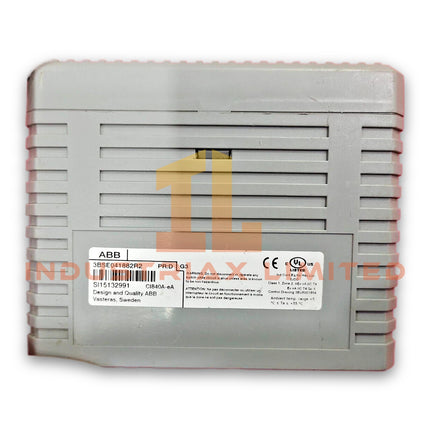

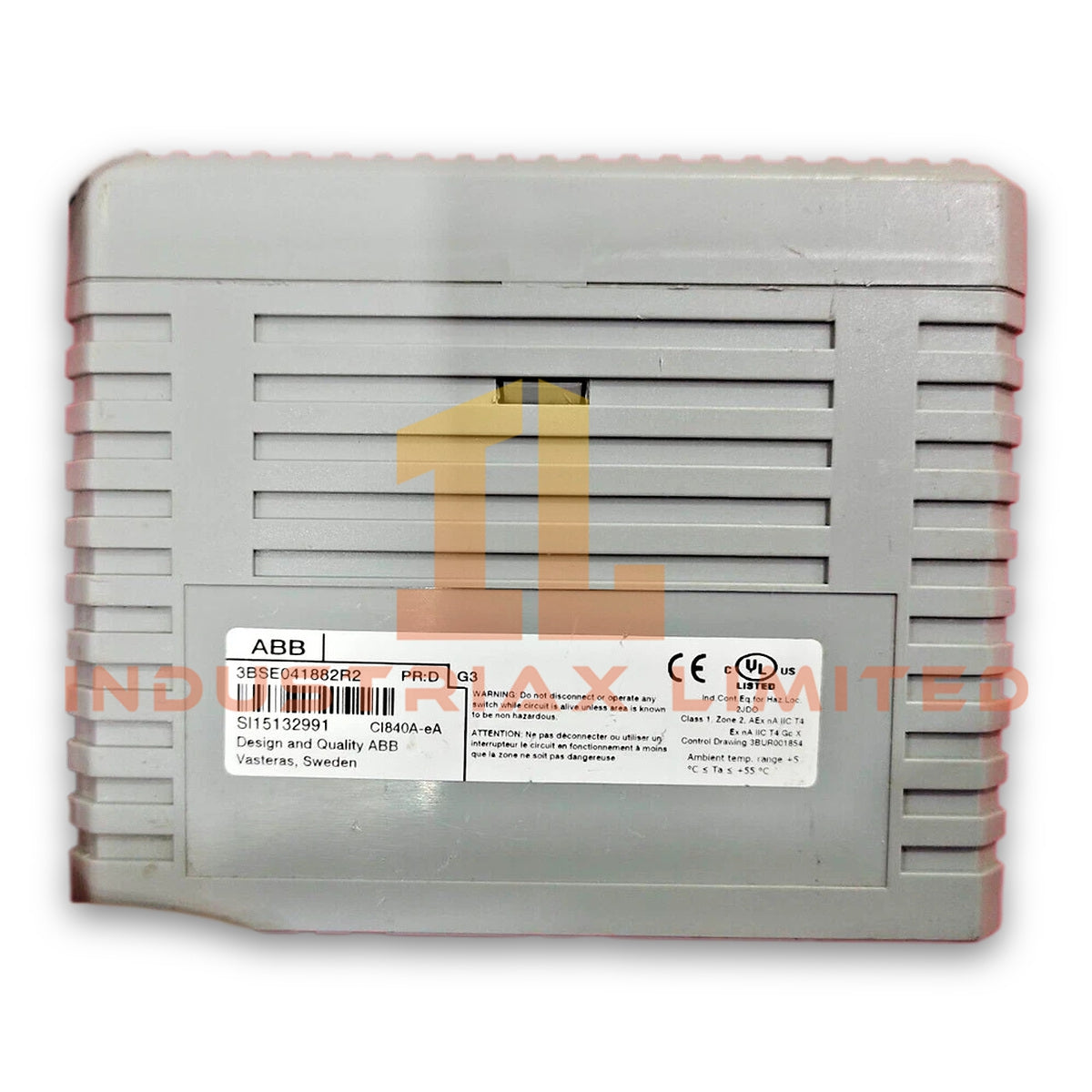

ABB CI840 3BSE041882R1 S800 I/O Fieldbus Communication Interface

Configured for PROFIBUS DP-V1 communication and redundant I/O operation in the ABB S800 I/O system, the ABB CI840 3BSE041882R1 (CI840 Fieldbus Communication Interface) provides the communication path between S800 I/O modules and the parent controller. It performs signal processing, supervision data collection, OSP handling, Hot Configuration In Run, HART pass-through, and I/O module configuration.

Hardware Specifications

Parameter	Specification
Model	CI840 3BSE041882R1
Brand	ABB
Product Type	S800 I/O Fieldbus Communication Interface
System	ABB S800 I/O
Article Number	3BSE041882R1
Communication Protocol	PROFIBUS DP-V1
Master or Slave	Slave
Line Redundancy	Yes
Module Redundancy	Yes
Hot Swap	Yes
Used with HI Controller	Yes
Module Termination Unit - Redundant I/O	TU846
Module Termination Unit - Non-Redundant I/O	TU847
24 V Consumption, Typical	190 mA
Operating Temperature	0 to +55 deg C; approvals issued for +5 to +55 deg C
Storage Temperature	-40 to +70 deg C
Maximum Ambient Temperature	55 deg C; 40 deg C for vertical mounting
Relative Humidity	5 to 95 %, non-condensing
Protection Class	IP20 according to EN 60529 and IEC 529
Pollution Degree	Degree 2, IEC 60664-1
Corrosion Protection	ISA-S71.04: G3
Width	54 mm
Height	119 mm
Depth	96 mm
Weight	0.2 kg
Origin	Not specified in the provided technical data
CE Marking	Yes
RoHS Compliance	EU RoHS, UAE RoHS, CN RoHS
WEEE Compliance	Directive 2012/19/EU
Electrical Safety	EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
Hazardous Location Approvals	C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine Certificates	ABS, BV, DNV-GL, LR

PROFIBUS DP-V1 and Redundancy

The CI840 operates as a PROFIBUS DP-V1 slave on the fieldbus connection to the controller. The module supports both line redundancy and module redundancy, allowing the S800 I/O configuration to use redundant communication paths and interface modules.

For redundant I/O installations, ABB specifies the TU846 module termination unit. For non-redundant I/O installations, the TU847 termination unit applies. The CI840 also supports Hot Swap and Hot Configuration In Run functions, subject to the installed system configuration.

The FCI manages I/O module configuration and signal-related processing. It also gathers supervision information and supports OSP handling. In addition, the interface provides HART pass-through for compatible I/O configurations.

Frequently Asked Questions (FAQ)

Q: Which communication protocol does the CI840 use?

A: The CI840 communicates with the controller through the PROFIBUS DP-V1 fieldbus and operates as a slave device.

Q: Which termination unit is specified for redundant I/O?

A: ABB specifies the TU846 for redundant I/O. The TU847 is specified for non-redundant I/O.

Q: Does the CI840 support module and line redundancy?

A: Yes. The supplied specifications identify both line redundancy and module redundancy as supported functions.

Field Installation Guidelines

Install the CI840 on the specified S800 I/O termination unit and verify mechanical engagement before applying power.

Use the TU846 when the application requires redundant I/O. Use the TU847 for non-redundant I/O configurations.

Route PROFIBUS communication wiring separately from high-voltage power conductors and high-current switching circuits. Maintain appropriate separation to reduce electromagnetic interference.

Terminate cable shields according to the approved system grounding design. Avoid creating unintended ground loops through multiple shield connection paths.

Confirm the available 24 V supply can support the CI840 load and the complete connected I/O assembly. The typical CI840 consumption is 190 mA at 24 V.

Before commissioning, verify PROFIBUS addressing, redundancy configuration, termination settings, and controller configuration against the approved system design.

Observe the specified ambient temperature and humidity limits during installation. For vertical mounting, keep the ambient temperature within the stated 40 deg C maximum.

Maintain the IP20 installation environment and protect the module from conductive contamination, excessive moisture, and mechanical damage.
