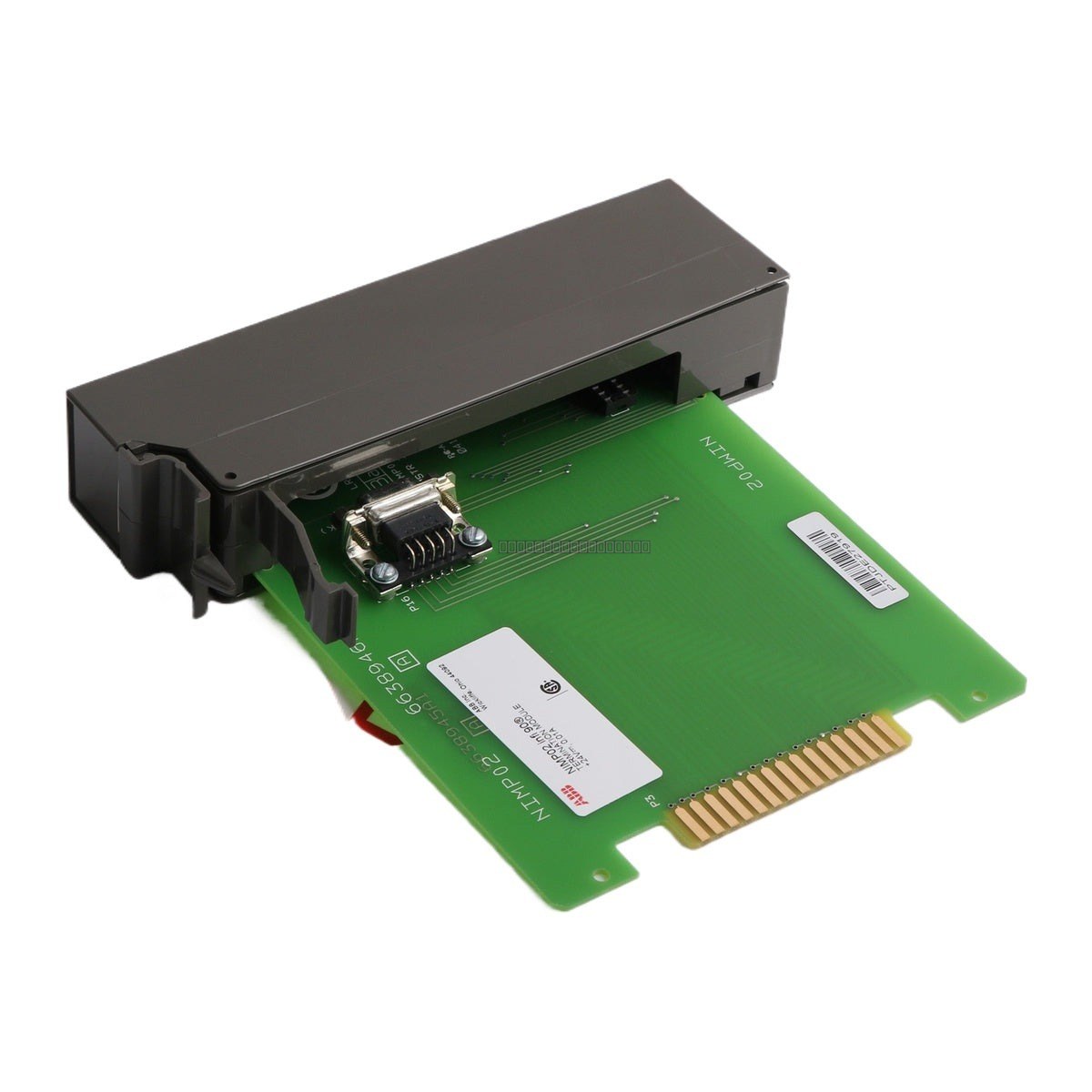

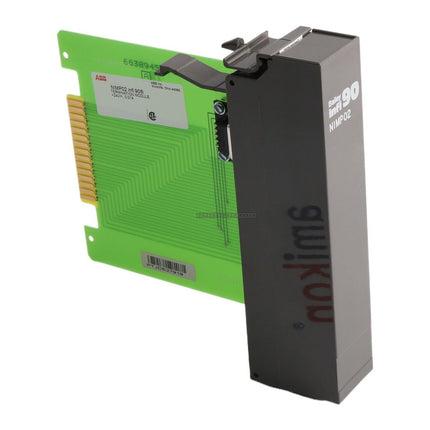

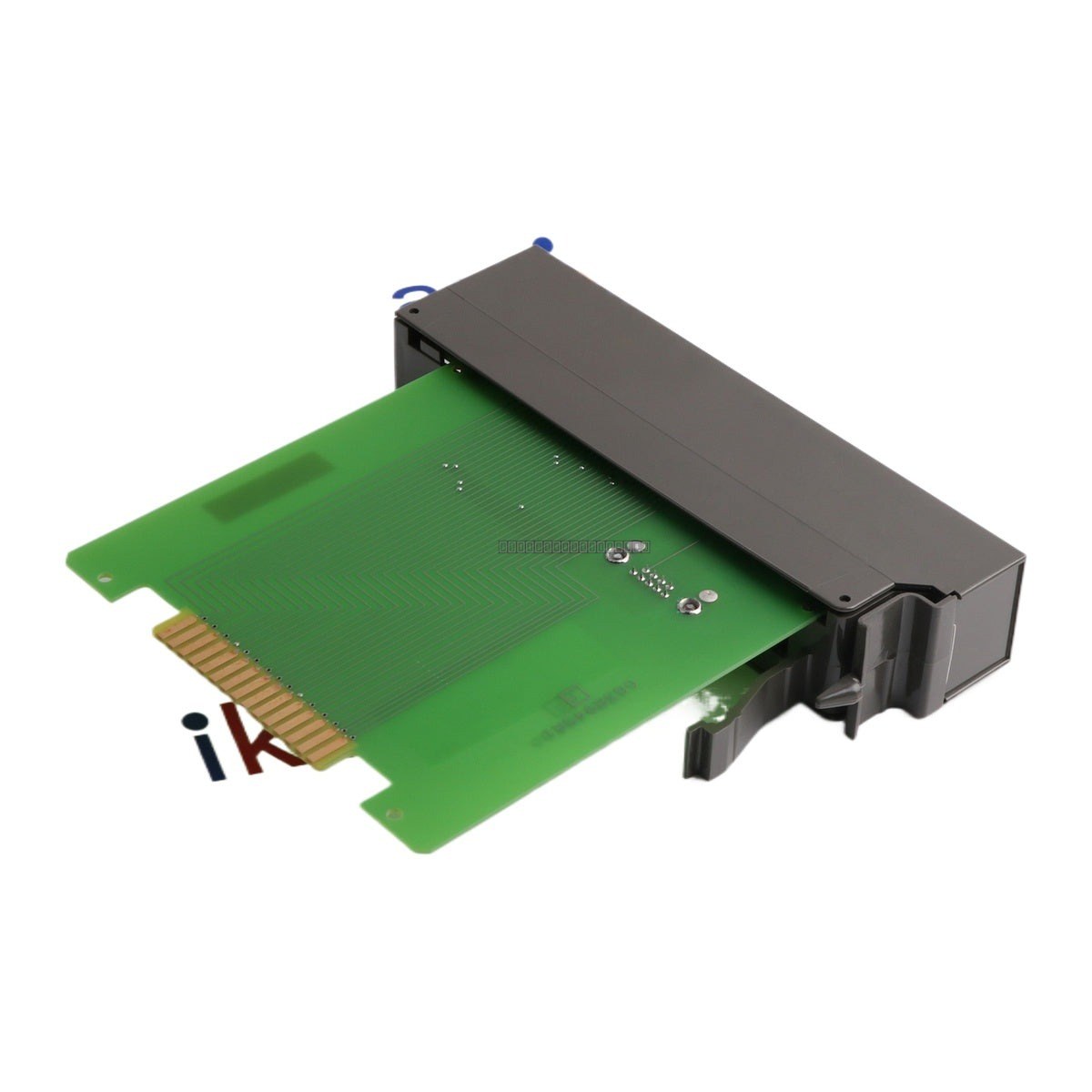

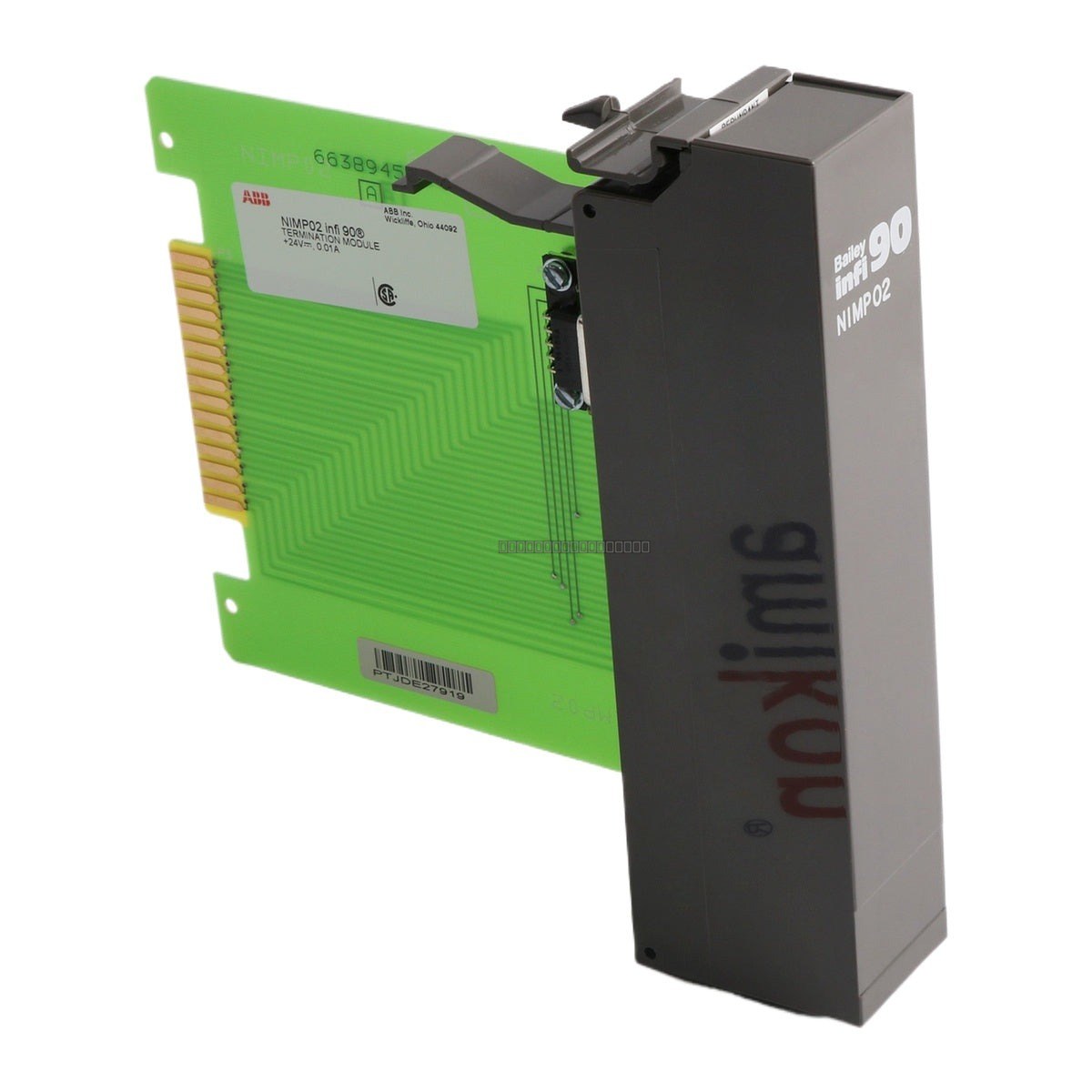

The ABB NIMP02 is a Multi-Function Processor (MFP) Termination Module designed for use within the Bailey Network 90 distributed control system. This module serves as a critical interface component, facilitating the connection and signal termination required for the processor's communication and control functions. It ensures robust signal integrity and reliable connectivity between the processor and the broader control network architecture.
Features
- Designed specifically for the Bailey Network 90 control system environment.
- Provides essential termination functionality for multi-function processor operations.
- Engineered for high reliability in demanding industrial control applications.
- Supports standard 5V DC power requirements typical of Network 90 hardware.
Technical Specifications
| Product Model |
NIMP02 |
| Manufacturer |
ABB |
| System Compatibility |
Bailey Network 90 |
| Power Supply |
5 V DC |
| Power Consumption |
2-5 W (typical) |
| Isolation |
500-1500 V AC |
| Operating Temperature |
-20 degC to +70 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Humidity |
5-95% RH (non-condensing) |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the NIMP02 module to prevent electrical damage.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal circuitry.
- Verify that the module is correctly seated in the designated rack slot to ensure proper backplane connection.
- Ensure all wiring is securely terminated and routed away from high-EMI sources to maintain signal integrity.
- Maintain adequate ventilation around the rack assembly to ensure the module operates within its specified temperature range.
FAQ
What is the primary function of the NIMP02?
The NIMP02 is a termination module used in the ABB Bailey Network 90 system to provide necessary signal termination for the Multi-Function Processor, ensuring stable communication and operation within the control loop.
Is this module compatible with other ABB systems?
The NIMP02 is specifically engineered for the Bailey Network 90 series. It is not intended for use in newer ABB control platforms unless explicitly stated in the system migration documentation.
