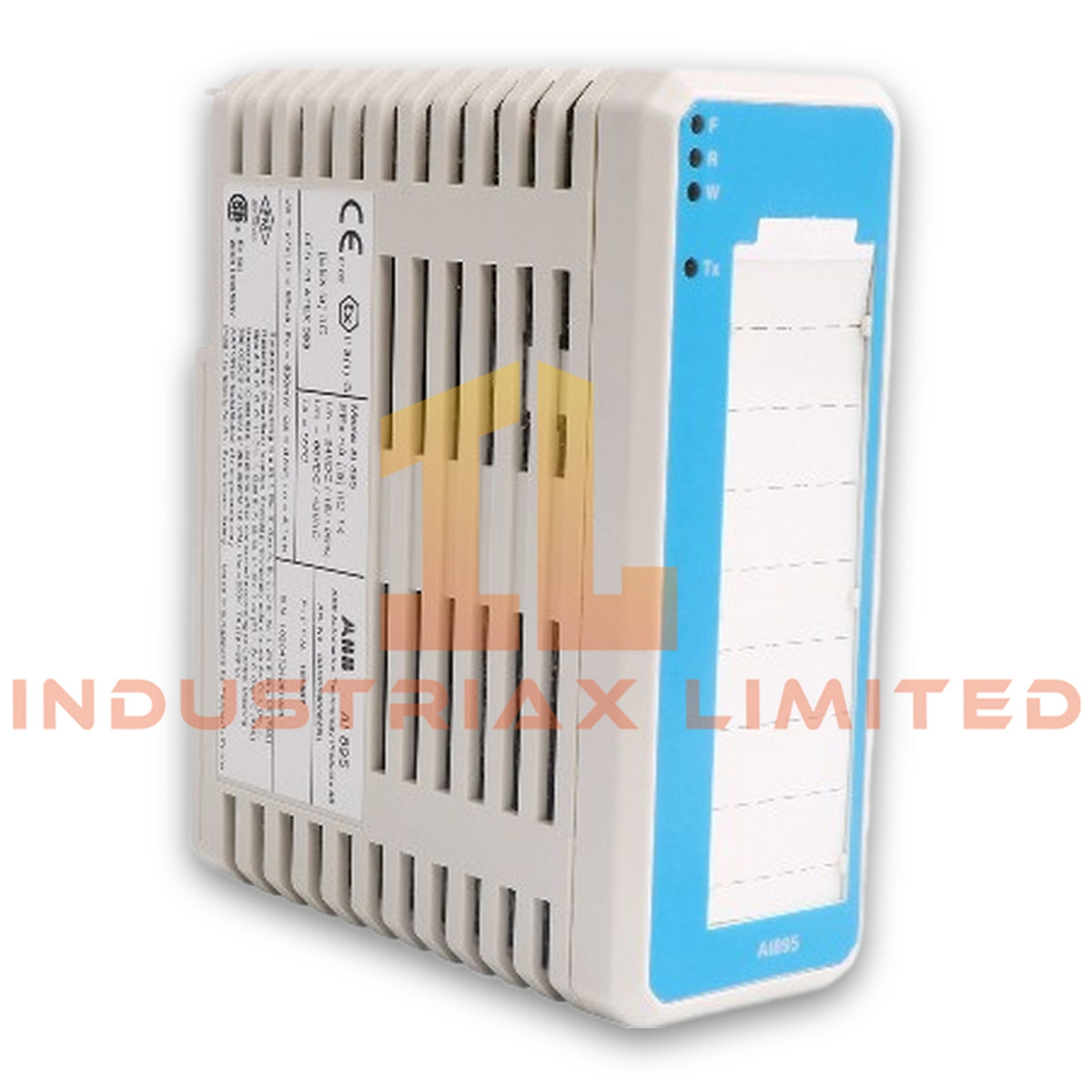

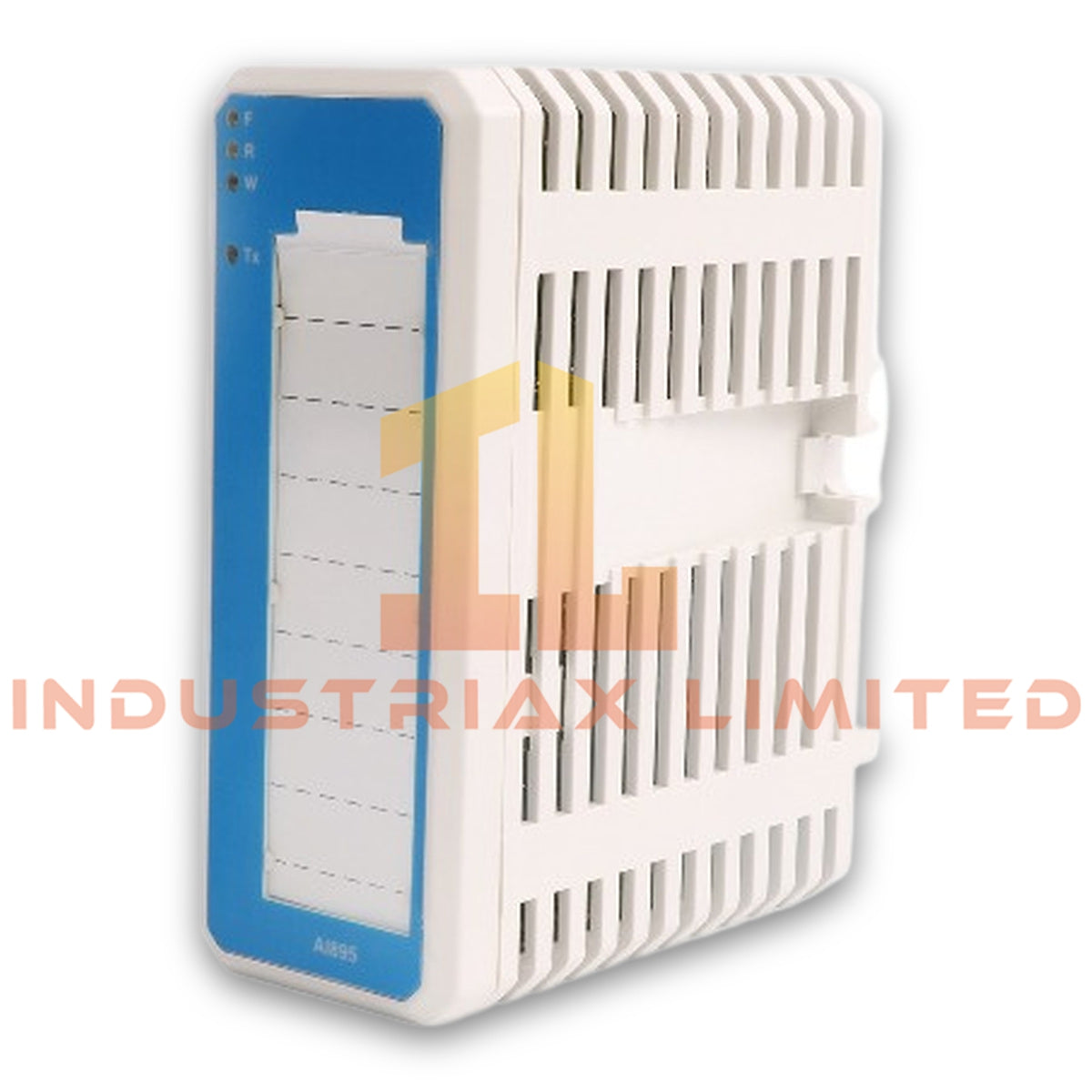

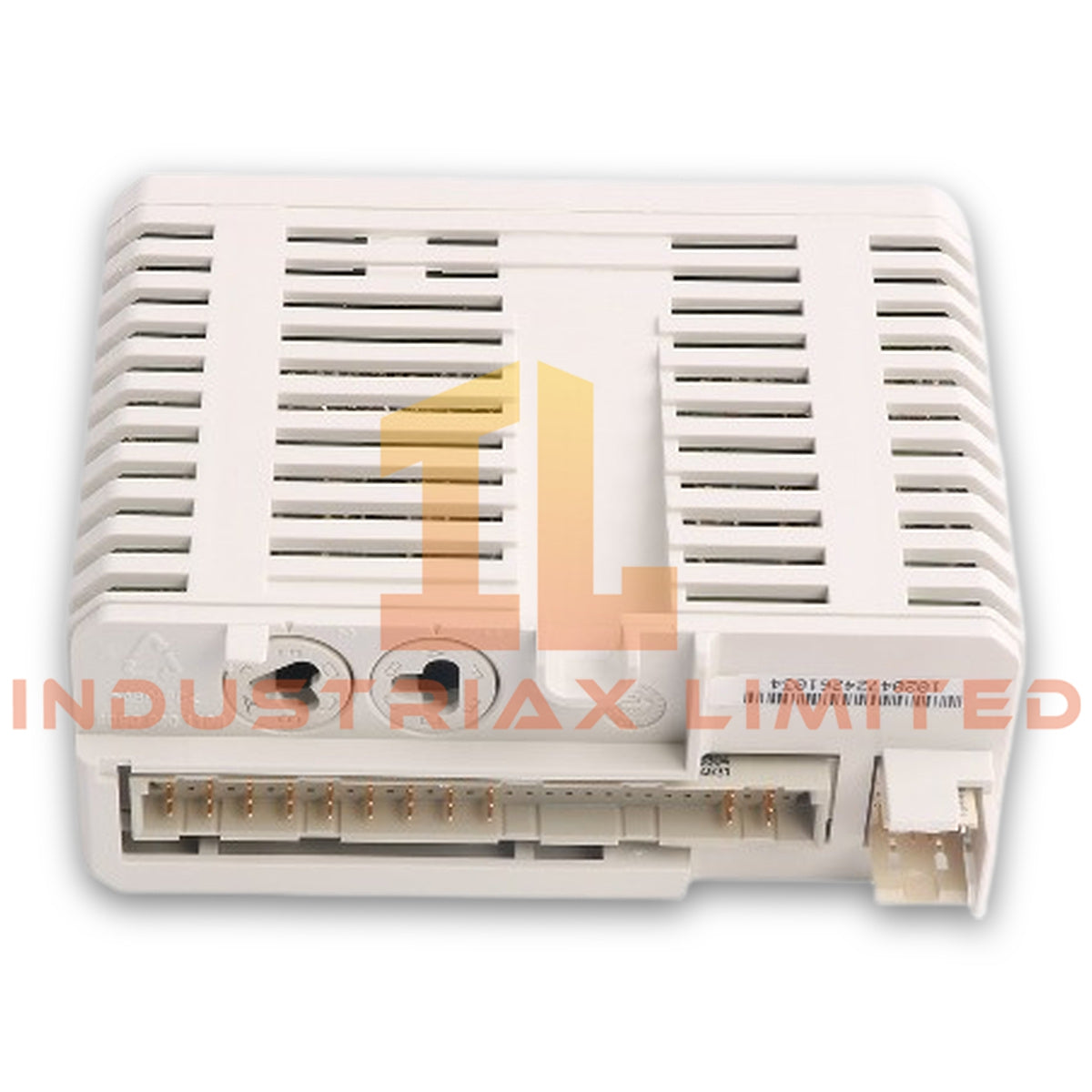

ABB AI895 3BSC690086R1 Analog Input Module
The ABB AI895 3BSC690086R1, also cataloged as the AI895 Analog Input Module, provides 4-20 mA signal acquisition with intrinsic safety interface capability for ABB industrial control system I/O platforms. The module processes eight unipolar analog input channels with HART communication support.
Hardware Specifications
Parameter
Specification
Model
AI895 3BSC690086R1
Brand
ABB
Product Type
Analog Input Module
Origin
USA
Weight
0.24 kg
Dimensions
4.5 x 10.5 x 12 cm
Operating Temp
0 deg C to +55 deg C
Storage Temp
-40 deg C to +70 deg C
Power Consumption
Not specified
Input Signal
4-20 mA
Number of Channels
8
Signal Type
Unipolar single ended
Resolution
12 bit
Isolation
Groupwise isolated from ground
HART Interface
Supported
Intrinsic Safety Interface
Integrated
Under Range / Over Range
1.5 mA / 22 mA
Accuracy Error
Typical 0.05%, Maximum 0.1%
Temperature Drift
Typical 100 ppm/deg C
Input Filter Rise Time
20 ms (0-90%)
ABB Industrial I/O Architecture and Signal Processing
The AI895 3BSC690086R1 operates as an ABB S800 I/O series analog input component and handles field current signals through eight isolated input channels. Furthermore, the module supports HART-enabled instruments by maintaining analog measurement accuracy while transferring additional device information through the communication layer.
The module uses groupwise isolation from ground to reduce interference during field signal measurement. Additionally, the 12 bit conversion resolution enables accurate processing of industrial transmitter signals within the configured input range.
ABB control systems apply I/O density scaling methods through modular S800 architecture. Therefore, the AI895 supports structured channel expansion and standardized integration with ABB controller networks using compatible I/O communication interfaces.
Frequently Asked Questions
Q: Does the AI895 3BSC690086R1 support HART field instruments? A: Yes. The module provides 4-20 mA analog input processing with HART interface support for compatible field devices.
Q: How many analog input channels are available on the AI895 module? A: The AI895 provides eight unipolar single ended analog input channels.
Q: What isolation method does the AI895 use for input signals? A: The module provides groupwise isolation from ground for the analog input circuits.
Field Installation Guidelines
Install the AI895 module in the designated ABB S800 I/O rack position according to the system hardware configuration.
Verify the backplane connection before powering the I/O station.
Use shielded instrumentation cables for 4-20 mA field wiring where required by the installation environment.
Connect cable shields according to the plant grounding standard to reduce electromagnetic interference.
Separate analog signal wiring from high voltage and high current power cables.
Confirm transmitter loop polarity before applying field power.
Check HART communication wiring compatibility when connecting smart transmitters.
Verify operating temperature conditions before commissioning the module.
