Description

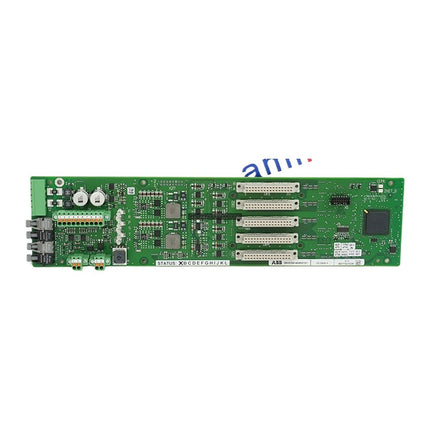

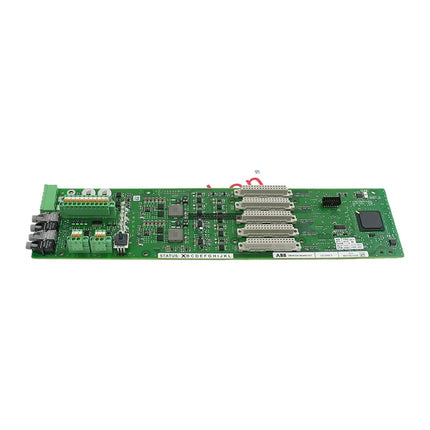

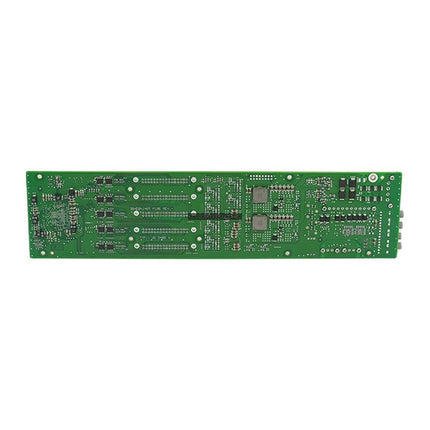

The ABB UDD406A (3BHE041464R0101) is a high-performance control board designed for use within ABB’s heavy-duty power electronics and control portfolios, including the UNITROL 6000 excitation system. This module functions as a critical logic controller, executing complex mathematical models required for managing the magnetic fields of large synchronous generators to ensure grid stability and reactive power compensation. Beyond its primary control functions, it serves as a diagnostic hub, monitoring the health of connected power semiconductor modules and tracking historical fault data.
Features
- Central processing unit for power electronics and excitation systems.
- Supports fiber optic communication for high-speed data exchange.
- Integrated diagnostic capabilities for power semiconductor health monitoring.
- Designed for standard sub-rack mounting with robust front-plane connectors.
- Compatible with modular industrial control architectures.
Applications
- Power Generation: Excitation systems for grid-compliant generator stabilization.
- Oil & Gas: Efficient control for pumping and compression systems.
- Metals & Mining: Energy management and motor control for heavy industrial mills.
- Chemical Processing: Continuous process control for emissions and reaction management.
- Manufacturing: Energy-efficient control for industrial drives and injection molding machinery.
Technical Specifications
| Model |
UDD406A |
| Order Code |
3BHE041464R0101 |
| Digital Inputs |
24V DC |
| Analog Inputs |
0/4-20mA |
| Operating Temperature |
0 degC to +55 degC |
| Storage Temperature |
-25 degC to +70 degC |
| Humidity |
5-95% RH non-condensing |
Installation Guidelines
- Ensure the system is powered down before inserting or removing the module from the rack.
- Mark all existing wires with their connector IDs before detaching the old unit to ensure correct reconnection.
- Maintain physical separation between control/communication wiring and high-power input/motor cables to prevent electromagnetic interference (EMI).
- Route cables through designated cabinet grommets and ensure cable clamps are tightened on the stripped sections to maintain a secure, low-impedance ground.
- Handle the module using standard ESD (Electrostatic Discharge) precautions to prevent damage to sensitive internal circuitry.
FAQ
What is the primary function of the ABB UDD406A?
The UDD406A acts as a central control board and logic controller, primarily used in excitation systems to manage generator magnetic fields and perform real-time diagnostics on power electronics.
Is this module compatible with existing ABB control systems?
Yes, it is designed for integration into ABB Advant OCS and 800xA environments, as well as specific power electronics platforms like the UNITROL 6000.
What are the environmental requirements for this board?
The module is designed for industrial environments with an operating temperature range of 0 degC to +55 degC and requires a non-condensing humidity environment of 5-95% RH.
