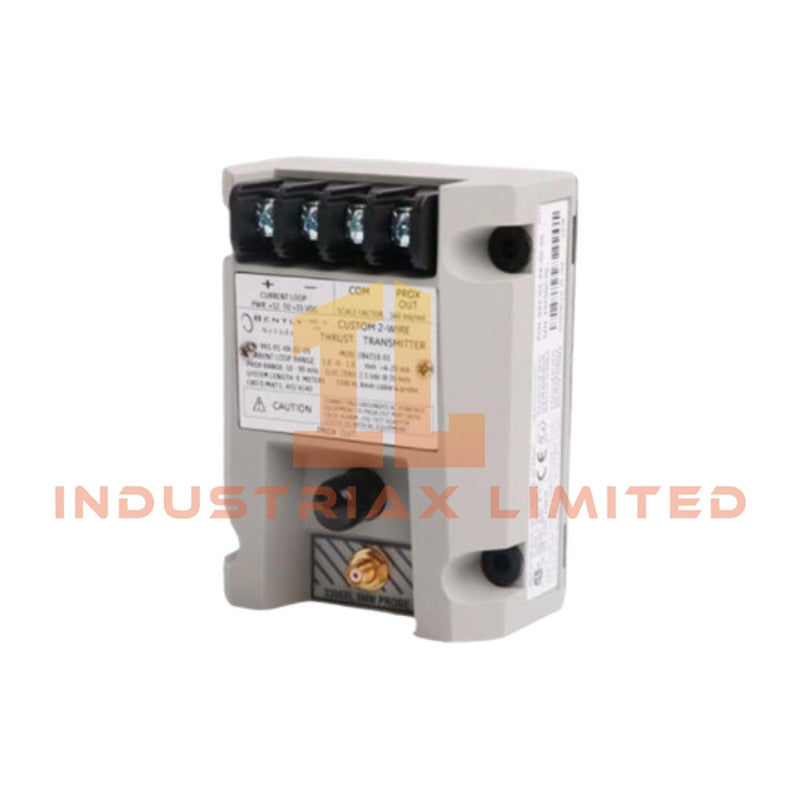

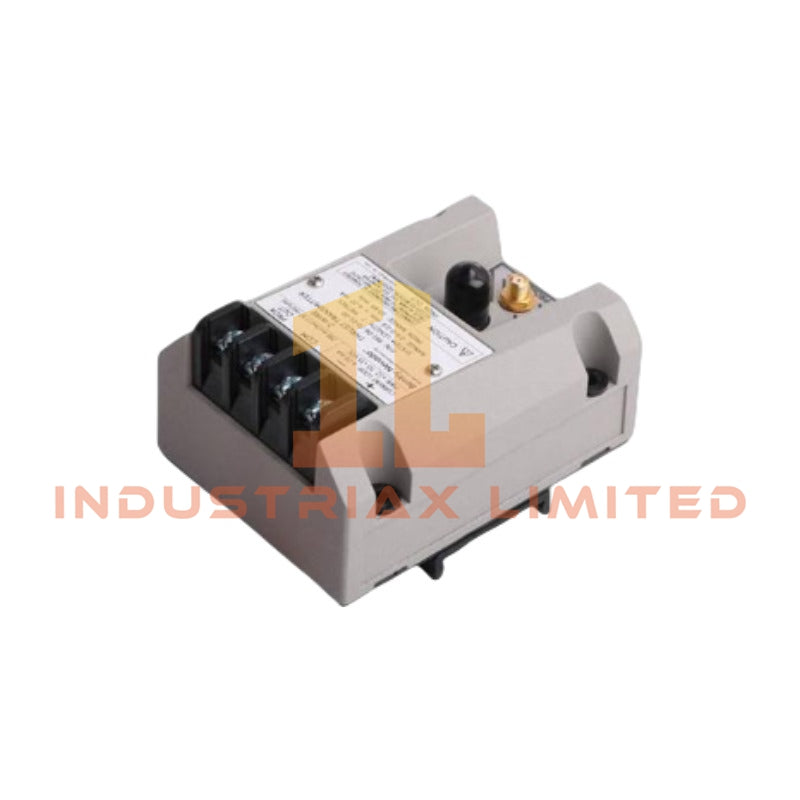

Configured for vibration amplitude monitoring in rotating machinery protection systems, the Bently Nevada 991-06-70-01-00 (991 Vibration Transmitter) provides direct physical signal conversion from a proximity probe input into a proportional 4-20 mA output signal.
Hardware Specifications
Parameter
Specification
Model
991-06-70-01-00
Brand
Bently Nevada
Product Type
Vibration Transmitter
Origin
USA
Weight
0.44 kg
Dimensions
10 x 7.4 x 5.8 cm
Power Consumption
Loop-powered design, current limiting 23 mA typical
Full-scale Option
0.6-0-0.6 mm
System Length Option
7.0 meters (23.0 feet)
Mounting Option
35 mm DIN-rail clips
Agency Approval Option
Not required
Signal Output
4-20 mA proportional vibration output
Input Sensor Type
Eddy-current proximity probe interface
Tariff Code
8537101190
Eddy-Current Measurement and Rotor Dynamics Interface
The Bently Nevada 991 series vibration transmitter processes eddy-current probe signals for machinery vibration measurement. The 991-06-70-01-00 configuration supports a 0.6-0-0.6 mm full-scale measurement range with a 7.0 meter system length option.
Moreover, the transmitter maintains probe signal scaling for converting shaft displacement measurements into a standardized current output. The eddy-current interface requires correct probe installation and gap voltage validation to maintain measurement accuracy. Bently Nevada proximity systems typically use -10 VDC target gap voltage verification for proper probe operating position.
The device supports vibration monitoring applications where rotor dynamics analysis requires continuous displacement signal transmission. Signal conditioning inside the transmitter reduces measurement errors caused by electrical interference and supports stable monitoring of rotating equipment vibration behavior.
Frequently Asked Questions
Q: What type of sensor input does the 991-06-70-01-00 support? A: The transmitter is designed for use with Bently Nevada eddy-current proximity probe systems and converts displacement signals into a 4-20 mA output.
Q: What is the purpose of the 7.0 meter system length option? A: The 7.0 meter option defines the compatible probe and extension cable system length for the vibration measurement configuration.
Q: How is the transmitter mounted in an industrial control cabinet? A: The unit uses 35 mm DIN-rail clips for panel installation.
Field Installation Guidelines
Install the transmitter on a suitable DIN rail inside a protected control cabinet environment. Maintain separation between signal wiring and high-current power cables to reduce electrical noise interference.
Connect the proximity probe system according to the specified sensor wiring requirements. Verify probe polarity, cable shielding, and grounding practices before commissioning.
Check the probe gap voltage during installation to confirm correct eddy-current measurement operation. Ensure cable routing avoids strong electromagnetic sources and mechanical stress points.
