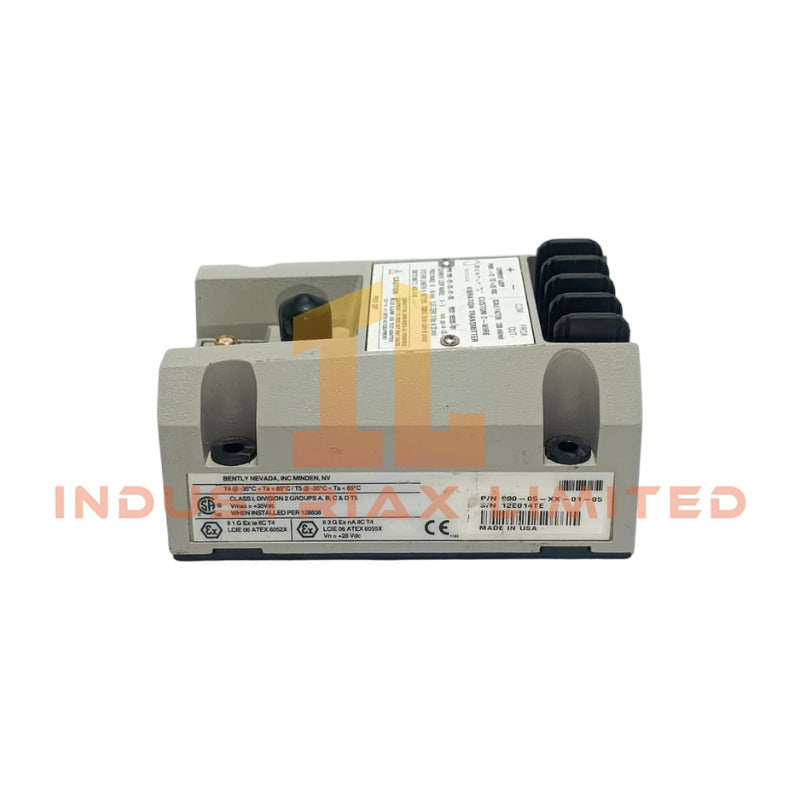

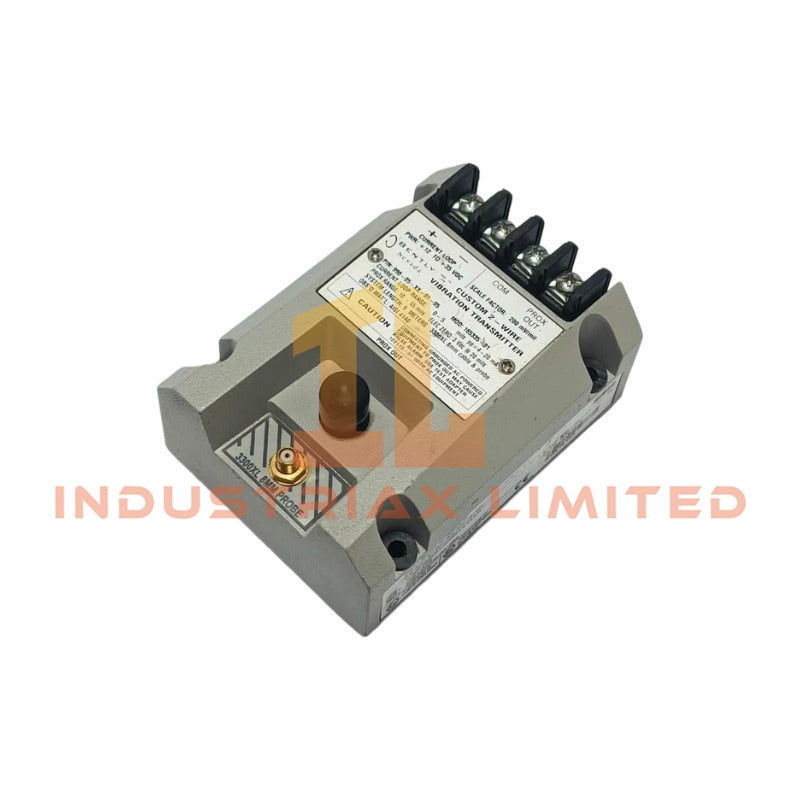

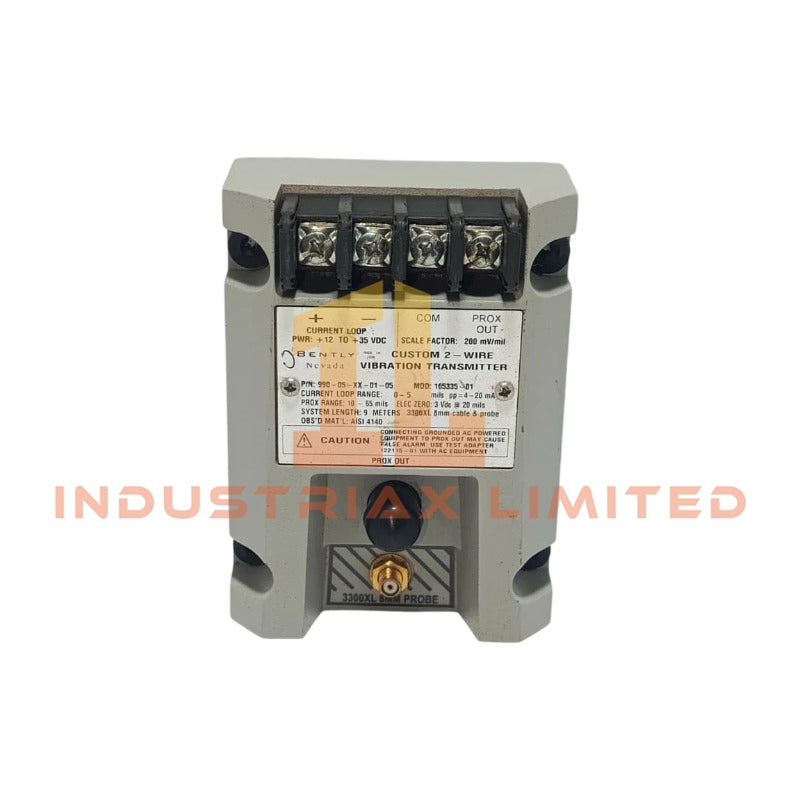

Bently Nevada 990-05-XX 990 Vibration Transmitter

The Bently Nevada 990-05-XX, also cataloged as the 990-05-XX 990 Vibration Transmitter, operates as a dedicated hardware component for converting eddy-current probe vibration signals into 4-20 mA outputs within machinery monitoring and control systems.

Hardware Specifications

Parameter	Specification
Model	990-05-XX
Brand	Bently Nevada
Product Type	Vibration Transmitter
Origin	USA
Weight	Approximately 0.44 kg
Dimensions	Compact DIN rail / bulkhead transmitter housing
Operating Temp	-40 deg C to +85 deg C
Power Consumption	Less than 30 mA
Measurement Input	3300 NSv proximity probe and extension cable system
Measurement Principle	Eddy-current displacement sensing
Output Signal	4-20 mA DC proportional vibration output
Configuration	Two-wire loop-powered transmitter
Full Scale Range	0-5 mils pp (0-125 um pp) option
Power Supply	+12 to +35 VDC
Frequency Response	5 Hz to 6,000 Hz (+0, -3 dB)
Probe Gap Range	0.5 mm to 1.75 mm
Accuracy	Approximately +/- 1.5% of full scale
Loop Resistance	Up to 1,000 ohm at 35 VDC
Mounting Type	35 mm DIN rail or bulkhead mounting
Diagnostic Output	PROX OUT and COM terminals
Hazardous Area Compatibility	Zone 2 / Division 2 compatible options

Eddy-Current Probe Scaling and Rotor Dynamics Monitoring

The 990-05-XX transmitter applies Bently Nevada eddy-current probe scaling technology to process shaft vibration displacement signals from the 3300 NSv proximity probe system. The integrated electronics convert probe voltage variations into a proportional vibration current output for external monitoring equipment.

The transmitter validates probe operation through gap voltage measurement during installation and operation. Proper probe positioning maintains the sensor within the linear measurement range, while the signal conditioning circuit processes dynamic shaft movement for rotor dynamics analysis.

The design supports machinery vibration trending by providing direct access to vibration amplitude and gap-related diagnostic signals. In addition, the transmitter structure reduces signal interference effects through controlled signal conditioning and dedicated diagnostic terminals.

Frequently Asked Questions

Q: What type of input sensor is compatible with the 990-05-XX?
A: The transmitter is designed for the Bently Nevada 3300 NSv eddy-current proximity probe system with a matching extension cable configuration.

Q: What electrical output does the 990-05-XX provide?
A: The device provides a two-wire loop-powered 4-20 mA DC proportional vibration output for connection to PLC, DCS, or monitoring systems.

Q: How is probe installation condition verified?
A: Probe operating condition is checked through gap voltage measurement, allowing verification of probe position and signal quality during commissioning.

Field Installation Guidelines

• Verify the transmitter, proximity probe, and extension cable system length compatibility before wiring.
• Install the unit on a suitable DIN rail or bulkhead mounting surface with proper mechanical support.
• Use shielded signal wiring for the 4-20 mA loop connection in areas with electrical noise sources.
• Maintain correct cable routing between the probe and transmitter to reduce electromagnetic interference.
• Confirm the loop power supply voltage is within the specified operating range before startup.
• Check probe gap voltage and vibration output signals after mechanical installation and system commissioning.

Spesifikasi

• Merek: Bently Nevada
•
  :


Keuntungan

• Keandalan tinggi di lingkungan industri


• Mendukung operasi berkelanjutan
• Kompatibel dengan sistem PLC/DCS utama
