Description

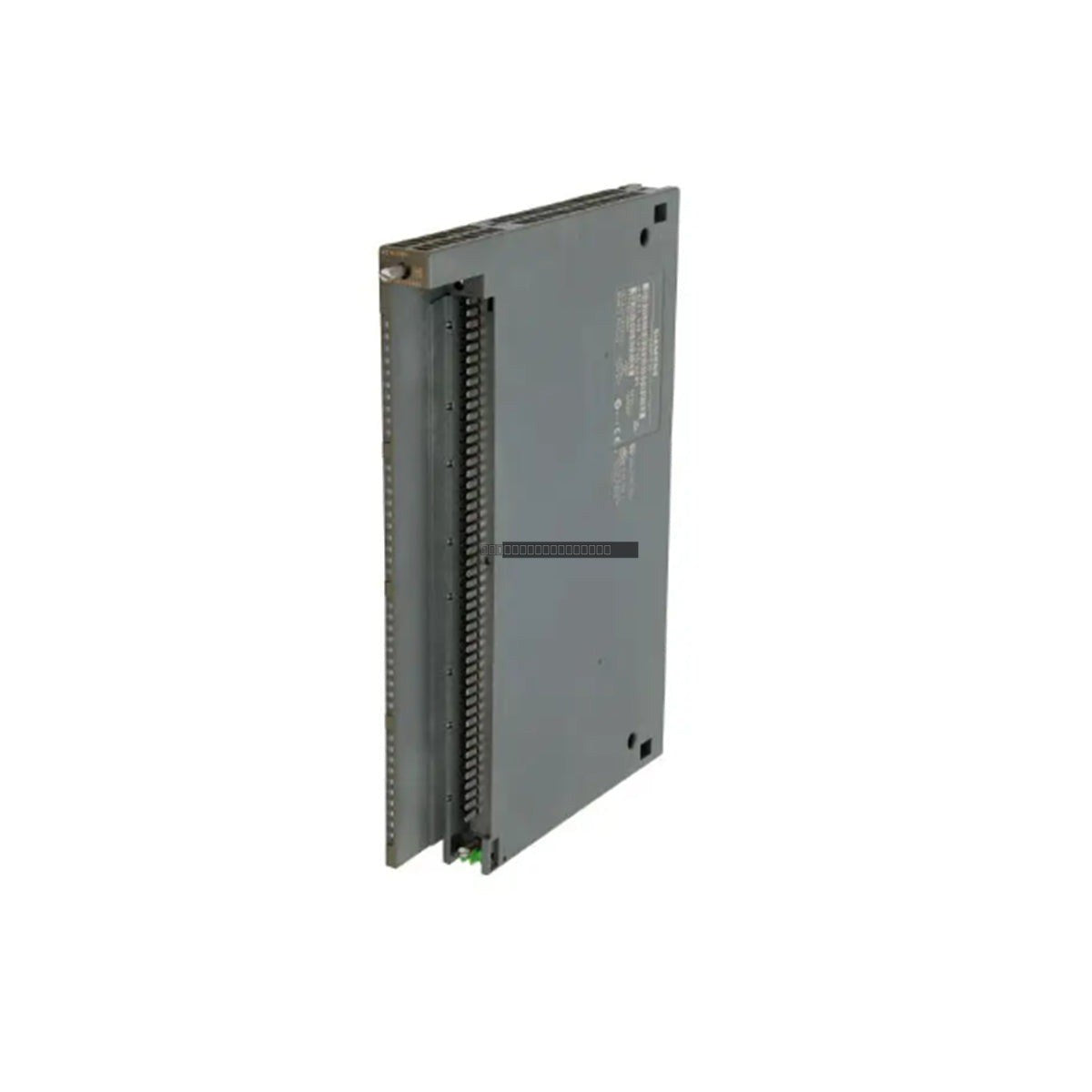

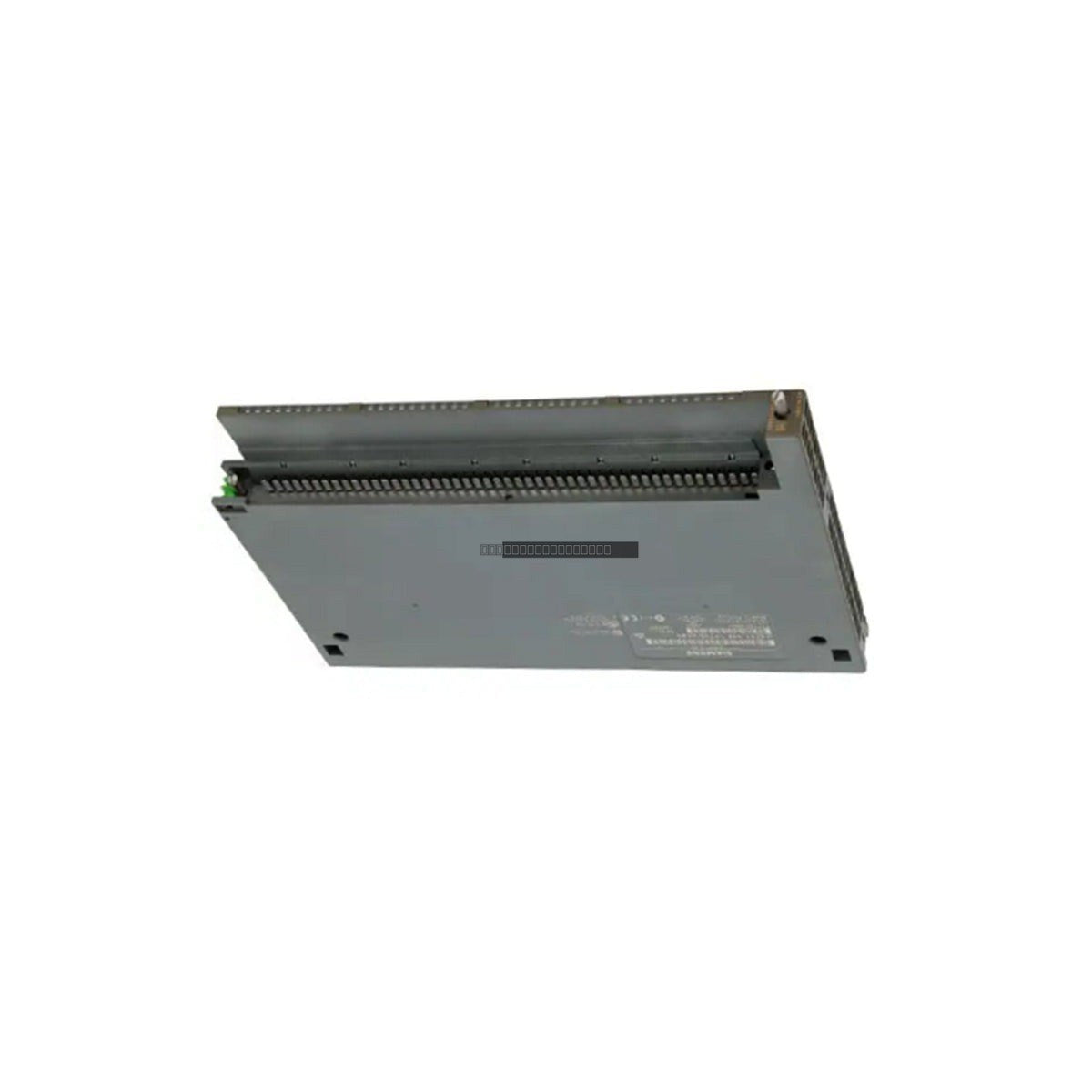

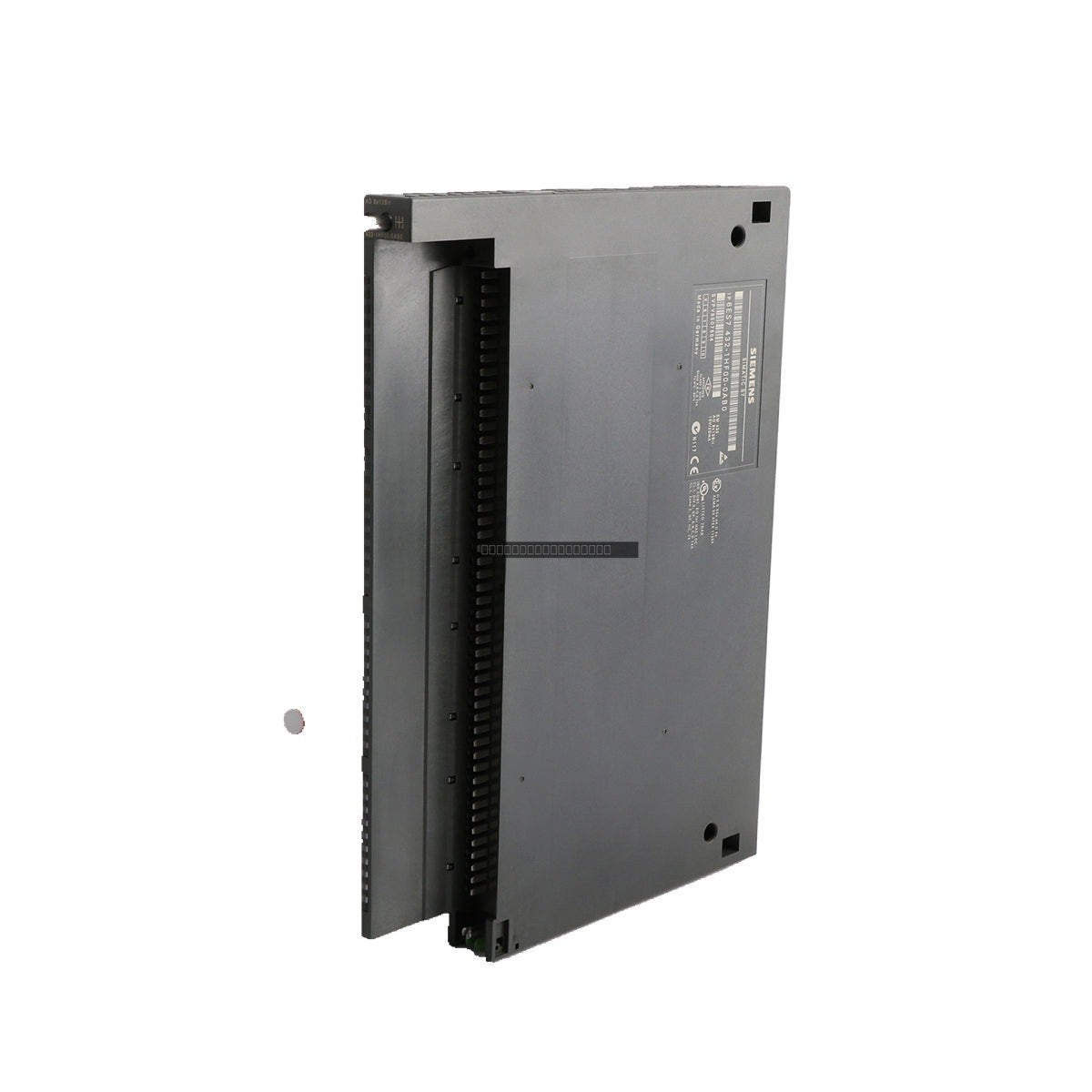

The Siemens 6ES7432-1HF00-0AB0 is a high-performance analog output module designed for the SIMATIC S7-400 automation system. This SM 432 module provides 8 isolated analog output channels, offering reliable signal conversion for industrial control applications. It is engineered for rack-mounted configurations, ensuring seamless integration into existing S7-400 backplanes.
Features
- 8 analog output channels with 13-bit resolution.
- Optically isolated outputs for enhanced signal integrity and noise immunity.
- Integrated short-circuit protection for voltage outputs.
- Designed for standard S7-400 rack mounting.
- Optimized for low power loss (typ. 9 W) in demanding industrial environments.
Technical Specifications
| Model |
6ES7432-1HF00-0AB0 |
| System |
SIMATIC S7-400 |
| Number of Outputs |
8 |
| Resolution |
13-bit |
| Rated Voltage (DC) |
24 V |
| Current Consumption (Backplane) |
150 mA (5 V DC) |
| Current Consumption (Load) |
200 mA (no load) / 400 mA (rated load) |
| Power Loss |
9 W |
| Short-Circuit Protection |
Yes (Voltage output) |
| Max Short-Circuit Current |
30 mA |
| Max No-Load Voltage (Current output) |
19 V |
Installation Guidelines
- Ensure the S7-400 rack is powered down before inserting or removing the module to prevent electrical damage.
- Verify the module is correctly seated in the rack slot and secured with the provided locking mechanisms.
- Use shielded cables for all analog signal wiring to minimize electromagnetic interference (EMI).
- Maintain proper ventilation within the control cabinet to ensure the module operates within its thermal limits.
- Handle with care using ESD-safe practices to protect internal circuitry from electrostatic discharge.
FAQ
What is the primary function of the 6ES7432-1HF00-0AB0?
This module serves as an analog output interface for the Siemens S7-400 PLC, converting digital values from the controller into analog signals for field devices such as actuators, valves, or drives.
Is this module optically isolated?
Yes, the 6ES7432-1HF00-0AB0 features optical isolation to protect the backplane and controller from potential electrical surges or ground loops in the field wiring.
