Hardware Infrastructure Overview

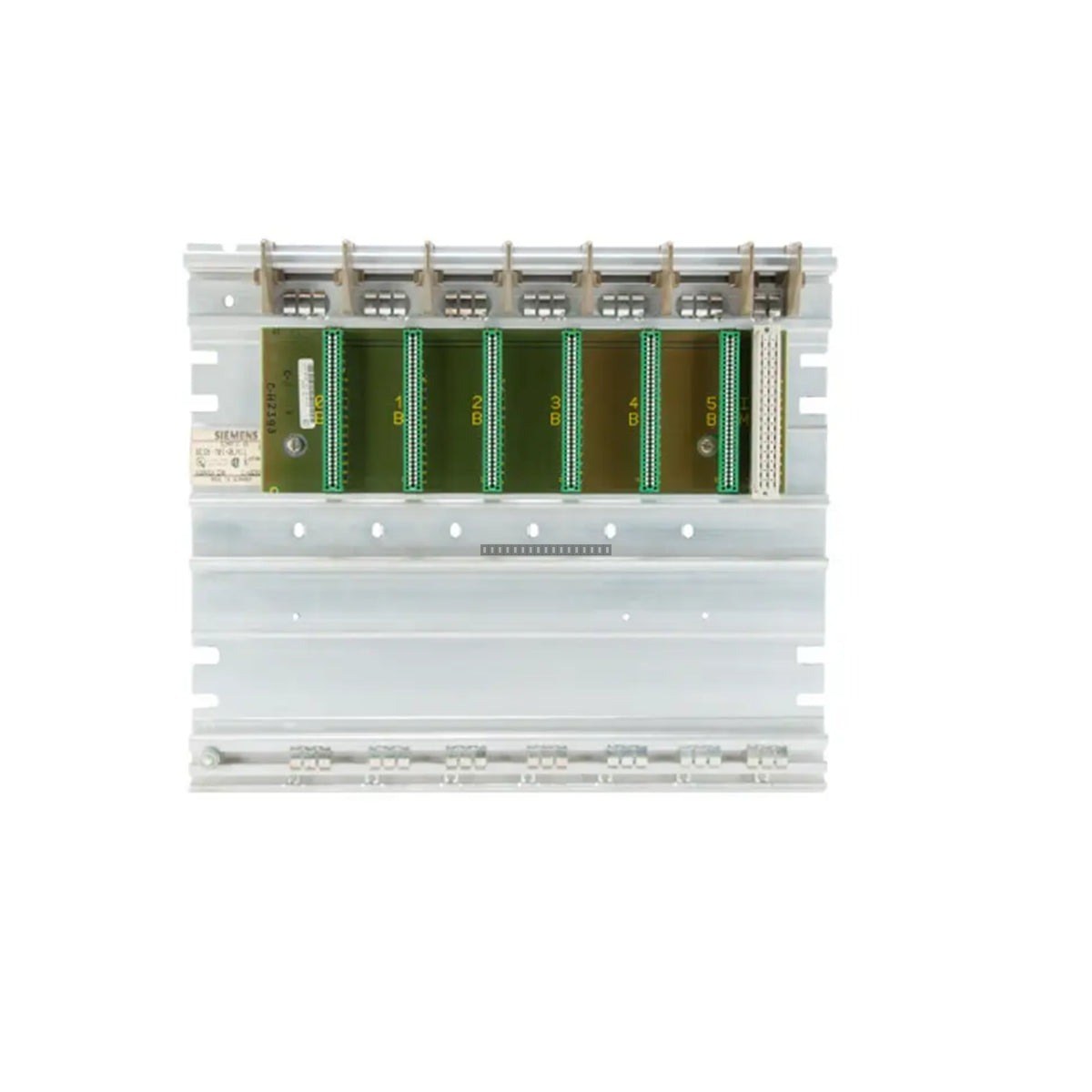

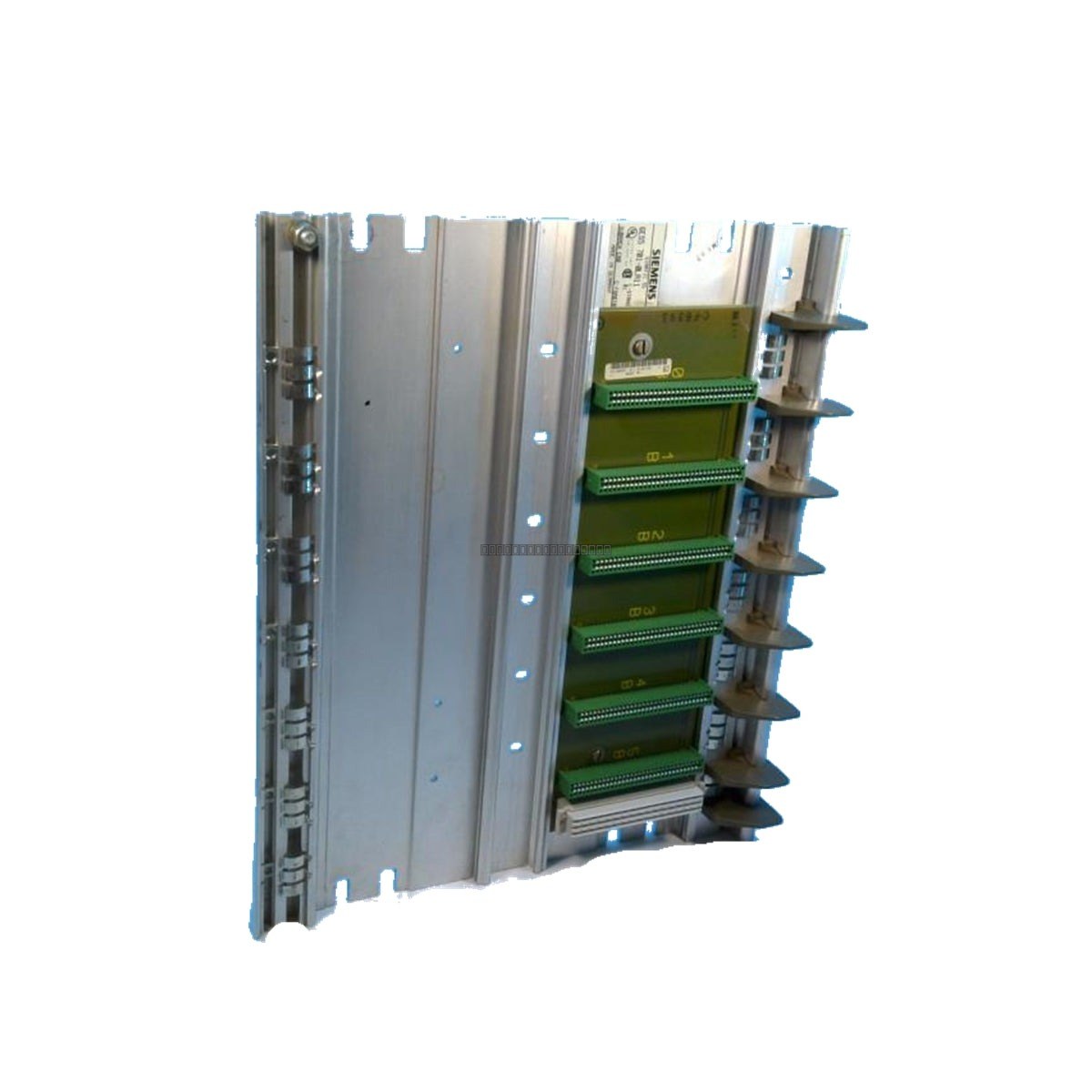

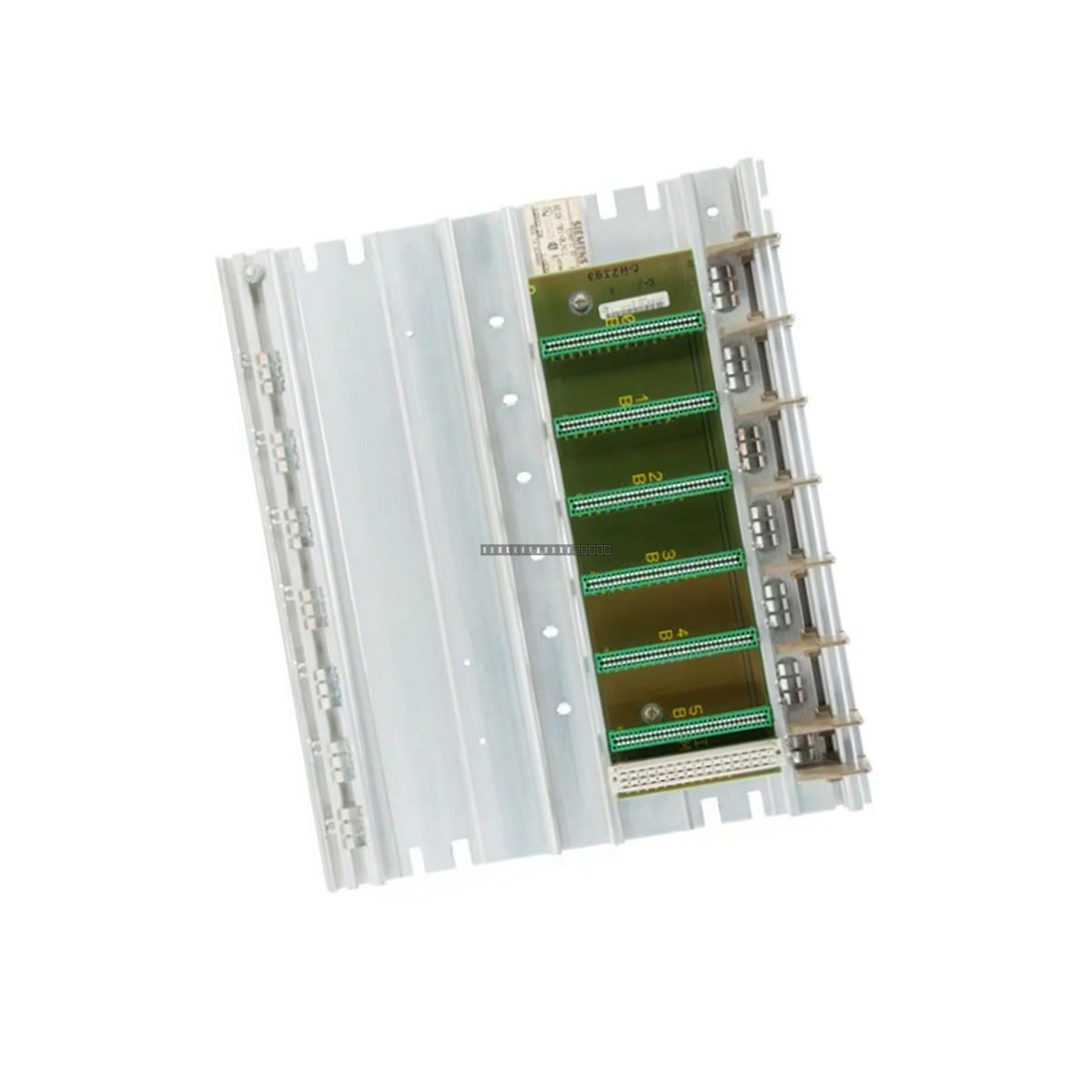

The 6ES5701-0LA11 is a robust expansion rack designed for the Siemens Simatic S5-115U PLC series. This chassis serves as a fundamental hardware backbone, allowing for the physical expansion of I/O capacity within the S5 control architecture. By providing a stable, high-reliability mounting environment for additional modules, it enables the integration of complex control systems in demanding industrial environments such as manufacturing lines, material handling systems, and process automation facilities. This unit ensures consistent backplane communication and mechanical stability for critical field-side I/O.
Features
- Designed specifically for the Simatic S5-115U programmable controller environment.
- Provides 7 dedicated slots for modular expansion.
- Includes 1 reserved slot for central controller or IM interface module connectivity.
- Supports 6 additional slots for diverse digital, analog, or specialty I/O modules.
- Constructed with a rigid, heavy-gauge metal frame to withstand industrial vibration.
- Passive backplane design ensures reliable signal distribution and power routing.
- Integrated grounding points within the mounting brackets for improved EMI shielding.
Applications
This expansion rack is widely utilized in legacy automation upgrades and existing S5-115U installations requiring higher I/O density. Common applications include:
- Automated assembly and production machinery.
- Localized I/O distribution in large-scale control cabinets.
- Paper, pulp, and heavy manufacturing process control.
- Automated warehousing and logistics systems.
Technical Specifications
| Model |
6ES5701-0LA11 |
| Brand |
Siemens |
| Product Type |
7-Slot Expansion Rack / Chassis |
| Slot Configuration |
1 Controller/Interface Slot + 6 I/O Slots |
| Mounting |
Standard Rack / Panel Mount |
| Operating Temperature |
0 to 60 deg C |
| Power Consumption |
Passive Backplane |
Installation Guidelines
- Ensure the rack is mounted to a rigid, flat surface to prevent mechanical stress on the backplane.
- Always power down the entire PLC system before installing or removing modules from the rack slots.
- Verify that all modules are fully seated and that the backplane connectors are aligned to prevent pin damage.
- Utilize the integrated grounding brackets to connect the rack to the cabinet's common ground to minimize electromagnetic interference.
- Maintain proper ventilation around the chassis to ensure operating temperatures remain within the 0 to 60 deg C range.
- Route signal cables and power lines through separate channels to avoid cross-talk and noise interference.
FAQ
Is this rack compatible with other S5 series PLCs?
The 6ES5701-0LA11 is specifically designed for the S5-115U platform. Compatibility with other S5 series models should be verified against your specific system hardware documentation.
Does this rack require a separate power supply?
As a passive expansion rack, it facilitates the distribution of power from the system bus. Ensure your central power supply unit is sized appropriately for the additional load of the modules installed in the expansion rack.
