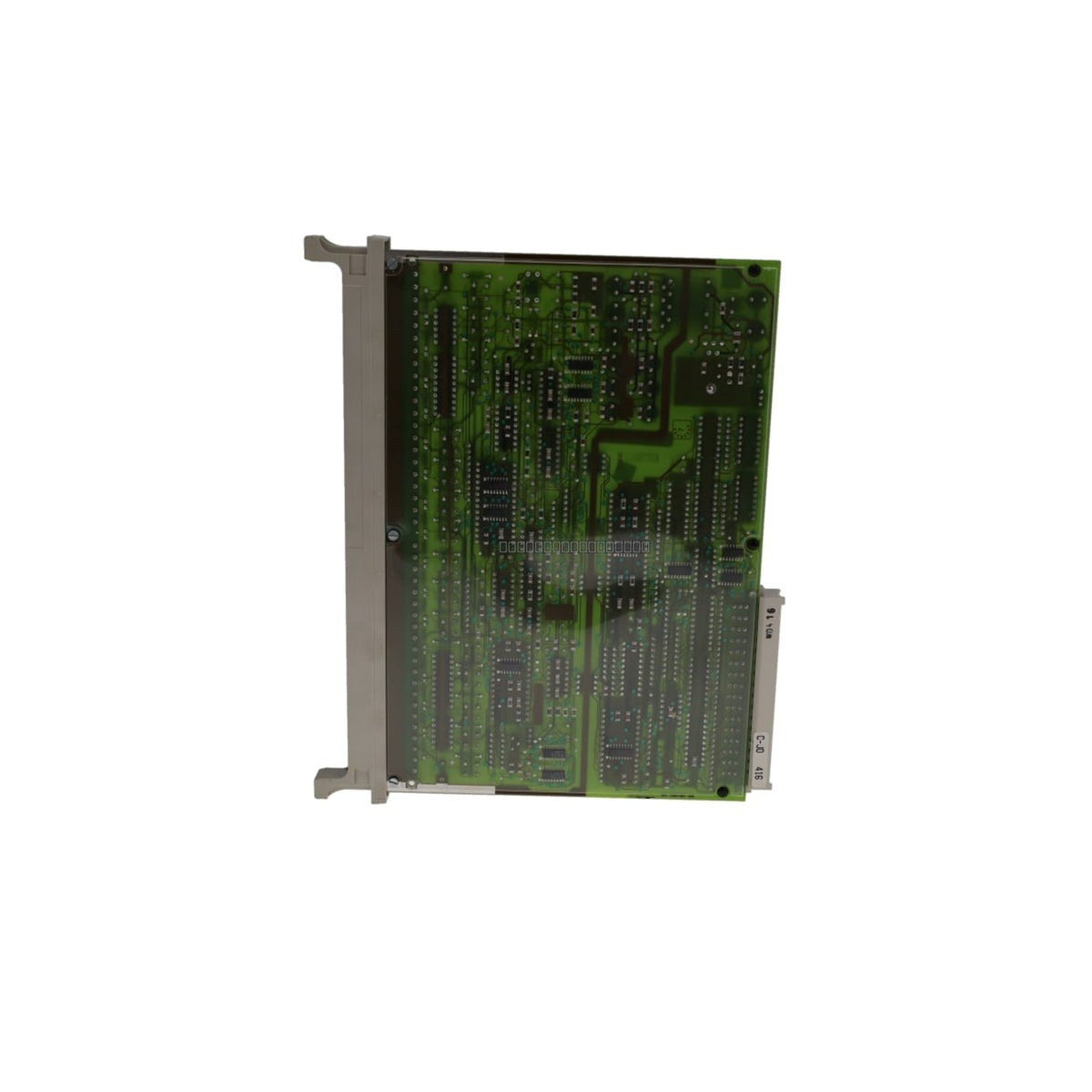

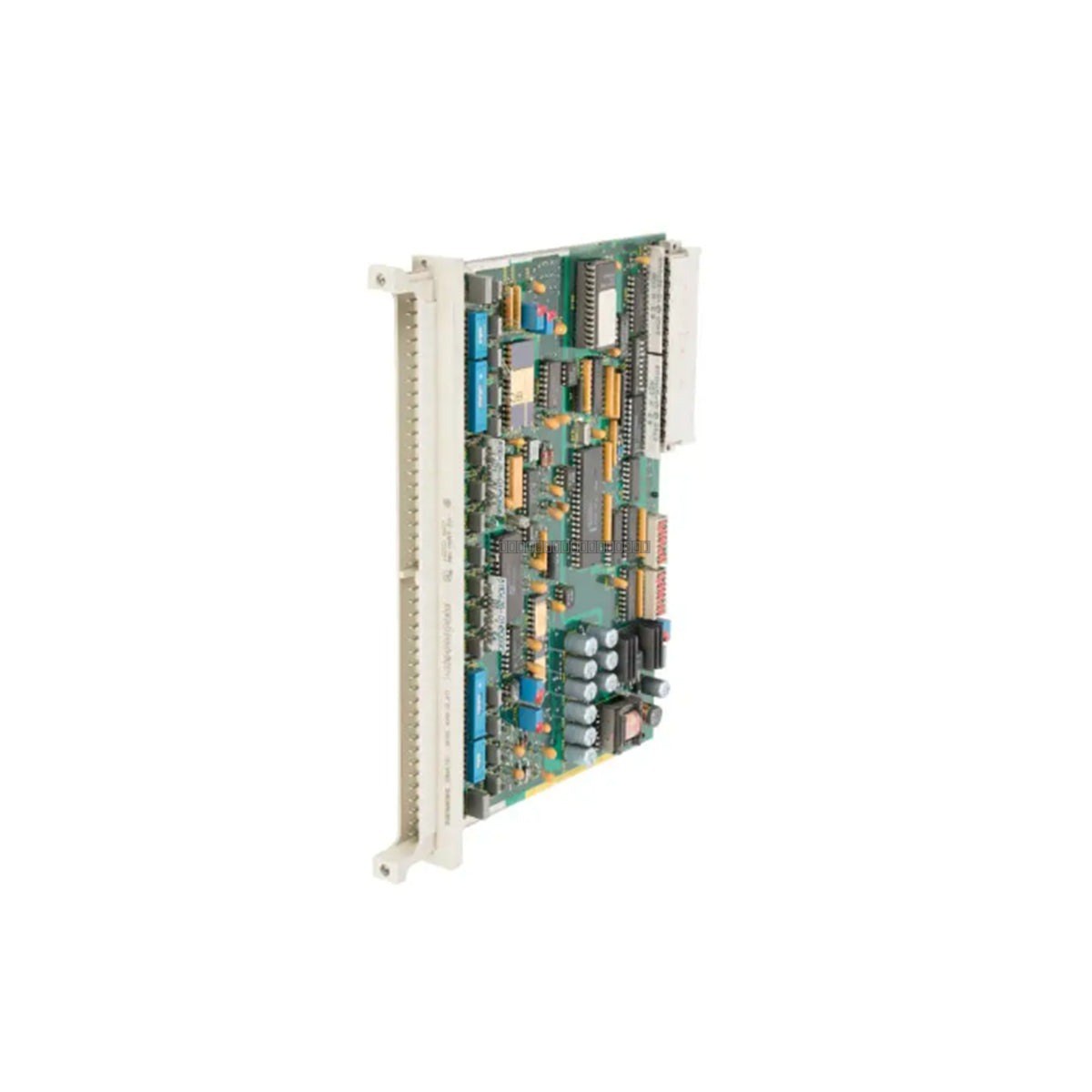

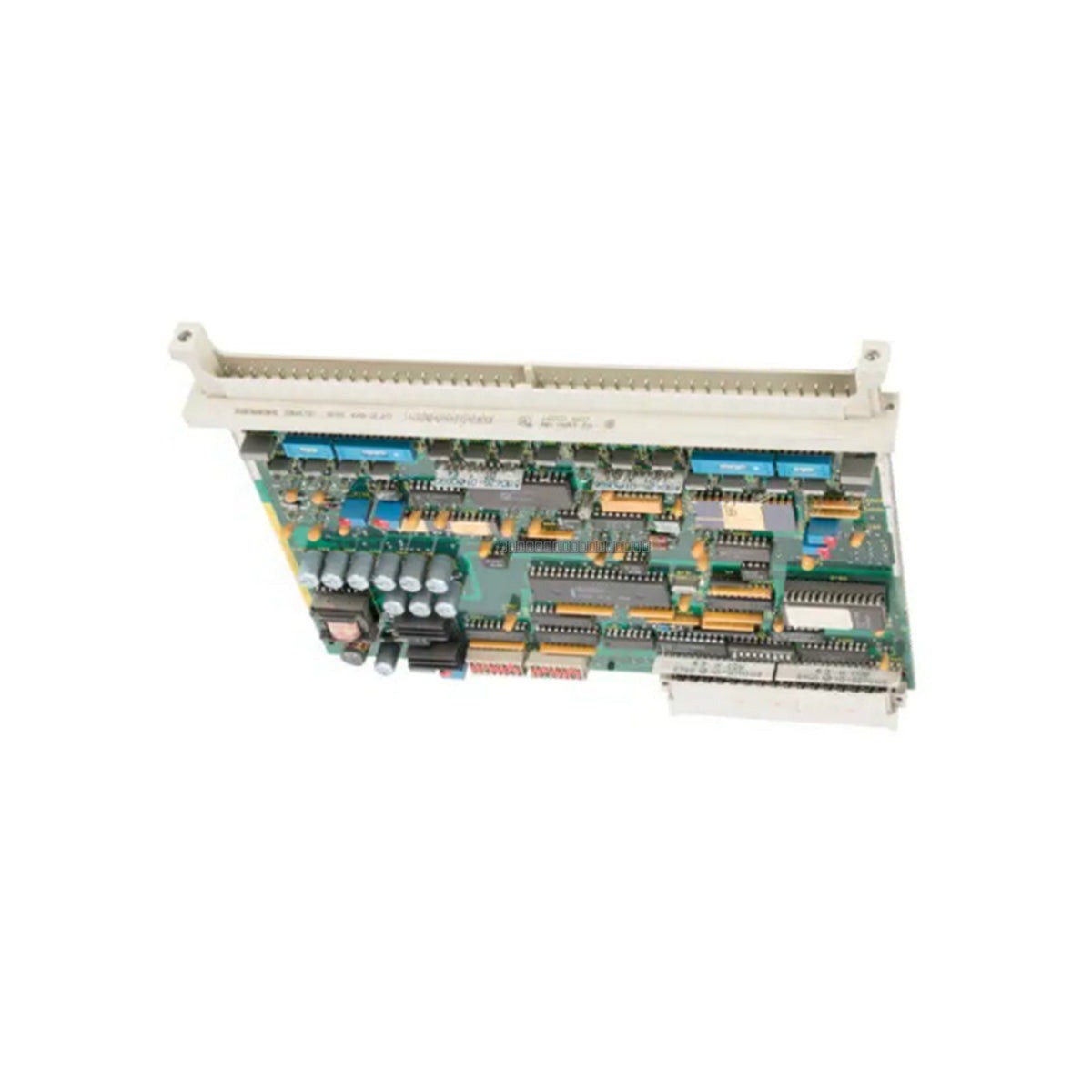

The Siemens 6ES5466-3LA11 is a floating (galvanically isolated) analog input module designed for integration within the SIMATIC S5 automation family. It is compatible with S5-115U/H/F, S5-135U, and S5-155U/H PLC systems, providing reliable signal acquisition for industrial process control.
Features
- Compatible with S5-115U/H/F, S5-135U, and S5-155U/H PLC series.
- Configurable for 16 single-ended or 8 differential analog input channels.
- Floating design ensures galvanic isolation between input circuits and the PLC internal bus.
- Supports a wide range of voltage and current input signals.
- Designed for integration in electrically noisy industrial environments.
Applications
- Process variable monitoring (temperature, pressure, flow, and level).
- Motion and position control systems.
- Industrial infrastructure, including water treatment and oil and gas facilities.
- Logic control in automated production lines.
Technical Specifications
| Model |
6ES5466-3LA11 |
| Input Channels |
16 (single-ended) or 8 (differential) |
| Input Impedance (Voltage) |
> 10 MΩ |
| Input Impedance (Current) |
125 Ω |
| Internal Supply Voltage |
+5 V (+/- 5%) |
| Internal Current Consumption |
Typically 0.6 A |
| Power Loss |
3 W |
| Rated Isolation Voltage |
500 V (channels to ground) |
| Supported Input Ranges |
0-20 mA, 4-20 mA, +/- 20 mA, 0-1.25 V, 0-2.5 V, 0-5 V, 1-5 V, 0-10 V, +/- 1.25 V, +/- 2.5 V, +/- 5 V, +/- 10 V |
Installation Guidelines
- Ensure the PLC system is powered down before inserting or removing the module from the rack.
- Use shielded twisted-pair cabling for all analog signal connections to minimize EMI/RFI interference.
- The module does not provide power to 2-wire transducers; ensure an external power supply is used in series with the loop.
- Maintain proper grounding practices to ensure the integrity of the floating isolation barrier.
- Ensure adequate ventilation in the cabinet to dissipate the 3 W typical power loss.
FAQ
What is the 6ES5466-3LA11 module?
The 6ES5466-3LA11 is an analog input module used in S5-115U/H/F, S5-135U, and S5-155U/H PLC systems to acquire field analog voltage or current signals.
How many analog inputs does the 6ES5466-3LA11 have?
The module supports 16 single-ended analog input channels or 8 differential analog input channels, depending on the configuration.
What is the input impedance of the 6ES5466-3LA11 module?
For voltage inputs, the input impedance is greater than 10 MΩ; for current inputs, the input loop resistance is 125 Ω.
