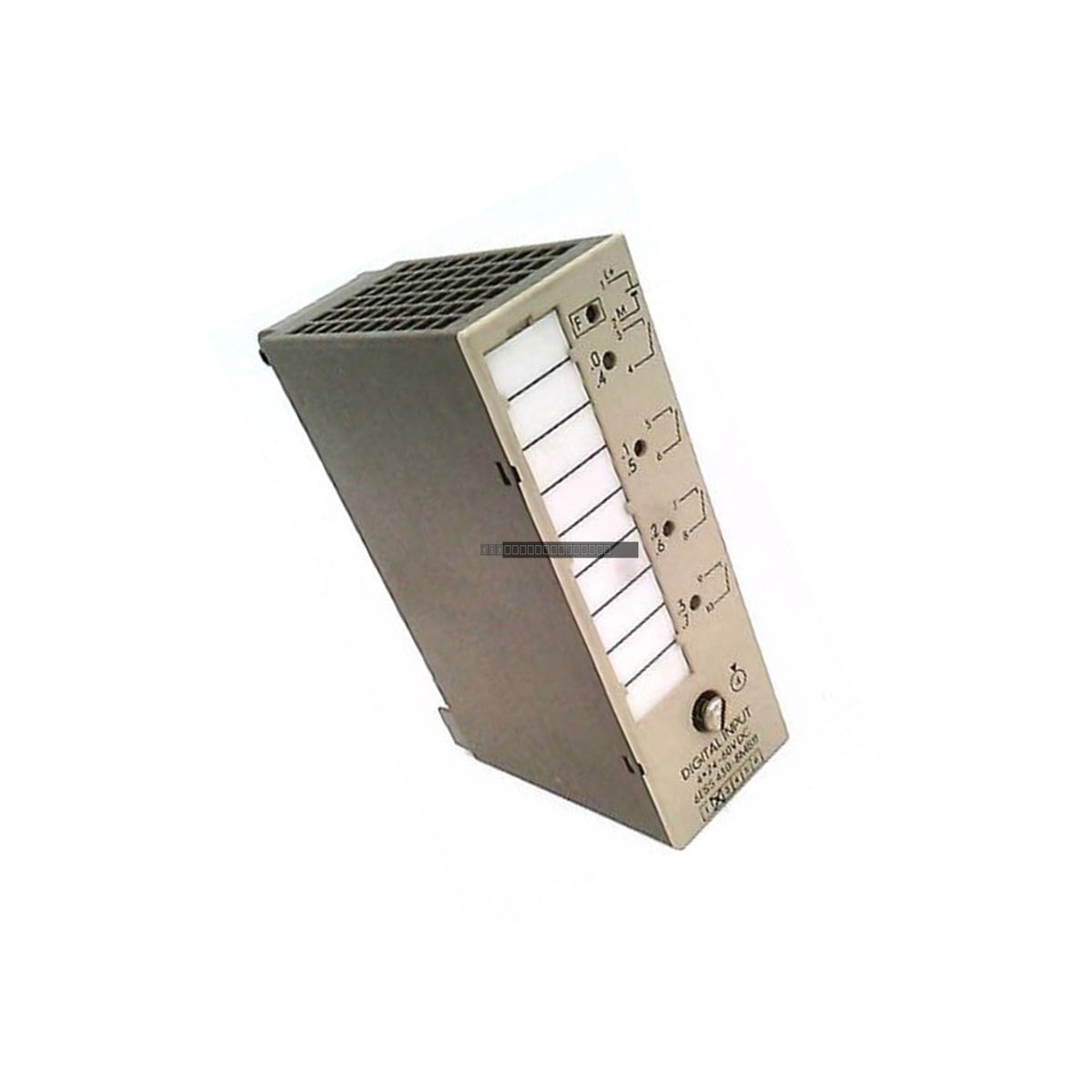

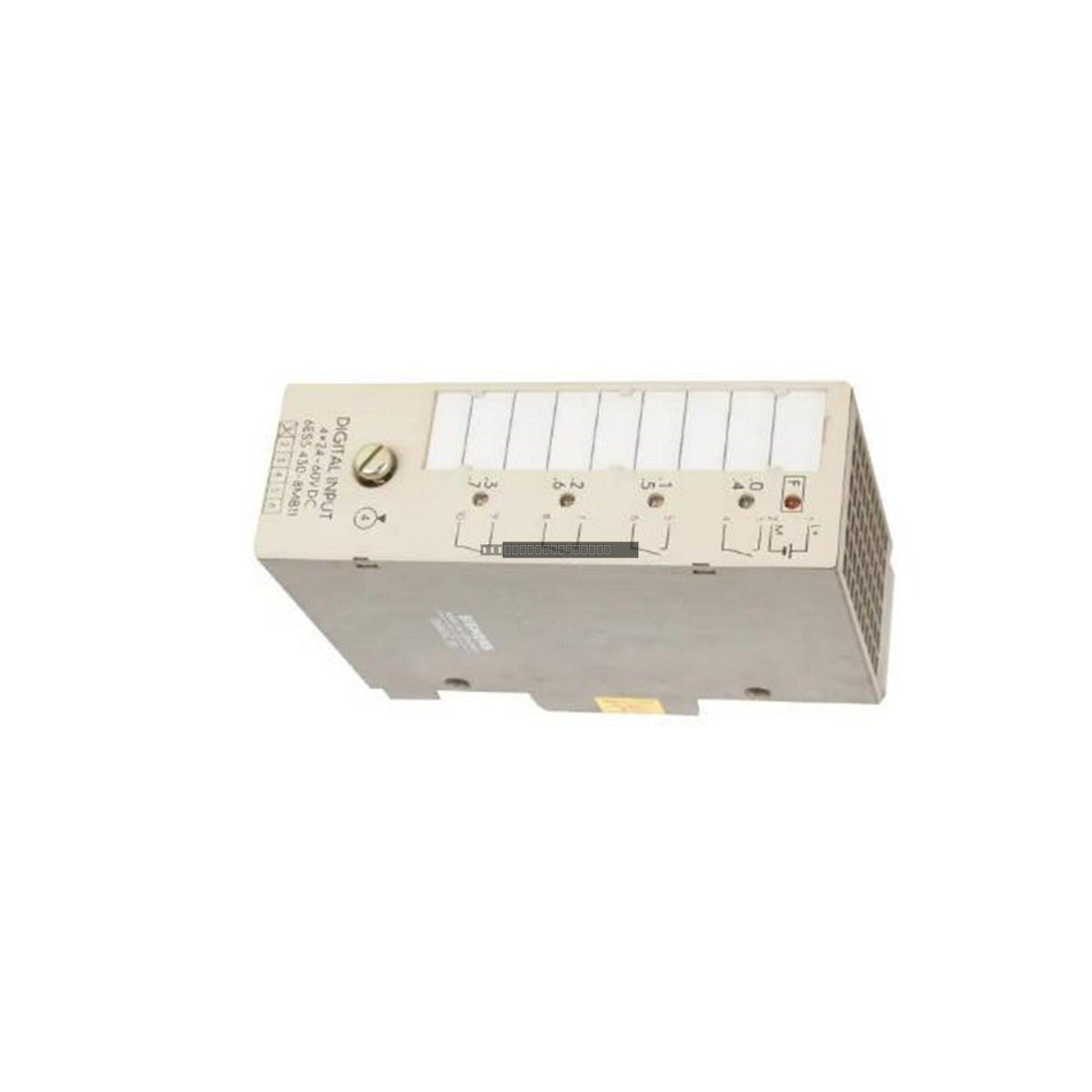

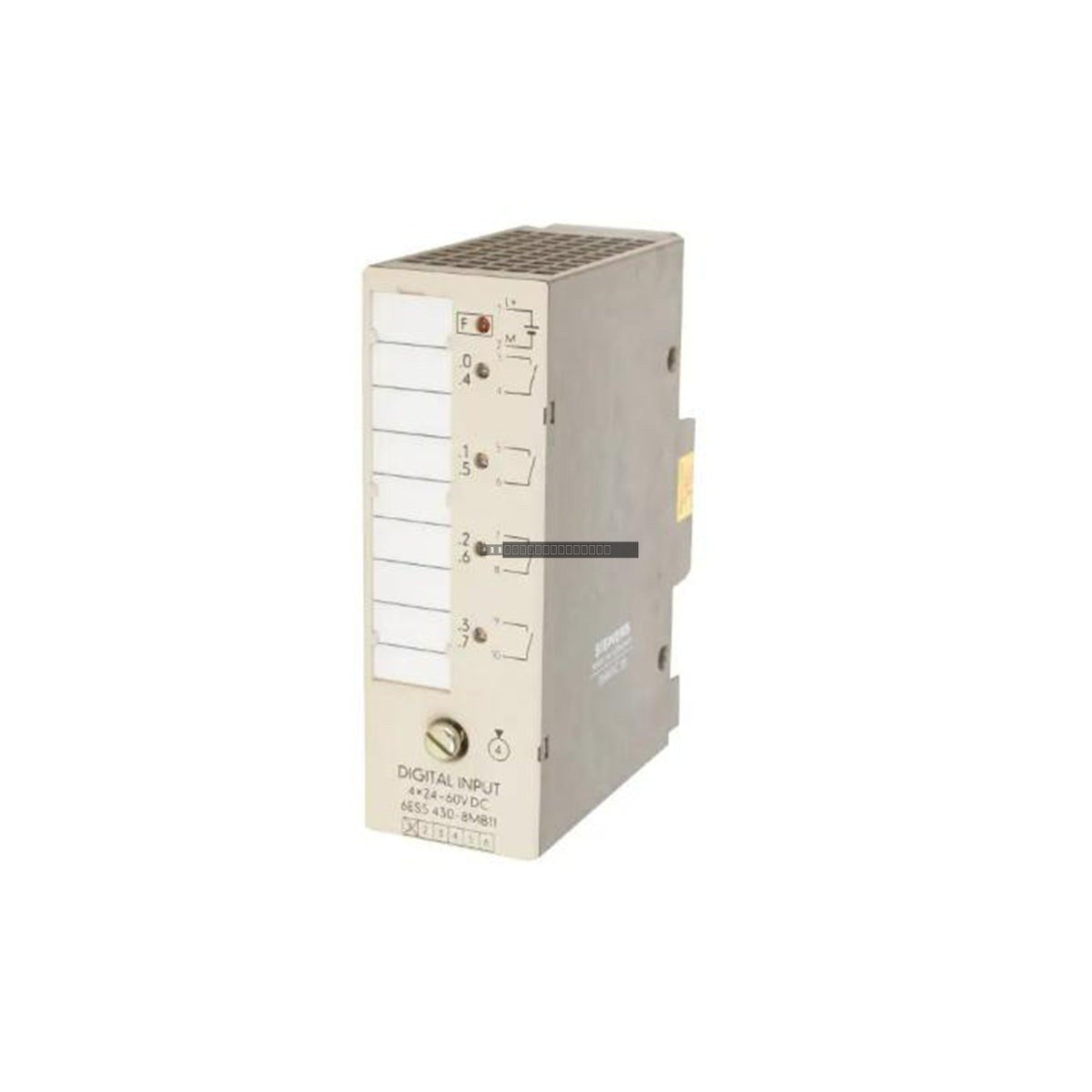

The Siemens 6ES5430-8MB11 is a digital input module designed for integration with the Simatic S5-090U, S5-095U, S5-100U, and ET 100U/200U programmable logic controller systems. This module provides four isolated digital input channels capable of processing signals within a 24 to 60 VDC range, facilitating reliable data acquisition in industrial automation environments.
Features
- Four galvanically isolated digital input channels for enhanced electrical noise immunity.
- Wide input voltage compatibility (24 to 60 VDC) for direct interface with various field sensors.
- Optimized for rapid signal processing and minimal propagation delay.
- Designed for seamless integration into legacy Simatic S5 control architectures.
Applications
This module is suitable for industrial applications requiring robust signal isolation, including water treatment facilities, automated packaging machinery, and assembly line control systems.
Technical Specifications
| Model |
6ES5430-8MB11 |
| Brand |
Siemens Simatic S5 |
| Inputs |
4 Isolated Digital Inputs |
| Voltage Range |
24 to 60 VDC |
| Operating Temperature |
0 to 55 degC |
| Compatibility |
Simatic S5-090U, S5-095U, S5-100U, ET 100U, ET 200U |
Installation Guidelines
- Ensure the PLC system is powered down before inserting or removing the module from the rack.
- Verify that field wiring is properly shielded and routed away from high-voltage power lines to minimize EMI.
- Maintain adequate clearance around the module to ensure proper ventilation and cooling within the control cabinet.
- Use appropriate ESD protection measures when handling the module to prevent damage to internal circuitry.
- Ensure all terminal connections are secure and that the input voltage polarity matches the module specifications.
FAQ
What is the primary function of the 6ES5430-8MB11?
This module serves as a digital input interface, converting field-side signals (24-60 VDC) into logic-level signals for the host PLC while providing galvanic isolation to protect the controller from electrical interference.
Is this module compatible with modern S7 controllers?
No, this module is specifically engineered for the legacy Simatic S5 and ET 100U/200U series architectures and is not natively compatible with S7 series hardware.
