Description

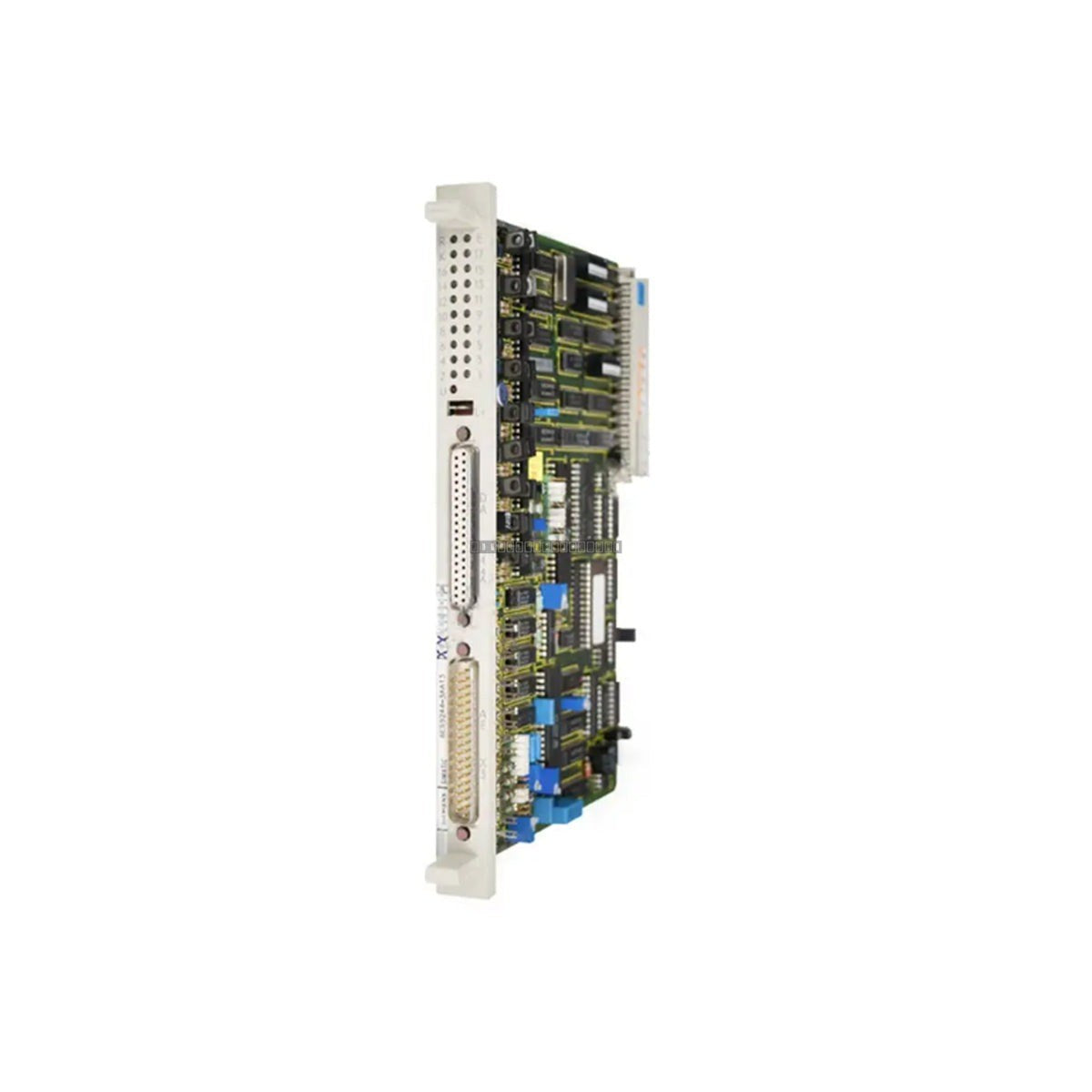

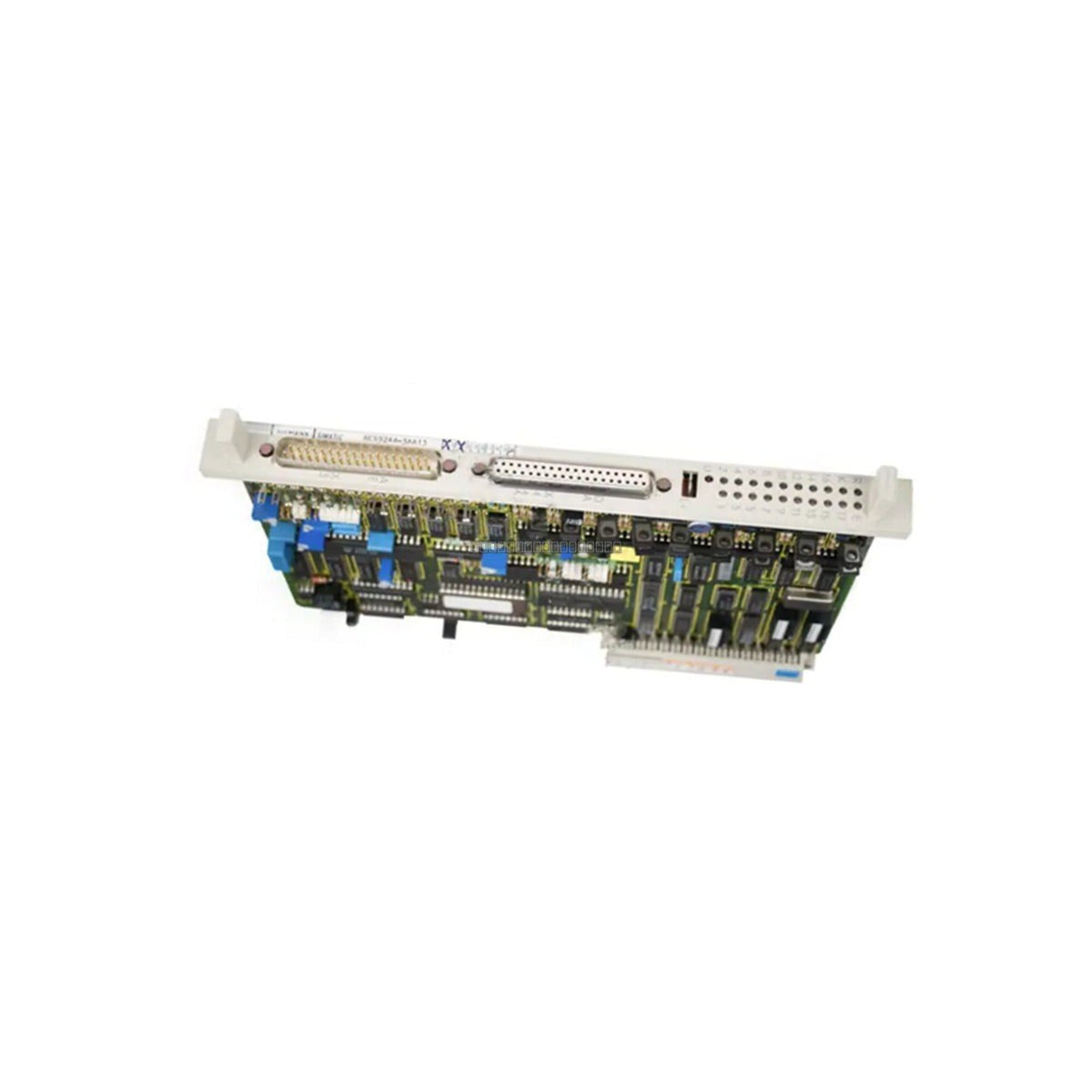

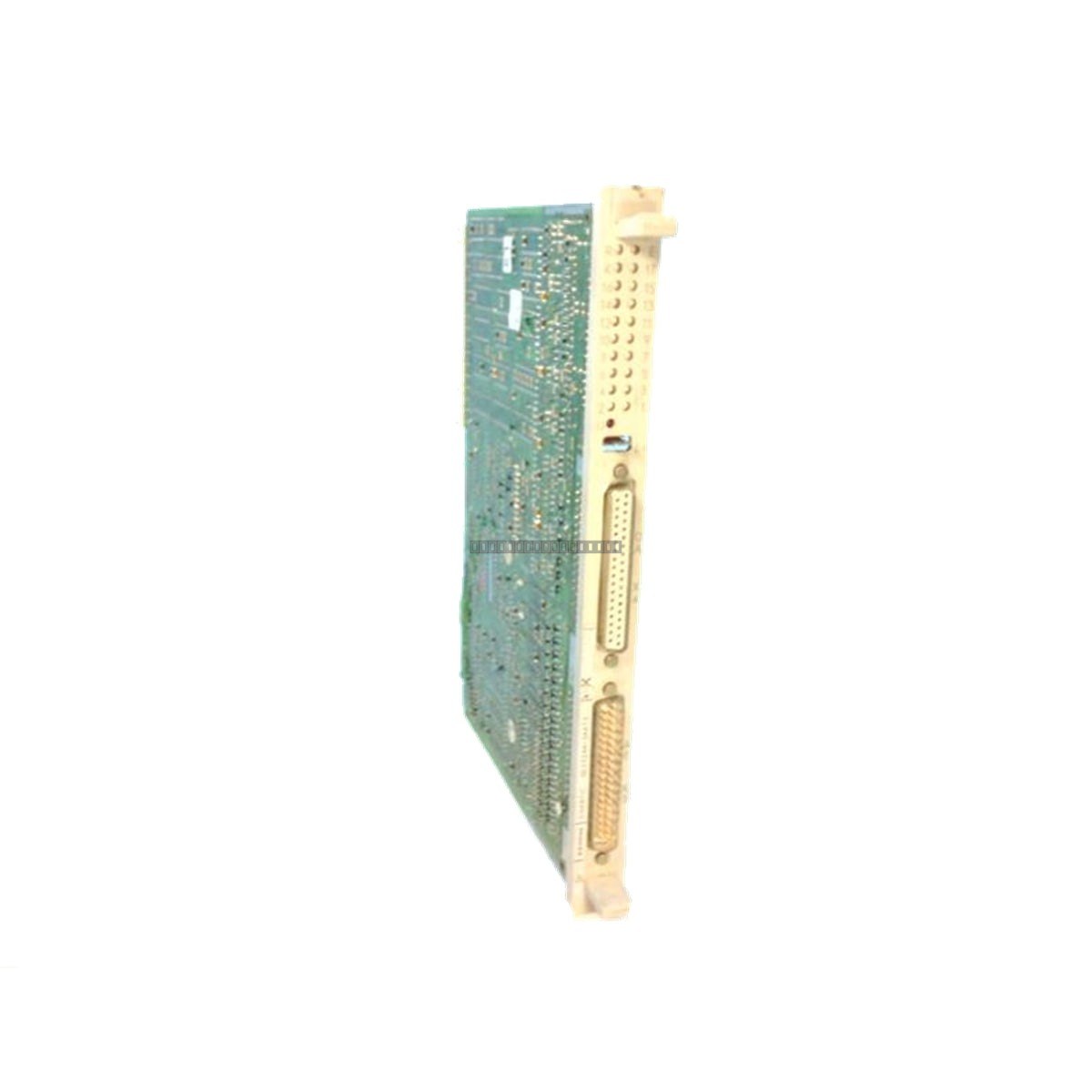

The Siemens 6ES5244-3AA13 is a specialized temperature control module designed for the SIMATIC S5 automation system. Known as the IP 244, this module provides precise temperature regulation and monitoring capabilities in industrial environments. It is engineered to integrate seamlessly into S5 rack configurations, offering robust performance for thermal management applications.
Features
- Dedicated temperature control functionality for SIMATIC S5 systems.
- High-resolution processing for accurate thermal feedback.
- Integrated input filtering to minimize signal noise in industrial environments.
- Galvanic isolation to protect internal circuitry from field-side electrical disturbances.
- Designed for reliable operation within standard industrial temperature ranges.
Technical Specifications
| Model |
6ES5244-3AA13 |
| System |
SIMATIC S5 (IP 244) |
| Back-plane Supply |
+5 V DC +/- 5 % |
| Field Power |
24 V DC |
| Isolation |
500 V DC |
| Power-up Inrush |
<= 3 A for 50 us |
| Resolution |
15-bit / 12-bit |
| Input Filter |
50 Hz |
| Operating Temperature |
0 degC to +60 degC |
| Storage Temperature |
-25 degC to +70 degC |
| Humidity |
5 to 95 % RH, non-condensing |
Installation Guidelines
- Ensure the system power is completely disconnected before inserting or removing the module from the S5 rack.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to sensitive electronic components.
- Verify that the back-plane supply and field power voltages match the specified requirements before energizing.
- Route signal cables away from high-voltage lines and high-EMI sources to maintain signal integrity.
- Ensure adequate ventilation in the control cabinet to maintain ambient temperatures within the 0 degC to +60 degC operating range.
FAQ
What is the primary function of the 6ES5244-3AA13 module?
This module acts as a dedicated temperature controller (IP 244) for the Siemens SIMATIC S5 PLC series, providing the necessary I/O and processing logic to manage thermal loops.
Is this module compatible with other PLC systems?
No, the 6ES5244-3AA13 is specifically designed for the SIMATIC S5 architecture and is not compatible with S7 or other non-S5 control systems.
What is the required field power for this module?
The module requires a 24 V DC field power supply for operation.
