Description

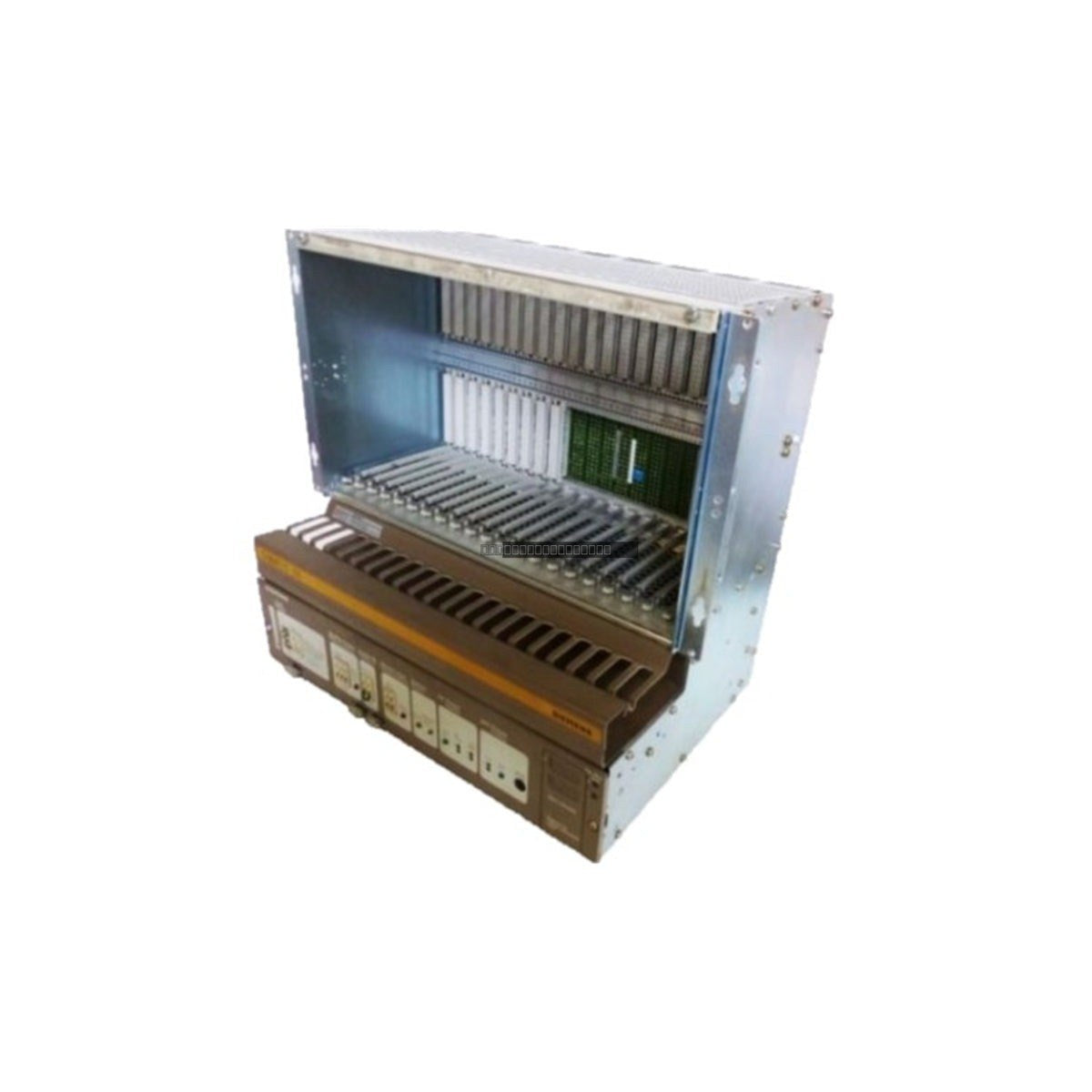

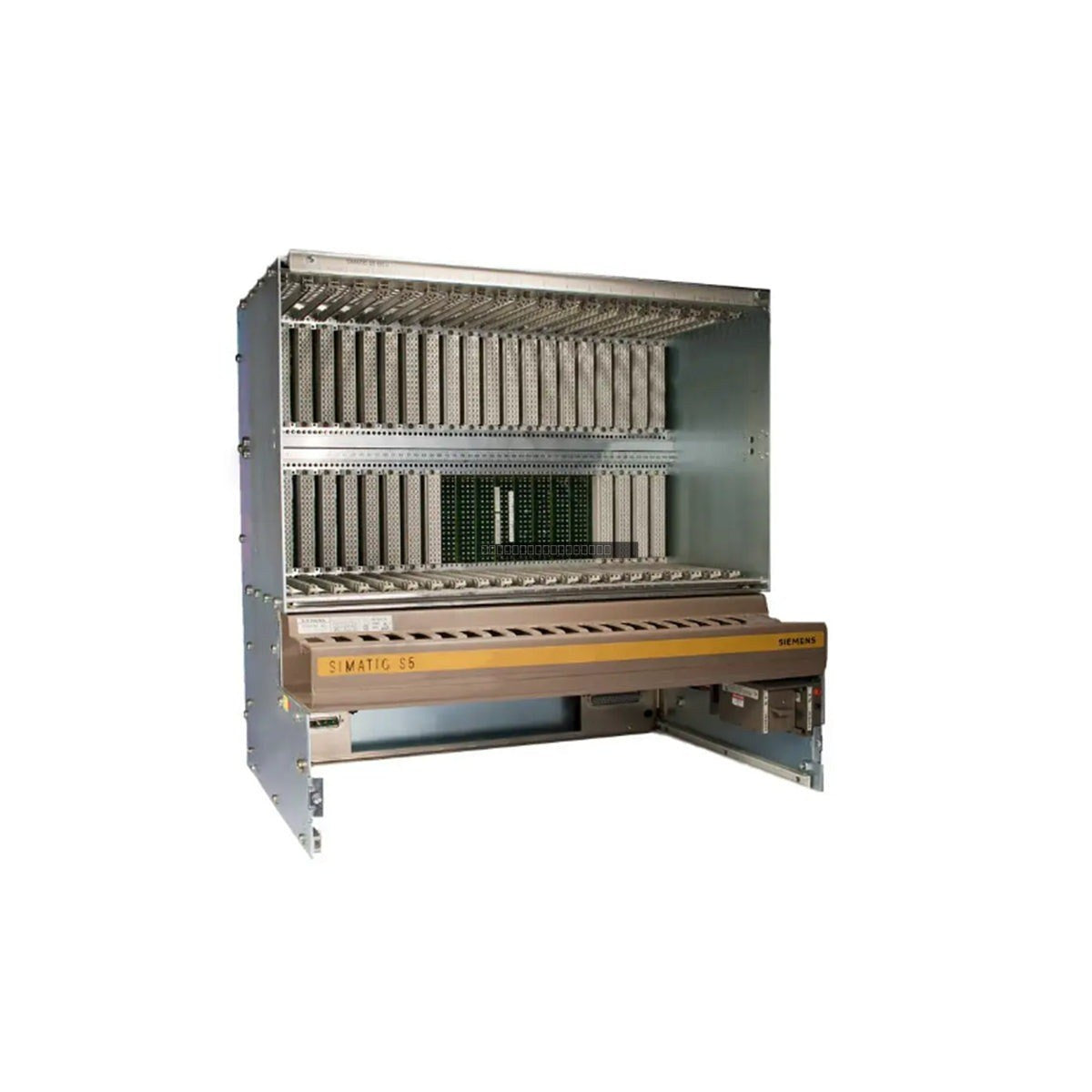

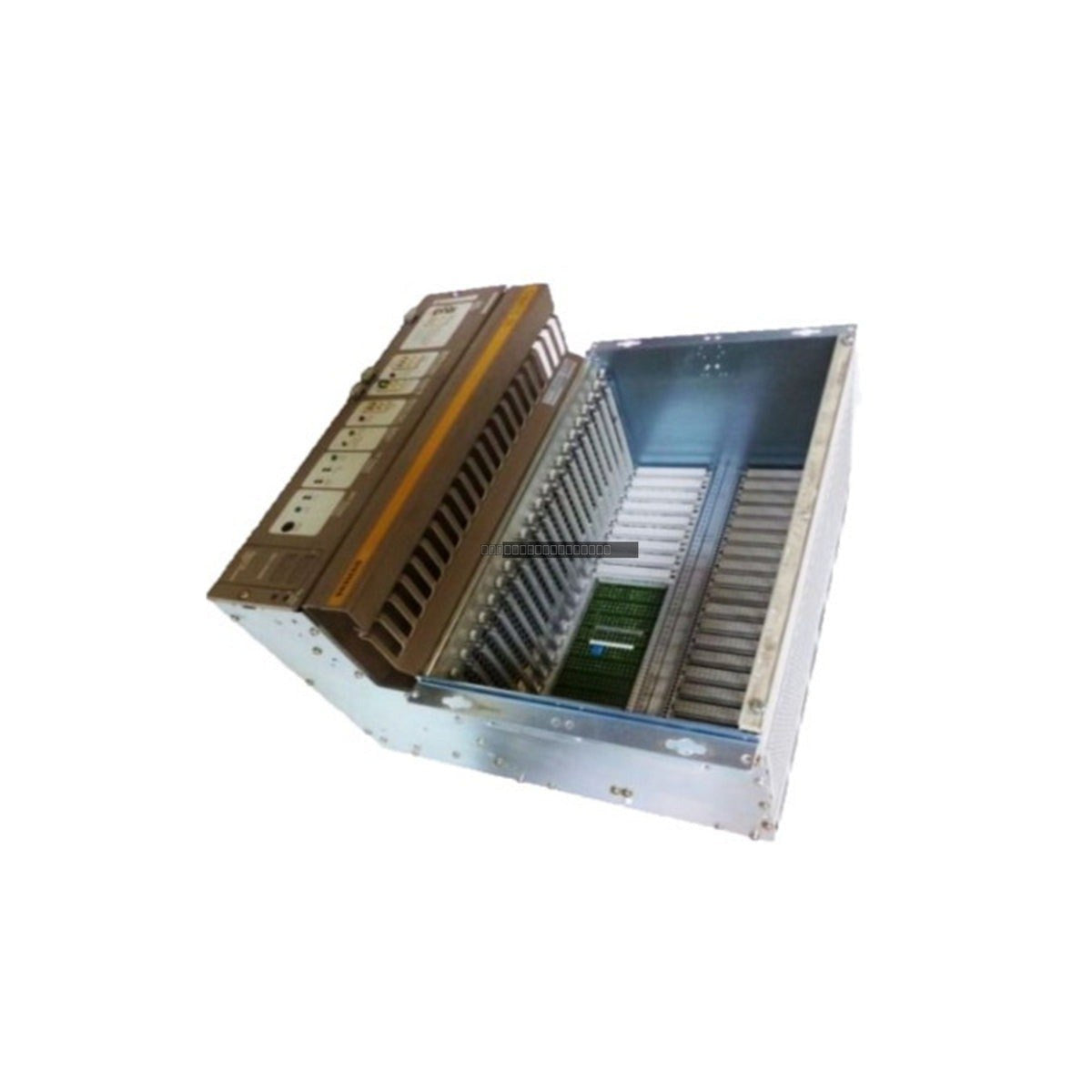

The Siemens Simatic S5 6ES5135-3KA13 serves as the primary backbone frame for the modular Simatic S5-135U automation platform. This industrial-grade chassis provides 21 expansion slots designed to hold power supplies, multi-processor configurations, interface links, and various I/O expansion modules. Designed for demanding industrial environments such as mineral processing plants, large-scale power stations, and petrochemical refineries, this chassis provides the necessary structural and electrical foundation for complex automation tasks. It facilitates high-speed system bus communication between slots, ensuring precise synchronization and reliable signal integrity across the entire rack.
Features
- 21-slot capacity for flexible configuration of CPUs, power supplies, and I/O modules.
- Integrated multi-point backplane assembly for high-speed data and power distribution.
- Isolated card lanes to minimize cross-talk and preserve signal integrity.
- Robust guide rails for precise module alignment and secure seating.
- Heavy-duty copper grounding points for enhanced electromagnetic interference (EMI) protection.
- Supports multi-processor network architectures for distributed control applications.
Applications
This central controller rack is intended for use in large-scale Simatic S5-135U and S5-155U automation systems. It is suitable for centralized control architectures requiring high-density I/O, multi-processor coordination, and reliable operation in harsh industrial environments.
Technical Specifications
| Model |
6ES5 135-3KA13 |
| Platform |
Simatic S5-135U / S5-155U |
| Slot Capacity |
21 Slots |
| Operating Temperature |
0 to 55 deg C |
| Power Consumption |
60 W (passive backplane load) |
| Bus Architecture |
Parallel multi-processor backplane |
Installation Guidelines
- Ensure the rack is mounted in a clean, dry, and well-ventilated enclosure to maintain operating temperatures within the specified 0 to 55 deg C range.
- Verify that the chassis is securely bonded to the main system ground using the provided heavy-duty grounding points to prevent EMI-related signal instability.
- Always power down the system before inserting or removing any modules to prevent electrical arcing or damage to the backplane pins.
- Use the integrated guide rails to ensure modules are seated correctly; do not force modules into the slots.
- Maintain adequate clearance around the rack to facilitate airflow and allow for future maintenance or module expansion.
FAQ
Does this rack come with a CPU installed? No, the 6ES5135-3KA13 is the chassis only. It requires the installation of a compatible Simatic S5 central processing unit and power supply module to function.
Can this rack be used for multi-processor configurations? Yes, the backplane is designed to support multi-processor setups, allowing for the integration of secondary coordinator cards and distributed processing tasks.
