Description

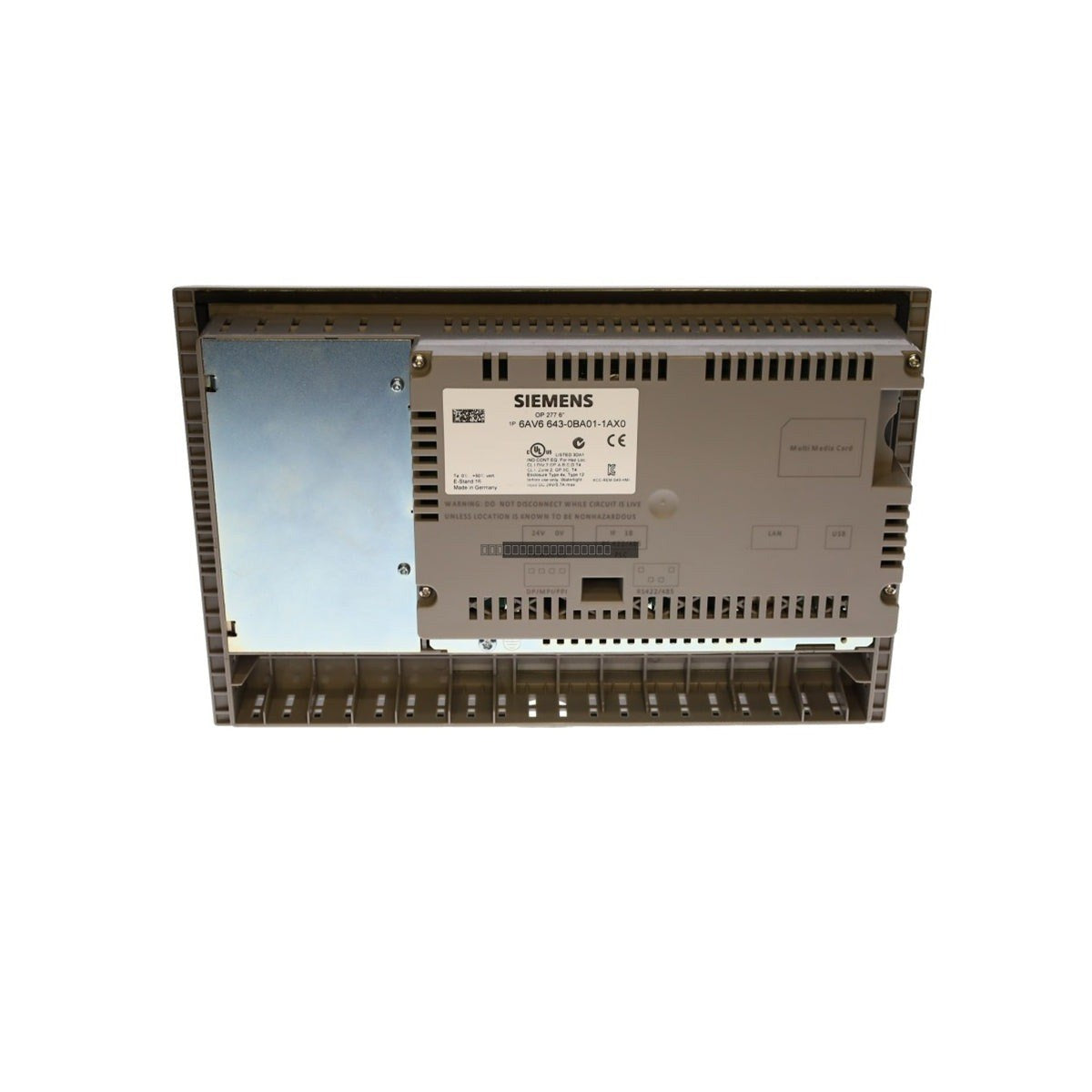

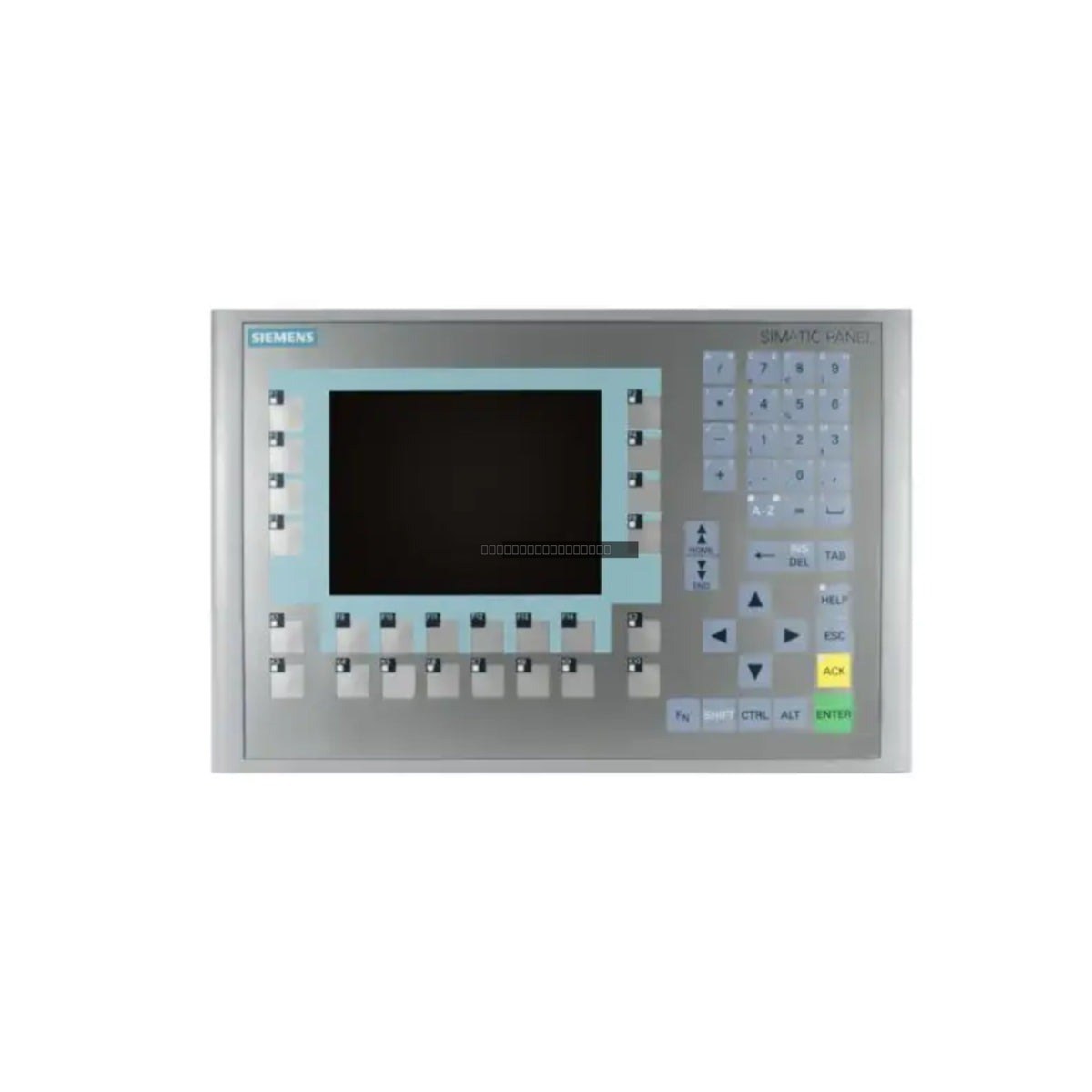

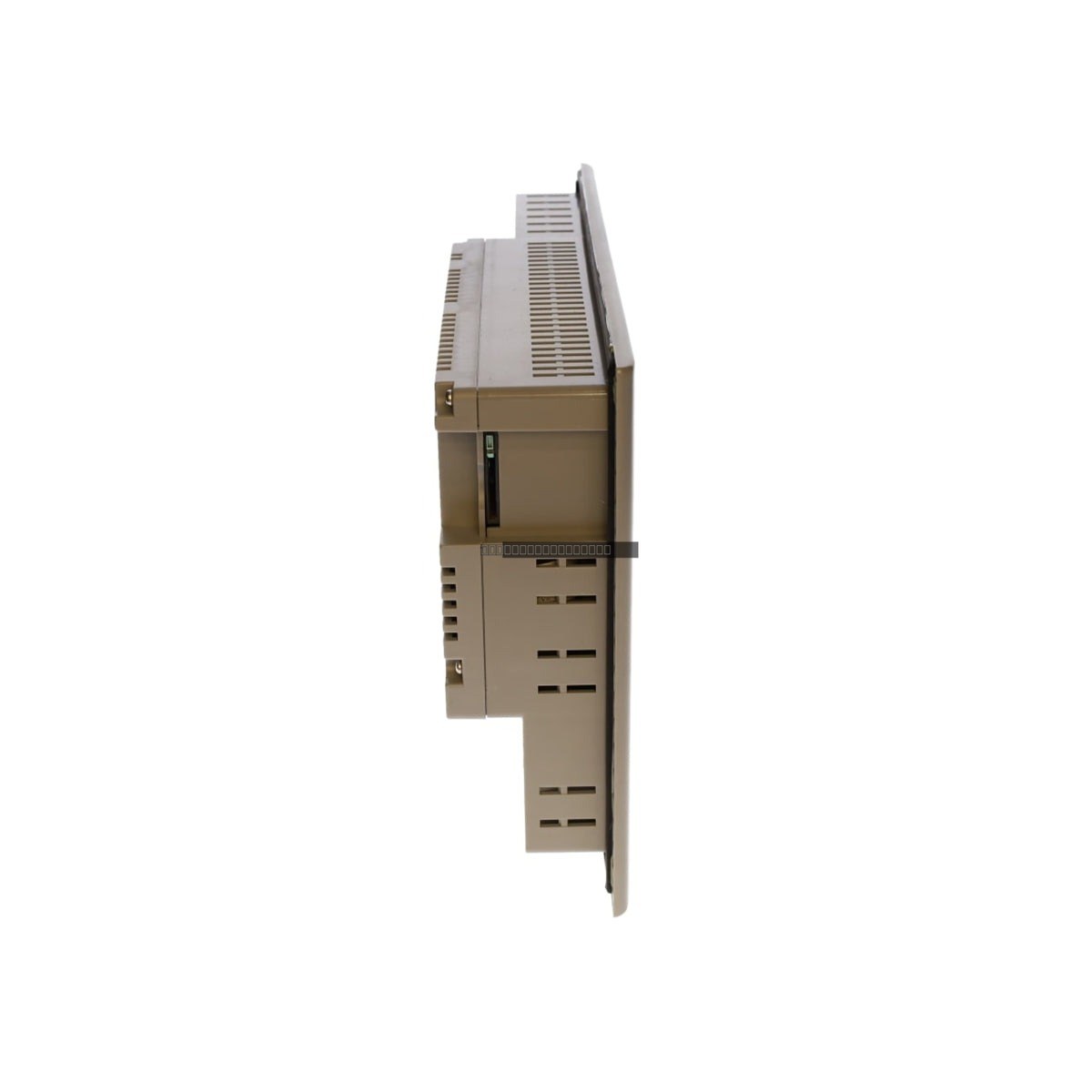

The Siemens 6AV6643-0BA01-1AX0 is a robust SIMATIC OP 277 operator panel engineered for reliable human-machine interaction in industrial automation systems. Featuring a 5.7-inch TFT display, this unit provides clear visualization of process data, machine states, and alarm notifications. It is designed to support demanding production environments, offering consistent performance for monitoring and control tasks in sectors ranging from manufacturing to utility processing.
Features
- 5.7-inch high-resolution TFT display for clear visual feedback.
- 4 MB of integrated configuration memory for storing complex project files, alarm logs, and recipes.
- Designed for high-reliability operation with solid-state storage to resist environmental vibrations.
- Compatible with WinCC Flexible 2005 Standard SP1 or higher for configuration development.
- Operates on a standard 24 VDC power supply common in industrial control cabinets.
Applications
This operator panel is suitable for various industrial applications, including automotive assembly lines, chemical processing, water treatment facilities, and machine-level control systems where deterministic data visualization is required to maintain operational uptime.
Technical Specifications
| Model |
6AV6643-0BA01-1AX0 |
| Brand |
Siemens |
| Series |
SIMATIC OP 277 |
| Display Size |
5.7 inch |
| Display Type |
TFT LCD |
| Memory |
4 MB |
| Input Voltage |
24 VDC |
| Operating Temperature |
0 to 50 deg C |
Installation Guidelines
- Ensure the panel is mounted in a clean, dry location with adequate ventilation to maintain the operating temperature range.
- Use a properly rated 24 VDC power supply; ensure correct polarity during wiring to prevent damage to internal circuitry.
- Verify that the mounting cutout dimensions are accurate to ensure a secure, sealed fit for the front panel protection rating.
- Always disconnect power before performing any maintenance, wiring, or removal of the unit from the mounting surface.
- Route communication cables away from high-voltage lines or high-EMI sources to maintain signal integrity.
FAQ
What software is required to configure the 6AV6643-0BA01-1AX0?
The device is configured using Siemens WinCC Flexible software (version 2005 Standard SP1 or higher).
Does this unit require a specific power supply?
Yes, the unit operates on a 24 VDC power supply. Ensure the power source is stable and meets the requirements of the industrial environment.
What type of memory is used for configuration?
This model utilizes 4 MB of integrated flash memory for storing project files and runtime data, providing high data integrity.
