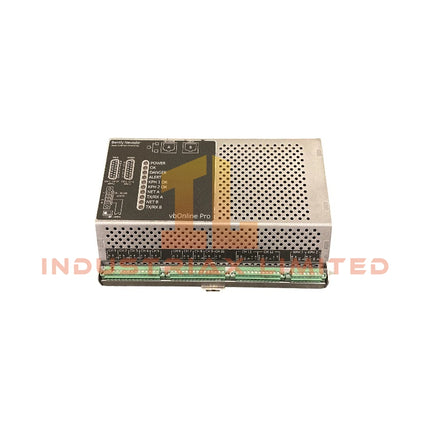

Bently Nevada 60M500-05-00 vbOnline Pro Condition Monitoring Module

Configured for continuous vibration signal acquisition and machine state computation in vbOnline Pro Condition Monitoring System platforms, the Bently Nevada 60M500-05-00 (60M500 Condition Monitoring Module) provides direct analog-to-digital conversion, tachometer synchronization, and Ethernet-based data export for multichannel dynamic monitoring architectures.

The module processes up to 12 dynamic vibration inputs with integrated 24-bit sigma-delta conversion and dual independent Ethernet interfaces for parallel control network segmentation and data transmission.

Suffix Breakdown & Model Matrix

• 60M500: vbOnline Pro base condition monitoring module hardware platform
• -05: Multi-approvals configuration (CSA, IECEx, ATEX certified for hazardous area deployment)
• -00: Hardware-only configuration, no System 1 software license included

Hardware Specifications

Parameter	Specification
Model	60M500-05-00
Brand	Bently Nevada
Origin	Not specified
Weight	1.4 kg
Dimensions	225 mm x 150 mm x 55 mm
Operating Temp	-40 deg C to +70 deg C
Power Consumption	Max approx 61 W (36 VDC x 1.7 A)
Dynamic Inputs	Up to 12 channels
Tachometer Inputs	2 Keyphasor inputs
A/D Conversion	24-bit sigma-delta
Bandwidth	0 to 40 kHz
Ethernet Interfaces	2 x 10/100 BaseT

Rotor Dynamics and Signal Integrity Control Characteristics

The Bently Nevada vbOnline Pro architecture implements rotor dynamics tracking through synchronized Keyphasor phase reference alignment, enabling angular domain transformation of vibration signals for shaft-relative analysis. Eddy-current probe scaling is supported through calibrated gap voltage validation referenced against -10 VDC nominal operating targets, ensuring displacement linearity in proximity transducer chains.

Cross-talk suppression is implemented at the channel acquisition stage through isolated ADC sampling domains and time-interleaved digital filtering, reducing inter-channel spectral contamination during high-density multichannel vibration acquisition.

Frequently Asked Questions (FAQ)

Q: Does the module support hot-swap replacement under energized backplane conditions?
A: Hot-swap is not defined at field module level; system replacement requires power isolation of the DIN rail segment to prevent Ethernet link and analog front-end instability.

Q: What is the internal data handling behavior during network loss?
A: The module buffers operational vibration and tachometer data internally for up to 8 hours, maintaining local acquisition continuity until network synchronization is restored.

Q: Is firmware compatibility dependent on System 1 license presence?
A: Firmware execution is independent of System 1 licensing, but extended analytics and historical trending functions require licensed software integration.

Field Installation Guidelines

The module shall be mounted on standard DIN rail with verified mechanical locking engagement along the full rail length. Shield termination for vibration sensor cabling shall be grounded at single-point earth reference to prevent ground loop formation in high-density signal environments.

Ethernet A and Ethernet B networks shall be physically segregated to avoid broadcast domain collision between DHCP-based configuration traffic and static IP control networks. Tachometer input wiring shall maintain twisted shielded pair routing with controlled impedance matching to minimize phase jitter on Keyphasor acquisition channels.

Analog input cable routing shall be separated from power conductors by minimum industrial separation standards to reduce electromagnetic coupling into high-bandwidth vibration channels.
