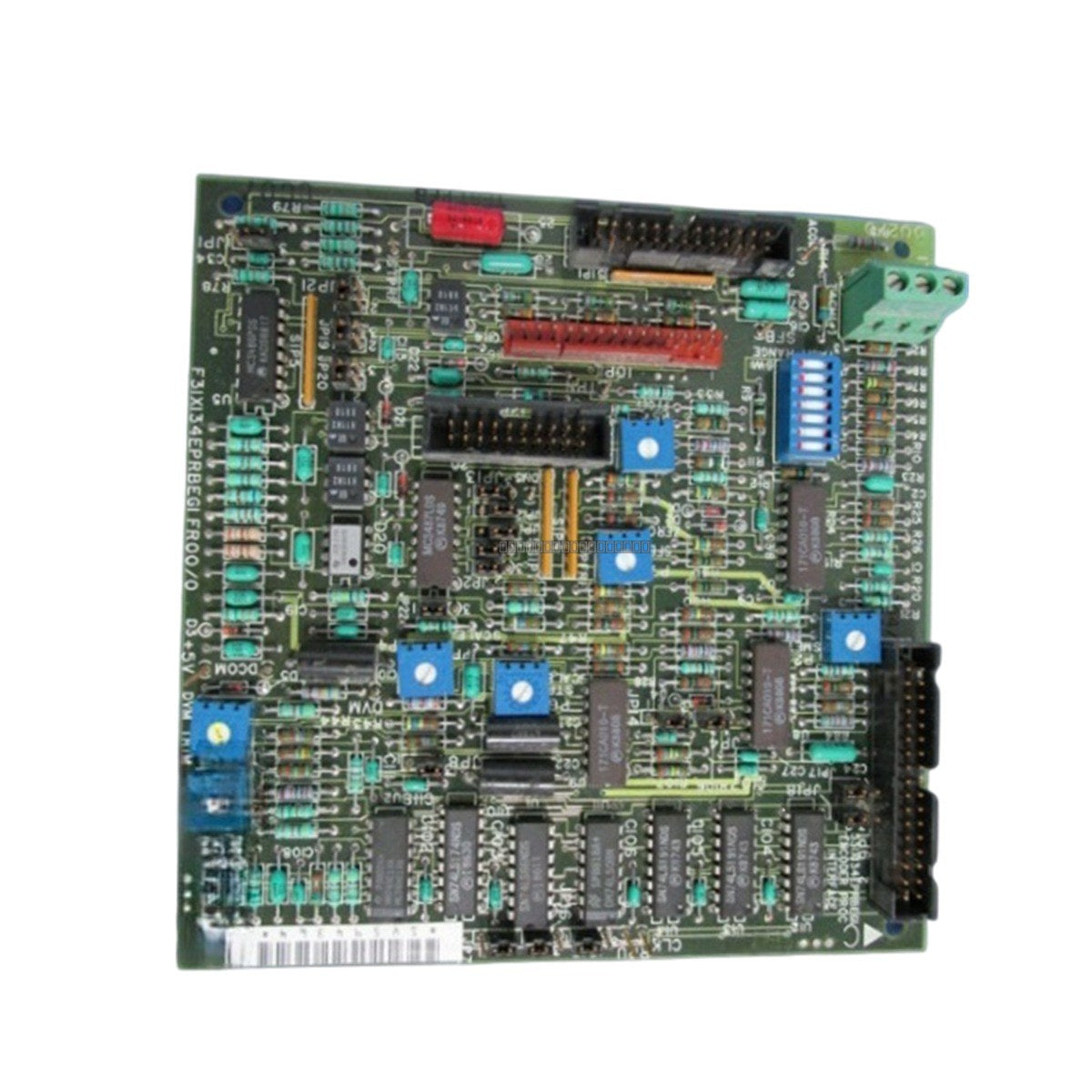

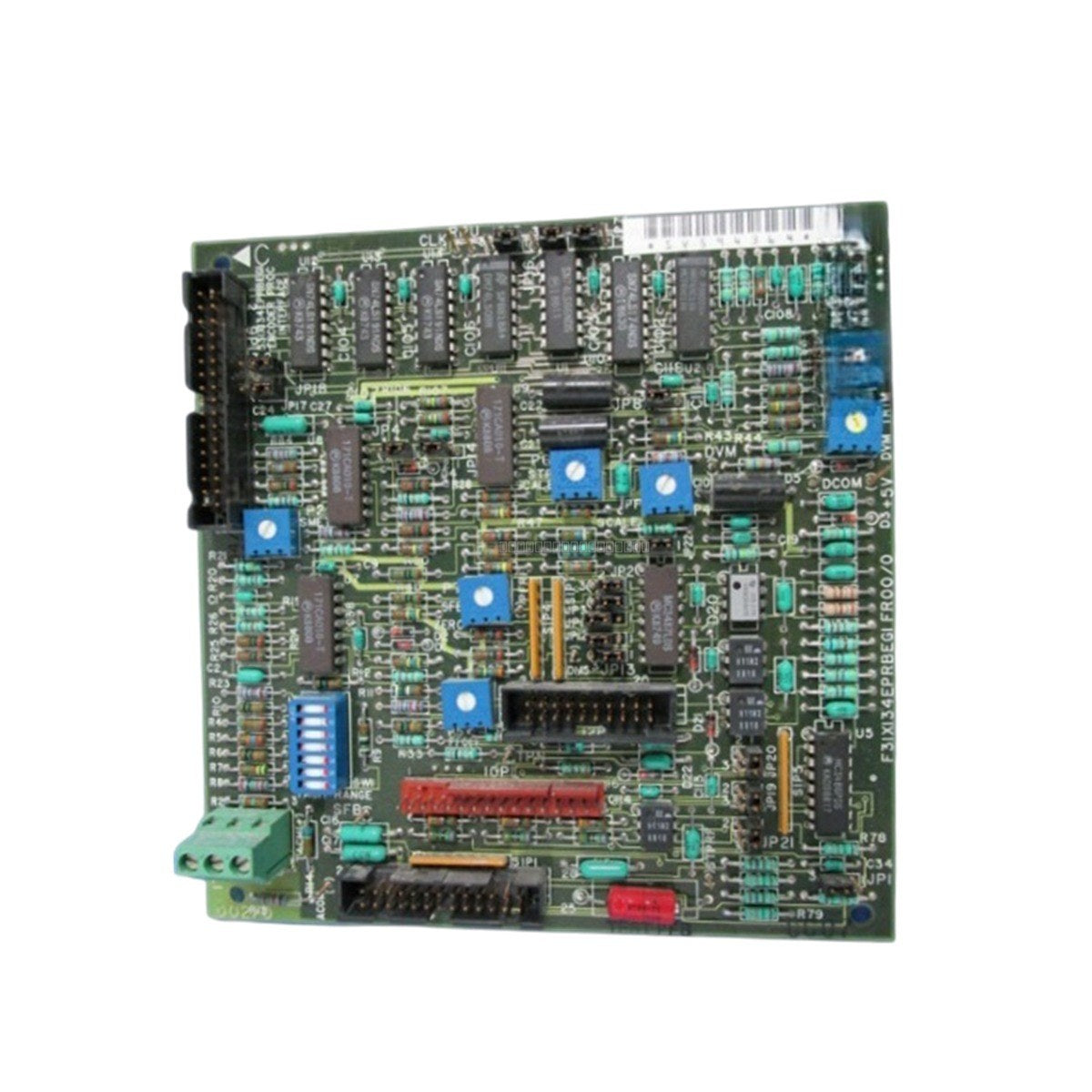

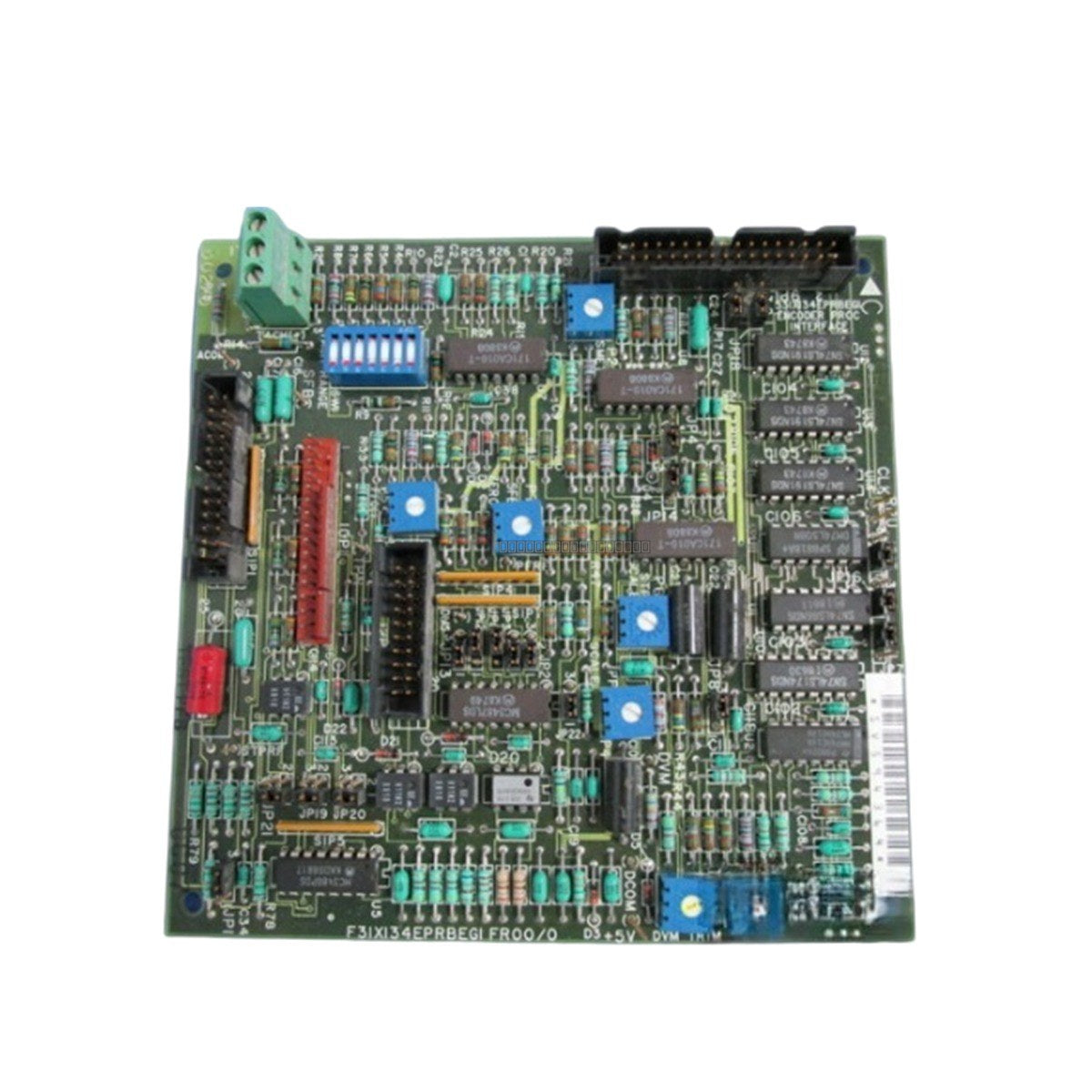

The F31X134EPRBEG1 is an Encoder Process Board and Processor Interface Card engineered by General Electric for use within general-purpose drive systems, specifically compatible with the DC-300 drive series. This board is designed to manage high-speed feedback and tachometer scaling, providing the precise motor speed telemetry required for accurate velocity loop control in industrial automation environments, such as metal processing and assembly lines.
Features
- Facilitates real-time motor speed tracking and signal conditioning.
- Integrated diagnostic interface via a 3-screw terminal strip for live voltage measurement.
- Supports PI-tach scale calibration, allowing for precise scaling adjustments at 50 percent of total motor speed capacity.
- Designed for seamless integration within the 531X series drive architecture.
Applications
This board is utilized in industrial drive control systems, particularly within manufacturing plants and metal processing facilities where precise speed regulation and feedback monitoring are critical to maintaining machine stability and reducing operational downtime.
Technical Specifications
| Model |
F31X134EPRBEG1 |
| Brand |
General Electric (GE) |
| Product Line |
531X Boards Series |
| Secondary Board Number |
531X134EPRBEG1 |
| Factory Edge Code |
FR00/0 |
| Compatibility |
GE DC-300 Drive Series |
| Operating Temperature |
0 to 55 deg C |
Installation Guidelines
- Ensure the drive system is fully powered down and locked out before attempting to install or remove the board.
- Handle the PCB by its edges; avoid touching components or solder joints to prevent electrostatic discharge (ESD) damage.
- Verify that the board is correctly seated in the designated 531X series drive slot.
- Use a standard voltmeter to monitor voltage across terminals 1 TB-1 and 1 TB-3 for diagnostic evaluation.
- Ensure all connections to the 3-screw terminal strip are secure and properly torqued to prevent signal noise or intermittent feedback.
FAQ
What is the primary function of the F31X134EPRBEG1 board?
This board acts as an encoder process and interface card that handles high-speed feedback and tachometer scaling for GE DC-300 drives, ensuring accurate velocity loop performance.
How do I calibrate the tachometer scaling?
Calibration is performed using the 3-screw terminal strip located on the card. By measuring voltage between terminals 1 TB-1 and 1 TB-3, technicians can scale the PI-tach parameters to 50 percent of the motor's total speed capacity.
