Description

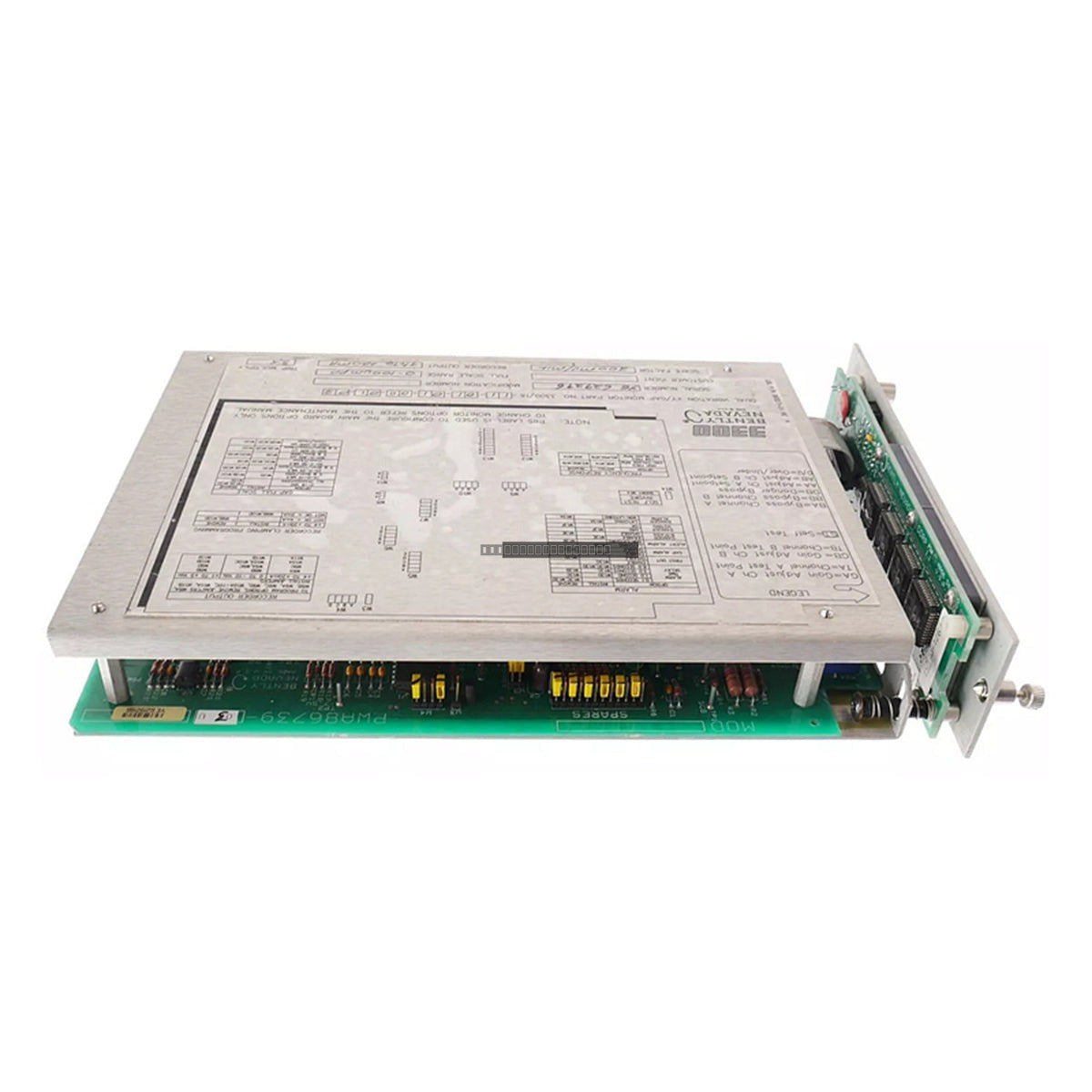

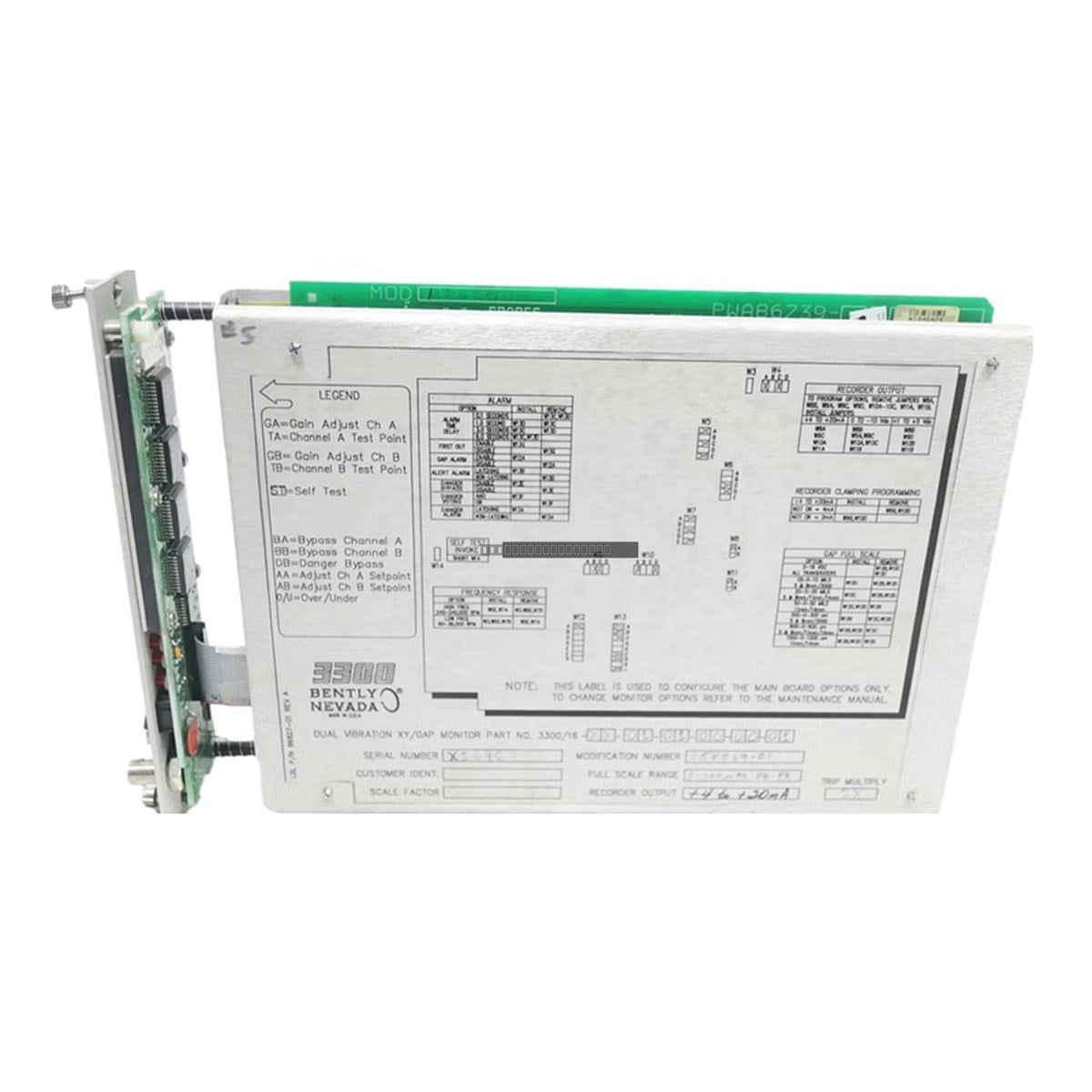

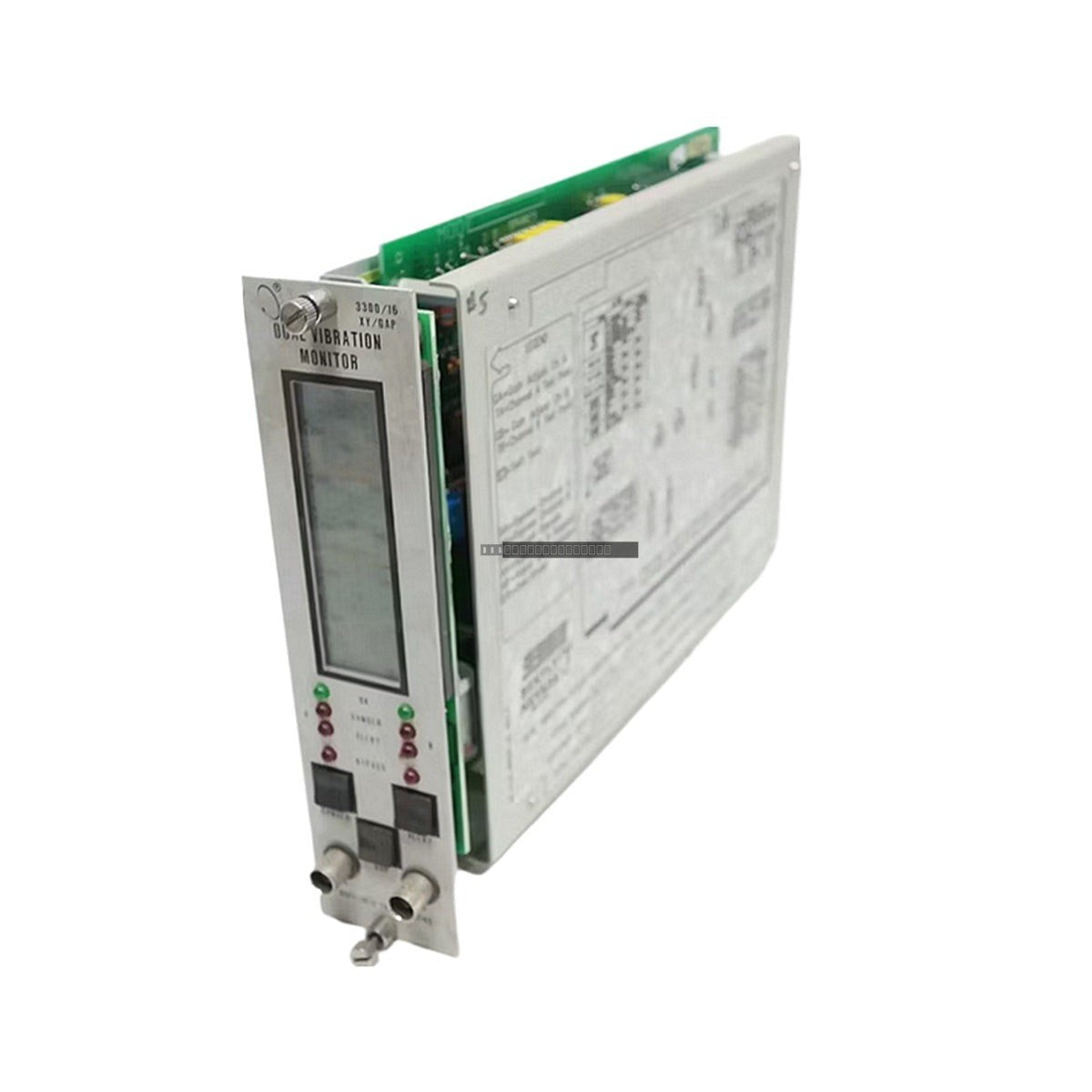

The Bently Nevada 3300/15-02-02-00-00-00-00 is a dedicated dual-channel vibration monitoring module designed for the 3300 Series rack system. This unit acts as a critical protection component, continuously monitoring shaft vibration levels on rotating machinery such as turbines, compressors, and large-scale industrial pumps. By providing high-speed dynamic signal processing and reliable alarm relay actuation, it ensures machinery health is maintained and potential mechanical failures are mitigated through timely trip functions.
Features
- Dual-channel architecture for independent monitoring of two vibration inputs.
- Proportional 4-20 mA outputs for integration with external control and data acquisition systems.
- Configured for standard proximity probe transducer inputs.
- Integrated Alert and Danger relay logic for system protection.
- Standard full-scale measurement range suitable for common rotating equipment applications.
Applications
This monitor is specifically engineered for critical asset protection in industrial environments. It is commonly deployed in power generation facilities, petrochemical plants, and large-scale manufacturing sites to monitor shaft displacement, vibration amplitude, and overall machine condition.
Technical Specifications
| Model Number |
3300/15-02-02-00-00-00-00 |
| Input Channels |
2 independent proximity probe channels |
| Output Signals |
Dynamic vibration, 4-20 mA proportional, Relay (Alert/Danger) |
| Operating Temperature |
-30 degC to +65 degC |
| Typical Power Consumption |
6 W |
| Mounting |
3300 Series Rack System |
Installation Guidelines
- Ensure the 3300 rack is powered down before inserting or removing the module to prevent electrical damage.
- Verify that the proximity probe cabling is properly shielded and routed away from high-voltage AC lines to prevent EMI interference.
- Confirm proper slot alignment within the 3300 rack backplane before securing the module locking mechanism.
- Maintain adequate ventilation around the rack to ensure the operating temperature remains within the specified -30 degC to +65 degC range.
- Use appropriate ESD protection when handling the module to prevent damage to sensitive internal circuitry.
FAQ
What does the 3300/15 monitor track? The module tracks shaft vibration using proximity probe inputs and converts these signals into both dynamic and proportional outputs for monitoring and alarm purposes.
Is this module compatible with other 3300 series components? Yes, the 3300/15 is designed specifically for integration into the Bently Nevada 3300 rack system.
