Description

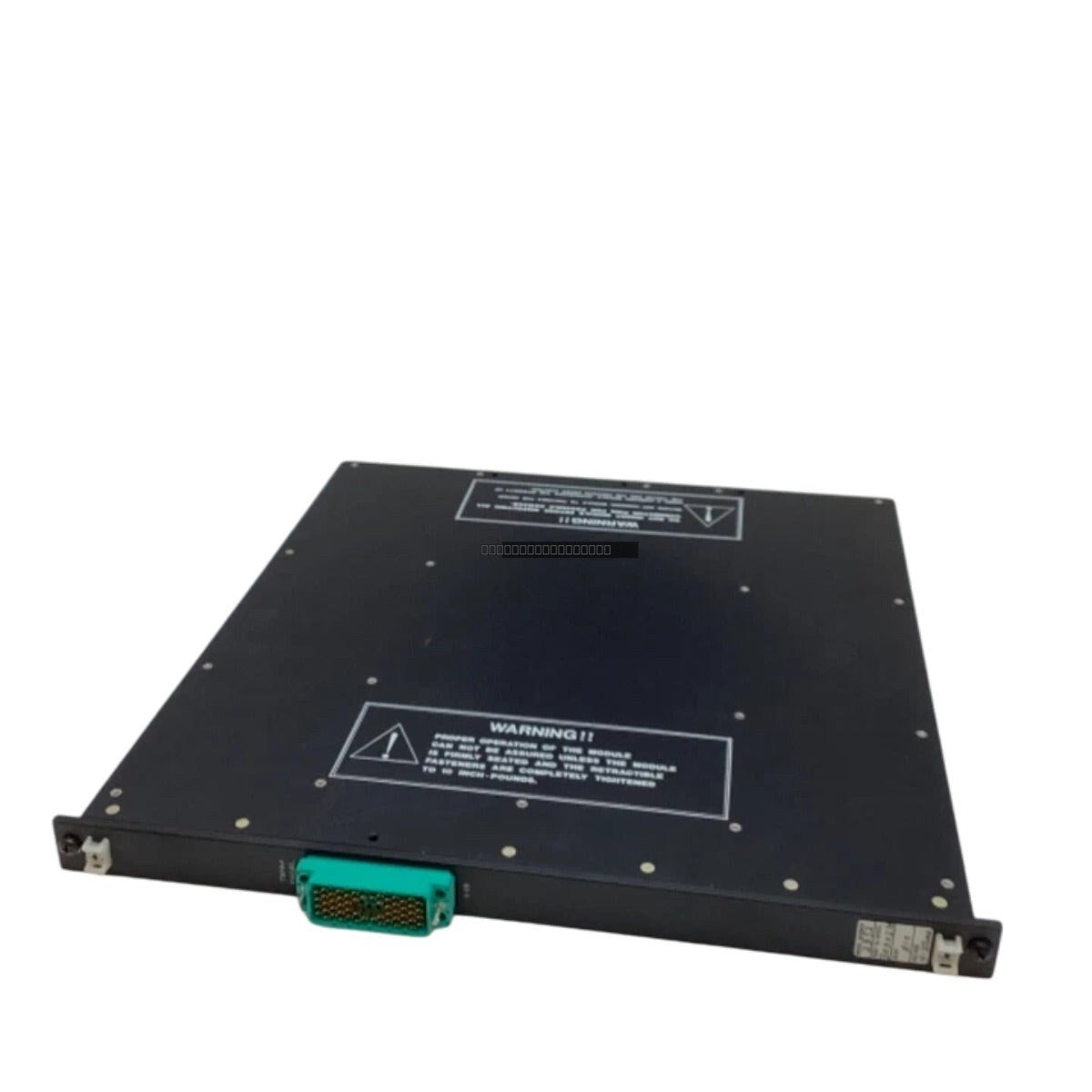

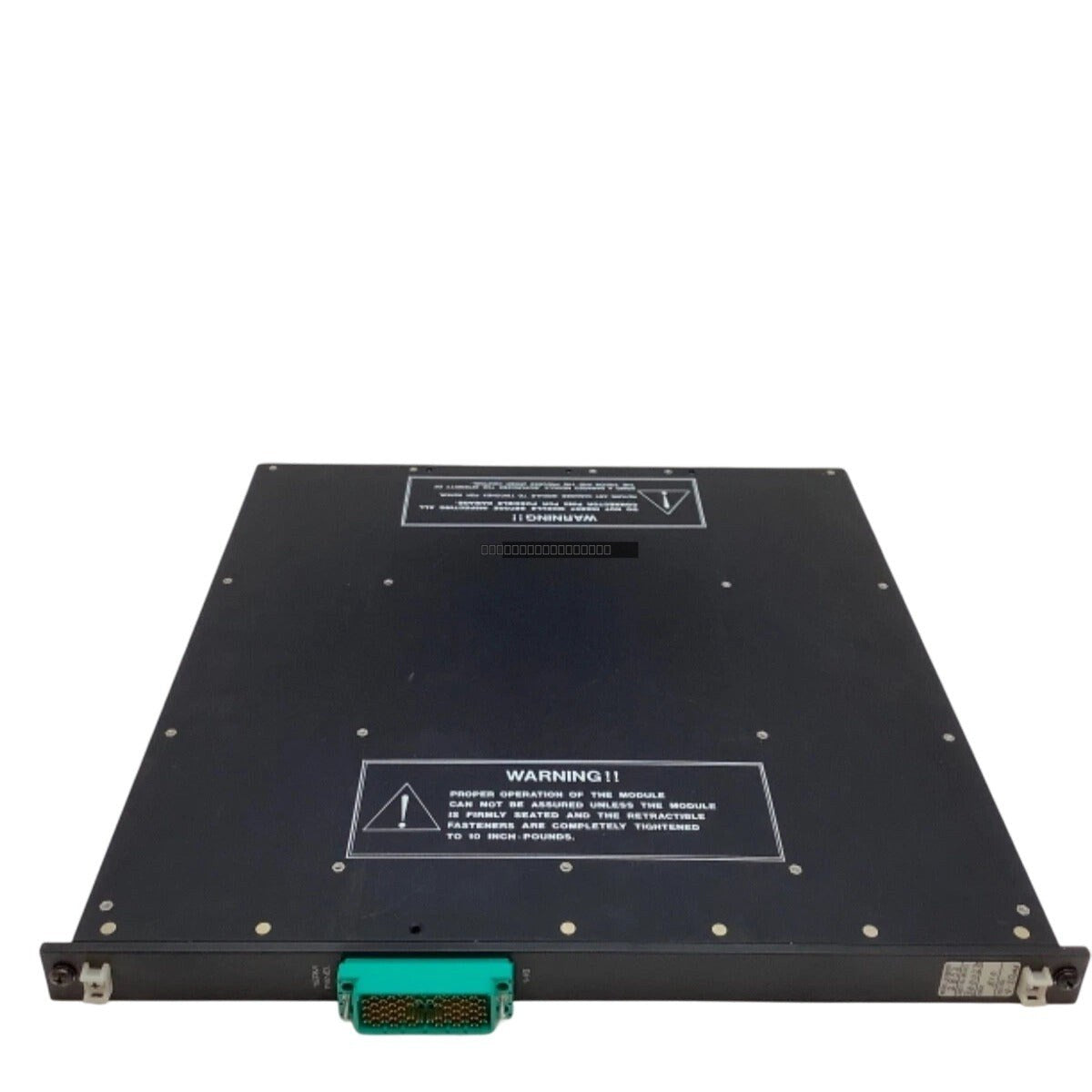

The Triconex 2852 is a high-accuracy analog output module designed for critical control applications within fault-tolerant safety systems. It provides reliable current or voltage signals to field actuators, modulating valves, and variable speed drives. Engineered for demanding industrial environments such as oil refining, power generation, and chemical processing, this module ensures process integrity through continuous internal diagnostics that detect latent faults before they impact system safety.
Features
- High-accuracy signal output for critical control loops.
- Supports 4-20 mA or 0-10 VDC output signal ranges.
- Galvanic isolation barriers protect the system bus from field-side electrical transients.
- Integrated error-checking algorithms verify data loop integrity from the processor to the output stage.
- Supports online hot-swapping to maintain system availability during maintenance.
- Robust mechanical design for high vibration resistance and thermal dissipation.
Applications
The 2852 module is intended for use in safety-instrumented systems (SIS) where high availability and fault tolerance are required. Typical applications include control of modulating valves, variable speed drive references, and other critical analog field devices in process automation.
Technical Specifications
| Model |
2852 |
| Brand |
Triconex |
| Product Type |
Analog Output Module |
| Interface Configuration |
Single Port |
| Mounting Type |
Panel Mount |
| Output Signal Range |
4-20 mA or 0-10 VDC |
| Operating Temperature |
0 to +60 deg C |
| Weight |
1.77 kg |
Installation Guidelines
- Ensure the system is powered down before inserting or removing the module to prevent electrical damage.
- The module is designed for panel mounting; ensure the mounting surface is clean and provides adequate thermal dissipation.
- Use shielded cabling for all analog field loops to minimize EMI/RFI interference.
- Maintain proper grounding practices to ensure the integrity of the galvanic isolation barriers.
- Handle with care using ESD-safe practices to prevent damage to internal sensitive electronic components.
FAQ
Is the Triconex 2852 hot-swappable?
Yes, the 2852 module supports online hot-swapping, allowing for replacement without requiring a full system shutdown, provided the system configuration supports this feature.
What signal types does this module support?
The module is configurable for either 4-20 mA current loops or 0-10 VDC voltage signals, depending on the requirements of the connected field actuator.
