Description

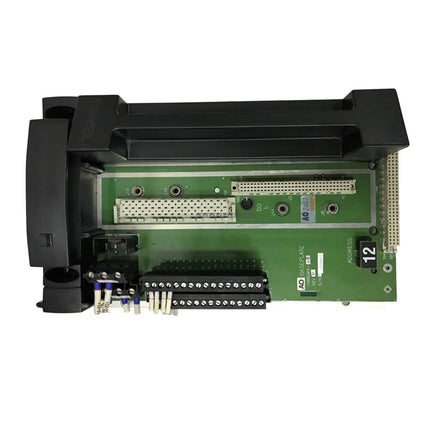

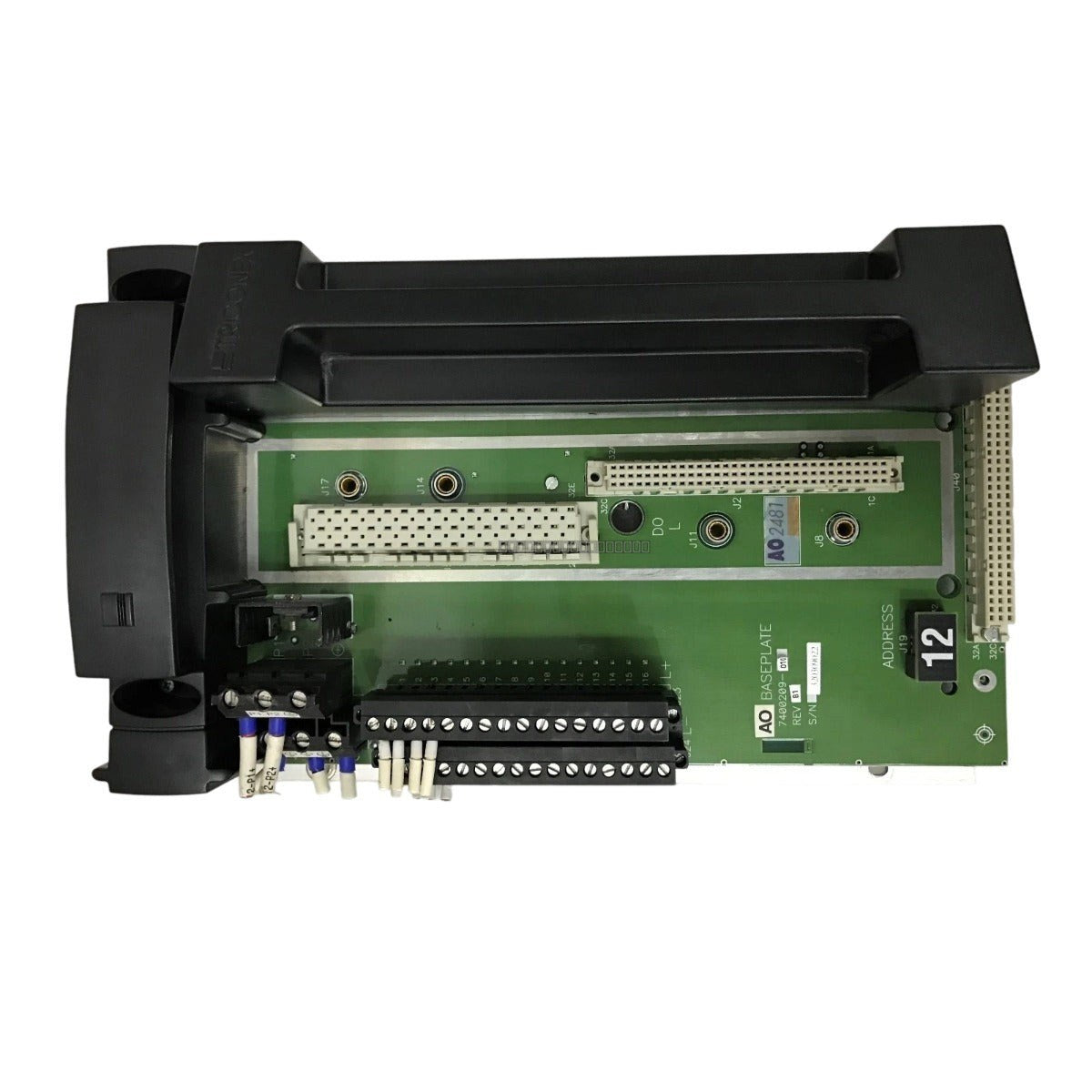

The Triconex 2481 is a high-integrity Analog Output Baseplate designed to provide the mechanical and electrical interface for critical analog control loops within the Tricon safety system platform. This passive infrastructure unit facilitates secure mounting, field wiring termination, and high-speed backplane bus routing for fault-tolerant analog output modules. It is engineered for demanding industrial environments, including oil and gas refining, thermal power generation, chemical processing, and mining, ensuring robust, cross-talk-free signal pathways and supporting hot-swappable module replacement without disrupting field loops.
Features
- Supports hot-swappable module replacement to minimize unplanned facility downtime.
- Heavy-duty multi-layered PCB construction designed to withstand continuous vibration and thermal expansion.
- Dedicated trace isolation and grounding paths to decouple transient external surges from the core system logic bus.
- Distributes redundant logic signal lanes and parallel dual DC power rails to installed card interfaces.
- Provides secure, reliable field termination for analog control elements such as control valves.
Applications
The 2481 baseplate is utilized in safety-critical Triconex systems where continuous process execution is required. Typical applications include emergency shutdown systems (ESD), burner management systems (BMS), and critical process control loops in hazardous industrial environments.
Technical Specifications
| Brand |
Invensys Triconex |
| Model |
2481 |
| Module Type |
Analog Output Baseplate |
| Operating Temperature |
-20 to 60 deg C |
Installation Guidelines
- Ensure the chassis is securely mounted to the system cabinet backplane to maintain structural integrity under vibration.
- Verify that all field wiring is properly terminated to the designated blocks before module insertion.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the baseplate or installing modules.
- Ensure the system power is managed according to Triconex safety protocols during installation or maintenance.
- Maintain proper clearance around the baseplate to allow for adequate ventilation and thermal dissipation.
- Route signal cabling away from high-EMI sources to prevent interference with analog output loops.
FAQ
Is the Triconex 2481 hot-swappable?
Yes, the 2481 baseplate is designed to support the hot-swapping of analog output modules, allowing for maintenance and module replacement without interrupting the current or voltage loops to final control elements.
What is the primary function of this baseplate?
The 2481 serves as the mechanical and electrical interface for Triconex analog output modules, providing the necessary backplane bus routing and field wiring termination points for critical control loops.
