Description

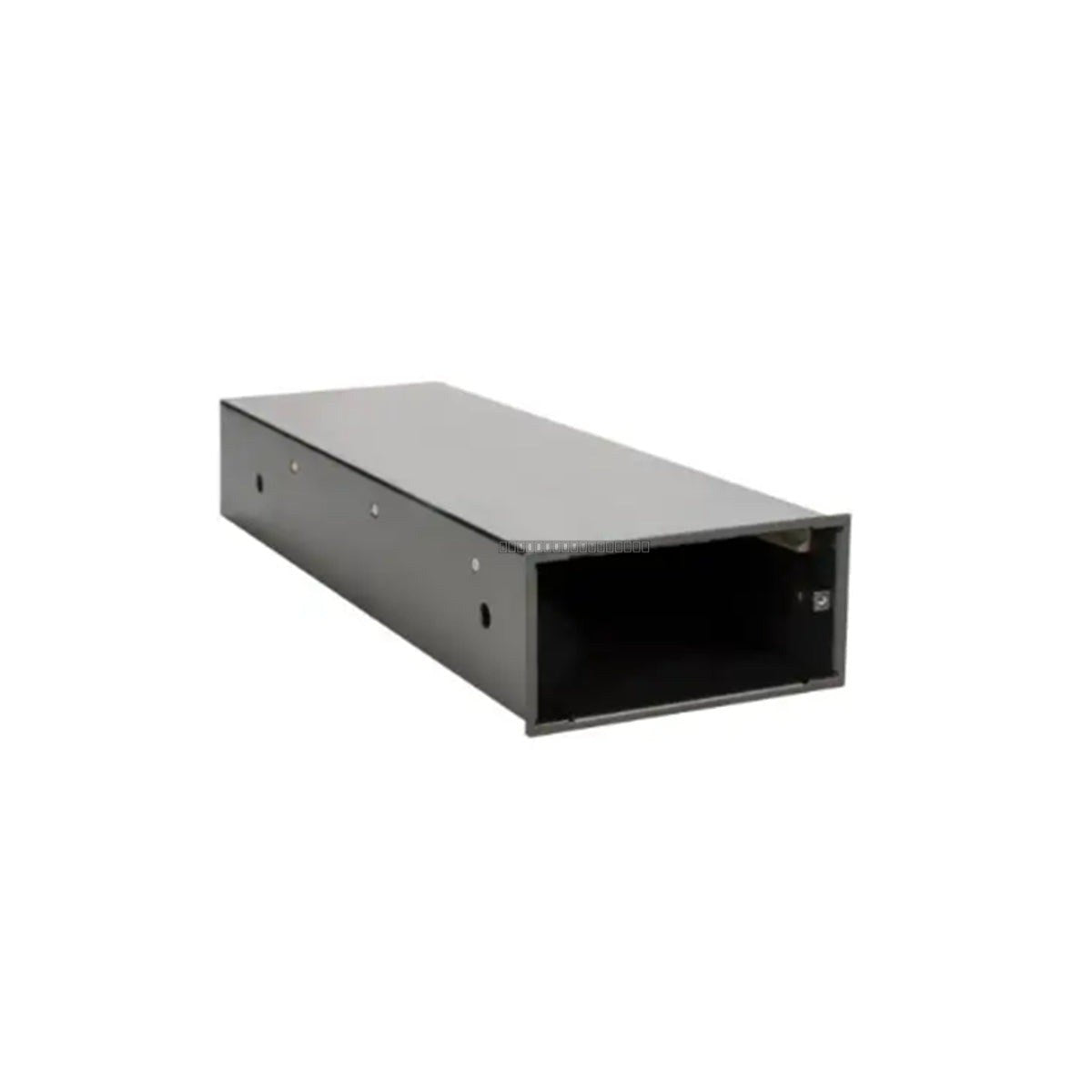

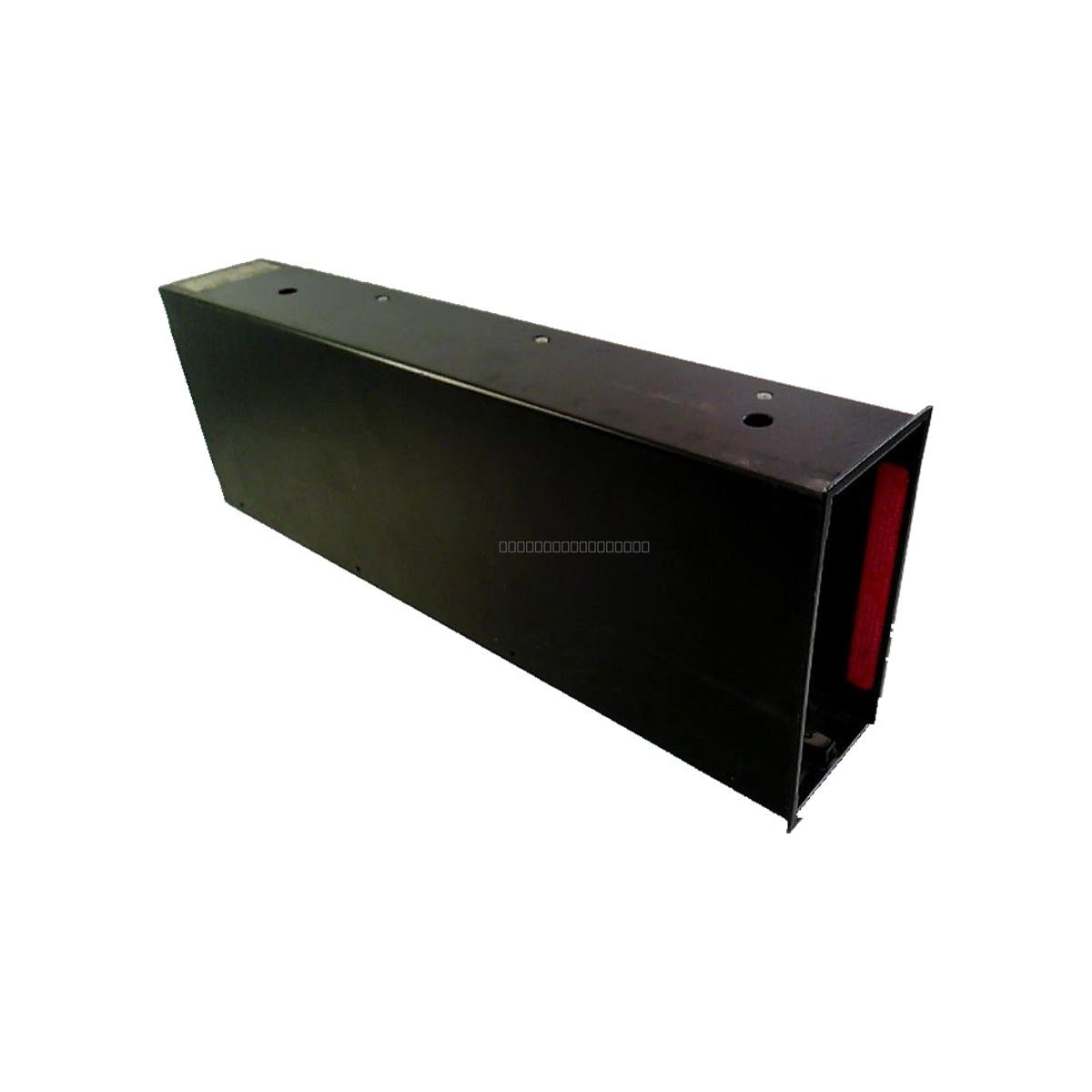

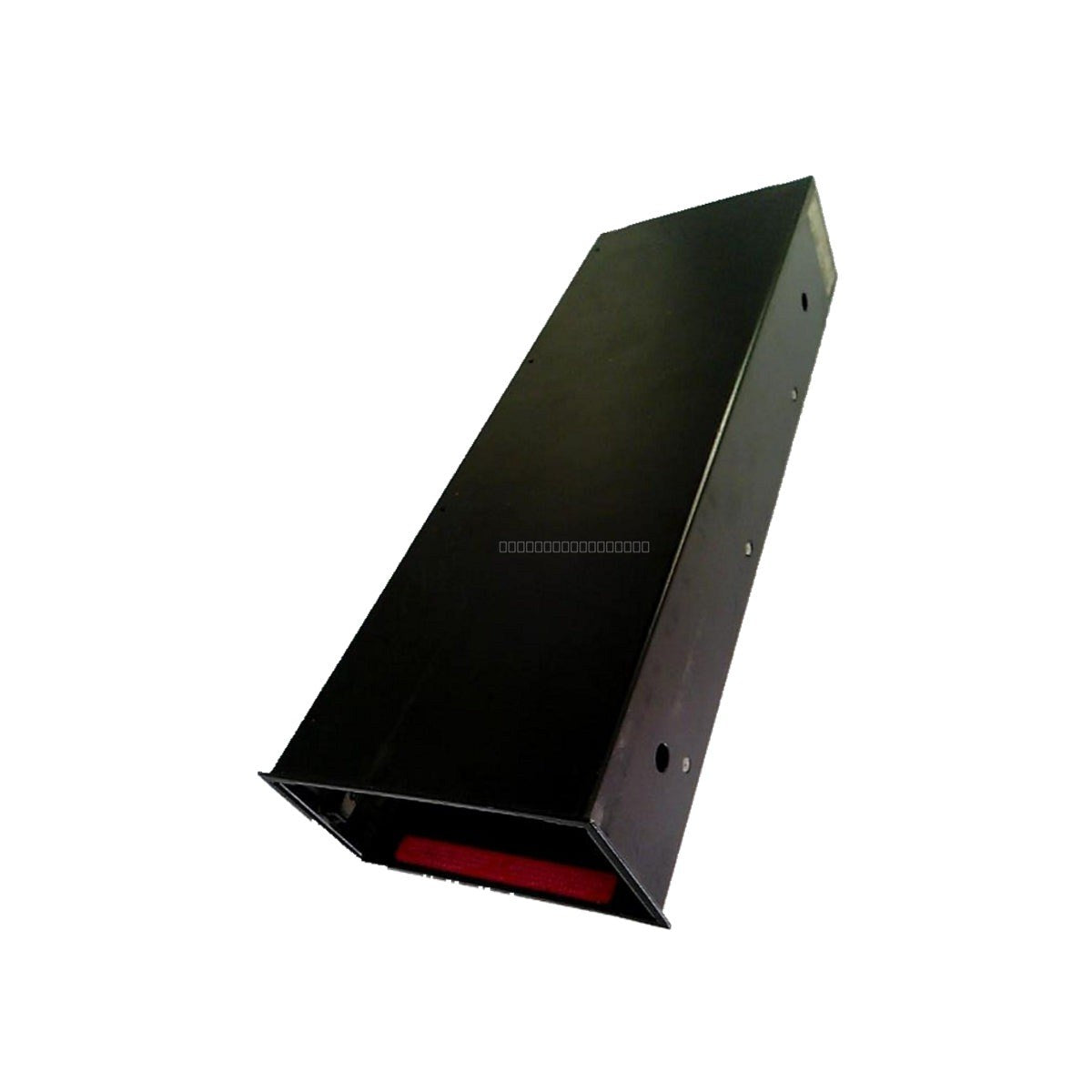

The Siemens 15738-119 is a dedicated mounting case designed for the Moore series of process controllers. This unit serves as the essential housing and termination interface for various Moore instrumentation modules, providing secure mechanical mounting and electrical connectivity via its integrated 40-terminal block.
Features
- Robust mounting case designed for industrial panel environments.
- Equipped with 40 integrated terminals for secure field wiring.
- Compatible with Moore 320, 351, 352, 372, 382, and 383 controller units.
- Provides a standardized interface for I/O signal distribution.
Applications
This mounting case is specifically engineered for use with legacy Moore process control instrumentation, including the 350 series controllers. It is commonly utilized in process automation environments where reliable, rack-mounted signal termination and controller housing are required for continuous process monitoring and control.
Technical Specifications
| Product Model |
15738-119 |
| Manufacturer |
Siemens |
| Component Type |
Mounting Case / I/O Housing |
| Terminal Count |
40 Terminals |
| Compatibility |
Moore 320/351/352/372/382/383 Units |
Installation Guidelines
- Ensure the panel cutout meets the required dimensions for the specific Moore controller model being installed.
- Verify that all field wiring is properly labeled before connecting to the 40-terminal block.
- Ensure the mounting case is securely fastened to the panel to prevent vibration-induced loosening.
- Maintain proper clearance around the unit to ensure adequate airflow and prevent overheating of the controller electronics.
- Always isolate power to the controller before inserting or removing the module from the mounting case.
FAQ
Is this unit compatible with all Moore controllers?
The 15738-119 is designed for use with the Moore 320, 351, 352, 372, 382, and 383 series units. Please verify your specific controller model number before installation.
Does this include the controller module?
No, this listing is for the mounting case and terminal block only. The controller module must be purchased separately.
