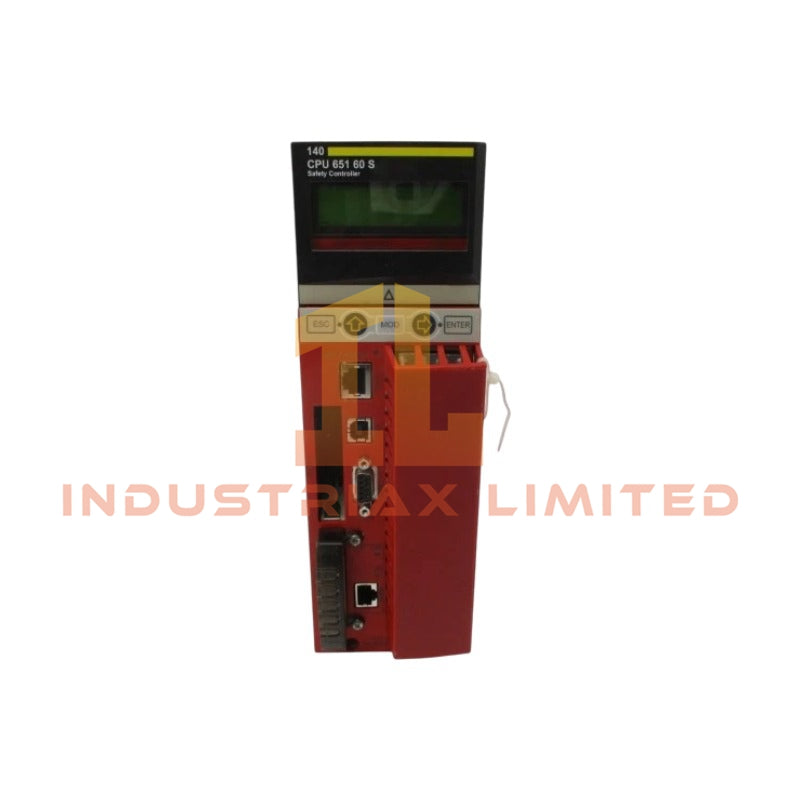

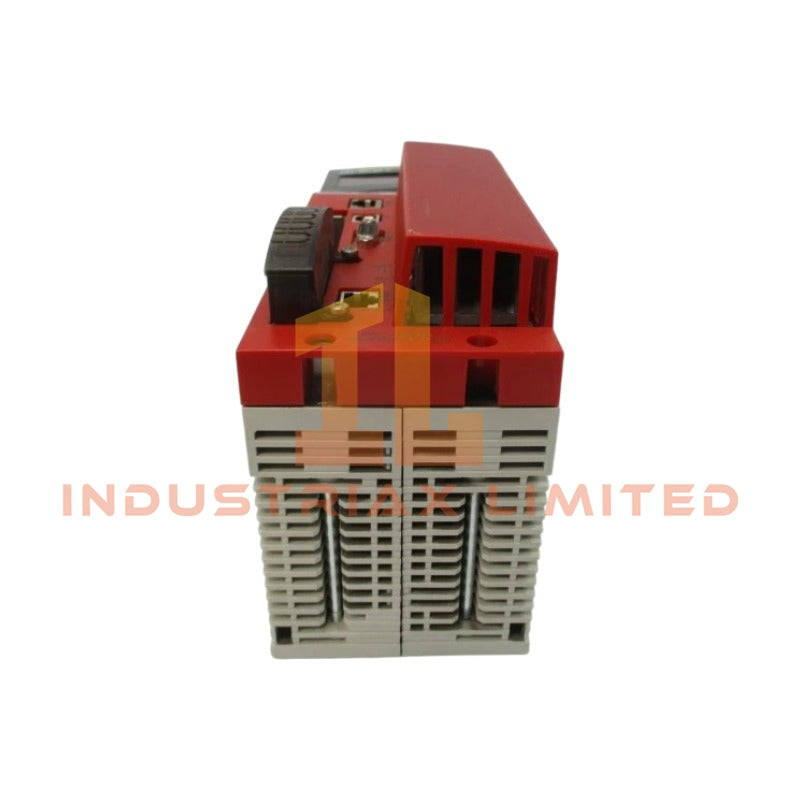

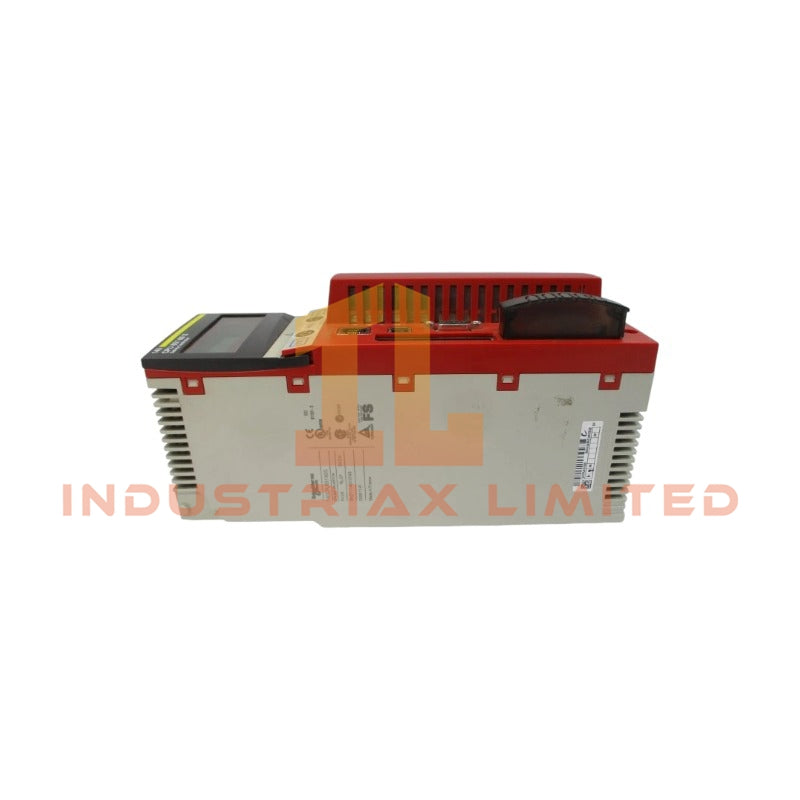

Schneider Electric 140CPU65160 Modicon Quantum Unity Processor Module

Configured for real time deterministic control execution in Modicon Quantum automation networks, the Schneider Electric 140CPU65160 (140CPU65160 Unity Processor Module) provides direct physical/electrical execution for cyclic logic processing, distributed I/O handling, and industrial network communication across Modicon Quantum platforms.

Hardware Specifications

Parameter	Specification
ModelBrand	Schneider Electric 140CPU65160
Origin	France
Weight	0.91kg
Dimensions	Not specified
OperatingTemp	Not specified (industrial PLC standard class)
PowerConsumption	2760 mA bus current requirement
CPU Clock Frequency	266 MHz
Internal Memory	1024 kB RAM
Program Expansion	Up to 7168 kB via PCMCIA
File Storage	Up to 8 MB via PCMCIA
Local Rack Support	Up to 2 racks
Distributed I/O Capacity	8000 inputs / 8000 outputs per network
Remote I/O Capacity	31744 inputs / 31744 outputs
Slot Capacity	Up to 26 slots (local I/O)
Communication Interfaces	Ethernet TCP/IP, Modbus, Modbus Plus, USB
Network Connections	Ethernet TCP/IP, Modbus Plus (SUB-D 9), Modbus RJ45
Execution Time	0.0525 to 0.075 us (Boolean), 0.045 to 0.06 us (word ops)

PLC Backplane Bus Deterministic Execution Characteristics

The Modicon Quantum backplane architecture of the 140CPU65160 implements high speed deterministic data exchange between CPU and local I/O modules using a synchronized rack-level bus cycle. The backplane communication velocity is aligned with cyclic master task scheduling, supporting fast task interrupt segmentation (0.2 ms) and master task overhead control (1 ms). Ethernet TCP/IP and Modbus Plus stacks operate concurrently, enabling mixed deterministic and non-deterministic traffic separation across control and supervisory layers. Firmware flash operations via PCMCIA memory modules maintain execution continuity while preserving program and file storage segmentation without halting core scan cycles.

Suffix Breakdown & Model Matrix

No validated suffix segmentation or internal model matrix breakdown is defined for 140CPU65160 within the provided technical dataset. The module is treated as a single fixed Unity processor configuration.

Frequently Asked Questions

Q: Can the 140CPU65160 support hot swap of CPU module during operation
A: The CPU is not designed for live hot swap. Removal of the processor interrupts backplane communication and halts task execution cycles.

Q: What is the impact of Ethernet and Modbus Plus simultaneous operation on cycle time
A: Both protocols operate on independent communication stacks. CPU scan time remains governed by cyclic and fast task scheduling, with network load influencing communication refresh rather than logic execution time.

Q: How is firmware and application memory expanded
A: Expansion is performed via PCMCIA card interface, supporting up to 7168 kB program memory and 8 MB file storage without modifying base CPU hardware.

Field Installation Guidelines

The module shall be installed into a Modicon Quantum rack ensuring proper alignment with backplane connectors and full seating of the CPU into designated slot positions. Shielded communication cabling is required for Modbus Plus SUB-D 9 and Ethernet RJ45 ports, with shield termination at chassis ground potential on one end only to avoid ground loop formation. USB service interface must be used exclusively for maintenance access under controlled conditions. Ensure rack power is isolated prior to insertion or removal to prevent backplane transient bus disturbance. Maintain separation between high noise motor drive wiring and communication lines to preserve signal integrity.
