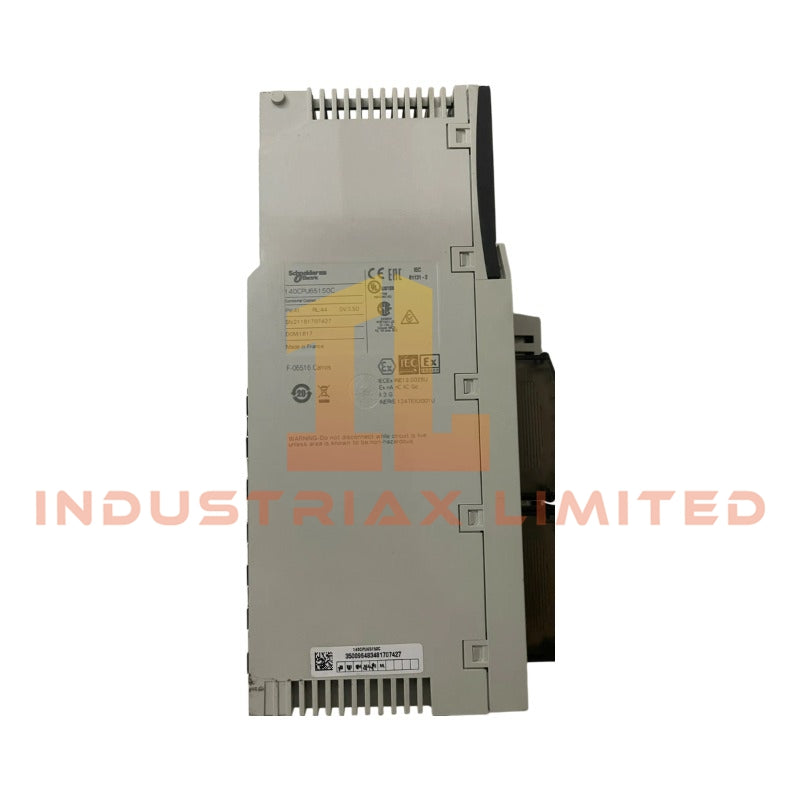

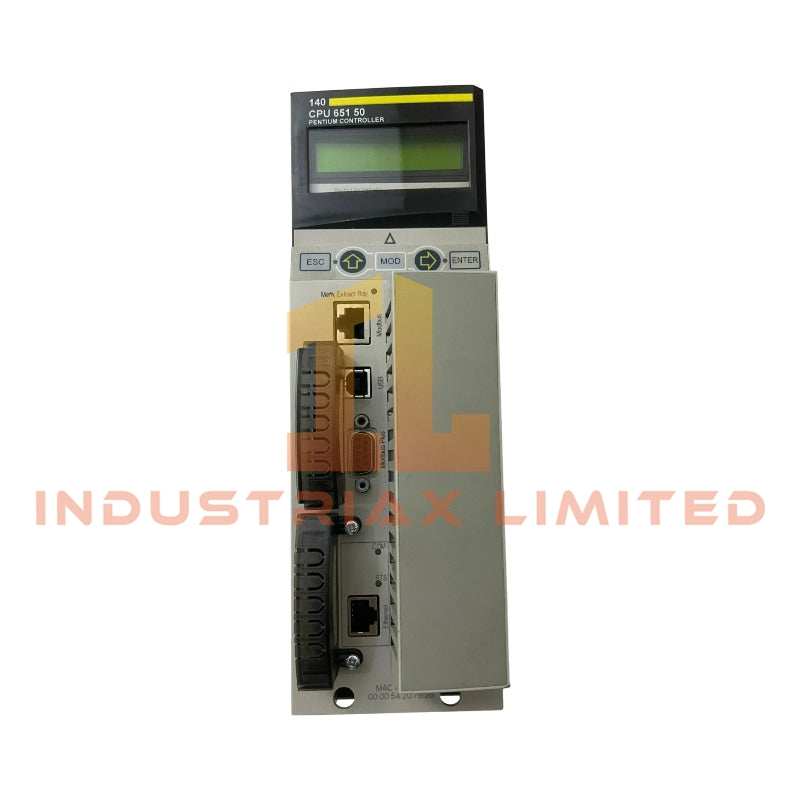

Schneider Electric 140CPU65150C Unity Processor Modicon Quantum
Configured for deterministic program execution in Modicon Quantum automation platform backplane architecture, the Schneider Electric 140CPU65150C (140CPU65150C Unity Processor) provides direct CPU-level scan control and communication arbitration across local and remote I/O racks within Quantum distributed control topology.
The module operates as a Unity processor with 166 MHz clock frequency and 768 kB internal memory, coordinating process image handling, fieldbus routing, and multi-rack synchronization via Modbus Plus and Ethernet TCP/IP interfaces.
Suffix Breakdown & Model Matrix
No validated suffix segmentation data is defined for 140CPU65150C within the provided technical dataset. The model is treated as a single integrated orderable CPU unit within the Modicon Quantum CPU family.
Hardware Specifications
| Parameter |
Specification |
| ModelBrand |
Schneider Electric 140CPU65150C |
| Processor Clock |
166 MHz |
| Memory |
768 kB |
| Local Rack Support |
2 racks |
| Slot Capacity |
Up to 16 slots (platform dependent configuration) |
| Distributed I/O |
Up to 63 stations (Modbus Plus network dependent) |
| Remote I/O Capacity |
S908 / Ethernet Quantum / X80 compatible |
| Discrete I/O Handling |
Up to 31744 inputs / 31744 outputs (remote) |
| Analog I/O Handling |
Up to 1984 inputs / 1984 outputs (remote S908) |
| Communication Interfaces |
Ethernet TCP/IP, Modbus, Modbus Plus, USB |
| Optional Modules |
Up to 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
Schneider Electric Backplane Deterministic Execution Architecture
The 140CPU65150C is integrated into the Modicon Quantum backplane bus system, where scan cycle execution is synchronized with rack-level arbitration logic. CPU-to-module communication is handled via deterministic backplane signaling, supporting predictable I/O refresh timing under mixed discrete and analog load conditions.
Firmware execution model supports multi-network routing between Ethernet TCP/IP and Modbus Plus segments, enabling simultaneous local rack processing and distributed station coordination. I/O density scaling is managed at system level through rack expansion logic, allowing up to 31 remote drops per Ethernet Quantum topology depending on configuration constraints.
Frequently Asked Questions
Q: Does the 140CPU65150C support hot-swap of I/O modules?
A: Hot-swap capability is dependent on Quantum rack backplane design and installed module type. CPU continues scan execution during non-disruptive module replacement only if system configuration supports rack-level isolation.
Q: What is the backplane communication behavior under high I/O density?
A: Backplane traffic is scheduled deterministically by CPU scan cycle. Increased I/O density results in longer scan times but does not alter arbitration structure.
Q: Can Ethernet and Modbus Plus run simultaneously on this CPU?
A: Yes. The processor supports concurrent Ethernet TCP/IP and Modbus Plus communication stacks with independent routing paths.
Field Installation Guidelines
Ensure that the CPU module is inserted into a properly grounded Modicon Quantum rack with verified backplane continuity. Shielded communication cabling must be terminated according to single-point grounding principles to avoid ground loop formation across Modbus Plus segments.
Maintain separation between Ethernet and high-noise power conductors to preserve signal integrity. Backplane connectors must be fully seated to guarantee deterministic scan synchronization across all installed I/O modules.
