Description

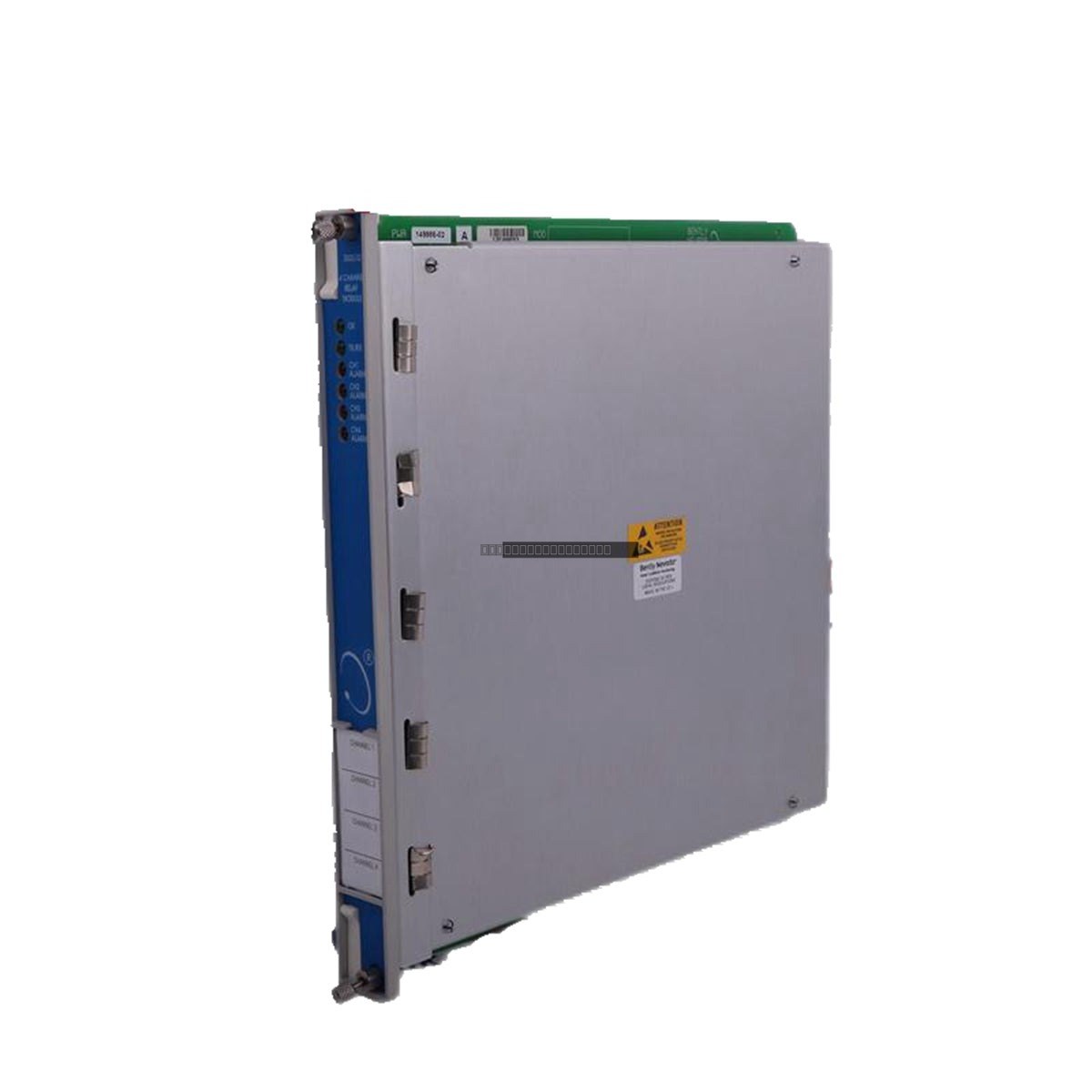

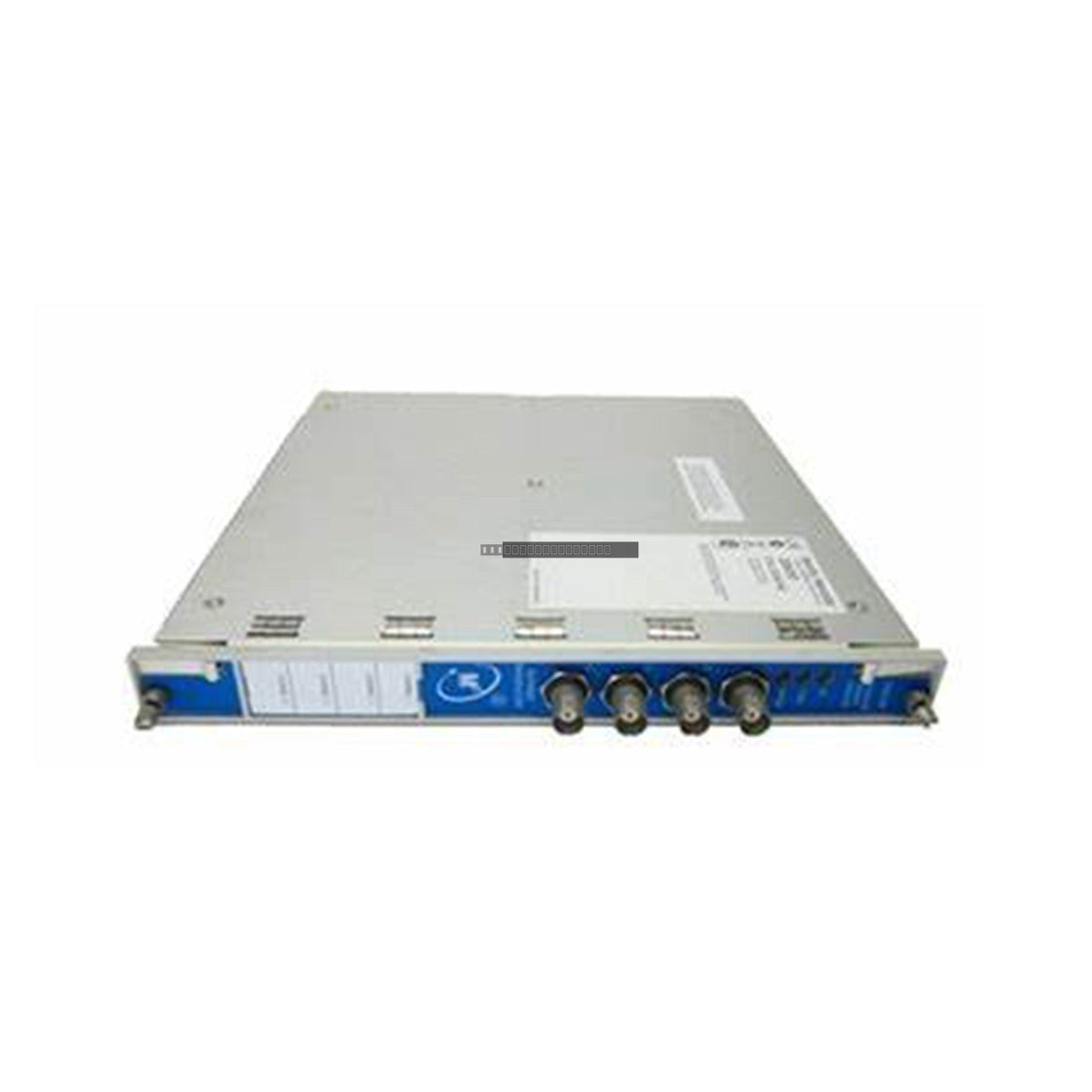

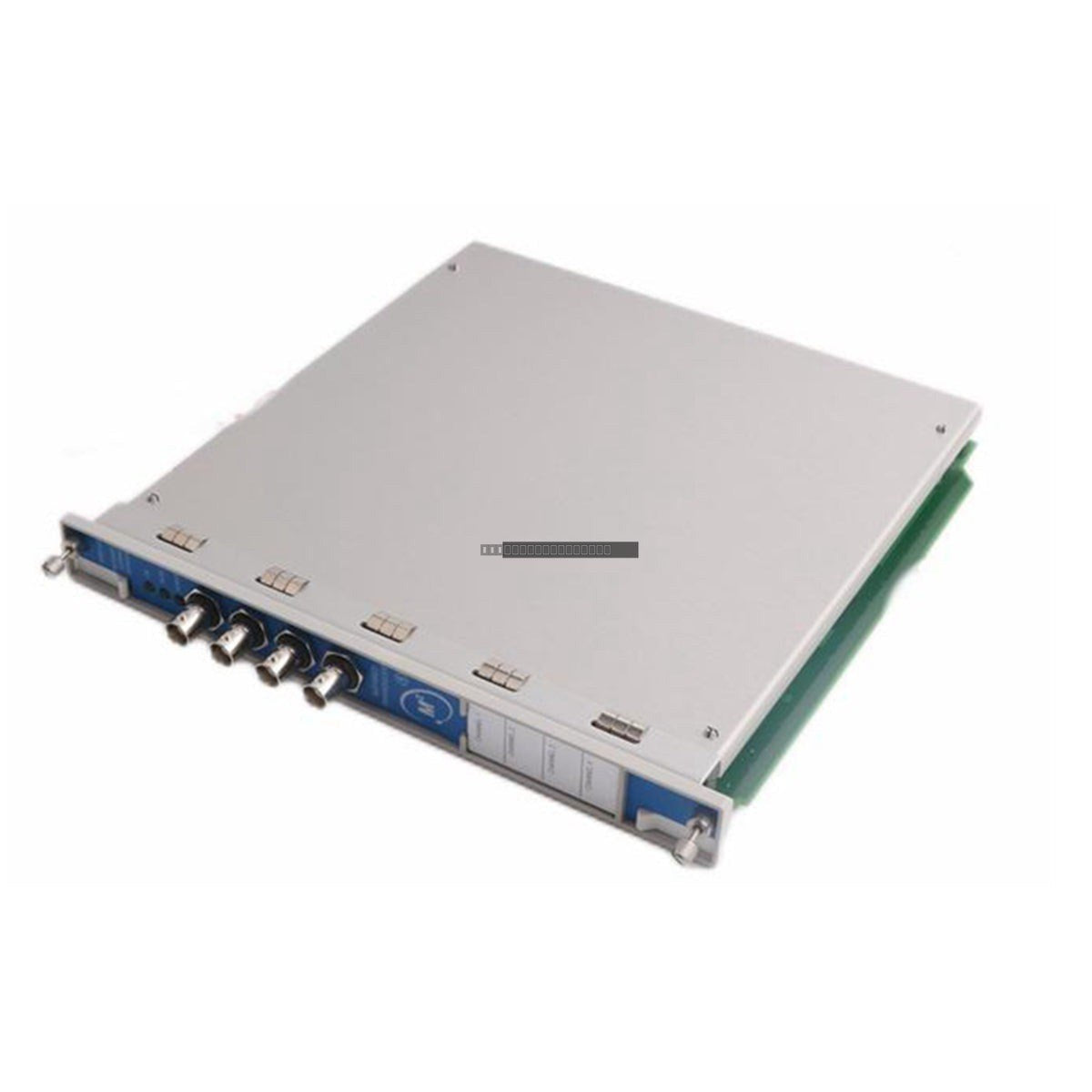

The Bently Nevada 125972-02 is a 3500/42 Proximitor/Seismic Monitor module designed for the 3500 Machinery Protection System. This four-channel module provides continuous monitoring of vibration and position signals, making it essential for protecting critical rotating machinery such as turbines, compressors, and pumps. It processes inputs from proximity probes, seismic transducers, and velocity sensors, comparing them against user-defined alarm setpoints to trigger alerts or machinery shutdowns as required.
Features
- Four independent monitoring channels for flexible sensor configuration.
- Supports inputs from Proximitor proximity probes, seismic transducers, and velocity sensors.
- Programmable alarm thresholds (Alert and Danger) with configurable voting logic.
- Full integration with the Bently Nevada 3500 rack system for centralized diagnostics and data communication.
- Software-configurable via the 3500 Rack Configuration Software.
Applications
- Shaft vibration monitoring for rotating equipment.
- Axial position and thrust monitoring.
- Seismic activity detection for industrial machinery.
- Critical asset protection in oil, gas, and power generation facilities.
Technical Specifications
| Model |
125972-02 |
| Channels |
4 |
| Operating Temperature |
-30 degC to +65 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Humidity |
95% non-condensing |
| Power Consumption |
Supplied via 3500 rack backplane |
Installation Guidelines
- Ensure the 3500 rack is powered down before inserting or removing the module to prevent damage to the backplane connectors.
- The module is designed for standard 3500 rack slots; ensure proper seating and tighten the front panel screws to maintain a secure ground connection.
- Use shielded cabling for all sensor inputs to minimize EMI/RFI interference.
- Follow proper ESD handling procedures when touching the module circuitry.
- Verify that the I/O module and the monitor module are correctly matched within the rack configuration.
Compliance and Certifications
- Safety: EN 61010-1, LV Directive 2014/35/EU
- EMC: EN 61000-6-2 (Immunity), EN 61000-6-4 (Emissions)
- Hazardous Area: CSA/NRTL/C Class I, Zone 2; ATEX options available
- Environmental: RoHS Directive 2011/65/EU compliant
FAQ
Is this module compatible with all 3500 racks?
Yes, the 125972-02 is designed for the standard 3500 series rack system, provided the rack is configured with the appropriate I/O modules and power supplies.
Does this module require external power?
No, the module receives its operating power directly from the 3500 rack power supplies via the backplane.
