Honeywell CC-TDOR11 | Honeywell | Digital Output Relay IOTA
Honeywell CC-TDOR11 Digital Output Relay IOTA Module Configured for switching isolated relay outputs to field devices in Honeywell Experion PKS C300 I/O system, the Honeywell CC-TDOR11 (51308376-175) (CC-TDOR11 digital output relay IOTA module) provides direct physical/electrical execution. The CC-TDOR11 functions as a Series C I/O termination assembly interfacing controller-side digital commands with field relay contact switching. Each channel executes electromechanical isolation via relay contacts, enabling discrete ON/OFF control of external loads under 24 VDC system integration conditions. Suffix Breakdown & Model Matrix No validated manufacturer-published suffix decomposition is defined for CC-TDOR11 (51308376-175). The ordering code 51308376-175 is treated as a catalog identifier mapped to the CC-TDOR11 IOTA assembly without functional segmentation disclosure. Hardware Specifications Parameter Specification Model CC-TDOR11 / 51308376-175 Brand Honeywell Origin USA Dimensions 12 inch IOTA assembly (nominal length only) Operating Temp 0 deg C to 60 deg C (system dependent) Power Consumption 24 VDC system logic supply (module dependent) Output Type Relay contact digital output Channel Count Not explicitly specified (Series C DO IOTA dependent) Isolation Channel-to-channel galvanic isolation via relay structure Honeywell Channel Isolation & Relay Execution Architecture The CC-TDOR11 implements discrete relay-based output switching with electrical separation between controller logic domain and field wiring domain. Within the Honeywell Series C I/O architecture, channel-to-channel isolation is maintained at relay contact level, preventing cross-channel conduction paths under fault or transient conditions. The module operates under a 24 VDC backplane supply architecture typical of Experion PKS C300 systems, where output energization is executed through internal driver logic and translated into dry-contact relay closure. This structure allows heterogeneous field voltage compatibility depending on external wiring configuration. Frequently Asked Questions (FAQ) Q: Does CC-TDOR11 support hot-swap replacement under live backplane conditions?A: Hot-swap capability depends on the Series C IOTA carrier configuration. Relay outputs must be de-energized before module extraction to prevent contact arcing. Q: What is the isolation mechanism between channels?A: Channel isolation is implemented through electromechanical relay separation, providing physical discontinuity between output contacts. Q: Is external field voltage internally regulated by the module?A: No. Field voltage is externally supplied and switched via dry relay contacts without internal voltage regulation. Field Installation Guidelines Ensure all field outputs are de-energized prior to insertion or removal of the IOTA assembly. Maintain separation between low-voltage logic wiring and relay contact field wiring to prevent induced coupling. Verify terminal torque specification according to Series C I/O carrier installation manual. Use shield termination practices consistent with plant grounding architecture; avoid multi-point shield loops. Confirm 24 VDC backplane integrity before commissioning relay output channels.
$200.00 $100.00
-
Honeywell Honeywell CC-TDOB01 Digital Output Module
Honeywell CC-TDOB01 Digital Output Module Configured for discrete field signal switching in distributed control I/O architectures, the Honeywell CC-TDOB01 51308371-175 (CC-TDOB01 Digital Output Module) provides direct electrical actuation of 24 VDC load circuits within Honeywell I/O subsystem environments. The device is cataloged as a digital output module, while provided reference data also describes it as an I/O board with input board terminology. Output structure is defined for 32-channel sourcing operation with galvanically isolated channel architecture and 24 VDC nominal field interface characteristics. Suffix Breakdown & Model Matrix No formally published segmentation or functional suffix hierarchy is defined for CC-TDOB01 51308371-175 in the provided dataset. The full order number is treated as a single hardware identifier. Hardware Specifications Parameter Specification Model CC-TDOB01 51308371-175 Brand Honeywell Origin USA Weight 0.4 kg Dimensions 19.1 x 18.8 x 6.5 cm Module Type Digital Output Module / I/O Board (source data varies) Output Channels 32 channels Output Type Source Load Voltage 15 to 30 VDC max Isolation 1500 VAC RMS or +/- 1500 VDC On-State Voltage 24 VDC typical Output Current up to 0.5 A per channel Off-State Leakage 5.0 microA max Honeywell Process I/O Electrical Isolation Architecture The CC-TDOB01 implements channel-to-channel and field-to-backplane isolation consistent with distributed control system I/O segmentation practices. Electrical separation is specified at up to 1500 VAC RMS, reducing coupling between adjacent switching elements and internal logic domains. The 32-channel sourcing topology supports direct energization of external field loads under 24 VDC nominal control voltage conditions, with leakage suppression maintained in the microampere range during off-state conditions. The architecture aligns with typical Honeywell DCS I/O loop design principles, including controlled field termination behavior and deterministic switching under backplane communication scheduling. Frequently Asked Questions (FAQ) Q: Is the CC-TDOB01 compatible with hot-swap operation on live backplanes?A: Hot-swap capability is not specified in the provided electrical dataset. Compatibility depends on the host I/O chassis and backplane implementation. Q: What is the maximum per-channel switching limit under inductive load conditions?A: The module specifies up to 0.5 A per channel at 24 VDC typical; inductive suppression must be handled externally. Q: Does channel-to-channel isolation imply independent field returns?A: The isolation specification (1500 VAC RMS) indicates electrical separation, but field return topology is determined by system wiring design. Field Installation Guidelines The module shall be installed in a compatible Honeywell I/O rack with correct backplane seating force applied uniformly across the connector interface. Field wiring must maintain separation between high-energy switching conductors and low-level control routing. Shield termination shall follow single-point grounding practice at cabinet earth reference to reduce loop impedance. Output load wiring must respect total current aggregation limits across adjacent channels to prevent thermal accumulation in terminal assemblies. Verification of isolation integrity should be performed prior to energization using standard insulation resistance testing methods appropriate for 24 VDC control systems.
$200.00 $100.00
-
Honeywell Honeywell CC-PDIL51 51307083-175 Digital Input Module
Honeywell CC-PDIL51 51307083-175 Digital Input Module Configured for 24 VDC discrete signal acquisition in distributed I/O architectures, the Honeywell CC-PDIL51 51307083-175 (51307083-175 Digital Input Module) provides direct physical/electrical execution of 32-channel digital state monitoring within Honeywell process control I/O subsystems. Suffix Breakdown & Model Matrix No documented suffix segmentation or functional option matrix is provided in the supplied technical dataset for CC-PDIL51 or 51307083-175. All functional characteristics are derived directly from published electrical and channel specifications. Hardware Specifications Parameter Specification Model CC-PDIL51 51307083-175 Brand Honeywell Origin USA Weight 0.5 kg Dimensions 26 x 115.2 x 7.5 cm (shipping size) Input Channels 32 Nominal Input Voltage 24 VDC DI Power Voltage Range 18 to 30 VDC ON Detection Threshold >= 13 VDC or >= 3 mA OFF Detection Threshold <= 5 VDC or <= 1.2 mA Input Impedance 4.2 kOhm Isolation 1000 VAC RMS (galvanic isolation via optical stage) Input Filtering Delay 5 ms ± 20% Honeywell Channel Isolation and I/O Conditioning Characteristics The module implements optical isolation within the I/O assembly stage, combined with channel-to-channel electrical separation at the system interface level. Isolation rating of 1000 VAC RMS defines the separation boundary between field-side discrete wiring and backplane-side logic processing. The input conditioning network is designed around fixed impedance and threshold detection, eliminating adjustable debounce configuration at module level. Signal acquisition timing is governed by a fixed filter chain introducing approximately 5 ms propagation delay across isolation and input conditioning stages. Frequently Asked Questions (FAQ) Q: Does the CC-PDIL51 support hot-swap insertion under live backplane power?A: Hot-swap capability is dependent on the host I/O chassis design. The module itself does not define autonomous inrush or live insertion control circuitry. Q: What is the backplane loading behavior of the 32-channel input architecture?A: Backplane loading is determined by internal opto-isolation drive circuitry; per-channel loading is aggregated through shared internal excitation networks rather than individually addressed channel power draw. Q: Is the input filter delay configurable at firmware level?A: No configurable firmware parameter is indicated. Input delay is fixed at hardware-level filtering with 5 ms ± 20% propagation behavior. Field Installation Guidelines Install the module only in compatible Honeywell I/O carrier systems designed for 24 VDC discrete input cards. Maintain separation between field wiring and backplane wiring harnesses to preserve isolation integrity. Shielded twisted pair is recommended for long field runs, with shield termination performed at a single-point earth ground. Ensure field input commons are correctly referenced within the defined 18 to 30 VDC operating window to avoid threshold ambiguity. Avoid routing digital input cabling parallel to high-voltage switching conductors to minimize induced transient coupling into the optically isolated input stage.
$200.00 $100.00
-
Honeywell Honeywell CC-TDI230 Series C High Voltage Digital Input Termination Assembly
Honeywell CC-TDI230 Series C High Voltage Digital Input Termination Assembly Configured for high-voltage discrete signal termination in the Experion PKS platform, the Honeywell CC-TDI230 (CC-TDI230 High Voltage Digital Input Termination Assembly) provides direct electrical interface between 240 VAC field inputs and the CC-PDIH01 Digital Input Module. The assembly supports redundant I/O architecture, optical isolation, and field wiring termination for 32 digital input channels. Suffix Breakdown & Model Matrix The supplied documentation identifies CC-TDI230 as a single catalog model. No official suffix variants or ordering code matrix are specified for this product. Hardware Specifications Parameter Specification Model CC-TDI230 Brand Honeywell Origin Not specified in the available documentation Product Type Series C High Voltage Digital Input Termination Assembly (IOTA) Compatible Module CC-PDIH01 High Voltage Digital Input Module System Platform Experion PKS Series C I/O Input Channels 32 digital input channels Input Voltage 240 VAC nominal Input Voltage Range 180 to 264 VAC RMS Frequency Range 47 to 63 Hz Pick-up Voltage >= 180 VAC RMS Drop-out Voltage <= 50 VAC RMS Sense Current (ON) Approximately 1.11 mA RMS Sense Current (OFF) Maximum 0.32 mA RMS Input Delay Maximum 25 ms Isolation 1500 VAC RMS or +/- 1500 VDC field to logic common Isolation Method Optical isolation Redundancy Supported IOTA Width 12 inches Field Wiring High-voltage digital input termination Weight Not specified Dimensions 12-inch IOTA assembly; other dimensions not specified Channel Isolation for Process Control I/O The CC-TDI230 employs optical isolation between field wiring and logic common to separate high-voltage input circuits from the control electronics. This isolation is specified at 1500 VAC RMS or +/- 1500 VDC and is intended to reduce electrical coupling between the field interface and the controller circuitry. When installed with the CC-PDIH01 module, the assembly supports redundant Series C I/O configurations while maintaining independent field signal termination. Frequently Asked Questions Q: Does the CC-TDI230 support redundant I/O operation?A: Yes. The termination assembly is designed for use in redundant Series C I/O configurations when paired with the compatible CC-PDIH01 Digital Input Module. Q: Can the CC-TDI230 be connected directly to 240 VAC field signals?A: Yes. The assembly is intended for nominal 240 VAC digital inputs with a specified operating range of 180 to 264 VAC RMS at 47 to 63 Hz. Q: Is hot swapping of the termination assembly specified?A: The available documentation does not explicitly specify hot-swap capability for the IOTA. Installation and replacement should follow the applicable Experion PKS maintenance procedures. Field Installation Guidelines Verify that all field circuits are de-energized before connecting or disconnecting field wiring. Install only with the compatible CC-PDIH01 High Voltage Digital Input Module specified for the Series C platform. Route high-voltage input wiring separately from low-level signal and communication cables to minimize electrical interference. Terminate cable shields according to the plant grounding standard to avoid unwanted ground loops. Confirm the applied field voltage remains within the specified operating range before energizing the I/O channel. After installation, verify channel indication and controller diagnostics before returning the system to service.
$200.00 $100.00
-
Honeywell Honeywell CC-TDIL110 Digital Input Module
Honeywell CC-TDIL110 Digital Input Module The Honeywell CC-TDIL11 PWA51308388-175 REV B2, also cataloged as the CC-TDIL11 Digital Input Module, operates as a dedicated hardware component for discrete 24 VDC signal acquisition within the Honeywell Experion PKS C300 control system. It transfers field input states from contact devices to the controller for deterministic logic processing and system diagnostics. Suffix Breakdown & Model Matrix The supplied documentation identifies a single hardware revision only. No official suffix decoding or ordering matrix is provided for PWA51308388-175 REV B2. Revision compatibility should be verified against the installed Experion PKS hardware and firmware release before replacement. Hardware Specifications Parameter Specification Model CC-TDIL110 Brand Honeywell Origin USA Product Type Digital Input Module System Compatibility Honeywell Experion PKS C300 Control System Number of Channels 32 digital input channels Nominal Input Voltage 24 VDC Input Voltage Range 18 VDC to 30 VDC Isolation Galvanic isolation between field circuits and system logic Sequence of Events Supported, approximately 1 ms resolution Terminal Type Screw terminal or compression terminal depending on IOTA variant Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 5 % to 95 % RH, non-condensing Coating Conformal coating Power Consumption Low power dissipation, exact value not specified Dimensions Not specified Weight Not specified Channel-to-Channel Signal Integrity The module is intended for discrete input acquisition in distributed process control applications where field wiring interfaces with the Experion PKS controller through an isolated input stage. Galvanic isolation separates field-side electrical circuits from controller logic to reduce the influence of ground potential differences and externally induced electrical disturbances. Sequence of Events support provides hardware time stamping for chronological event recording during process transitions and fault analysis. Frequently Asked Questions Q: Does the module support online replacement during controller operation?A: The supplied documentation does not specify hot-swap capability. Replacement procedures should follow the maintenance instructions defined for the installed Experion PKS system revision. Q: Can different field voltage levels be connected to separate input channels?A: The specified nominal operating level is 24 VDC with an input range of 18 VDC to 30 VDC. Field devices should operate within this specified voltage range. Q: Is firmware matching required before module replacement?A: Hardware revision and system compatibility should be verified against the existing Experion PKS controller and associated I/O infrastructure before installation. Field Installation Guidelines Isolate field power before connecting or removing field wiring. Confirm terminal assignments against the applicable Honeywell wiring documentation before energizing the circuit. Separate low-voltage signal wiring from high-power conductors to minimize electrical interference. Terminate cable shields according to the site's grounding standard to avoid unwanted ground loops. Verify field input voltage is within the specified operating range before applying power. Confirm the installed hardware revision is compatible with the existing controller, I/O termination assembly, and system firmware.
$200.00 $100.00
-
Honeywell Honeywell CC-TAON11 Series C Analog Output IOTA
Honeywell CC-TAON11 Series C Analog Output IOTA Configured for analog output signal termination in the Honeywell Experion PKS Series C system, the Honeywell CC-TAON11 (51306521-175) (CC-TAON11 Analog Output IOTA) provides direct electrical execution. It functions as the termination interface between Series C analog output modules and field devices, routing controller-generated 4-20 mA output signals to external loads while supporting redundant I/O configurations. Suffix Breakdown & Model Matrix The supplied documentation identifies a single catalog number only. No official suffix or option matrix is specified. Parameter Specification Model CC-TAON11 (51306521-175) Brand Honeywell Origin USA Weight Approx. 0.4 kg to 0.56 kg Dimensions Not specified Operating Temp -40 deg C to +70 deg C Power Consumption Not specified Product Type Analog Output Input Output Termination Assembly (IOTA) System Compatibility Experion PKS Series C Module Type Analog Output Termination Assembly HART Support Non-HART Redundancy Supports redundant configuration (12-inch version) Number of Channels 16 Output Signal 4-20 mA current loop Signal Resolution 12-bit or 16-bit processing (depends on paired I/O module) Output Ripple Less than 100 mV peak-to-peak across a 250 Ohm load at power line frequency Output Readback Accuracy +/- 4 % of full scale Output Current Linearity +/- 0.05 % of full scale nominal Temperature Drift 0.005 % of full scale per deg C Isolation Galvanic isolation between channels and power supply Storage Temperature -40 deg C to +85 deg C Relative Humidity 5 % to 95 % RH, non-condensing Mounting DIN rail Channel-to-Channel Isolation The CC-TAON11 provides galvanic isolation between field channels and the power supply to reduce the transfer of electrical disturbances into analog output circuits. The assembly is intended for standard 4-20 mA control loops and does not implement HART communication. Internal diagnostics support output signal verification, while open-wire detection identifies interrupted field wiring connected to actuators or other analog loads. Frequently Asked Questions Q: Does the CC-TAON11 support HART communication?A: No. The documented version is a non-HART Analog Output IOTA intended for standard 4-20 mA analog output applications. Q: Can the module be installed in a redundant I/O configuration?A: Yes. The documentation specifies support for redundant configuration when used with the applicable 12-inch redundant arrangement. Q: Does the termination assembly require firmware updates?A: No firmware information is specified for the IOTA itself. Functional compatibility depends on the associated Series C analog output module and the Experion PKS hardware configuration. Field Installation Guidelines Mount the IOTA securely on the designated DIN rail inside the Series C cabinet. Verify that the installed analog output module matches the specified CC-TAON11 termination assembly before field wiring. Route analog output wiring separately from high-voltage or high-current conductors to reduce electrical interference. Terminate cable shields according to the cabinet grounding practice defined for the control system, avoiding multiple shield ground points unless required by the installation standard. Confirm terminal identification before energizing field circuits and verify continuity if open-wire diagnostics indicate a disconnected load. Observe the specified environmental limits for operating temperature and humidity during installation and operation.
$200.00 $100.00
-
Honeywell CC-TAIX61 51307077-175 | Honeywell | Analog Input Module
Honeywell CC-TAIX61 51307077-175 Analog Input Module Configured for analog signal acquisition in a Honeywell distributed control system (DCS), the Honeywell CC-TAIX61 51307077-175 (CC-TAIX61 Analog Input Module) provides direct electrical interface between field analog devices and the controller backplane for input signal processing and system data exchange. Suffix Breakdown & Model Matrix The available documentation identifies CC-TAIX61 51307077-175 as a complete ordering number. No official suffix decomposition or option matrix is specified in the provided information; therefore, no further model segmentation is presented. Hardware Specifications Parameter Specification Model CC-TAIX61 51307077-175 Brand Honeywell Product Type Analog Input Module Origin USA Weight 1.6 kg Dimensions 2.2 cm x 12.4 cm x 12.6 cm Operating Temp Not specified Power Consumption Not specified Minimum Order Quantity 1 piece Catalog Description Analog Input Module Manufacture Year Latest available production year Certification COO Channel-to-Channel Isolation Considerations Analog input modules installed in DCS architectures are typically intended to preserve signal integrity between field input circuits and controller processing. Channel-to-channel isolation, where implemented by the system architecture, assists in reducing electrical interference between adjacent analog channels and minimizes the propagation of common-mode disturbances through field wiring. Correct shield termination, separation of analog and power conductors, and compliance with cabinet grounding practices contribute to stable analog signal acquisition and reduced measurement noise. Frequently Asked Questions Q: Does this module support hot replacement while the controller remains energized?A: Hot-swap capability depends on the installed Honeywell controller platform and chassis configuration. The provided documentation does not specify whether this module supports online replacement. Q: Is firmware configuration required before module installation?A: The available product information does not specify firmware requirements. Module recognition and configuration are determined by the compatible Honeywell control system software and hardware revision. Q: What wiring practice is recommended for analog input signals?A: Use shielded instrumentation cable where applicable, maintain separation from high-power conductors, and terminate cable shields according to the site's grounding standard to reduce electrical noise. Field Installation Guidelines Verify the module part number before installation. De-energize equipment unless the installed system documentation explicitly permits online replacement. Insert the module fully into the designated backplane slot until the connector is completely seated. Route analog signal cables separately from motor, relay, and AC power wiring. Terminate cable shielding in accordance with the control cabinet grounding practice. Confirm field terminal identification before applying input signals. Inspect module retention hardware and connector engagement after installation.
$200.00 $100.00
-
Honeywell Honeywell CC-TAIM01 Analog Input Termination Assembly
Honeywell CC-TAIM01 Analog Input Termination Assembly Configured for analog input signal termination in the Honeywell Experion PKS platform, the Honeywell CC-TAIM01 (CC-TAIM01 Analog Input Termination Assembly) provides direct electrical interface between field wiring and the associated analog input module. The associated spare part number is 51305959-175, while the corresponding IOTA variant is identified as 51308363-175. Suffix Breakdown & Model Matrix The available information identifies CC-TAIM01 as a fixed hardware model. No official suffix decoding or option matrix is provided in the supplied documentation. The following associated ordering references are available: Model Description CC-TAIM01 Analog Input Termination Assembly 51305959-175 Spare Model 51308363-175 IOTA Analog Input Termination Assembly Hardware Specifications Parameter Specification Model CC-TAIM01 Brand Honeywell Origin USA Product Type Analog Input Termination Assembly (IOTA) Spare Model 51305959-175 Associated Part Number 51308363-175 Input Type Analog Input Supply Voltage 24 VDC Current Consumption 0.195 A Estimated Shipping Dimensions 18.5 x 15 x 7.5 cm Weight 0.3 kg Operating Temp Not specified Power Consumption Approximately 4.68 W (24 VDC x 0.195 A) Channel Isolation and Analog Signal Interface The CC-TAIM01 functions as the field termination interface for analog input channels. Proper field wiring practices, shield termination, and grounding methods contribute to minimizing conducted electrical noise before signal processing by the associated controller hardware. For analog process instrumentation, signal integrity depends on correct loop wiring and compliance with the electrical characteristics of the connected transmitter. When deployed in 4-20 mA measurement loops, installation should follow the applicable Honeywell system documentation for wiring topology, grounding, and termination requirements. Where supported by the connected input module, HART communication shares the same current loop without affecting the primary analog measurement. Frequently Asked Questions Q: Does the CC-TAIM01 support hot replacement while the controller is operating?A: Hot replacement capability depends on the installed Honeywell controller, carrier, and maintenance procedures. The supplied documentation does not specify hot-swap support for this termination assembly. Q: Is the module itself responsible for analog signal conversion?A: No. The CC-TAIM01 serves as the field termination assembly. Analog signal conditioning and conversion are performed by the associated analog input electronics. Q: Are firmware updates required for the CC-TAIM01?A: The termination assembly is a passive hardware interface. Firmware compatibility applies to the associated controller or analog input module rather than the termination assembly itself. Field Installation Guidelines Verify all field wiring against the designated terminal assignment before energizing the system. Isolate field power before connecting or disconnecting terminal wiring. Route analog signal cables separately from high-voltage and high-current conductors to reduce electrical interference. Terminate cable shields according to the grounding practice specified for the control system installation. Confirm the connected field device operating voltage and loop configuration before applying 24 VDC supply power. Tighten terminal connections according to the specified installation procedure to prevent intermittent electrical contact.
$200.00 $100.00
-
Honeywell Analog Input Module | CC-TAID01 | Honeywell
Honeywell CC-TAID01 Analog Input Module The Honeywell CC-TAID01 51306733-175, also cataloged as the 51306733-175 Analog Input Module, operates as a dedicated hardware component for acquisition of process field analog signals within Honeywell distributed control system I/O architectures. The module performs multi-channel analog signal conditioning and A/D conversion, supporting 2-wire and self-powered transmitter interfaces. It converts field inputs into digital values via a 16-bit resolution conversion stage, with configurable voltage and current input ranges including 4-20 mA (via 250 Ω termination), 0-5 V, 1-5 V, and 0.4-2 V. Channel sampling is executed through a 50 ms scan cycle with onboard filtering implemented using a single-pole RC network (-3 dB at 6.5 Hz). Hardware Specifications Parameter Specification Model CC-TAID01 51306733-175 Brand Honeywell Origin USA Weight 0.34 kg Dimensions 22.1 x 12.1 x 8 cm Operating Temp Not specified Power Consumption Not specified Input Channels 16 channels Input Type 2-wire or self-powered transmitters Input Range 0-5 V, 1-5 V, 0.4-2 V, 4-20 mA (250 Ω) A/D Resolution 16 bits Scan Rate 50 ms Normal Mode Filter Single-pole RC, -3 dB @ 6.5 Hz Common Mode Voltage -6 to +5 V peak Honeywell Process I/O Signal Conditioning Architecture The CC-TAID01 integrates channel-level analog conditioning aligned with distributed control system acquisition requirements. Input circuits support 4-20 mA current loop measurement using external or internal loop excitation depending on system configuration. Channel-to-channel electrical separation is implemented to reduce cross-channel interference during mixed-signal acquisition. In 4-20 mA HART loop environments, the module supports baseband current measurement while preserving compatibility with superimposed digital communication signals. Signal conversion is performed prior to backplane transfer, enabling deterministic data representation for downstream controller execution logic. Extensive self-diagnostic routines monitor open-wire conditions, field power integrity, and bad process variable detection states. Fault states are mapped to system-level diagnostics for redundancy-capable control architectures. Frequently Asked Questions (FAQ) Q: Does the CC-TAID01 support hot-swap insertion in a live backplane?A: Hot-swap capability is dependent on the host chassis design. The module itself performs initialization diagnostics after backplane power stabilization and does not independently manage insertion sequencing. Q: What is the behavior under open-wire detection conditions?A: Open-wire detection triggers a diagnostic fault state per channel and forces the process variable into a bad PV condition flag for downstream control logic interpretation. Q: How is 4-20 mA loop measurement implemented internally?A: The input stage converts loop current into voltage across a precision 250 Ω resistor before digitization by the 16-bit A/D converter. Field Installation Guidelines Shielded twisted pair cabling is required for all analog input channels. Cable shields should be grounded at a single point within the control cabinet to avoid ground loop formation. Field wiring for 4-20 mA loops should maintain correct polarity across transmitter and module terminals. Module insertion must be performed with chassis power isolated unless the system backplane explicitly supports live insertion. Terminal tightening should follow manufacturer torque specifications for spring-clamp or screw-terminal variants used in the installation frame. Separation between analog input wiring and high-voltage switching conductors should be maintained to reduce induced noise coupling into low-level signal circuits.
$200.00 $100.00
-

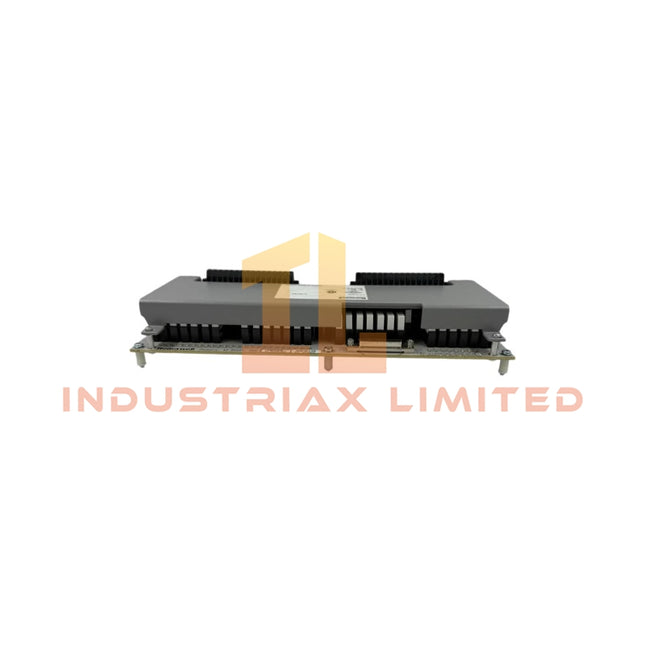

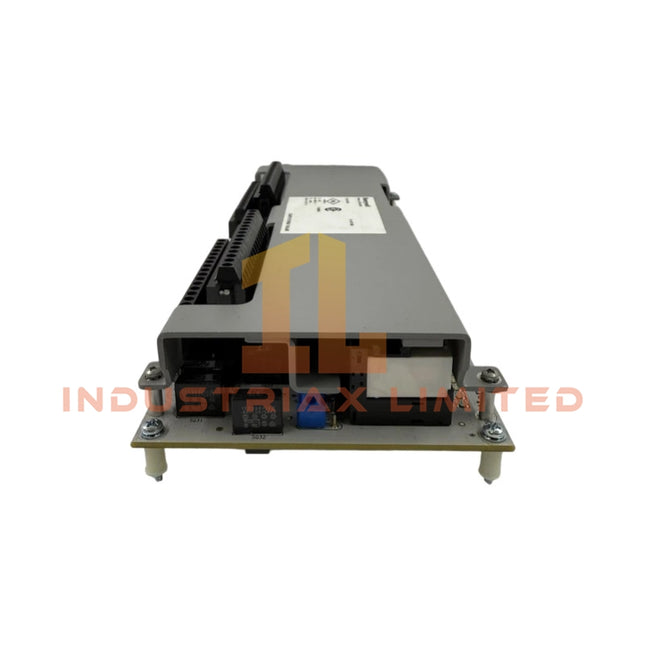

Honeywell DO Relay Extension Board | CC-SDOR01 51308380-175 | Honeywell
Honeywell CC-SDOR01 51308380-175 DO Relay Extension Board Configured for digital output relay expansion in DCS I/O architectures, the Honeywell CC-SDOR01 51308380-175 (51308380-175 DO relay extension board) provides direct physical/electrical execution for discrete output switching across distributed control backplane environments. The module implements 32 independent relay output channels with jumper-selectable Form A (SPST/NO) or Form B (SPST/NC) contact configuration per channel. Electrical isolation is maintained at channel level with 1500 VAC RMS or ±1500 VDC channel-to-channel and channel-to-logic common separation. Output contact material is AgSnO2, supporting mixed resistive and inductive switching profiles within defined inrush constraints. Suffix Breakdown & Model Matrix No manufacturer-provided suffix decomposition is defined for CC-SDOR01 51308380-175. The spare model 51308380-175 represents the base ordering identifier without documented functional segmentation. Hardware Specifications Parameter Specification Model CC-SDOR01 51308380-175 Brand Honeywell Origin USA Weight 0.4 kg Dimensions 19.1 cm x 18.8 cm x 6.5 cm Operating Temp Not specified Power Consumption Not specified Output Channels 32 isolated relay outputs Contact Type Form A (SPST/NO) / Form B (SPST/NC), jumper selectable Maximum Load Voltage 250 VAC (RMS) / 125 VDC Minimum Load Voltage 12 VDC Minimum Load Current 100 mA Inrush Current 10 A for 4 s at 10% duty cycle Turn On Time 20 ms maximum Isolation 1500 VAC RMS or ±1500 VDC Channel Isolation & Relay Output Architecture (Honeywell Process I/O Domain) The module implements galvanically isolated relay outputs per channel group, designed to prevent cross-channel coupling under mixed inductive load conditions. The 1500 VAC RMS isolation barrier is applied between logic domain and field switching elements, supporting fault containment at channel boundary level. In relay switching operation, contact degradation is governed by AgSnO2 material behavior under repetitive inrush conditions up to 10 A peak surge events. External surge suppression (120 Ω + 0.033 uF per channel) is specified for coil transient damping, reducing contact arc energy during de-energization cycles. Frequently Asked Questions (FAQ) Q: Can each output channel be configured independently as NO or NC?A: Yes. Each channel supports jumper-based selection between Form A (SPST/NO) and Form B (SPST/NC) operation. Q: What is the isolation boundary within the module?A: Channel-to-channel and channel-to-logic isolation is specified at 1500 VAC RMS or ±1500 VDC. Q: Is the module suitable for high inrush inductive loads?A: The relay supports up to 10 A inrush for 4 s at 10% duty cycle, subject to external suppression implementation. Field Installation Guidelines Field wiring shall maintain segregation between low-voltage logic cabling and relay output conductors. Shield termination should be executed at cabinet ground reference only to avoid ground loop injection across isolated channels. Relay output contacts should be routed with consideration for arc suppression components (120 Ω + 0.033 uF per channel) when driving inductive loads such as solenoids or contactor coils. Mechanical mounting must ensure stable DIN rail or chassis fixation to prevent vibration-induced terminal loosening in multi-channel switching environments. Terminal torque values and conductor cross-section must comply with cabinet-level wiring standards for relay output assemblies, ensuring consistent contact resistance across all 32 channels.
$200.00 $100.00
-

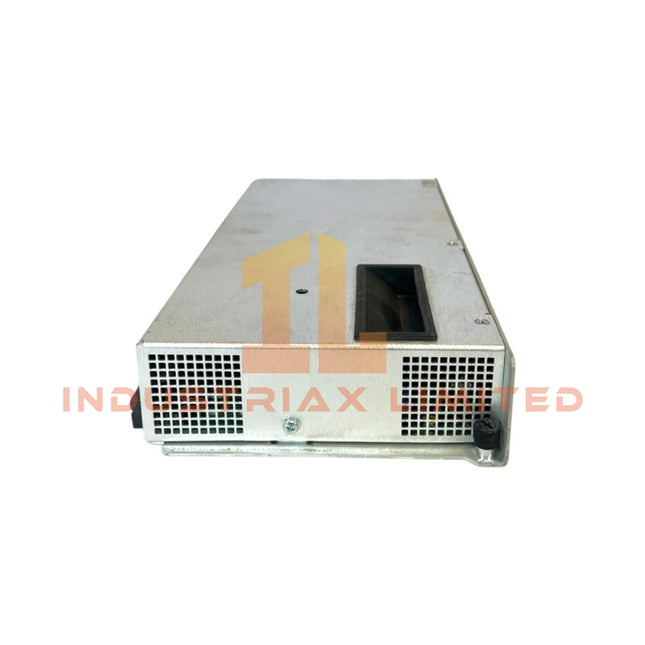

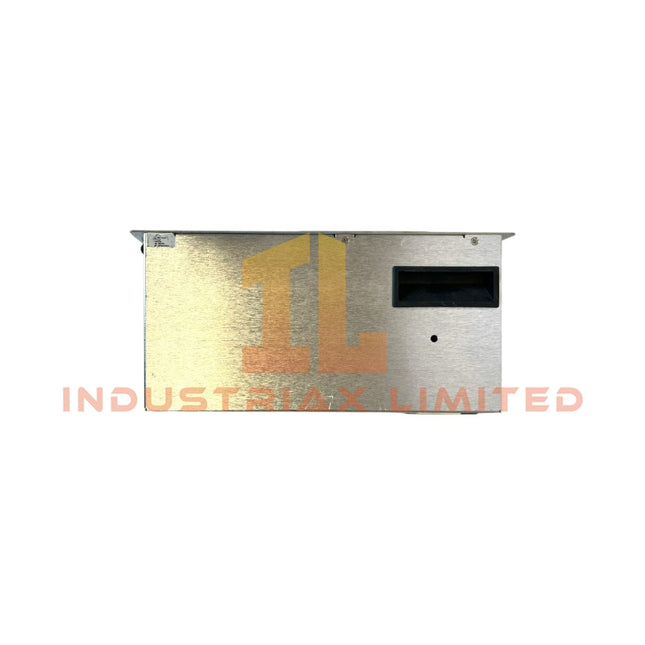

Honeywell Power Supply Module | 51199929-100 | Honeywell
Honeywell 51199929-100 Power Supply Module The Honeywell 51199929-100, also cataloged as the SPS5710 Power Supply Module, operates as a dedicated hardware component for regulated DC power distribution within industrial control backplane systems. The module provides system-level power conditioning and distribution for compatible Honeywell control assemblies, converting and stabilizing incoming supply voltage for downstream I/O and processor modules. Suffix Breakdown & Model Matrix No structured suffix decomposition is defined in the provided source data. The model is referenced directly as a single-order configuration: 51199929-100. Hardware Specifications Parameter Specification Model 51199929-100 / SPS5710 Brand Honeywell Origin USA Weight 2.16 kg Dimensions 5.2 x 16.5 x 34.3 cm Operating Temp Not specified in source data Power Consumption Not specified in source data Product Type Power Supply Module Honeywell Power Conditioning Interface Characteristics The Honeywell SPS5710 architecture is aligned with distributed control system (DCS) power domains where regulated DC rails are supplied to backplane-connected modules. In typical Honeywell process control platforms, system power modules interface with redundant or segmented supply buses and support stable voltage regulation across multi-slot chassis configurations. Channel-level electrical separation and controlled power sequencing are implemented at rack level to maintain deterministic module initialization order across I/O and processor assemblies. Frequently Asked Questions (FAQ) Q: Does the 51199929-100 support hot-swapping in live backplane operation?A: Hot-swap capability depends on the host chassis design. The module itself interfaces via backplane connectors, and insertion/removal conditions are governed by system-level power architecture. Q: What type of backplane load does this power module typically support?A: Backplane current capacity is defined by the SPS5710 system specification of the host platform. The module provides regulated distribution but does not independently define per-slot load limits. Q: Is redundancy supported for this power supply module?A: Redundancy support is system-dependent and typically implemented at chassis level using dual power modules where applicable. Field Installation Guidelines Ensure the chassis is fully de-energized prior to insertion or removal. Verify backplane connector alignment before applying insertion force. Maintain correct grounding continuity between module frame and cabinet earth. Avoid routing high-noise conductors adjacent to power backplane wiring. Confirm that input supply polarity and voltage level comply with system-level specifications before energization.
$200.00 $100.00
-
Honeywell Universal Input Output Module | CC-PUIO01 51454205-175 | Honeywell
Honeywell CC-PUIO01 51454205-175 Universal Input Output Module Configured for analog current acquisition and output interfacing in Honeywell Experion PKS distributed control environment, the Honeywell CC-PUIO01 51454205-175 (CC-PUIO01 Universal Input Output Module) provides direct electrical execution of 4-20 mA / 0-20 mA signal conditioning, A/D conversion, and HART 7 loop communication handling across multi-channel I/O backplane architectures. Suffix Breakdown & Model Matrix No validated manufacturer-provided suffix segmentation is defined for CC-PUIO01 51454205-175. The identifier is treated as a single ordering and assembly reference. Hardware Specifications Parameter Specification Model CC-PUIO01 51454205-175 Brand Honeywell Origin USA Weight 0.26 kg Dimensions 12 x 14.5 x 6.5 cm Operating Temp -40 deg C to +70 deg C Power Consumption Not specified Input Channels Up to 32 channels per module Input Type Current input (2, 3, or 4 wire devices) Input Range 0-20 mA / 4-20 mA A/D Resolution 16 bit Input Impedance 250 ohm nominal Max Input Voltage +36 VDC to -1.1 VDC Scan Rate 50 ms Protocol Support HART 7 (analog IO) Honeywell 4-20 mA HART Loop & Fast Scan Architecture The module operates on a 4-20 mA current loop measurement architecture with embedded HART 7 digital communication overlay. Channel acquisition is executed via fast scan sequencing with a 50 ms scan interval, enabling deterministic sampling across high-density analog input groups. The analog front end is designed for 250 ohm loop impedance interfacing, supporting both 2-wire and multi-wire field transmitter configurations. A/D conversion is implemented at 16-bit resolution for incremental signal quantization across process instrumentation inputs. Channel handling supports concurrent multi-loop acquisition with loop-level signal conditioning and HART superimposed digital data extraction. Electrical protection includes short-circuit limiting behavior on input paths, maintaining controlled current handling under fault conditions. Frequently Asked Questions (FAQ) Q: Can the module operate with both 2-wire and 4-wire current transmitters?A: Yes. Input circuitry is designed to accept 2, 3, and 4-wire current loop devices within the specified 0-20 mA or 4-20 mA ranges. Q: Does the module support HART communication simultaneously with analog measurement?A: Yes. HART 7 communication is superimposed on the analog current loop and processed in parallel with analog signal conversion. Q: What is the scan behavior across multiple channels?A: Channels are sampled under a fast scan scheduling mechanism with a nominal 50 ms cycle time per module. Field Installation Guidelines The module shall be installed on a compatible Honeywell backplane chassis with verified grounding continuity to system protective earth. Signal wiring for 4-20 mA loops must maintain continuous shield termination at one end only to prevent ground loop formation. Field loop conductors should be segregated from high-voltage switching cables to minimize inductive coupling. HART-enabled loops require impedance compliance at nominal 250 ohm conditions for stable digital overlay communication. Mechanical seating into the rack shall be fully engaged to ensure backplane electrical continuity. All termination points must be torque-verified according to cabinet assembly standards.
$200.00 $100.00
-
Honeywell Honeywell C300 | CC-PPIX01 | Pulse Input Module
Honeywell CC-PPIX01 Pulse Input Module Configured for pulse frequency acquisition in Experion C300 I/O architecture, the Honeywell CC-PPIX01 51410089-175, (CC-PPIX01 Pulse Input Module) provides direct physical/electrical execution. The module processes pulse signals from field devices and converts them into rate and totalized values within a distributed control system environment. It supports 8 single-channel or 4 dual-channel configurations with frequency handling up to 100 kHz (single) and 10 kHz (dual), input voltage range of 0 to 35 VDC, and configurable rising or falling edge detection. Output handling includes 2 output channels with fast cutoff response up to 1 ms. Suffix Breakdown & Model Matrix No manufacturer-defined suffix segmentation is provided for CC-PPIX01 51410089-175 beyond base model and order number association. Hardware Specifications Parameter Specification Model CC-PPIX01 51410089-175 Brand Honeywell Origin USA Weight 0.4 kg Dimensions 6 x 15.5 x 14.5 cm Operating Temp Not specified in provided data Power Consumption Not specified in provided data Input Channels 8 single / 4 dual Output Channels 2 Frequency Range 0 - 100 kHz (single), 0 - 10 kHz (dual) Input Voltage 0 - 35 VDC Channel Impedance > 70 kOhm Fast Cutoff Latency 1 ms max Edge Configuration Rising / Falling selectable Electrical Isolation 1000 VDC (as specified in description) Channel Isolation and Pulse Integrity Processing (Honeywell Experion I/O Behavior) The module implements channel-to-channel isolation within Experion C300 I/O architecture using high-voltage isolation barriers rated at 1000 VDC. Pulse integrity processing supports dual-pulse metering schemes compliant with ISO 6551 Level A implementation. Signal conditioning stages perform edge validation and reject transient bounce conditions prior to frequency computation. Internal diagnostics continuously monitor channel saturation, pulse dropout, and threshold violation states during runtime acquisition cycles. Frequently Asked Questions (FAQ) Q: Does the module support hot-swap insertion in a live backplane environment?A: Hot-swap capability is dependent on the Experion C300 rack configuration; the module itself maintains non-volatile configuration but requires system-level support for live insertion. Q: What is the backplane communication dependency for pulse accumulation processing?A: Pulse counting and rate calculation are executed locally within the module, while aggregated values are transferred through the C300 backplane interface. Q: How is dual-pulse integrity maintained for custody transfer applications?A: Dual-channel inputs are processed under ISO 6551 Level A logic with internal correlation checks between redundant pulse streams. Field Installation Guidelines The module shall be installed on a compatible Experion Series C I/O chassis with verified backplane alignment. Shielded twisted-pair cabling is required for pulse inputs, with drain wire terminated at a single-point earth ground to avoid ground loop formation. Input wiring shall maintain separation from high-voltage conductors and VFD output lines to reduce induced noise coupling. Mechanical seating must ensure full connector engagement across backplane pins without partial insertion states. Field termination should respect maximum allowable conductor length as defined by system noise immunity requirements.
$200.00 $100.00
-

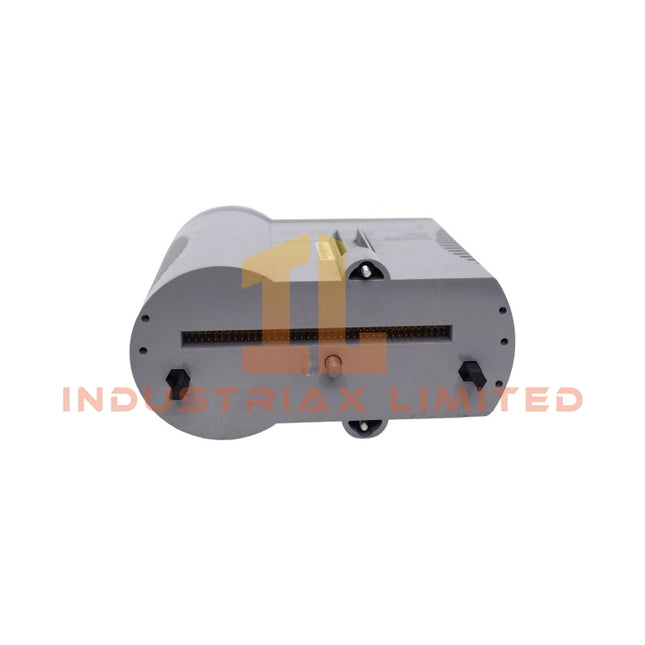

Honeywell Honeywell CC-PFB801 Fieldbus Isolated Power Supply Module
Honeywell CC-PFB801 Fieldbus Isolated Power Supply Module Configured for providing isolated conditioned DC power to FOUNDATION Fieldbus H1 segments in Experion PKS Series C I/O and C300 controller environments, the Honeywell CC-PFB801 (CC-PFB801 Fieldbus Isolated Power Supply Module) provides direct physical/electrical execution. Hardware Specifications Parameter Specification Model CC-PFB801 Brand Honeywell Origin USA Weight Not specified in source documentation Dimensions Not specified in source documentation Operating Temp -40 deg C to +70 deg C Power Consumption Dependent on segment load and backplane configuration Product Type Fieldbus Isolated Power Supply / Power Conditioner Input Voltage 24 VDC nominal Output Voltage 25 VDC to 28 VDC conditioned fieldbus supply Output Current Up to 500 mA per Fieldbus H1 segment (configuration dependent) Isolation Galvanic isolation between input supply and fieldbus segment Network Support FOUNDATION Fieldbus H1 Fieldbus Power Conditioning & Isolation Characteristics The CC-PFB801 implements galvanic separation between 24 VDC supply input and FOUNDATION Fieldbus H1 segment power rails. Isolation boundaries are designed to prevent DC ground reference coupling between segment trunk wiring and controller-side power domains. Fieldbus signal superposition integrity is maintained through power conditioning circuitry that separates DC supply conversion from AC communication overlay in the 31.25 kbit/s H1 physical layer. Segment loading is constrained by power budget allocation at the Fieldbus power conditioner level and downstream device consumption. Channel-level segmentation is defined by baseplate topology, where each conditioned output channel operates as an electrically independent fieldbus trunk segment. Frequently Asked Questions (FAQ) Q: Can the CC-PFB801 be hot-swapped under live Fieldbus H1 segment operation?A: Hot-swap capability depends on baseplate implementation and redundancy configuration. In redundant deployments, one module may be removed while the paired unit maintains segment power continuity. In single-module configurations, removal interrupts segment voltage supply. Q: Does the module introduce latency in FOUNDATION Fieldbus communication?A: The module operates at the power layer and does not process application-layer Fieldbus frames. Latency impact is limited to electrical conditioning path and does not alter H1 protocol timing characteristics. Q: How is segment current limited on the CC-PFB801?A: Current limiting is implemented at the power conditioner output stage and enforced per segment channel. Total available current is distributed according to baseplate design and load demand from connected field devices. Field Installation Guidelines Mount the CC-PFB801 onto the designated Honeywell Series C termination assembly or compatible baseplate. Ensure 24 VDC supply wiring complies with polarity and upstream fuse coordination requirements. Maintain shield continuity across Fieldbus trunk cables and terminate shielding at a single system grounding point to prevent ground loop currents. Segment wiring must adhere to FOUNDATION Fieldbus H1 topology rules, including trunk-and-spur length limitations defined by physical layer constraints. Verify isolation integrity prior to energization by measuring resistance between input supply reference and fieldbus segment conductors. Do not apply external voltage sources to the fieldbus segment during installation.
$200.00 $100.00
-

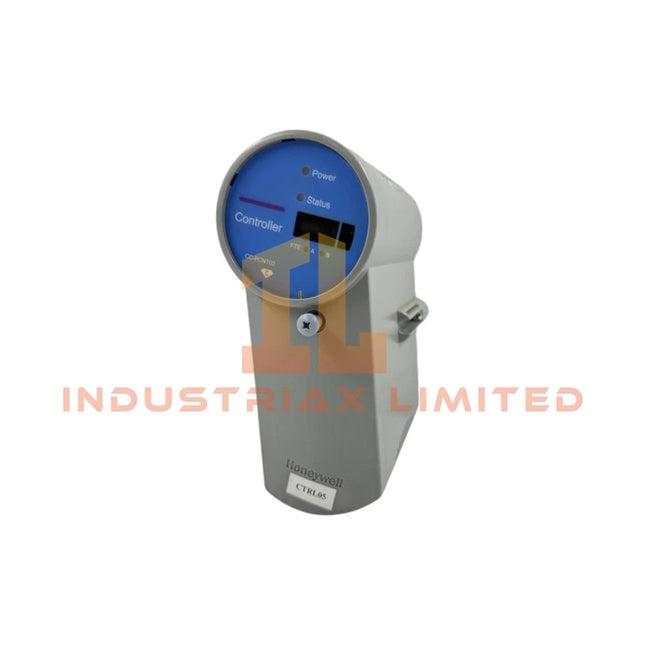

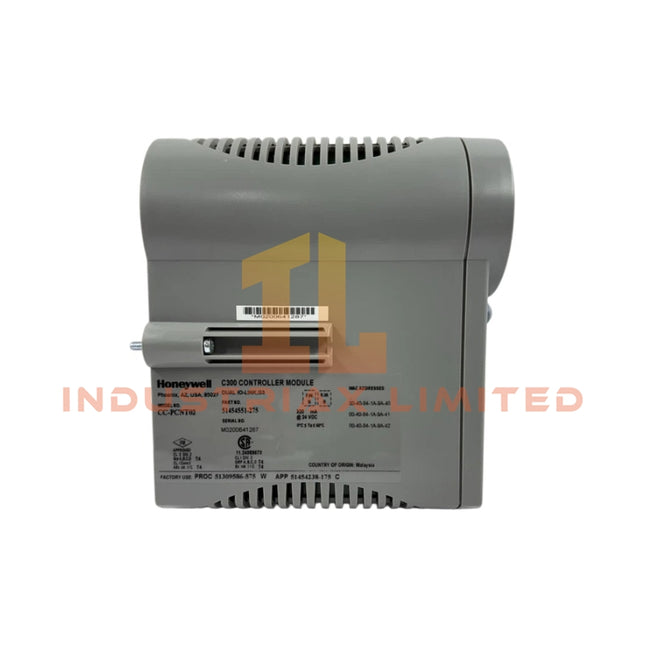

Honeywell Honeywell CC-PCNT02 51454551-275 C300 Controller Module
Honeywell CC-PCNT02 51454551-275 C300 Controller Module The Honeywell CC-PCNT02 51454551-275, also cataloged as the CC-PCNT02 C300 Controller Module, serves as the primary processing unit utilized to execute deterministic control logic, I/O coordination, and communication scheduling across Honeywell Experion PKS architectures. Suffix Breakdown & Model Matrix No explicit manufacturer-provided suffix decomposition is defined for 51454551-275 within the supplied dataset. The identifier is treated as a single orderable hardware configuration mapped to CC-PCNT02 controller hardware revision and packaging variant. Hardware Specifications Parameter Specification Model CC-PCNT02 51454551-275 Brand Honeywell Origin USA Weight 0.45 kg Dimensions 7.3 x 15.3 x 16.5 cm Operating Temp Not specified Power Consumption Not specified Product Type C300 Controller Module I/O Link Support 2 links Link Speed 375 kbaud / 750 kbaud Execution Period 50 ms Device Index Range 1 to 510 Process Control Communication Characteristics (Honeywell DCS Architecture) The CC-PCNT02 module interfaces with Experion PKS control layers through deterministic scan cycles, executing regulatory control blocks and sequence logic within a fixed 50 ms execution period. Communication handling supports channelized data exchange with field I/O subsystems using structured process variables aligned to controller index mapping. Field-level integration follows process control signaling standards commonly associated with 4-20 mA HART loop architectures, enabling analog signal conditioning, device status polling, and diagnostic exchange. Where deployed with compatible I/O subsystems, the controller coordinates data aggregation across distributed channels with timing alignment constraints and execution scheduling consistency. Frequently Asked Questions (FAQ) Q: Does the CC-PCNT02 support hot-swap replacement during runtime operation?A: Hot-swap capability depends on the chassis backplane configuration. Controller removal typically requires system-level control strategy hold or redundant controller takeover prior to physical extraction. Q: What is the significance of the 50 ms execution period?A: The 50 ms cycle defines the deterministic scan interval for logic execution, I/O processing, and communication updates within the controller task scheduler. Q: How many I/O communication links can be active simultaneously?A: The module supports 2 independent I/O links, operating at selectable speeds of 375 kbaud or 750 kbaud depending on network configuration. Field Installation Guidelines The CC-PCNT02 module shall be installed on a compatible Honeywell C300 backplane slot with verified mechanical alignment to guide rails and locking latches fully engaged. Backplane connectors must remain free of contamination prior to insertion. Shielded communication cabling should maintain continuous grounding at a single reference point to prevent ground loop formation across distributed I/O segments. Signal routing must avoid parallel runs with high-energy switching conductors to reduce induced noise on process communication lines. Module insertion and removal shall only be performed under controlled system states with verified controller redundancy or shutdown conditions as defined by the Experion PKS configuration.
$200.00 $100.00
-

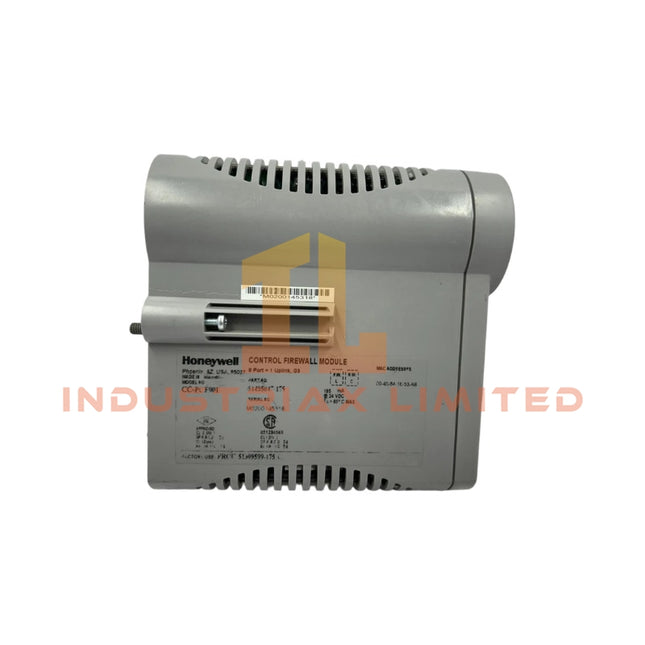

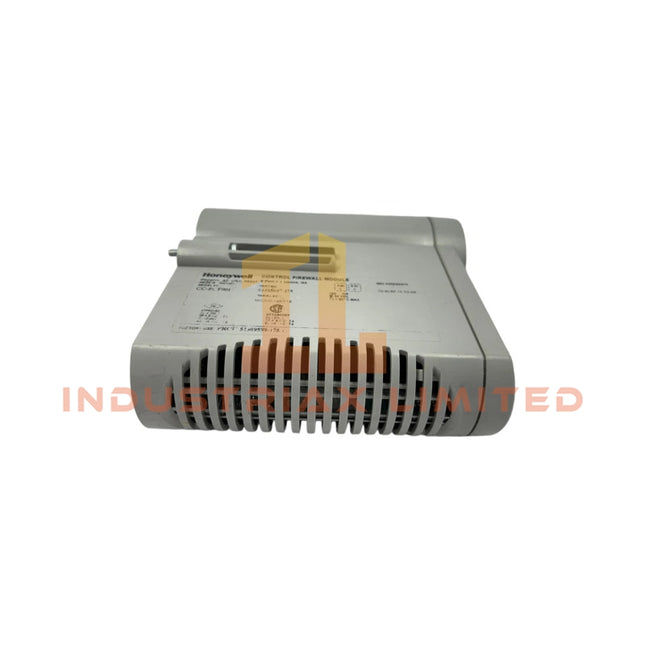

Honeywell 51405047-176 | Honeywell | CC-PCF091 Network Interface Modules
Honeywell 51405047-176 Network Interface Modules Configured for deterministic network segmentation in Honeywell C9 control architectures, the Honeywell 51405047-176 (CC-PCF901 Control Firewall Module) provides direct physical/electrical execution of port-level communication isolation across industrial control network boundaries. The module implements multi-port Ethernet segmentation with defined uplink aggregation within a 24 VDC powered backplane environment. Suffix Breakdown & Model Matrix The model 51405047-176 corresponds to a fixed-order Honeywell spare assembly designation. The base model CC-PCF901 is not subdivided into published suffix functional variants; no verified factory-documented decoding structure is available for further segmentation. Hardware Specifications Parameter Specification Model 51405047-176 / CC-PCF901 Brand Honeywell Origin USA Weight 0.32 kg Dimensions 5.5 x 16.2 x 14.5 cm Operating Temp Industrial control cabinet range (typ. 0 to 60 deg C, not officially stated) Power Consumption 0.112 A @ 24 VDC (approx. 2.7 W) Port Configuration 9 Ethernet ports (8 + 1 uplink) Supply Voltage 24 VDC Status Discontinued by manufacturer Honeywell Control Network Isolation Characteristics The CC-PCF901 architecture integrates deterministic segmentation behavior using per-port traffic separation and controlled forwarding logic within Honeywell distributed control environments. Electrical design emphasizes channel-to-channel isolation between Ethernet switching domains and backplane-linked control segments, limiting propagation of non-deterministic traffic across control layers. The module operates under a fixed 24 VDC supply rail and maintains consistent current draw behavior under nominal switching loads. Internal design aligns with industrial process control communication frameworks where segmentation integrity is prioritized over dynamic routing flexibility. Frequently Asked Questions (FAQ) Q: Does the 51405047-176 support hot-swap replacement during operation?A: No confirmed hot-swap capability is documented. Replacement is typically performed under controlled cabinet power-down conditions to avoid backplane communication disruption. Q: What is the backplane communication dependency of the CC-PCF901 module?A: The module relies on system-integrated backplane signaling for control-plane synchronization. Loss of backplane integrity may result in port isolation state retention. Q: Are firmware upgrades supported on this module?A: No field-upgradable firmware interface is specified for this device class; functionality is fixed at factory configuration level. Field Installation Guidelines The module shall be installed in a grounded industrial control cabinet with standardized DIN rail or chassis mounting as defined by the Honeywell C9 hardware frame. Maintain minimum separation from high-noise switching devices and VFD cabling to reduce electromagnetic coupling into Ethernet signal pairs. Ensure 24 VDC supply lines are protected with appropriate overcurrent limiting and routed separately from high-energy conductors. Shield termination should be implemented at cabinet ground reference only, avoiding multiple grounding points along communication cable shields. Verify port labeling prior to energization to prevent misrouting of uplink and access ports.
$200.00 $100.00
-
Honeywell Honeywell CC-PAOH01 51405039-175 Analog Output Module
Honeywell CC-PAOH01 51405039-175 Analog Output Module Configured for analog current signal generation in Experion PKS Series C I/O architecture, the Honeywell CC-PAOH01 51405039-175 (51405039-175 Analog Output Module) provides direct physical/electrical execution of 4-20 mA HART loop outputs for field actuator and final control element driving. The module implements 16 independent current sourcing channels with configurable output behavior per channel, supporting HOLD LAST VALUE and SHED TO SAFE STATE (FAILOPT). Each channel continuously regulates loop current with internal diagnostics for open wire detection, output discrepancy monitoring, and HART-capable multivariable communication over the same 4-20 mA loop interface. Suffix Breakdown & Model Matrix No validated manufacturer-specified suffix decomposition is provided for CC-PAOH01 51405039-175. The ordering code 51405039-175 is treated as a unique catalog identifier mapped to the CC-PAOH01 Series C analog output hardware instance. Hardware Specifications Parameter Specification Model CC-PAOH01 51405039-175 Brand Honeywell Origin USA Weight 0.4 kg Dimensions 6 x 15.5 x 14.5 cm Operating Temp Not specified in provided data Power Consumption 0.46 A at 24 VDC (module supply) Output Type 4-20 mA HART Analog Output Output Channels 16 Maximum Resistive Load 800 ohm Maximum Output Compliant Voltage 16 V Maximum Open Circuit Voltage 22 V Output Linearity +/- 0.05% of Full Scale Calibrated Accuracy +/- 0.35% of Full Scale at 25 deg C Resolution +/- 0.05% of Full Scale Temperature Drift 0.005% FS per deg C Honeywell 4-20 mA HART Loop Execution Characteristics The module operates as a loop-powered current sourcing device implementing 4-20 mA HART protocol signaling over each output channel. Each channel maintains regulated current drive using internal DAC control and loop feedback measurement, enabling simultaneous analog control signal transmission and HART digital communication. Channel-level diagnostics support open circuit detection and discrepancy monitoring between commanded and readback current values. The output stage is designed for field instrumentation interfacing where loop impedance, compliance voltage, and signal integrity are constrained by 800 ohm maximum load and 16 V compliance limit. HART modem integration allows bidirectional communication for field device configuration, process variable access, and instrument diagnostics without interrupting analog control current. Frequently Asked Questions (FAQ) Q: Does the CC-PAOH01 support per-channel fail-safe configuration?A: Yes. Each channel supports FAILOPT configuration with HOLD LAST VALUE or SHED TO SAFE VALUE behavior. In hardware failure conditions, outputs transition to zero state. Q: What is the maximum load supported per output channel?A: Each channel supports up to 800 ohm resistive load, constrained by 16 V maximum output compliance voltage. Q: Is hot-swap supported during module operation?A: Hot insertion/removal is dependent on Series C I/O rack implementation. Field wiring should remain de-energized unless system architecture explicitly supports live replacement procedures. Field Installation Guidelines The module shall be installed in a Series C I/O chassis slot with verified backplane seating to ensure stable 24 VDC distribution and communication integrity. Field wiring for 4-20 mA loops must be routed using shielded twisted pair conductors with single-point grounding of the shield at the cabinet earth reference. Loop resistance must be calculated to ensure total load remains within compliance voltage limits under worst-case field device conditions. Terminal tightening must follow manufacturer torque specifications for spring-clamp or screw-type termination blocks. HART communication performance depends on maintaining proper loop impedance stability and avoiding excessive capacitance across long cable runs. Separation from high-voltage switching conductors is required to prevent induced noise on analog current loops.
$200.00 $100.00
-
Honeywell CC-PAIL51 | Honeywell | Low Level Analog Output
Honeywell CC-PAIH51 Analog Input Module The Honeywell CC-PAIH51, also cataloged as the CC-PAIH51 Analog Input Module, operates as a dedicated hardware component for analog signal acquisition and HART loop interfacing within the Experion PKS C300 controller platform. The module processes field-level 4-20 mA inputs and routes HART digital overlay data for device-level diagnostics and configuration. Suffix Breakdown & Model Matrix No formal suffix segmentation or variant encoding is defined in the provided documentation for CC-PAIH51 (51410069-275). The part number is treated as a single fixed hardware configuration identifier. Hardware Specifications Parameter Specification Model CC-PAIH51 (51410069-275) Brand Honeywell Origin USA Operating Temp -40 deg C to 70 deg C (typical Series 8 I/O range) Power Consumption 24 VDC nominal supply (module dependent load not specified) Input Type Analog 4-20 mA with HART overlay Channel Capacity 32 channels Terminal Type 2-level detachable terminal blocks A/D Resolution Not specified Isolation Channel-to-system isolation (design class, exact rating not specified) Process Control Interface Characteristics (Honeywell DCS Architecture) The CC-PAIH51 integrates into Honeywell Series 8 I/O architecture under Experion PKS C300 control systems, supporting continuous acquisition of 4-20 mA process variables with embedded HART protocol pass-through. HART communication is multiplexed over the analog loop, enabling secondary variable extraction and device diagnostics without additional communication hardware. Channel density is optimized for high-point-count I/O cabinets, with internal segregation of signal conditioning and system backplane interfacing. Channel isolation and loop integrity management are implemented at module level to reduce ground loop coupling in multi-transmitter field wiring topologies. Data acquisition timing is synchronized via C300 backplane scheduling cycles. Frequently Asked Questions (FAQ) Q: Does the CC-PAIH51 support hot-swap replacement under power conditions?A: The Series 8 architecture generally supports removal and insertion under energized backplane conditions; however, field loop behavior depends on termination assembly configuration and system redundancy setup. Q: How is HART data handled in this module?A: HART digital signals are superimposed on the 4-20 mA loop and extracted transparently for upstream asset management systems via Experion PKS communication layers. Q: What is the channel isolation structure?A: Isolation is implemented between field input channels and system common reference to reduce cross-channel interference; exact dielectric rating is not specified in provided documentation. Field Installation Guidelines The module shall be installed into a compatible Honeywell Series 8 I/O chassis with corresponding termination assembly (TAs) for field wiring interface. All 4-20 mA loops must maintain correct polarity and loop impedance requirements for HART communication (typically 250 ohm loop resistance). Shielded twisted-pair cabling is recommended for all analog input channels. Cable shields should be grounded at a single point to avoid ground loop currents across cabinet structures. Ensure that field wiring is fully isolated from power conductors and relay outputs. Terminal block engagement must be fully seated across both levels of detachable connectors to prevent intermittent signal discontinuity under vibration conditions. Backplane connectors must remain clean and free of contamination prior to insertion to maintain stable C300 communication timing.
$200.00 $100.00
-

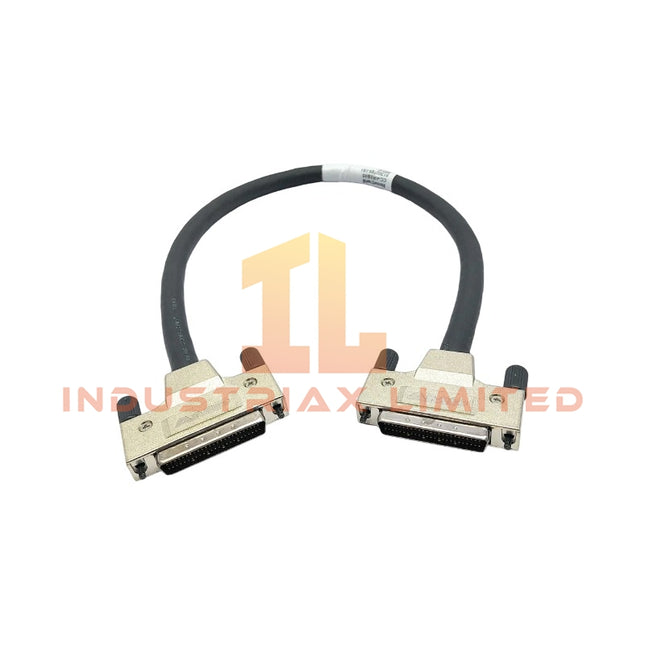

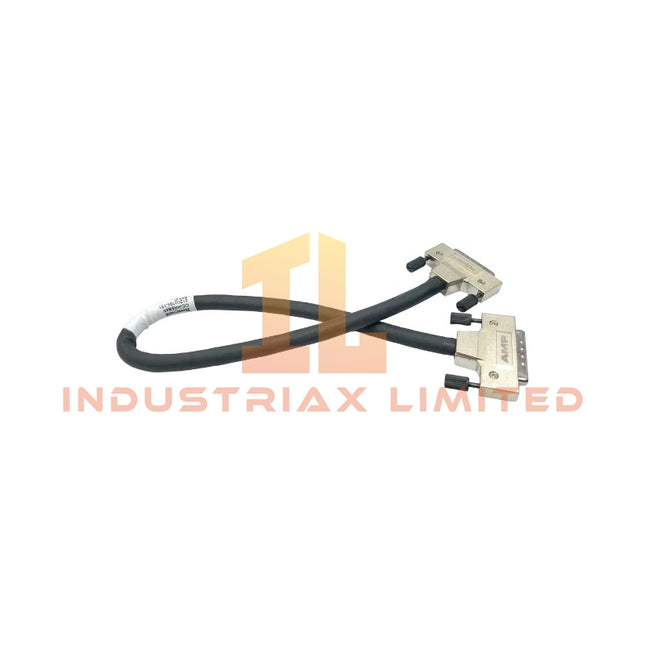

Honeywell Honeywell C300 CC-KREBR5 Control Firewall Module
Honeywell CC-KREBR5 Control Firewall Module Configured for inter-controller communication and redundancy control in Experion PKS C300 I/O architecture, the Honeywell CC-KREBR5 (CC-KREBR5 Control Firewall Module) provides direct electrical and data-path handling between redundant controller segments and associated I/O link infrastructure. The assembly functions as a fixed-function interface element within the C300 system backplane and I/O termination topology, supporting controlled traffic segregation and redundancy state coordination. Suffix Breakdown & Model Matrix The designation CC-KREBR5 is treated as a single fixed ordering identifier. No published manufacturer suffix segmentation or functional sub-variant encoding is defined for this part number. Any interpretation beyond the base identifier is not applicable without vendor documentation. Hardware Specifications Parameter Specification Model CC-KREBR5 Brand Honeywell Origin USA Operating Temp 0 deg C to 60 deg C (system class typical, unverified for this assembly) Power Consumption Not specified Module Type Control Firewall / I-O Link Redundancy Interface System Compatibility Experion PKS C300 I/O architecture Installation Interface C300 I/O termination assembly slot Process Control I/O Link Integrity and Channel Isolation Characteristics Within Honeywell Experion PKS architecture, I/O link extender and redundancy interface modules maintain deterministic separation between primary and secondary controller communication paths. The CC-KREBR5 class function typically participates in channel-to-channel electrical isolation boundaries, ensuring that 4-20 mA HART field loops and controller backplane traffic remain logically segregated from redundancy arbitration pathways. Signal integrity validation is enforced at the controller communication layer rather than at field termination, with redundancy switching behavior governed by controller-level synchronization logic. Frequently Asked Questions (FAQ) Q: Does CC-KREBR5 support hot-swap replacement under live controller operation?A: Hot-swap capability depends on the C300 I/O node configuration. The module is designed for controlled insertion/removal only when the associated redundancy group is in a permitted service state, as defined by system interlock rules. Q: What is the expected backplane communication load impact of the CC-KREBR5 module?A: The module operates as a passive or semi-passive interface element; backplane load contribution is implementation-dependent and not specified as a discrete current draw in public documentation. Q: Does the module participate in field signal conditioning (4-20 mA conversion or HART processing)?A: No direct field signal conditioning is performed. Signal conditioning is executed at I/O module level, while CC-KREBR5 functions as a communication and redundancy path interface element. Field Installation Guidelines Install the module only into the designated C300 I/O termination assembly slot with power removed or under system-approved maintenance state. Verify correct seating alignment on the backplane connector to avoid partial insertion faults. Maintain shield continuity across adjacent I/O modules where applicable, ensuring proper grounding of cable shielding at the designated earth reference point. Avoid bending stress on backplane connectors during insertion. Confirm redundancy group configuration in controller engineering tool prior to energization.
$200.00 $100.00
-

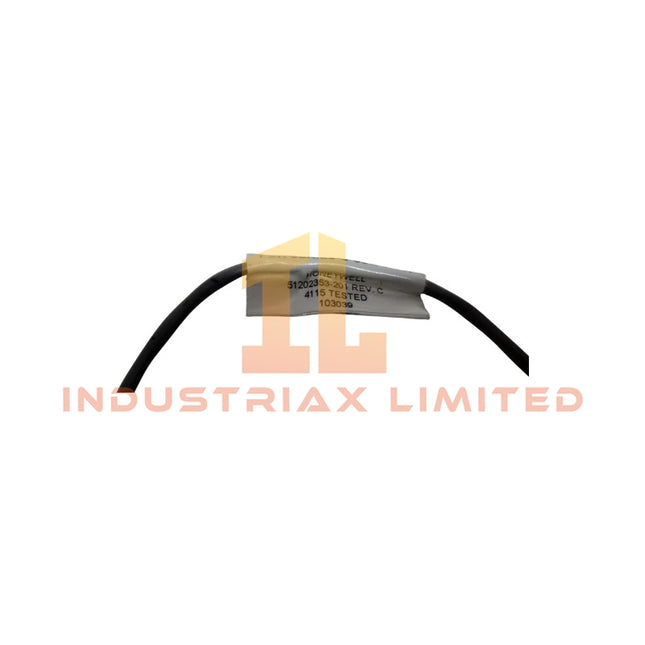

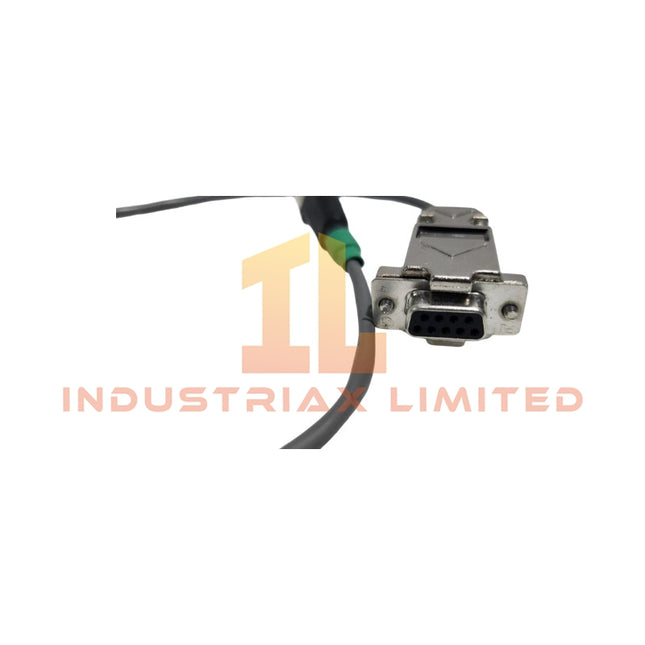

Honeywell Honeywell CC-KFSGR5 Grounding Cable Assembly
Honeywell CC-KFSGR5 Grounding Cable Assembly Configured for signal grounding and electromagnetic interference mitigation in Honeywell Experion PKS C300 / Fieldbus Interface Module (FIM) subsystems, the Honeywell CC-KFSGR5 (51202353-201) provides direct electrical bonding and noise suppression within field communication grounding networks. The assembly functions as a dedicated grounding and filtering interface element between controller-side termination structures and fieldbus network grounding references. It is designed to maintain controlled impedance grounding paths for industrial communication buses, reducing susceptibility to conducted and radiated electrical noise within C300/FIM chassis interconnect environments. Suffix Breakdown & Model Matrix No formally published suffix decomposition or functional segmentation for CC-KFSGR5 (51202353-201) is defined in Honeywell public hardware documentation. The part number is treated as a single-order assembly identifier without documented modular suffix logic. Hardware Specifications Parameter Specification Model CC-KFSGR5 (51202353-201) Brand Honeywell Origin USA / Mexico (manufacturing dependent on production batch) Weight 0.2kg Dimensions Not specified Operating Temp Not specified (system-level C300/FIM environmental limits apply) Power Consumption Passive component, no electrical load Component Type Grounding Cable / Filter Assembly System Compatibility Experion PKS C300 Controller / FIM modules Function Ground bonding, EMI reduction, noise suppression Signal Domain Fieldbus grounding reference path FOUNDATION Fieldbus Grounding Architecture Behavior Within Honeywell Experion PKS architectures, CC-KFSGR5 participates in controlled grounding topology for FOUNDATION Fieldbus segments. The assembly supports stable reference potential distribution between FIM termination structures and cabinet grounding rails, minimizing differential noise accumulation across communication conductors. Channel-level isolation is implemented at system architecture level via FIM and controller backplane design, while CC-KFSGR5 contributes through low-impedance grounding continuity. This prevents floating potential drift between segment shields and cabinet earth reference points under high-frequency switching interference conditions typical of distributed I/O environments. Frequently Asked Questions (FAQ) Q: Does CC-KFSGR5 carry active signal current?A: No. The component is passive and is intended only for grounding continuity and EMI path control. It does not conduct process signals or loop power. Q: Is the assembly hot-swappable within the C300/FIM chassis?A: It is not classified as a hot-swappable module. Installation or removal should be performed under system power-down conditions or according to cabinet grounding safety procedures. Q: Does it influence backplane communication timing?A: No direct impact on backplane bus timing exists. Its function is limited to grounding reference stabilization and noise attenuation. Field Installation Guidelines The grounding assembly shall be installed with direct mechanical bonding to the designated chassis grounding interface point within the FIM/C300 cabinet structure. Shield continuity must be maintained without interruption across termination points. Routing shall avoid parallel alignment with high-frequency switching conductors or variable-speed drive cabling. Ground termination resistance should be kept as low as practical using approved cabinet earth bonding practices. Cable strain relief must be applied to prevent mechanical stress on connector interfaces. Installation must ensure no floating shield segments exist between fieldbus segment termination and cabinet ground reference.
$200.00 $100.00
-

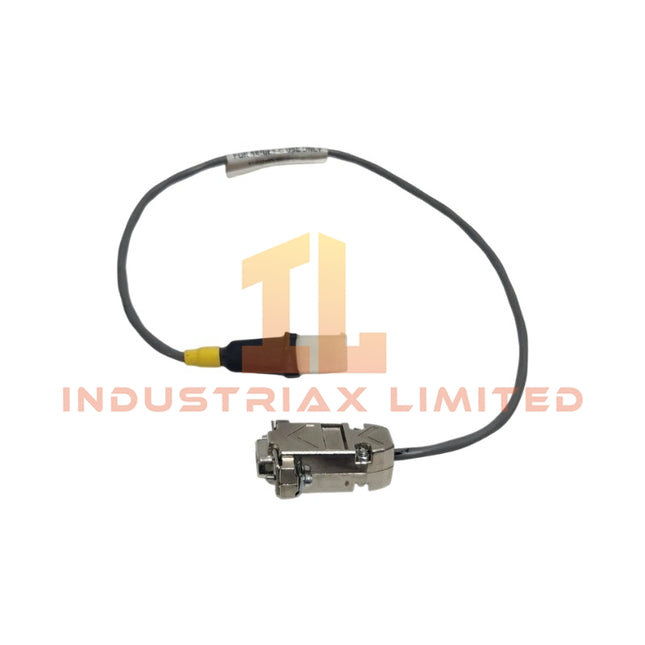

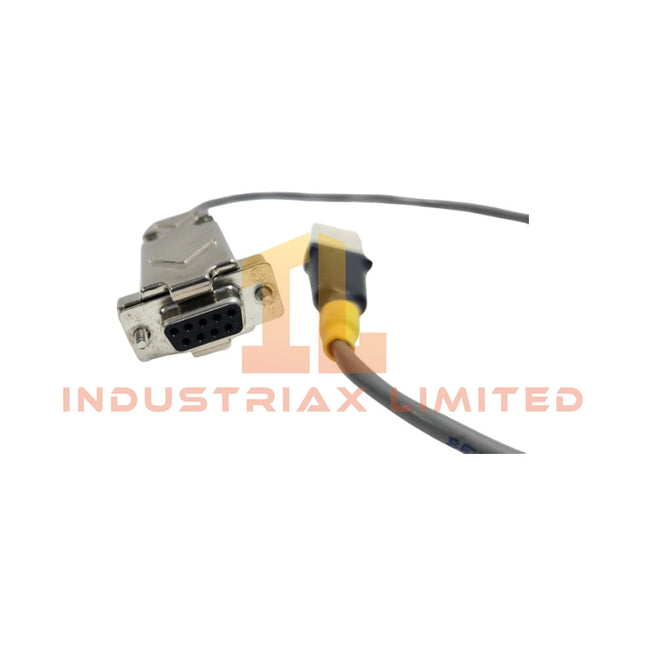

Honeywell CC-KFSGR5 51202353-200 | Shield Grounding Rail | Honeywell
Honeywell CC-KFSGR5 51202353-200 Shield Grounding Rail Configured for instrumentation shield termination and low-impedance grounding in Honeywell Experion PKS Series C I/O architecture, the Honeywell CC-KFSGR5 51202353-200 (CC-KFSGR5 Shield Grounding Rail) provides direct physical grounding distribution for cable shield conductors within I/O Termination Assemblies (IOTA). The component establishes a common reference potential to reduce differential noise coupling across analog and digital field wiring interfaces. Hardware Specifications Parameter Specification Model CC-KFSGR5 (51202353-200) Brand Honeywell Operating Temp Not specified (system dependent) Power Consumption Passive component (no power required) Component Type Shield Grounding Rail / Grounding Bar Kit System Compatibility Honeywell Experion PKS / Series C I/O / C300 Material High-conductivity metal (copper or plated alloy, per system design) Function Cable shield termination and grounding reference distribution Mounting Method Mechanical integration onto Series C IOTA assemblies Shield Grounding and Signal Reference Integrity in Series C I/O Systems The CC-KFSGR5 implements a centralized shield termination topology for field cable assemblies connected to Honeywell Series C IOTA modules. Shield conductors are bonded to a low-impedance reference plane to control common-mode noise injection into analog input channels and digital signal lines. In Honeywell process control architectures, shield grounding strategy directly impacts loop stability in mixed-signal environments where 4-20 mA field loops coexist with high-frequency switching signals. The grounding rail provides a controlled termination path that minimizes ground potential differences between field instrumentation and controller cabinet reference points. The grounding structure is designed to support consistent impedance characteristics across multiple termination points, reducing circulating currents that may otherwise couple into I/O signal conditioning circuits or backplane communication domains. Frequently Asked Questions (FAQ) Q: Does the CC-KFSGR5 support active signal conditioning or electronics?A: No. The CC-KFSGR5 is a passive grounding component. It does not perform signal conditioning, isolation, or amplification. Q: Can the grounding rail be used across different Honeywell IOTA revisions?A: Compatibility depends on mechanical mounting alignment and Series C IOTA design revision. Electrical function remains passive across supported assemblies. Q: Does the shield grounding bar affect backplane communication timing?A: No direct effect. It operates only on cable shield potential reference and does not interface with controller backplane or C300 communication buses. Field Installation Guidelines The grounding rail shall be installed directly onto the designated mounting interface of the Series C I/O Termination Assembly. All shield conductors from field cables shall be terminated to the rail using approved clamping or terminal fixation points specified by the IOTA design. Shield termination practice shall maintain a single-point or controlled multi-point grounding strategy as defined by system grounding architecture. Cable shield length outside termination points shall be minimized to reduce high-frequency antenna effects. Mechanical fastening shall ensure continuous metal-to-metal contact between rail and IOTA grounding structure. Corrosion, paint layers, or insulating residues shall be removed at contact interfaces prior to installation.
$200.00 $100.00
-
Honeywell CC-KFPVR5 51202353-111 | Fiber Optic Ethernet | Honeywell
Honeywell CC-KFPVR5 51202353-111 Fiber Optic Ethernet Configured for fiber optic Ethernet communication in a Honeywell control network, the Honeywell CC-KFPVR5 51202353-111 (CC-KFPVR5 Fiber Optic Ethernet Cable) provides direct physical signal transmission between compatible Input/Output Link (IOL) interfaces. The 0.5 m cable assembly is designed for optical data communication using IOL connectors and specified electrical operating characteristics. Suffix Breakdown & Model Matrix The available documentation identifies CC-KFPVR5 51202353-111 as a complete catalog number. No official suffix allocation or ordering matrix is provided; therefore, no further model code decomposition can be confirmed. Hardware Specifications Parameter Specification Model CC-KFPVR5 51202353-111 Brand Honeywell Product Type Fiber Optic Ethernet Cable Cable Type Fiber Optic Ethernet Connector Type IOL (Input/Output Link) connectors Cable Length 0.5 m Operating Voltage 24 VDC Operating Current 0.5 A Power Consumption 12 W maximum Origin USA Place of Shipment Xiamen, China Dimensions 16 x 16.2 x 1.5 cm Weight 0.06 kg Tariff Code 8537101190 Operating Temp Not specified Channel-to-Channel Signal Integrity The cable is intended for point-to-point optical communication through IOL interfaces within compatible Honeywell control systems. Fiber optic transmission provides electrical isolation between connected equipment and eliminates conductive signal paths through the communication medium. Proper connector cleanliness, bend radius control, and secure connector engagement are required to maintain optical signal quality. No protocol conversion or signal conditioning functions are incorporated into the cable assembly. Frequently Asked Questions Q: Does this cable support hot replacement while the control system is operating?A: The available product data does not specify hot-swap capability. Follow the installation and maintenance procedures defined for the connected Honeywell controller or I/O platform. Q: Is shielding or grounding required for the fiber optic cable itself?A: Optical fibers do not require electrical shielding for signal transmission. Grounding practices should follow the requirements of the connected control cabinet and associated equipment. Q: Can the cable length be modified in the field?A: The supplied assembly is specified as a factory-terminated 0.5 m cable with IOL connectors. Field modification of the optical cable or connectors is not recommended unless approved optical termination procedures are used. Field Installation Guidelines Verify compatibility of the IOL connectors before installation. Inspect connector end faces for dust or contamination prior to mating. Avoid excessive bending, twisting, crushing, or tensile loading of the fiber optic cable. Route the cable separately from power conductors where practical to reduce the possibility of mechanical damage during maintenance. Confirm connector locking mechanisms are fully engaged after installation. Observe the minimum bend radius recommended for the installed fiber cable to prevent optical attenuation. Perform communication verification after installation according to the commissioning procedure of the connected Honeywell control system.
$200.00 $100.00
-
Honeywell CC-GDIL11 | Digital Input Module | Honeywell
Honeywell CC-GDIL11 Digital Input Module Configured for discrete signal acquisition in a Honeywell control system, the Honeywell CC-GDIL11 (CC-GDIL11 Digital Input Module) provides direct electrical input processing. The module accepts 32 digital input channels with optical isolation between field and system circuitry, supporting DC input sensing through defined voltage and current thresholds. Suffix Breakdown & Model Matrix The available information identifies CC-GDIL11 as a single catalog model. No official suffix variants or ordering matrix are specified in the provided documentation. Hardware Specifications Parameter Specification Model CC-GDIL11 Brand Honeywell Product Type Digital Input Module Input Channels 32 Isolation Voltage 1500 VAC RMS or +/- 1500 VDC Isolation Technique Optical (in IOM) DI Power Voltage Range 18 to 30 VDC ON Sense Voltage 13 VDC minimum ON Sense Current 3 mA minimum OFF Sense Voltage 5 VDC maximum OFF Sense Current 1.2 mA maximum Input Impedance 4.2 kOhm Input Filter and Isolation Delay 5 ms +/- 20% Field Resistance for Guaranteed ON 300 Ohm maximum at 15 VDC Origin USA Place of Shipment Xiamen, China Weight 0.4 kg Dimensions 19.1 cm x 18.8 cm x 6.5 cm Operating Temp Not specified Power Consumption Not specified Channel-to-Channel Isolation Characteristics The CC-GDIL11 employs optical isolation within the input module architecture to separate field wiring from the controller interface. The specified isolation rating of 1500 VAC RMS or +/- 1500 VDC reduces electrical coupling between external field circuits and the internal electronics. Each input channel operates from an 18 to 30 VDC field supply and evaluates discrete states using defined voltage and current thresholds. The specified 5 ms input filtering delay assists in rejecting short-duration transient signals before logic state transfer to the control system. Frequently Asked Questions Q: Does the CC-GDIL11 support hot replacement while the controller is energized?A: The provided specification does not define hot-swap capability. Module replacement should follow the installation and maintenance procedures specified for the target Honeywell control platform. Q: How is the ON state determined for each digital input?A: A guaranteed ON condition requires at least 13 VDC or 3 mA at the input. The connected field circuit should also maintain a maximum field resistance of 300 Ohm at 15 VDC. Q: What is the purpose of the specified 5 ms input delay?A: The delay represents the combined effect of the input filter and optical isolation circuitry, reducing the influence of short electrical disturbances before the signal is processed by the control system. Field Installation Guidelines Verify that the external field supply remains within the specified 18 to 30 VDC operating range before energizing the module. Separate digital input wiring from high-current motor and power cables to reduce conducted electrical noise. Follow the control system grounding practice and terminate cable shields according to the cabinet grounding specification. Confirm field resistance and input voltage at the terminal block when commissioning discrete input devices. De-energize field wiring before connecting or disconnecting terminal conductors unless the installed system documentation explicitly permits live maintenance.
$200.00 $100.00
-
Honeywell CC-GAIX21 51306309-175 | Analog Input Module | Honeywell
Honeywell CC-GAIX21 51306309-175 Analog Input Module Configured for analog signal acquisition in a Honeywell process control system, the Honeywell CC-GAIX21 51306309-175 (CC-GAIX21 Analog Input Module) provides direct electrical conversion of field voltage signals into digital process data. The module incorporates a 16-bit A/D converter with defined common-mode and normal-mode rejection characteristics for analog measurement channels. Suffix Breakdown & Model Matrix The supplied documentation identifies a single catalog number: CC-GAIX21 51306309-175. No official suffix or option code breakdown is provided; therefore, no model matrix or suffix interpretation is included. Hardware Specifications Parameter Specification Model CC-GAIX21 51306309-175 Brand Honeywell Product Type Analog Input Module Manufacturer Honeywell Origin USA Shipping Location Xiamen, China Weight 0.4 kg Dimensions 19.1 cm x 18.8 cm x 6.5 cm Operating Temp Not specified Power Consumption Not specified A/D Converter Resolution 16 bits Common Mode Rejection Ratio 70 dB, dc to 60 Hz Common Mode Voltage -6 V to +5 V peak, dc to 60 Hz Normal Mode Rejection Ratio 19 dB at 60 Hz Normal Mode Filter Single-pole RC, -3 dB at 6.5 Hz Maximum Normal Mode Input +/- 30 V Crosstalk -60 dB, dc to 60 Hz Input Impedance (Voltage Inputs) Greater than 10 MOhm, powered Input Scan Rate 50 ms Tariff Code 8537101190 Channel-to-Channel Signal Integrity The module is intended for analog signal acquisition within distributed process control architectures. Proper channel separation depends on cabinet wiring practice, shield termination, and field cable routing. When multiple analog channels are installed in the same enclosure, segregating analog wiring from high-energy power conductors helps maintain the specified common-mode rejection, normal-mode rejection, and crosstalk performance. Where applicable, channel-to-channel isolation provided by the system architecture should be preserved by following the platform wiring requirements. Frequently Asked Questions Q: Does this module support hot replacement while the controller is operating?A: The supplied documentation does not specify hot-swap capability. Module replacement should follow the maintenance procedure defined for the installed Honeywell control platform. Q: Is the operating temperature range specified?A: No. The provided technical information does not include environmental operating limits. Refer to the official platform documentation for installation environment requirements. Q: Can the module accept higher transient input voltages than the specified analog range?A: The documented maximum normal-mode input is +/- 30 V. Input wiring should be designed so normal operating and transient conditions remain within the published electrical limits. Field Installation Guidelines Verify module catalog number before installation to ensure compatibility with the target Honeywell I/O carrier or chassis. Remove or isolate system power in accordance with plant maintenance procedures unless the installed platform explicitly supports online replacement. Route analog input cables separately from AC power, motor, and relay wiring to reduce induced electrical noise. Terminate cable shields according to the system grounding specification to minimize ground loops. Tighten field wiring terminals using the torque specified by the terminal hardware documentation. Inspect connector engagement and module seating after installation before restoring system operation. Perform channel verification and input signal validation after commissioning.
$200.00 $100.00
