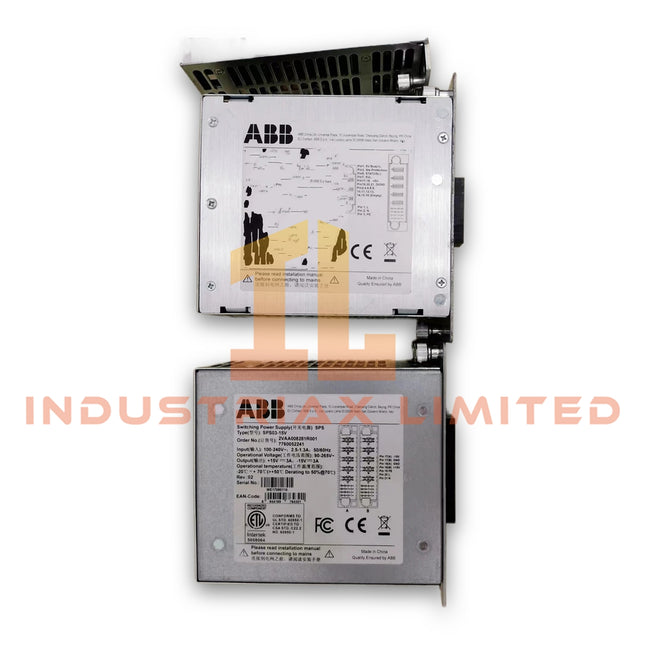

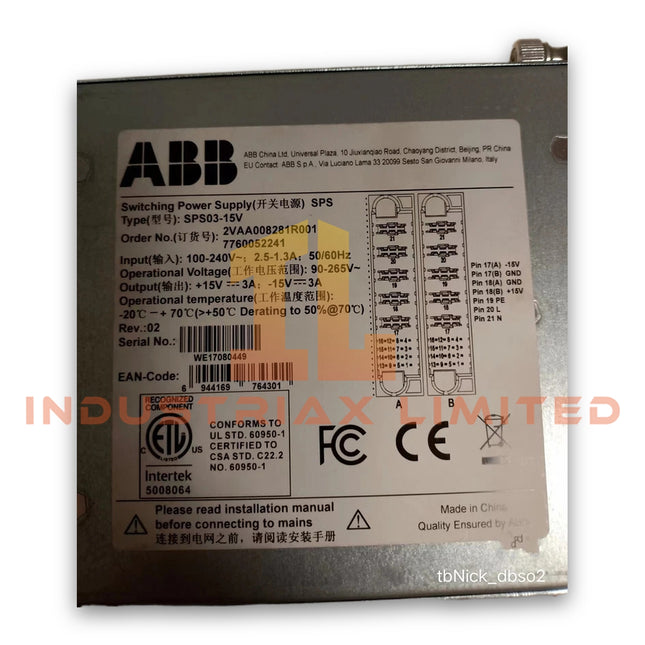

ABB SPS03-15V 2VAA008281R001 Power Supply Configured for DC voltage conversion and isolated power delivery in ABB industrial control platforms, the ABB SPS03-15V 2VAA008281R001 (SPS03-15V Power Supply) provides direct electrical power conditioning for connected automation hardware. Hardware Specifications Parameter Specification Model SPS03-15V 2VAA008281R001 Brand ABB Product Type Power Supply Origin Sweden Weight 0.7 kg Dimensions 4.5 x 14.5 x 17.3 cm Operating Temp -25 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Humidity 5-95% RH, non-condensing Input Voltage 85-264 VAC / 100-300 VDC Input Current 0.15 A at 115 VAC Frequency Range 47-63 Hz Output Voltage 15 VDC Output Power 5 W Efficiency >=80% typical Inrush Current <10 A Isolation Voltage 3 kVAC Industrial Control Power Conversion Characteristics The SPS03-15V 2VAA008281R001 receives wide-range AC and DC input sources and converts them into regulated 15 VDC output power for control system components. Therefore, the module supports flexible installation conditions where different supply networks are present. ABB industrial power supply modules integrate with automation systems through defined electrical interfaces. Additionally, ABB control hardware platforms apply backplane bus communication velocity management, Profinet and EtherNet/IP deterministic network principles, and firmware flash compatibility requirements across supported control architectures. The module provides electrical isolation between input and output circuits with a 3 kVAC isolation rating. Furthermore, the power design limits transient effects through controlled inrush current characteristics. Frequently Asked Questions Q: What input voltage range does the ABB SPS03-15V 2VAA008281R001 support?A: The power supply accepts 85-264 VAC input and 100-300 VDC input sources with a frequency range of 47-63 Hz. Q: What output parameters does the SPS03-15V provide?A: The module provides a 15 VDC output with a 5 W power rating and typical efficiency of 80% or higher. Q: What environmental conditions are specified for operation?A: The module operates from -25 deg C to +60 deg C and supports 5-95% RH non-condensing humidity conditions. Field Installation Guidelines Install the SPS03-15V module inside an enclosure that provides mechanical protection and appropriate ventilation. Verify that the AC or DC input wiring matches the specified voltage range before energizing the unit. Separate power wiring from sensitive signal cables to reduce electrical interference. Connect protective grounding according to the control cabinet grounding design. Maintain proper cable routing and avoid placing high-current conductors near low-level measurement circuits. Inspect terminal connections periodically to prevent loose wiring and increased contact resistance. Confirm output voltage levels before connecting downstream control devices.

Membaca lagi lebih sedikit

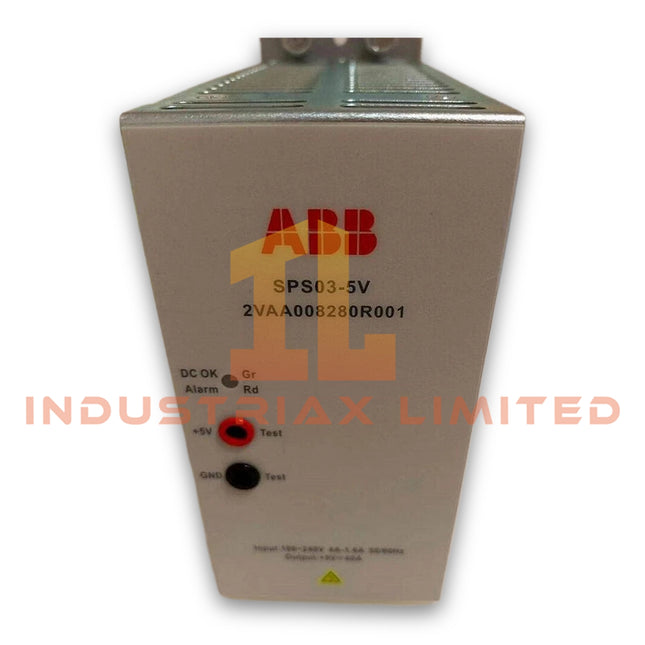

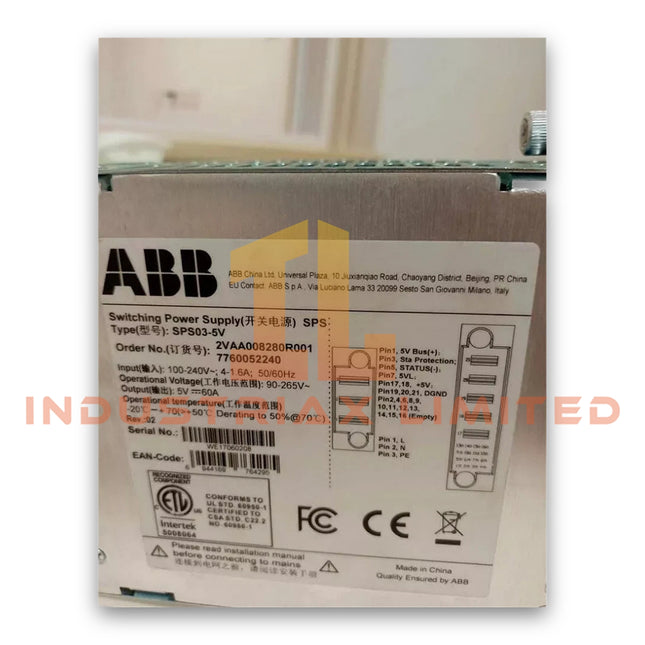

ABB SPS03-5V 2VAA008280R001 Switching Power Supply The ABB SPS03-5V 2VAA008280R001, also cataloged as the SPS03-5V Switching Power Supply, operates as a dedicated power conversion component for supplying regulated 5 VDC output power within ABB industrial control system platforms. Hardware Specifications Parameter Specification Model SPS03-5V 2VAA008280R001 Brand ABB Product Type Switching Power Supply Origin Sweden Weight 0.7 kg Dimensions 4.5 x 14.5 x 17.3 cm Operating Temp -25 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Humidity 5-95% RH, non-condensing Power Consumption Input current: 0.2 A @ 115 VAC AC Input Voltage 85-264 VAC DC Input Voltage 100-300 VDC Frequency Range 47-63 Hz Output Voltage 5 VDC Ripple and Noise <50 mV peak-to-peak Isolation Voltage 3 kVAC Tariff Code 8537101190 Shipping Location Xiamen, China ABB Industrial Power Conversion Characteristics The ABB SPS03-5V 2VAA008280R001 switching power supply converts wide-range AC or DC input sources into a regulated 5 VDC output for control hardware power requirements. Therefore, the module maintains voltage stability through internal switching regulation and electrical isolation. The power supply accepts 85-264 VAC input and 100-300 VDC input ranges, allowing integration into different industrial power architectures. In addition, the unit provides 3 kVAC isolation voltage between input and output circuits to support electrical separation requirements. The output stage delivers 5 VDC with ripple and noise below 50 mV peak-to-peak. Consequently, connected control electronics receive a controlled DC supply with reduced high-frequency interference. The SPS03-5V module supports ABB industrial control hardware environments where backplane bus communication velocity, I/O density scaling, and firmware flash compatibility require stable auxiliary power conditions. Frequently Asked Questions Q: What input voltage ranges does the ABB SPS03-5V 2VAA008280R001 support?A: The module supports 85-264 VAC input and 100-300 VDC input sources with a frequency range of 47-63 Hz for AC operation. Q: What output characteristics does the SPS03-5V provide?A: The power supply provides a regulated 5 VDC output with ripple and noise below 50 mV peak-to-peak. Q: What environmental conditions apply to this power supply?A: The operating temperature range is -25 deg C to +60 deg C, the storage temperature range is -40 deg C to +85 deg C, and the humidity range is 5-95% RH without condensation. Field Installation Guidelines Install the ABB SPS03-5V 2VAA008280R001 in a suitable control cabinet location with adequate ventilation around the power supply enclosure. Before wiring, verify that the connected AC or DC input source matches the specified voltage range. Use appropriate industrial wiring practices to separate power conductors from low-level signal cables. Furthermore, connect protective grounding according to the cabinet grounding design to reduce electrical noise coupling. Inspect input and output terminals before energizing the system. Ensure that the 5 VDC output polarity matches the connected control equipment requirements. During maintenance operations, isolate the incoming power source before removing wiring connections. Avoid operating the unit outside the specified temperature and humidity limits.

Membaca lagi lebih sedikit

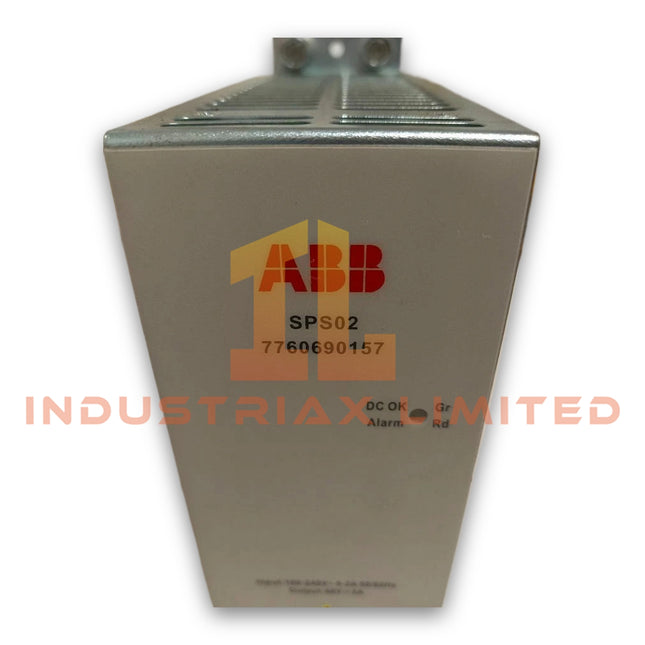

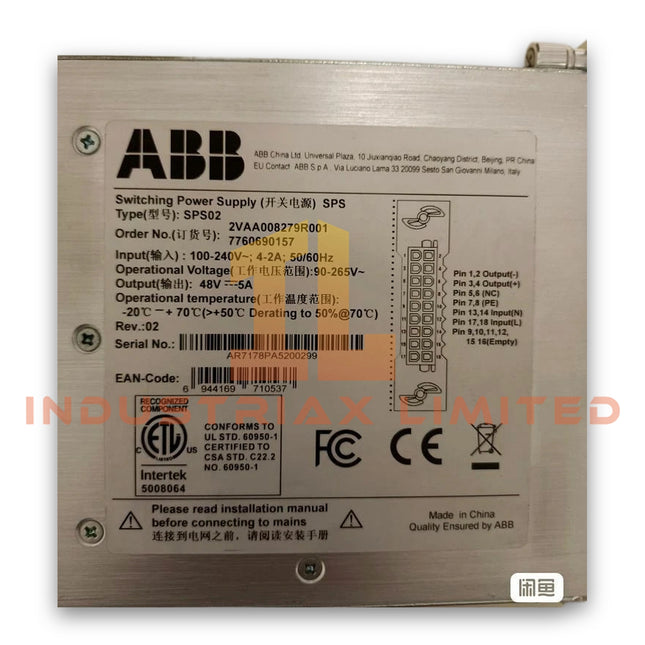

ABB SPS02 Power Supply Module Configured for DC power conversion and control system supply regulation, the ABB SPS02 (SPS02 Power Supply Module) provides direct electrical conversion for ABB industrial control platforms. The module accepts AC or DC input power and delivers a regulated 24 VDC output with 0.5 A current capacity for connected automation hardware. Hardware Specifications Parameter Specification Model SPS02 Brand ABB Product Type Power Supply Module Origin Sweden Weight 0.38 kg Dimensions 10.2 x 2.5 x 17.8 cm Operating Temp -25 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Humidity 5-95% non-condensing Power Consumption Approximately 12 W output rating AC Input Voltage 85-264 VAC DC Input Voltage 100-300 VDC Output Voltage 24 VDC Output Current 0.5 A (500 mA) Efficiency >=85% Inrush Current <20 A Isolation Voltage 3 kVAC ABB Industrial Control Power Conversion Features The ABB SPS02 applies industrial power conversion technology for PLC and automation system power distribution. The module supports a wide AC input range from 85 VAC to 264 VAC and accepts 100 VDC to 300 VDC input sources. Therefore, it can operate with different plant power architectures. The 24 VDC output supplies connected control devices with a rated current of 0.5 A. Additionally, the module provides electrical isolation up to 3 kVAC between input and output circuits to separate power domains. The SPS02 design supports ABB industrial control environments with compact I/O density requirements. Furthermore, its firmware flash compatibility and backplane-oriented power architecture allow integration with ABB control system hardware where applicable. Frequently Asked Questions Q: What input power sources does the ABB SPS02 support?A: The SPS02 supports 85-264 VAC input and 100-300 VDC input configurations. Q: What output power does the SPS02 provide?A: The module provides a 24 VDC output with a rated current of 0.5 A and an approximate 12 W power rating. Q: Does the SPS02 provide electrical isolation?A: Yes. The module provides 3 kVAC isolation voltage between input and output circuits. Field Installation Guidelines Install the ABB SPS02 in a suitable control cabinet environment with sufficient airflow around the module. Verify that the input voltage matches the specified AC or DC operating range before energizing the unit. Use correctly rated wiring for input and output power terminals according to the installation design. Separate power wiring from sensitive signal cables to reduce electrical interference. Connect protective grounding according to the cabinet grounding scheme and applicable electrical standards. Inspect terminal connections periodically to prevent loose wiring and abnormal heating conditions.

Membaca lagi lebih sedikit

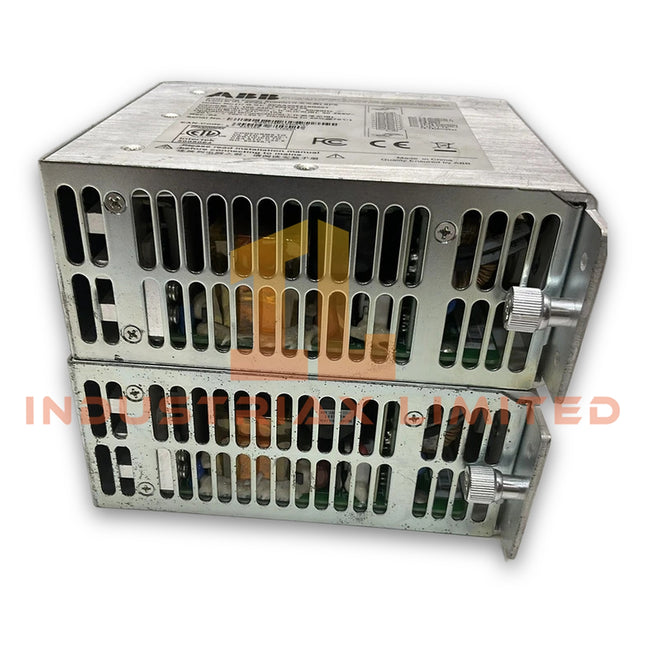

ABB 2VAA008278R001 MPS IV The ABB 2VAA008278R001 serves as the primary MPS IV Power_Supply utilized to execute 24 VDC voltage regulation across industrial automation platforms. Specifically, this hardware unit converts incoming alternating current into a stable direct current rail, thereby ensuring continuous operational availability for attached control modules. Furthermore, engineers deploy this module to eliminate voltage sags and suppress high-frequency line transients within critical system cabinets. Hardware Specifications Parameter Specification Model 2VAA008278R001 Brand ABB Origin Check manufacturing label Weight 0 kg (Refer to technical documentation for packed weight) Dimensions Standard modular form factor for MPS IV Operating Temp -20 deg C to +60 deg C Power Consumption 24 VDC, 10 A output capacity Firmware Flash Compatibility & Backplane Integration The ABB 2VAA008278R001 incorporates robust firmware flash compatibility features, which actively facilitate seamless integration into existing MPS IV rack architectures. Additionally, the unit maintains strict backplane bus communication stability while delivering continuous current under full load conditions. Consequently, system integrators observe minimal ripple voltages during peak operational cycles, ensuring that sensitive downstream processor boards remain protected against erratic power surges. Furthermore, the built-in diagnostic registers continuously report operational status parameters back to the central controller via dedicated hardware lines. Frequently Asked Questions Q: Does the ABB 2VAA008278R001 support live hot-swap insertion during active system operations? A: No, technicians must completely de-energize the rack before inserting or removing the power supply module to prevent internal arc flashing and terminal damage. Q: What is the maximum allowable output current rating for this specific power supply unit? A: The unit is rated for a continuous output current of 10 A at 24 VDC under standard operating temperature thresholds. Field Installation Guidelines When mounting the ABB 2VAA008278R001 in an industrial enclosure, technicians must verify that adequate ventilation clearances are maintained above and below the chassis. Furthermore, secure all input and output wiring tightly to the designated screw terminals to minimize contact resistance and prevent thermal runaway. Ensure that the protective earth (PE) grounding conductor is securely fastened to the cabinet chassis prior to applying primary line voltage. Finally, perform a comprehensive multimeter verification of the output voltage rails before connecting downstream control loops.
