PLC systems and modules deliver flexible automation for industries worldwide. Our inventory includes controllers, input/output modules, and communication units from Allen-Bradley, Siemens, GE, and other leading brands.
PLC Systems & Modules
-

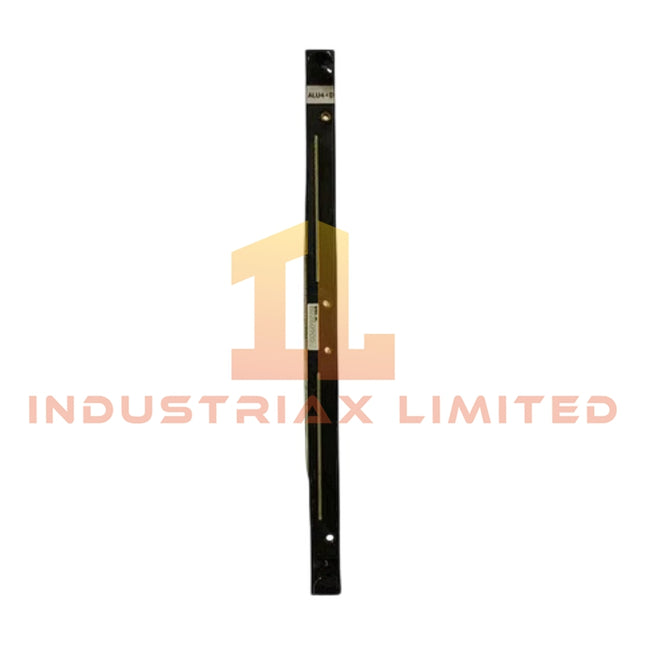

Yokogawa ALU4*D Modular I/O System | Yokogawa
Yokogawa ALU4*D Modular I/O System The Yokogawa AAI141, also cataloged as the ALU4D* Analog Input Module, operates as a dedicated hardware component for 4-20 mA DC signal acquisition within Yokogawa CENTUM VP and CENTUM CS 3000 distributed control systems. Hardware Specifications Parameter Specification Model Brand Yokogawa ALU4*D Series Origin Japan Weight 0.2 kg Dimensions Standard DIN-rail mount modular width Operating Temp 0 to 60 degC Power Consumption 310 mA @ 5 VDC, 450 mA @ 24 VDC Number of Input Channels 16, non-isolated Input Signal Range 4 to 20 mA DC, 1 to 5 V DC, -10 to 10 V DC Allowable Common Mode Voltage ±1 V or less Input Resistance (Power ON) 400 Ohm @ 20 mA, 1000 Ohm @ 4 mA, 1 MOhm or larger Input Resistance (Power OFF) 500 kOhm or larger, 340 kOhm or larger, 660 kOhm or larger Accuracy ±16 uA, ±4 mV, ±20 mV Data Update Period 10 ms Step Response Time 100 ms Transmitter Power Supply 14.8 V or higher @ 20 mA, 26.4 V or less @ 0 mA Output Current Limit 27 mA 4-20 mA HART Loop Protocol Handling Channel-level configuration pins define 2-wire or 4-wire transmitter excitation sourcing. The module supplies a regulated 24 VDC loop power rail to active field devices. The input circuitry tolerates a maximum common mode voltage of ±1 V DC. Transmitter supply voltage regulation maintains output above 14.8 V DC under full 20 mA load conditions. The input resistance profile scales inversely with current magnitude, presenting 400 Ohm at 20 mA and rising to 1000 Ohm at 4 mA. This characteristic requires verification against field transmitter load drive capability specifications. Frequently Asked Questions Q: Does the ALU4*D support hot-swapping while the CENTUM VP node is operational? A: Yes, the module supports online replacement. The system backplane maintains communication integrity during the exchange procedure. Verify that the replacement unit matches the existing I/O assignment configuration prior to insertion. Q: What is the impact of non-isolated channel design on wiring practices? A: All 16 input channels share a common reference potential. Field wiring must ensure that external sensor grounds do not introduce ground loops exceeding the ±1 V common mode limit. Use isolated barrier devices if field device grounding conflicts occur. Q: How does temperature drift affect calibration intervals? A: Accuracy drift is specified at ±16 uA per 10 degC. For applications requiring sustained high precision, perform field calibration checks when ambient temperature variations exceed 30 degC from the initial calibration environment. Field Installation Guidelines Mount the module onto the dedicated Yokogawa baseplate assembly. Use the pressure clamp terminal blocks for field wiring termination. Ensure that the shield drain wire connects directly to the designated earth ground point on the baseplate to maintain signal integrity. Torque terminal screws to the manufacturer-specified value to prevent thermal expansion loosening. Verify that the KS cable or MIL connector routing avoids parallel runs with high-voltage power conductors to minimize electromagnetic interference pickup.
$200.00 $100.00
-

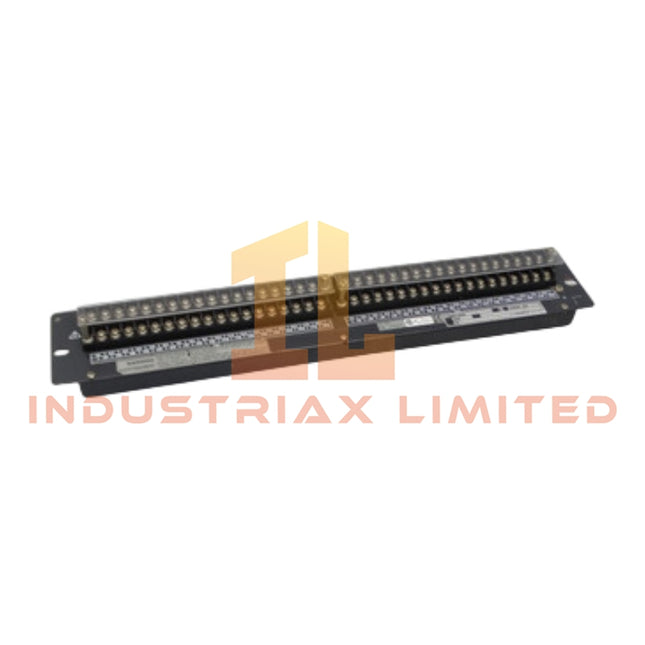

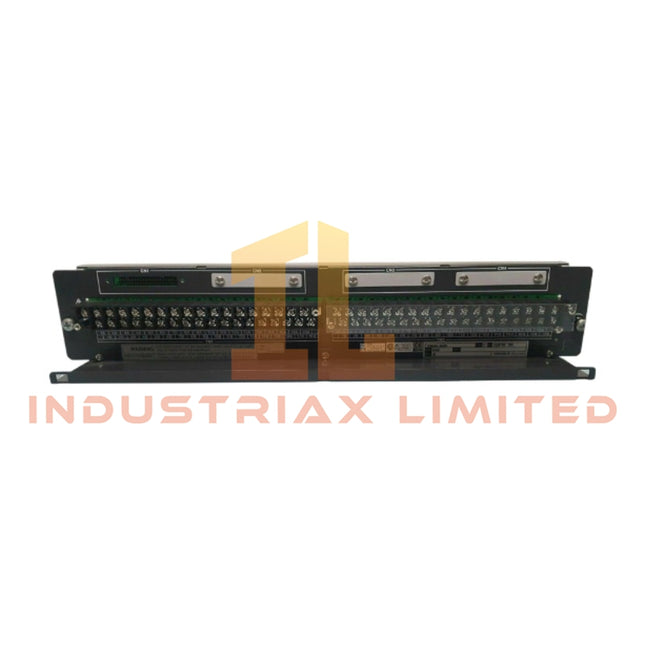

Yokogawa AEA4D-01 | Analog Input Terminal Board Yokogawa
Yokogawa AEA4D-01 Terminal Board The Yokogawa AEA4D-01, also cataloged as the AEA4D Terminal Board, operates as a dedicated hardware component for analog signal interfacing within CENTUM and ProSafe-RS systems. It provides physical termination and routing for field instruments to Yokogawa FIO modules, supporting both single and dual-redundant I/O configurations. Hardware Specifications Parameter Specification ModelBrand Yokogawa AEA4D-01 Origin Japan Weight 1.5 kg Dimensions Dual-row vertical terminal block, standard panel mount OperatingTemp -20 degC to +70 degC AmbientHumidity 5% to 95% RH (non-condensing) TerminalScrewType M4 Screw Terminals ChannelCapacity 16 channels (8 points x 2 blocks) SignalConfiguration Single or dual-redundant analog InsulationResistance ≥ 100 MOhm at 500 VDC WithstandingVoltage 500 VAC for 1 minute ConnectionCable Yokogawa KS1 signal cable MountingMethod 19-inch rack or panel with 4 x M5 screws Process Control DCS Features The AEA4D-01 supports 4-20 mA HART loop protocol and maintains channel-to-channel isolation for noise suppression. Cold junction compensation (CJc) is applied internally to reduce temperature-induced drift. Dual-redundant port architecture enables uninterrupted signal routing during FIO module replacement or failure, maintaining DCS operational integrity. Frequently Asked Questions Q: VnA: Can the AEA4D-01 support hot-swap of FIO modules?A: Yes, field wiring remains undisturbed, and module replacement can be conducted without powering down the I/O rack. Q: VnA: What is the maximum cable length for connecting field instruments?A: Standard Yokogawa KS1 cable specifications should be followed; length is determined by analog signal attenuation and noise margin. Q: VnA: Is surge protection integrated?A: No, the standard suffix (-0/-1) models are supplied without surge absorbers; external protection must be implemented if required. Field Installation Guidelines Mount the terminal board on a standard 19-inch rack or panel using 4 x M5 screws. Connect field instrument cables using M4 screw terminals ensuring torque per industrial standards to maintain gas-tight contact. Maintain separation of analog signal cables from power lines to prevent electromagnetic interference. Ground shielding at one end only to avoid ground loops. Verify dual-redundant port connections when configuring for hot-standby operation. Avoid mechanical stress on cables during installation to prevent signal degradation.
$200.00 $100.00
-

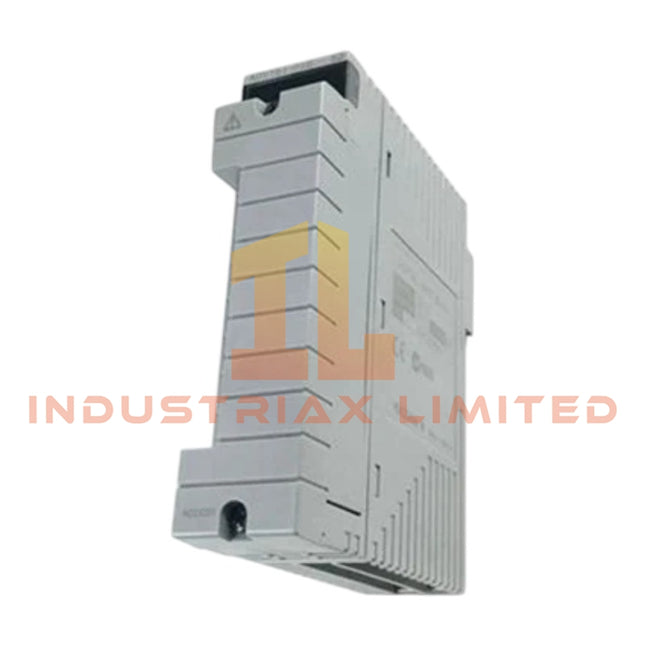

Yokogawa Contact Output Module | ADC32-S1 | Yokogawa
Yokogawa ADC32-S1 Contact Output Module The Yokogawa ADC32-S1, also cataloged as the ADC32 Contact Output Module, operates as a dedicated hardware component for isolated relay switching across 32 channels within ProSafe-RS safety systems. Hardware Specifications Parameter Specification ModelBrand Yokogawa ADC32-S1 Origin Japan Weight 0.5 kg Dimensions 6.56 cm × 7.20 cm × 5.23 cm OperatingTemp -10 to +55 degC HumidityRange 5% to 95% RH (Non-condensing) NumberOfChannels 32 isolated outputs OutputType Relay contact (dry contact) SwitchConfiguration On/Off, Sink or Source capability LEDStatusIndicators Yes, per channel WithstandingVoltage 500 VDC to 1500 VAC, 1 min PowerConsumption Per module nominal, refer to datasheet SIS-Specific Signal Characteristics The ADC32-S1 provides galvanic isolation for all 32 output channels, ensuring separation between field wiring and internal safety logic. Each channel supports positive contact feedback to confirm switching events, maintaining compliance with SIL-rated safety loops. Channel-to-channel isolation mitigates cross-talk, allowing simultaneous switching of multiple actuators without signal interference. Frequently Asked Questions Q: VnA: Can the ADC32-S1 outputs drive both sourcing and sinking devices?A: Yes, each channel is configurable to sink or source current according to connected actuator requirements, within the rated voltage/current limits. Q: VnA: What is the maximum switching voltage and current per channel?A: Refer to the module datasheet; typical ratings support up to 24–30 VDC for safe loop operation. Exceeding rated values may compromise isolation. Q: VnA: Is the ADC32-S1 suitable for hot-swapping in a live ProSafe-RS rack?A: No. Module insertion or removal must occur with the backplane de-energized to prevent logic or relay damage. Field Installation Guidelines Mount the module into standard Yokogawa FIO backplane slots with firm mechanical engagement. Ensure all output field wiring is shielded and terminated with proper grounding to reduce EMI. Keep high-current and signal wiring physically separated to prevent inductive coupling. Confirm backplane voltage is removed before module installation or removal. Verify channel LED indicators illuminate correctly after installation to confirm electrical continuity. Avoid exceeding environmental limits of temperature and humidity; maintain non-condensing conditions.
$200.00 $100.00
-

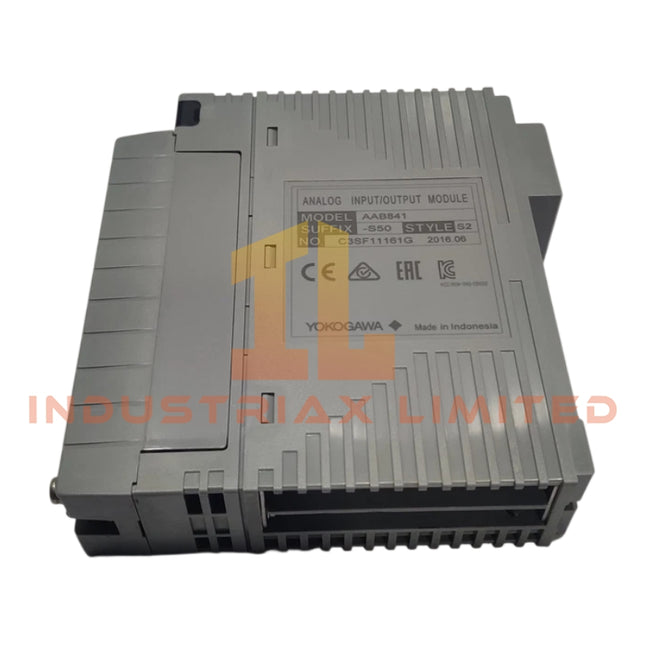

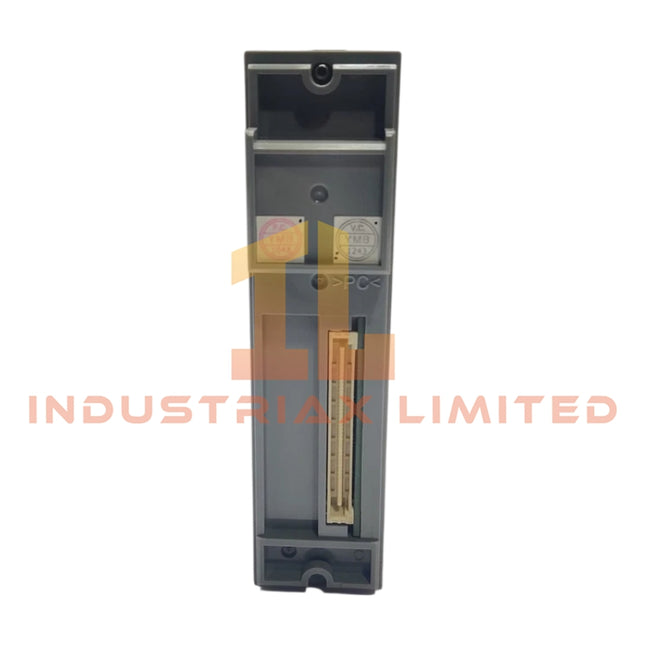

Yokogawa Analog I/O Module | AAB841 | Yokogawa
Yokogawa AAB841 Analog I/O Module Configured for signal conversion and loop execution in Yokogawa CENTUM series distributed control systems, the Yokogawa AAB841-S50 (base model AAB841 Analog I/O Module) provides direct electrical interfacing between field instrumentation and controller backplanes. It processes 1-5 V DC differential inputs and drives 4-20 mA outputs within a single slot footprint. Suffix Breakdown & Model Matrix Code Definition AAB841 Base Model: 8-channel input / 8-channel output, Non-isolated Differential -S Standard Type 5 Without explosion protection 0 Basic type Hardware Specifications Parameter Specification Brand Yokogawa Origin Japan Weight 0.3 kg Dimensions Single Slot Width (Standard DCS Rack) Operating Temp 0 to 55 degC Power Consumption 310 mA @ 5 VDC, 250 mA @ 24 VDC Input Signal 1 to 5 V DC (Non-Isolated Differential) Output Signal 4 to 20 mA DC Input Resistance Power ON: >= 1 MΩPower OFF: >= 340 kΩ Allowable Input Voltage +/- 7.5 V DC Allowable Common Mode Voltage +/- 1 V DC or less Accuracy Input: +/- 4 mVOutput: +/- 48 uA Data Update Period 10 ms Step Response Time Input: 100 msOutput: 40 ms Temperature Drift +/- 0.1 % / 10 degC External Connection Dedicated KS Cable HART Communication Available on Current Input/Output 4-20 mA HART Loop Protocol Integration The module supports HART protocol communication superimposed on the 4-20 mA current loop. This allows simultaneous transmission of analog process variables and digital device status data over a single pair of wires. The module does not supply transmitter power; external loop power sourcing is mandatory. HART signal integrity requires a minimum loop impedance of 250 ohms for proper modulation detection by the host system. Frequently Asked Questions Q: Can this module be hot-swapped while the rack is powered? A: No. Due to the non-isolated nature of the input channels and the requirement to prevent transient backplane surges, power must be removed from the node before insertion or removal. Q: What is the impact of common mode voltage exceeding +/- 1 V DC? A: Exceeding the allowable common mode voltage range will result in input signal clamping and potential damage to the internal A/D conversion circuitry. Ensure field wiring reference grounds are within specified limits. Q: Is galvanic isolation provided between channels? A: No. The AAB841 is a non-isolated module. Channel-to-channel isolation is not present; all inputs share a common reference plane. Field Installation Guidelines Install the module into the designated DCS I/O slot ensuring the ejector levers fully seat the connector pins. Use only the specified KS cable for field termination. For HART-enabled loops, ensure shield drain wires are terminated at a single point to the cabinet ground bus to prevent ground loops. Verify that the external 24 VDC power supply for the current loops is stable and free of ripple before energizing the module. Do not exceed the maximum backplane current draw of 310 mA at 5 VDC.
$200.00 $100.00
-

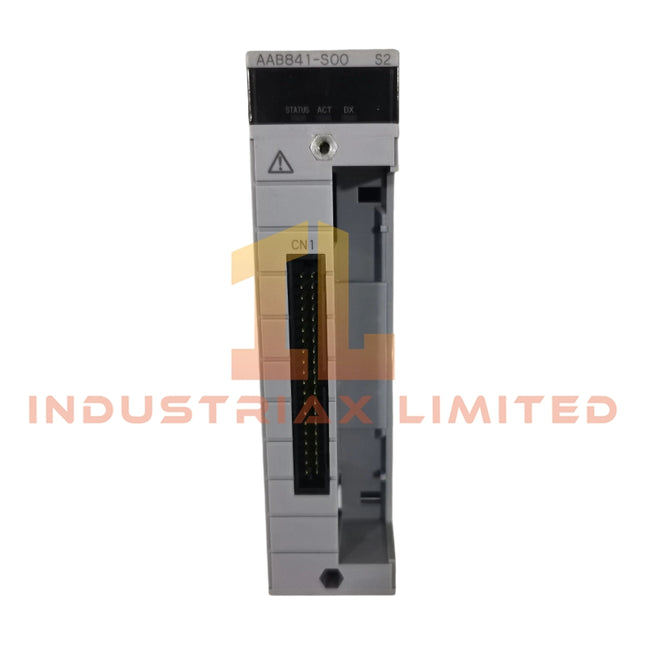

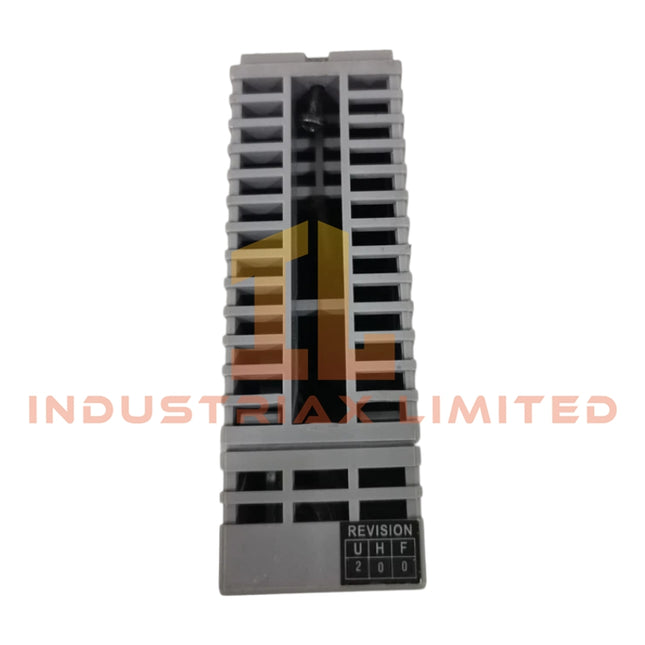

Yokogawa Analog Input Module | Yokogawa AAB841-S00
Yokogawa AAB841-S00 Analog Input Module Configured for analog signal acquisition in CENTUM VP and CENTUM CS 3000 distributed control systems, the Yokogawa AAB841-S00 (AAB841 Analog Input Module) provides direct electrical interfacing between field instrumentation and control processors via 4–20 mA and 1–5 V DC input channels. Hardware Specifications Parameter Specification Model Brand Yokogawa AAB841-S00 Origin Japan Weight 0.35 kg Dimensions 12.5 cm x 10.5 cm x 3.5 cm Operating Temp 0 to 55 degC Power Consumption Max. 300 mA @ 5 VDC Number of Channels 8, isolated Input Signals 4–20 mA DC, 1–5 V DC Input Impedance 250 ohm (current), ≥1 Mohm (voltage) Withstanding Voltage 1500 V AC (signal–system), 500 V AC (channel–channel) Accuracy ±0.1% of full scale Data Refresh Cycle 100 ms Connection Type Pressure clamp terminal or dedicated cable Channel-to-Channel Isolation Characteristics Channel-to-channel isolation eliminates ground loops and suppresses common-mode noise between input circuits. Each channel employs independent signal conditioning paths referenced to isolated internal potential planes. Isolation withstand ratings are maintained per Yokogawa FCS design standards to prevent cross-circuit fault propagation during transient overvoltage events. Frequently Asked Questions Q: Does the AAB841-S00 support hot-swapping? A: Yes, when installed in a dual-redundant I/O node configuration, the module can be replaced online without interrupting control execution. Q: What is the backplane current load for this module? A: Maximum backplane current draw is 300 mA at 5 VDC system power. Q: Are input channels galvanically isolated from the system bus? A: Yes, the module provides 1500 V AC isolation between input signals and the system side. Field Installation Guidelines Mount the module in designated I/O slot positions within the Yokogawa FCS or node unit. Use shielded twisted-pair cabling for all analog input wiring. Connect shield drains to the common ground bus at the cabinet entry point only. Ensure torque specifications on pressure clamp terminals meet Yokogawa-recommended values (typically 0.5 N·m). Verify input polarity before applying power. Perform gap voltage checks after installation to confirm correct signal referencing.
$200.00 $100.00
-

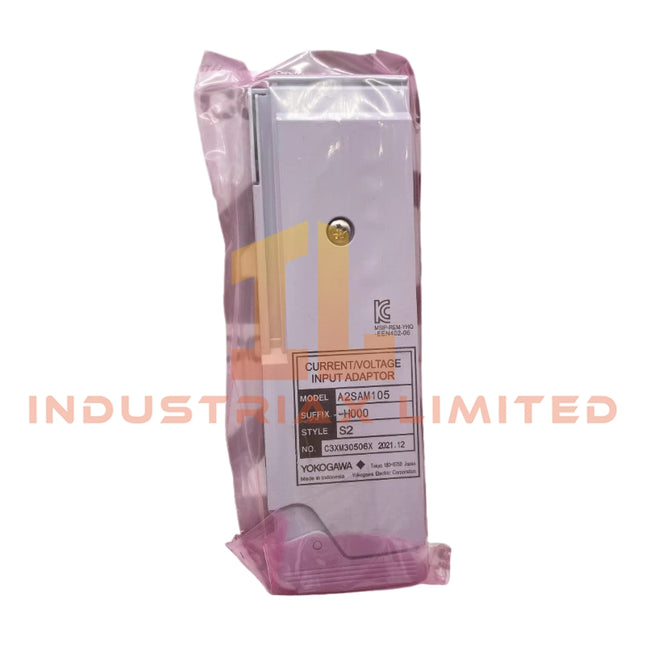

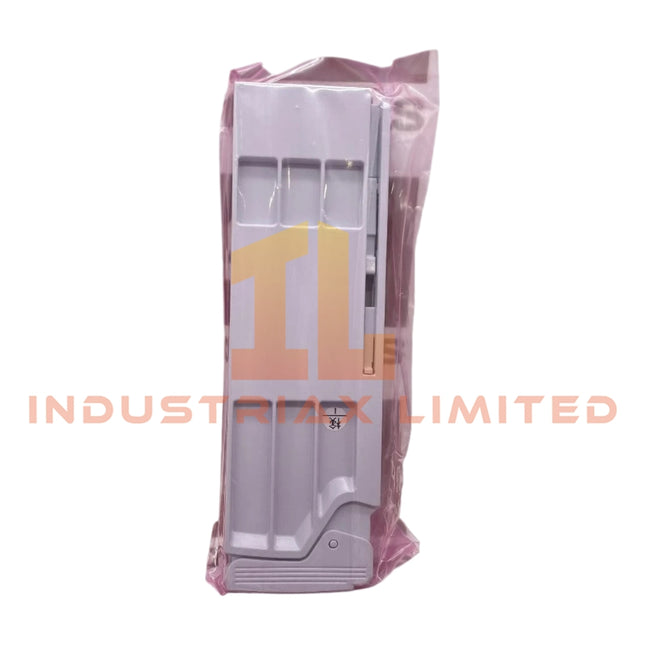

Yokogawa A2SAM105-H000 | N-IO Analog Input Adapter | Yokogawa
Yokogawa A2SAM105-H000 N-IO Analog Input Adapter Configured for analog signal acquisition in Yokogawa CENTUM VP and ProSafe-RS platforms, the Yokogawa A2SAM105-H000 (A2SAM105 Analog Input Adapter) provides direct physical/electrical execution of 4–20 mA and voltage signal interfacing to the N-IO baseplate backplane. Hardware Specifications Parameter Specification Model A2SAM105-H000 Brand Yokogawa Origin Japan Weight 0.10 kg Dimensions Compact plug-in, baseplate mounted Operating Temp 0 to 60 degC Power Consumption Powered via baseplate 5 V DC rail Input Types 4–20 mA DC, 1–5 V DC, 0–10 V DC Allowable Input Range 0–40 mA, 0–30 V DC Input Resistance 320 Ω @ 20 mA, 640 Ω @ 4 mA (powered); ≥100 kΩ (unpowered) Accuracy ±4 mV / ±12 μA @ 23±2 degC; ±8 mV / ±24 μA @ 0–60 degC Withstanding Voltage 500 V AC for 1 min (I/O adaptors), 42 V DC Diagnostics Open/short circuit detection, internal self-test Redundancy Simplex or TMR compatible Safety Certification Up to SIL3 (IEC 61508) Protocol HART 7 digital overlay Channel-to-Channel Isolation Each input channel maintains galvanic separation to prevent ground loop formation and minimize crosstalk. Isolation barriers sustain 500 V AC withstand ratings between adjacent channels and the backplane. This structure preserves measurement accuracy in electrically noisy environments and supports mixed current/voltage input configurations without interaction between channels. Frequently Asked Questions Q: Does the A2SAM105-H000 support live replacement? A: No. The module must be de-energized before removal or insertion due to hard-wired field connections and baseplate power coupling. Q: What is the transmitter excitation voltage range? A: The adapter supplies 15.0 V DC minimum at 20 mA load, up to 24.0 V DC maximum at 0 mA load. Q: Can HART 7 data be accessed simultaneously with analog values? A: Yes. HART digital communication is superimposed on the analog loop without affecting 4–20 mA signal integrity. Field Installation Guidelines Mount the adapter directly onto the designated N-IO baseplate until fully seated. Secure field wiring with proper torque on screw terminals. Route analog input cables separately from power conductors to reduce inductive interference. Connect shield drains to the central grounding point at the cabinet only. Verify all input ranges via software configuration prior to commissioning.
$200.00 $100.00
-
Yokogawa Yokogawa F3YD14-0N Digital Output Module
Yokogawa F3YD14-0N Digital Output Module The Yokogawa F3YD14-0N also cataloged as the F3YD14-0N Digital Output Module, operates as a dedicated hardware component for transistor-level discrete signal switching within the Yokogawa FA-M3 PLC system. The module executes 14-point sink-type output switching with defined current limitation and fast ON/OFF electrical response at the backplane I/O interface. Suffix Breakdown & Model Matrix No validated manufacturer-provided suffix segmentation for F3YD14-0N is available in the supplied dataset. No decomposition is applied. Hardware Specifications Parameter Specification Model Yokogawa F3YD14-0N ModelBrand Yokogawa Module Type Digital Output Module (Transistor, Sink type) Output Points 14 points per common Rated Load Voltage 12 to 24 VDC Max Load Current 2 A per point, 14 A per common ON Voltage Drop 0.5 VDC max OFF Leakage Current 0.1 mA max Response Time ON/OFF: 1 ms max Power Consumption 5 VDC internal: 100 mA; external supply: 12 to 24 VDC, 10 mA Operating Temperature -20 to 65 degC Weight 0.3 kg External Connection 14-point terminal block, M3.5 screw Protection Active clamp surge suppression Channel-to-Channel Electrical Execution Characteristics (Yokogawa DCS Interface Behavior) Within Yokogawa FA-M3 I/O architecture, the F3YD14-0N transistor output stage is implemented as a sink-type switching array designed for deterministic discrete control. Each channel is electrically referenced to a common potential rail, enabling controlled current sinking behavior for field loads such as relay coils, solenoid valves, and indicator circuits. The module design aligns with DCS-class I/O segmentation principles, where output stage isolation is structured to minimize cross-channel interaction during simultaneous switching events. The internal output driver topology is coordinated with backplane communication timing to maintain stable signal state transitions under mixed inductive and resistive loading conditions. Integration with system-level analog and communication modules in Yokogawa platforms typically follows standardized field wiring separation practices consistent with 4-20 mA loop segregation and fieldbus noise isolation design rules. Frequently Asked Questions Q: Can the module outputs be hot-swapped under load conditions?A: Hot-swapping is not supported under energized field load conditions. Output state must be forced to OFF and external field power removed prior to module insertion or removal to avoid driver stress. Q: Does each output channel provide galvanic isolation?A: Channel-to-channel isolation is implemented at the driver architecture level; however, outputs share a common reference structure. Full galvanic isolation per channel is not specified. Q: What is the impact of inductive load switching on output lifetime?A: Inductive loads are mitigated by built-in active clamp surge suppression. External flyback protection is still recommended for high-energy coils to reduce stress on switching elements. Field Installation Guidelines Output wiring shall be performed using shielded or routed cable harnesses with separation from analog and communication lines. Terminal tightening must follow M3.5 screw torque specifications defined by control cabinet assembly standards. Field devices should be verified for compatible voltage range within 12 to 24 VDC before energization. Load inrush characteristics must be evaluated to ensure per-channel current does not exceed 2 A limit. Common return paths should be sized for aggregated current up to 14 A per common group. Proper grounding of cabinet backplane and maintenance of low-impedance earth reference are required to minimize switching noise coupling into adjacent I/O modules.
$200.00 $100.00
-
Yokogawa Digital Output Module | Yokogawa F3YD18-0N
Yokogawa F3YD18-0N Digital Output Module The Yokogawa F3YD18-0N, also cataloged as the F3YD18 Digital Output Module, operates as a dedicated hardware component for switching discrete electrical loads via transistor outputs within FA-M3 platforms. Hardware Specifications Parameter Specification Model F3YD18-0N Brand Yokogawa Origin Japan Module Type Digital Output Module (Transistor Output) Number of Outputs 18 points Output Type Sink type (Open collector) Rated Load Voltage 12 VDC to 24 VDC Operating Load Voltage Range 10.2 VDC to 26.4 VDC Maximum Load Current 0.1 A per point (1.8 A per module) Maximum Inrush Current 0.4 A or less Leakage Current when OFF 0.1 mA or less Residual Voltage (ON Voltage) 1.0 V or less Surge Killer Zener diode Isolation Method Photocoupler isolation Power Consumption 70 mA (at 5 VDC from internal backplane) Dimensions 90 x 30 x 25 mm Weight Approx. 90 g Operating Temp -20 to 70 degC Channel-to-Channel Isolation and Loop Performance The hardware topology integrates individual channel-to-channel isolation vectors implemented via high-speed photocoupler circuitry. This electrical barrier decouples the internal 5 VDC system logic from the external 24 VDC field loop power supply, preventing ground loop circulation and suppressing transient voltage spikes. Field-side logic execution routes through an open-collector sink structure, where integrated Zener diode networks suppress inductive kickback voltages generated by external inductive loads. Frequently Asked Questions Q: Can the output channels be wired in parallel to drive a load greater than 0.1 A? A: No. Internal propagation delay variations (0.1 ms to 0.3 ms switching thresholds) prevent simultaneous switching across channels. Paralleling outputs causes temporary single-channel overcurrent conditions, leading to thermal degradation or immediate output transistor failure. Q: What are the restrictions regarding hot-swapping this module during system operation? A: The FA-M3 backplane architecture does not support online hot-swapping for this hardware classification. Removing or inserting the module while the base unit is energized can induce backplane bus communication faults, corrupt internal register data, or trigger unexpected state transitions on adjacent I/O modules. Field Installation Guidelines Power De-energization: Terminate all primary system power before inserting or removing the module from the FA-M3 base unit to prevent mechanical arcing at the backplane connectors. Conductor Separation: Route external 12-24 VDC output signal lines in separate conduits or cable trays distinct from high-voltage AC power distribution wiring to prevent electromagnetic induction. Terminal Torque and Insertion: For spring-clamp terminal configurations, ensure solid or ferruled conductors are fully inserted to the stop depth to maintain continuous gas-tight electrical contact under industrial vibration profiles. Inductive Load Suppression: While internal Zener diodes provide transient absorption, high-duty inductive loads exceeding 0.4 A inrush should be paired with an external flyback diode installed directly across the load terminals.
$200.00 $100.00
-
Yokogawa Yokogawa NFAI543-H00 Isolated Current Output Module
Yokogawa NFAI543-H00 Isolated Current Output Module The Yokogawa NFAI543-H00, also cataloged as the NFAI543-H00 Analog Input/Output Module, operates as a dedicated hardware component for 4-20 mA analog signal transmission within CENTUM VP and CENTUM CS 3000 DCS platforms. Hardware Specifications Parameter Specification Model Brand Yokogawa Origin Japan Weight 0.4 kg Dimensions Standard 19-inch rack module (approx. 160 mm x 40 mm x 120 mm) Operating Temp 0 to 55 degC Power Consumption 24 VDC, 540 mA Number of Output Channels 16 isolated Output Signal 4-20 mA DC Allowable Load Resistance 0 to 750 Ohm Circuit-Open Detection ≤ 0.65 mA Accuracy ±0.3% of full scale Data Refresh Cycle 10 ms Output Step Response Time 100 ms Output Fallback Configurable per channel Temperature Drift Max ±0.01%/degC Maximum Current 230 mA (5 VDC) External Connection Pressure clamp terminal, MIL connector cable HART Communication Supported Withstanding Voltage 1500 V AC between output and system for 1 minute DCS Signal Integrity Features The NFAI543-H00 implements channel-to-channel isolation to prevent signal interference across analog loops. The module supports 4-20 mA HART loop communication, enabling simultaneous digital diagnostics alongside analog control signals. Cold junction compensation (CJC) circuits ensure accurate temperature-sensitive measurements when interfacing with transmitters or sensors. Frequently Asked Questions Q: VnA: Can the module be hot-swapped without system downtime?A: Yes, the NFAI543-H00 supports online removal and insertion provided the I/O node permits isolation, ensuring other channels remain operational. Q: VnA: What is the maximum permissible load for each output channel?A: Each 4-20 mA output supports a load resistance of 0 to 750 Ohm without affecting accuracy or response time. Q: VnA: How is fault detection handled?A: Circuit-open detection triggers at ≤ 0.65 mA, allowing the control system to recognize open loops and execute the configured fallback signal. Field Installation Guidelines Ensure proper grounding of the I/O node rack to prevent noise coupling. Connect all 4-20 mA outputs using shielded twisted-pair cables to maintain signal integrity. Avoid routing high-power AC lines parallel to analog signal wiring to reduce EMI. Verify module seating and MIL connector torque before energizing the system. Follow local industrial standards for DIN rail mounting or rack fixation.
$200.00 $100.00
-
Yokogawa AAI835-S50 | Yokogawa | Analog I/O Modules
Yokogawa AAI835-S50 Analog I/O Modules TheYokogawa AAI835-S50also cataloged as theAAI835Analog I/O Modules, operates as a dedicated hardware component for analog signal acquisition and analog signal actuation within STARDOM distributed controller I/O architectures. Configured for 4 to 20 mA current loop interfacing in STARDOM I/O networks,theYokogawa AAI835-S50(AAI835Analog I/O Modules) provides direct physical/electrical execution. The module implements 4-channel isolated input and 4-channel isolated output conversion with channel-to-channel electrical separation and loop current handling for field instrumentation interfaces. Suffix Breakdown & Model Matrix AAI835: Analog input/output mixed module family -S: Standard type configuration 5: No explosion protection rating 0: Basic type hardware revision Hardware Specifications Parameter Specification ModelBrand Yokogawa AAI835-S50 Origin Japan Weight 0.3 kg Dimensions 33 mm x 130 mm x 107 mm OperatingTemp Not specified in provided data PowerConsumption 360 mA @ 5 VDC / 450 mA @ 24 VDC Input Signal 4 to 20 mA DC Output Signal 4 to 20 mA DC Channels 4 input / 4 output isolated Electrical Isolation Channel-to-channel isolation Load Resistance 0 to 750 ohm Data Refresh Cycle 10 ms Channel-to-Channel Isolation & 4-20 mA Loop Architecture The AAI835-S50 implements galvanically isolated analog channel architecture for both input and output stages, reducing inter-channel coupling effects in multi-loop process control configurations. Each channel supports 4 to 20 mA transmission class signaling, aligned with standard process instrumentation loops. The isolation structure is designed to maintain signal integrity under mixed field wiring conditions where loop ground potential differences may exist. Input/output conversion is synchronized through a deterministic refresh cycle suitable for STARDOM controller scan integration. Frequently Asked Questions Q: Can the AAI835-S50 channels be hot-swapped during operation?A: Hot-swap capability is not specified for this module. In standard practice, removal or insertion should be performed under system power isolation to prevent backplane transient disturbance. Q: What is the backplane current impact of this module?A: The module draws 360 mA at 5 VDC and 450 mA at 24 VDC depending on system supply configuration, which must be considered in rack-level power budgeting. Q: Does each channel support independent isolation?A: Yes, the module implements isolated channel architecture, ensuring separation between individual analog input and output channels. Field Installation Guidelines Ensure system power is fully isolated prior to module insertion or removal Maintain shield termination at designated grounding points to minimize loop noise Use approved MIL connector cable or KS1 dedicated wiring to maintain signal integrity Observe correct polarity for 4 to 20 mA loop wiring on each channel terminal Avoid routing analog loops parallel to high-voltage or high-frequency switching conductors Verify backplane current capacity before full I/O slot population
$200.00 $100.00
-
Yokogawa NFAF135-S00 | Frequency Input Module | Yokogawa
Yokogawa NFAF135-S00 Frequency Input Module The Yokogawa NFAF135-S00, also cataloged as the NFAF135 Frequency Input Module, operates as a dedicated hardware component for frequency measurement across 8 channels within Yokogawa STARDoM FCN/FCJ controllers. It provides direct electrical execution for acquisition of pulse, contact, and current signals in real-time data monitoring. Hardware Specifications Parameter Specification ModelBrand Yokogawa NFAF135-S00 Origin Japan Weight 0.34 kg Dimensions Standard module form factor (approx. 160 mm x 100 mm x 60 mm) OperatingTemp 0 to 50 degC PowerConsumption 0.5 A maximum (5 V DC internal supply) ChannelCount 8 frequency input channels FrequencyRange 0.1 Hz to 10 kHz Accuracy ±0.1% of reading InputSignalTypes Contact ON/OFF, voltage pulse, current pulse Isolation Channel-to-channel isolation supported FOUNDATION Field bus Connectivity The module supports 4-port FOUNDATION Fieldbus H1 communication at 31.25 kbps, enabling up to 32 devices per port depending on node power limits. Cold junction compensation (CJc) ensures stable signal measurement under variable ambient conditions. Channel-to-channel isolation mitigates cross-interference during simultaneous pulse acquisition. Frequently Asked Questions Q: Does the NFAF135-S00 support hot-swapping in live FCU systems?A: No, the module must be powered down during insertion or removal to prevent bus disruption. Q: What is the expected communication latency for all 8 channels?A: Signal processing latency is within the standard FOUNDATION Fieldbus H1 specifications and largely depends on network load and segment configuration. Q: Can the module be used in redundant configurations?A: Yes, dual-redundant setup is supported to maintain continuous fieldbus operation. Field Installation Guidelines Mount the module on the compatible STARDoM FCN/FCJ backplane following proper orientation. Ensure all field wiring is twisted and shielded; connect shield to system ground at a single point. Maintain minimum separation from high-voltage power lines to prevent electromagnetic interference. Verify input signal levels conform to module specifications before energizing. Avoid mechanical stress on connector pins during insertion and removal.
$200.00 $100.00
-
Yokogawa Mechanical Relay Output Board | Yokogawa ARM55C-000
Yokogawa ARM55C-000 Mechanical Relay Output Board Configured for dry-contact relay output switching in CENTUM VP and CENTUM CS 3000 FIO subsystems, the Yokogawa ARM55C-000 (ARM55C Mechanical Relay Output Board) provides direct physical and electrical execution of field load control through isolated mechanical relay contacts. Suffix Breakdown & Model Matrix Code Description ARM55C Mechanical Relay Output Board, 32-point dry contact type -0 Basic specification 0 19-inch rack-mountable configuration 0 Basic type Hardware Specifications Parameter Specification ModelBrand Yokogawa ARM55C-000 Origin Japan Weight Approx. 2.2 kg Dimensions 482.6 mm (W) x 132.5 mm (H) x 298.5 mm (D) OperatingTemp 0 to 50 degC PowerConsumption Max. 0.85 A at 24 VDC (approx. 26 W) Product Type Mechanical Relay Output Board Number of Channels 32 points Rated Supply Voltage 24 VDC Control Logic Signal 5 VDC, 10 mA Maximum AC Load 250 VAC, 2 A per channel Maximum DC Load 30 VDC, 2 A or 125 VDC, 0.1 A per channel Minimum Load 5 VDC, 10 mA Insulation Resistance 10 MOhm minimum at 500 VDC Dielectric Strength 2 kVAC field-to-case Humidity 10 % to 90 % RH, non-condensing Mounting Method 19-inch rack, 3U height Channel Isolation and DCS Output Interface The ARM55C-000 functions as an isolation interface between digital output modules and field-side loads. Mechanical relays provide galvanic separation between control circuitry and output circuits, reducing direct electrical coupling between channels. The board is designed for integration with Yokogawa FIO architectures and can be deployed in single or dual-redundant output arrangements using compatible digital output modules and signal cables. Frequently Asked Questions Q: Does the ARM55C-000 support hot-swapping during operation?A: No. Removal or installation should be performed with the associated I/O circuit de-energized to avoid unintended relay state transitions and wiring faults. Q: Can the board be used in redundant output configurations?A: Yes. The ARM55C-000 supports dual-redundant configurations when installed with the required redundant output modules and associated signal cable assemblies. Q: Does the board require firmware updates?A: No. The ARM55C-000 is a hardware relay board and contains no field-upgradable firmware. Firmware management applies to the connected control modules rather than the relay board itself. Field Installation Guidelines Install the board in a compatible 19-inch rack using the designated mounting hardware. Verify that field wiring is terminated to the correct M3.5 terminals and power wiring to the designated M4 terminals. Route output wiring separately from high-voltage power cables to minimize electromagnetic coupling. Connect cable shields according to site grounding standards and DCS cabinet grounding practices. Confirm contact ratings of connected loads before energization to prevent relay contact overstress. Inspect terminal screw tightness during commissioning and scheduled maintenance intervals. Perform insulation and continuity checks prior to connecting field loads.
$200.00 $100.00
-
Yokogawa NFCP100-S05 Field Control Processor Module | Yokogawa
Yokogawa NFCP100-S05 Field Control Processor Module Configured for regulatory control, sequence control, and data computation tasks in CENTUM DCS platforms, the Yokogawa NFCP100-S05 (NFCP100 Field Control Processor Module) provides direct physical/electrical execution. Hardware Specifications Parameter Specification Model NFCP100-S05 Brand Yokogawa Origin Japan Control Loop Capacity Up to 200 regulatory control loops Processor Architecture High-speed RISC processor Memory Capacity ECC RAM Redundancy Dual-redundant configuration (hot-standby) Control Network Interface V net or Vnet/IP I/O Bus Connection ESB or ER bus master modules Power Consumption 15 VA to 20 VA Mounting Type Slot-mounted within dedicated FCU nest/chassis Weight Approx. 0.8 kg to 1.1 kg Dimensions Standard Yokogawa proprietary card form factor for FCU slots Operating Temp 0 degC to +50 degC Storage Temp -20 degC to +70 degC Ambient Humidity 10% to 90% RH (non-condensing) Process Control and DCS Instrumentation Features The NFCP100-S05 incorporates channel-to-channel isolation parameters across its interface circuitry to prevent ground loops from degrading signal integrity. When communicating with process instrumentation over field networks, the processor manages digital data synchronization across 4-20 mA HART loop protocol configurations and FOUNDATION Fieldbus/Profibus PA connectivity matrices via connected interface modules. The internal processing architecture executes hardware-driven cold junction compensation (CJC) equations for high-density thermocouple input processing, maintaining deterministic scan periods down to the millisecond level across all distributed field control unit nodes. Frequently Asked Questions Q: What is the maximum switchover latency during a dual-redundant processor failure event? A: The hardware-driven hot-standby switchover mechanism transfers control to the redundant backup partner module in less than a few milliseconds, ensuring zero interruption to the running control loops. Q: Does the NFCP100-S05 require forced-air cooling within the Field Control Unit chassis? A: No. The module is engineered with low heat dissipation components, allowing natural convection cooling and eliminating the requirement for an internal cooling fan. Q: Can an online module replacement be executed during active process operations? A: Yes. The hardware architecture supports online maintenance and hot-swapping, allowing a faulty processor module to be extracted and replaced while its redundant partner maintains active control of the process network. Field Installation Guidelines Chassis Alignment: Insert the module vertically into the dedicated Field Control Unit (FCU) slot guide rails. Ensure the rear card-edge connectors align precisely with the backplane receptacle before applying insertion force. Grounding Requirements: Secure the module faceplate retaining screws to the chassis frame to establish a low-impedance electrical ground pathway. The field control nest must be tied to a single-point instrument ground system. Wiring Separation: Route the V net/Vnet/IP communication cables and ESB bus connections in separate wire ways isolated from high-voltage AC power distribution lines to minimize electromagnetic interference.
$200.00 $100.00
-
Yokogawa Digital Output Module | Yokogawa F3YD08-6A
Yokogawa F3YD08-6A Digital Output Module The Yokogawa F3YD08-6A, also cataloged as the F3YD08 Digital Output Module, operates as a dedicated hardware component for DC load switching within the FA-M3 Range-free Multi-controller platform. The module provides 8 sink-type transistor output channels for direct electrical actuation of field devices, with isolated output circuitry and removable terminal block wiring. Suffix Breakdown & Model Matrix The supplied documentation identifies a single catalog model: F3YD08-6A. No official suffix decomposition or variant matrix is specified in the provided technical data. Hardware Specifications Parameter Specification Model F3YD08-6A Brand Yokogawa Module Type Digital Output Module Output Technology Transistor Output (Sink Type, Open Collector) Number of Outputs 8 outputs Rated Load Voltage 12 VDC to 24 VDC Maximum Load Current 4 A per point Maximum Module Current 12 A per module Response Time (OFF to ON) 1 ms or less Response Time (ON to OFF) 1 ms or less Dielectric Strength 1500 VAC between output terminals and internal circuits External Connection Removable terminal block (M3 screws) Power Consumption 110 mA at 5 VDC Weight Approx. 140 g Channel-to-Channel Isolation and DCS Field Interface Characteristics The F3YD08-6A incorporates electrical isolation between output circuits and internal controller electronics. This arrangement reduces the transfer of field-side electrical disturbances into the FA-M3 control backplane. The transistor sink outputs are intended for DC-powered loads connected between the positive supply rail and the corresponding output terminal. Within distributed control and process automation environments, isolated digital output modules are commonly deployed alongside analog signal interfaces, including 4-20 mA instrumentation loops and network-connected field devices. The module itself functions as a discrete switching interface and does not provide HART, FOUNDATION Fieldbus, or Profibus PA communication functions. Frequently Asked Questions Q: Does the F3YD08-6A support AC output loads?A: No. The specified output operating range is 12 VDC to 24 VDC using sink-type transistor outputs. Load compatibility should be verified against the DC output characteristics. Q: Can field wiring be removed without disconnecting individual conductors?A: Yes. The module uses a removable terminal block design with M3 screw terminals, allowing the terminal assembly to be detached during maintenance procedures. Q: What current limitation must be considered during output loading?A: Both per-channel and aggregate module ratings must be observed. The specified limits are 4 A per output point and 12 A total across the module. Field Installation Guidelines Verify field supply voltage remains within the specified 12 VDC to 24 VDC operating range. For sink-type transistor outputs, connect the load between the positive DC supply and the designated output terminal. Confirm that the combined output current does not exceed the module-level current rating. Route output wiring separately from high-energy power conductors where practical to minimize induced electrical noise. Tighten M3 terminal connections according to site electrical standards and periodically inspect for loosening caused by vibration. Ensure protective grounding and cabinet bonding practices comply with plant electrical installation requirements. Remove system power before inserting or removing the module unless explicit hot-swap approval is documented by the controller manufacturer.
$200.00 $100.00
-
Yokogawa F3YD32-1P | Yokogawa | Transistor Output Modules
Yokogawa F3YD32-1P Digital Output Module TheYokogawa F3YD32-1Pserves as the primaryF3YD32-1P Digital Output Moduleutilized to execute discrete sink-type switching operations across FA-M3 controller platforms. Configured for electrical actuation of field loads in 24 VDC digital output architectures, theYokogawa F3YD32-1P(F3YD32-1PDigital Output Module) provides direct physical/electrical execution. Suffix Breakdown & Model Matrix F3Y: FA-M3 digital output module family designation D32: 32-point output channel configuration 1P: Protection-enhanced variant (overcurrent and short-circuit protection characteristics as defined by manufacturer documentation) Hardware Specifications Parameter Specification Model F3YD32-1P Brand Yokogawa Weight 0.11 kg Dimensions 2.89 cm x 8.32 cm x 10 cm OperatingTemp Not specified PowerConsumption 5 V DC: 160 mA; External 12 to 24 V DC: 95 mA Output Type Transistor output, sink type Number of Points 32 Common Line 8 points per common Rated Load Voltage 12 to 24 V DC (10.2 to 26.4 V DC range) Isolation Photocoupler isolation Dielectric Strength 1500 V AC for 1 minute (terminal to internal circuit) Channel-to-Channel Isolation Architecture (Yokogawa DCS Integration Layer) Within Yokogawa process I/O architectures, discrete output modules such as the F3YD32-1P implement photocoupler-based isolation between internal logic and field terminals to suppress cross-channel electrical interference under mixed-load switching conditions. This isolation topology limits propagation of external 24 V field noise into the backplane logic domain and maintains signal separation between grouped output commons (8-point segmentation structure). The design aligns with distributed I/O segmentation practices used in FA-M3 systems where channel grouping reduces fault propagation across output banks. Frequently Asked Questions Q: Can the module support hot-swap replacement under energized backplane conditions?A: Hot-swap capability is dependent on FA-M3 base unit configuration. Electrical design does not guarantee field terminal de-energization during module replacement. Q: What is the limitation of output grouping in this module?A: Outputs are arranged in 8-point common groups, meaning load return paths are shared within each group and must respect common current constraints. Q: Does photocoupler isolation separate all channels individually?A: Isolation is implemented between internal circuitry and output groups, not necessarily per individual channel. Field Installation Guidelines Verify 24 VDC field power polarity before connection to output terminals Maintain separation between high-voltage cabling and signal wiring harnesses Ensure each 8-point common group does not exceed rated current loading conditions Use shielded wiring in high-noise industrial environments and terminate shields at a single grounding point Confirm module seating on FA-M3 base unit backplane to avoid intermittent contact resistance Do not apply external voltage exceeding 26.4 VDC to output terminals
$200.00 $100.00
-
Yokogawa Digital Input Module Yokogawa F3XD32-3F
Yokogawa F3XD32-3F Digital Input Module Configured for high-speed 24 V DC discrete signal acquisition in FA-M3 platform, the Yokogawa F3XD32-3F (F3XD32-3F Digital Input Module) provides direct physical/electrical execution for 32-point digital input sampling within Yokogawa FA-M3 controller backplane architecture. Suffix Breakdown & Model Matrix The suffix structure of F3XD32-3F is not explicitly defined in publicly provided electrical breakdown documentation. The model is identified as part of the F3XD32 high-density digital input family, with "-3F" commonly used by the manufacturer to indicate a high-speed variant with enhanced filtering capability. No further official segmentation is assumed. Hardware Specifications Parameter Specification ModelBrand Yokogawa F3XD32-3F Weight Approx. 140 g PowerConsumption 5 V DC, approx. 110 mA Module Type Digital Input Module Input Points 32 points Rated Input Voltage 24 V DC Input Voltage Range 20.4 to 26.4 V DC Input Current Approx. 4.1 mA per channel Response Time OFF->ON <= 0.1 ms, ON->OFF <= 0.1 ms Isolation Photocoupler isolation Interface 40-pin high-density connector Channel Isolation and High-Speed Input Filtering Architecture The module implements photocoupler-based channel isolation between field input circuits and internal logic backplane. Input channels are arranged in grouped structures to reduce cross-channel interference under high-density switching conditions. Internal digital filtering parameters are software configurable, allowing suppression of contact bounce and high-frequency noise on 24 V DC signal lines. The architecture supports deterministic state detection suitable for high-speed discrete signal acquisition in FA-M3 I/O scanning cycles. Frequently Asked Questions Q: Can the module be hot-swapped during FA-M3 system operation?A: Hot-swap capability depends on the base unit configuration. Electrical removal during backplane energization may result in signal interruption and should follow system power-down procedures unless explicitly supported by the rack configuration. Q: Does each input channel share a common return path?A: Input channels are grouped with shared common terminals per isolation group. Channel-to-channel isolation is implemented via photocouplers, not full per-channel galvanic isolation. Q: What is the effect of input filter adjustment on response time?A: Increasing the digital filter time introduces additional delay beyond the default <= 0.1 ms response window, reducing sensitivity to short-duration pulses. Field Installation Guidelines Backplane insertion must be performed with system power removed unless the FA-M3 base unit explicitly supports live insertion. Ensure correct alignment of the 40-pin connector to prevent pin deformation. Field wiring should be routed through shielded cable assemblies to minimize electromagnetic coupling on 24 V DC input lines. Shield grounding should be terminated at a single-point earth reference to avoid ground loop currents. Maintain separation between input signal cables and high-voltage or switching power lines to reduce induced noise on high-speed channels.
$200.00 $100.00
-
Yokogawa Yokogawa F3DA04-6R Analog Output Module
Yokogawa F3DA04-6R Analog Output Module Configured for digital-to-analog signal conversion in FA-M3 controller output processing, the Yokogawa F3DA04-6R (F3DA04) Analog Output Module provides direct electrical execution of 4-channel isolated analog signal generation for voltage and current loop interfaces within FA-M3 backplane systems. Suffix Breakdown&Model Matrix No documented mechanical or functional suffix segmentation beyond full model designation F3DA04-6R is provided in the source specification. The “-6R” identifier is treated as an ordering variant without disclosed functional partitioning. Hardware Specifications Parameter Specification ModelBrand Yokogawa F3DA04-6R Weight Approx. 190 g PowerConsumption 5 VDC: 360 mA (internal), 24 VDC: approx. 120 mA (external supply) Number of Channels 4 isolated analog output channels Output Types Voltage: -10 to +10 VDC, 0 to 10 VDC, 1 to 5 VDC; Current: 4 to 20 mA DC Resolution 16-bit signed data Conversion Speed 100 us per channel Isolation Channel-to-channel isolation via photocoupler Withstand Voltage 500 VAC for 1 min Terminal Interface 18-point detachable terminal block (M3 screw) DCS Output Channel Isolation Architecture The Yokogawa F3DA04-6R implements channel-to-channel and channel-to-backplane isolation using photocoupler-based separation stages. Within FA-M3 system architecture, analog output generation is decoupled from CPU logic domain, preventing ground potential propagation across field wiring loops. This design aligns with process control loop segmentation requirements for mixed voltage/current output configurations, including 4-20 mA loop-driven actuator interfaces. Frequently Asked Questions Q: Can output channels be configured independently for voltage and current modes?A: Yes. Each channel supports software-defined selection between voltage and current output ranges without hardware jumper configuration. Q: What is the behavior during CPU stop condition?A: The module supports output hold or preset fallback behavior depending on system configuration, maintaining last valid or predefined analog values. Q: Is hot-swap operation supported on the terminal block?A: Terminal block is mechanically detachable; however, field wiring removal under energized conditions is not specified as supported. Field Installation Guidelines Shielded twisted-pair cabling shall be used for all analog output wiring to reduce electromagnetic coupling into 4-20 mA and voltage loops. Shield termination shall be referenced to frame ground (FG) at a single point to prevent ground loop formation. External 24 VDC supply must be applied to designated power terminals prior to analog loop activation. Terminal torque for M3 screws shall follow standard industrial control cabinet practices to ensure stable contact impedance. Channel wiring separation is required when routing mixed current and voltage outputs to minimize cross-coupling.
$200.00 $100.00
-
Yokogawa Yokogawa F3AD04-0N FA-M3 Analog Input Module
Yokogawa F3AD04-0N FA-M3 Analog Input Module Configured for analog voltage acquisition in FA-M3 controller architectures, the Yokogawa F3AD04-0N (F3AD04-0N Analog Input Module) provides direct electrical conversion of field voltage signals into 12-bit digital data for backplane processing. The module implements 4-channel multiplexed A/D conversion with per-channel range selection and optocoupler-based isolation between field input terminals and internal logic circuitry. Signal conditioning functions include scaling and digital filtering for raw-to-engineering unit transformation within the PLC environment. Hardware Specifications Parameter Specification ModelBrand Yokogawa F3AD04-0N Origin Not specified Weight Approx. 170 g Dimensions 28.9 mm x 100 mm x 83.2 mm OperatingTemp 0 degC to 55 degC PowerConsumption 5 VDC, 210 mA Channels 4 analog voltage inputs Resolution 12-bit Input Types 0 to 5 VDC, 1 to 5 VDC, -10 to 10 VDC Input Resistance 1 MOhm Conversion Speed 1 ms per channel Isolation Photocoupler, 500 VDC withstand (1 min) Channel Isolation and Signal Conditioning Architecture (Yokogawa Process Interface Behavior) The Yokogawa FA-M3 analog input structure implements optical isolation between field terminals and internal processing logic to suppress electrical coupling from external instrumentation wiring. Channel grouping shares a common negative reference, while signal conversion is executed through sequential multiplex scanning. Scaling logic allows mapping of raw 12-bit counts into engineering units within a configurable range of -20000 to 20000. Digital filtering can be enabled per channel to attenuate high-frequency noise prior to CPU-level data acquisition. Frequently Asked Questions (FAQ) Q: Can the module perform hot-swap replacement under energized backplane conditions?A: The module is designed for FA-M3 base unit integration; replacement under power requires adherence to system-level backplane insertion rules and input circuit de-energization to avoid transient bus disturbance. Q: Are all channels independently isolated from each other?A: Input channels share a common negative terminal; isolation is implemented only between input group and internal circuitry via photocoupler, not channel-to-channel isolation. Q: Does the module support firmware-based configuration updates?A: Configuration is handled via PLC system parameters; no field firmware upgrade mechanism is implemented at module level. Field Installation Guidelines Field wiring shall be terminated on the detachable 10-point M3.5 terminal block with controlled torque tightening. Shielded cables are recommended for voltage signal integrity, with shield grounding executed at a single system reference point to avoid loop currents. Input voltage must remain within specified selectable ranges; exceeding ±18 VDC absolute maximum may result in input stage damage. Backplane insertion must follow FA-M3 rack sequencing rules to avoid logic initialization faults during module recognition.
$200.00 $100.00
-
Yokogawa AAI141-H00/CCC01 Analog Input Module | Yokogawa
Yokogawa AAI141-H00/CCC01 Analog Input Module Configured for 4-20 mA current acquisition in Yokogawa CENTUM VP DCS Field Input architecture, the Yokogawa AAI141-H00/CCC01 (AAI141-H00/CCC01 Analog Input Module) provides direct physical/electrical execution of multi-channel current loop measurement with HART protocol overlay for field device communication across CENTUM VP and CENTUM CS 3000 I/O networks. Suffix Breakdown & Model Matrix AAI141: 16-channel analog input module for 4-20 mA DC signals H: HART communication enabled interface layer 00: base configuration index CCC01: connector cover option for MIL cable termination protection Hardware Specifications Parameter Specification ModelBrand Yokogawa AAI141-H00/CCC01 Origin Japan Weight 0.2 kg PowerConsumption Backplane powered, value not specified Input Channels 16 channels Input Signal 4-20 mA DC Allowable Input Current 27 mA max Accuracy +/-16 uA Communication HART protocol enabled Yokogawa HART Loop Integration and Channel Acquisition Behavior The module implements 4-20 mA loop acquisition with embedded HART digital superimposition, enabling simultaneous analog process variable sampling and field device parameter exchange. HART frames are demodulated in parallel with current measurement without interrupting loop continuity. Channel aggregation is performed at backplane level with synchronized scan timing to maintain deterministic input refresh across 16 channels. Signal integrity is maintained through loop impedance matching and controlled current sink architecture at the input stage. Frequently Asked Questions Q1: Can individual channels operate independently under HART communication?A1: Yes. Each channel supports independent HART communication while maintaining parallel 4-20 mA analog acquisition without shared modulation dependency. Q2: Does the module support hot-swap insertion on the backplane?A2: Hot-swap capability depends on system rack configuration. Electrical isolation is handled at rack level; field loops must remain powered during module replacement per system design rules. Q3: What is the effect of channel density on scan cycle behavior?A3: All 16 channels are multiplexed through internal acquisition logic. Increased channel utilization does not change per-channel resolution but affects total scan frame scheduling. Field Installation Guidelines Ensure 4-20 mA loops are de-energized or current-limited before terminal engagement. Maintain MIL connector alignment before securing the CCC01 connector cover. Use shielded twisted pair cabling for all HART-enabled loops to reduce high-frequency interference coupling. Ground cable shields at a single-point earth reference within the marshalling cabinet. Verify loop polarity and transmitter compliance voltage before system energization. Avoid routing input signal cables parallel to high-voltage switching conductors.
$200.00 $100.00
-
Yokogawa AKB337-M010 I/O Signal Cable | Yokogawa
Yokogawa AKB337-M010 I/O Signal Cable Configured for point-to-point electrical interconnection of distributed I/O modules in Yokogawa CENTUM VP and CENTUM CS 3000 systems, the Yokogawa AKB337-M010 (AKB337-M010 signal cable) provides direct 50-pin parallel signal routing between control module interfaces and terminal assemblies. The assembly executes fixed-density digital and analog signal transfer through shielded multicore conductors with defined connector pin mapping. Suffix Breakdown & Model Matrix Parameter Specification Base Model AKB337 Suffix Code M010 Length Definition 1.0 m cable assembly Connector Type 50-pin to 50-pin interface Configuration Rule Fixed harness, non-field configurable Hardware Specifications Parameter Specification Model Brand Yokogawa AKB337-M010 Origin Japan Dimensions 1.0 m cable length (M010 designation) OperatingTemp -20 degC to 70 degC PowerConsumption Passive component, no power consumption Signal Interface 50-pin parallel I/O signal bus Shielding EMI-shielded cable assembly Application Layer DCS I/O module interconnection Process Control Signal Integrity Characteristics The Yokogawa AKB337-M010 implements fixed impedance routing for multi-channel I/O signal transfer within Yokogawa DCS architectures. In process control environments, signal integrity is maintained through controlled conductor pairing and overall shield continuity, supporting stable transmission of 4-20 mA analog loops and discrete I/O states across backplane-adjacent terminal structures. Channel grouping structure is aligned with multi-point I/O module addressing, where cross-channel interference is mitigated through physical separation within the harness geometry and grounded shielding termination at connector shells. This design supports stable integration with Yokogawa distributed control architectures using standardized signal mapping conventions. Frequently Asked Questions Q: Can the AKB337-M010 cable be hot-plugged during system operation?A: Hot insertion is not supported. Signal disconnection may introduce transient voltage spikes on connected I/O channels. Q: Does the cable support mixed analog and digital signal transmission?A: Yes. The 50-pin architecture supports mixed I/O routing according to module-side signal allocation, without protocol conversion inside the cable. Q: Is shielding continuity maintained across both connectors?A: Yes. The shielding layer is terminated at connector housings to maintain continuous EMI grounding between I/O interfaces. Field Installation Guidelines Maintain separation between AKB337-M010 signal routing and power conductors exceeding switching voltage levels to reduce inductive coupling. Ensure both connector ends are fully seated to achieve complete pin engagement across all 50 contact points. Shield termination should be bonded to system ground at designated cabinet grounding points only, avoiding multiple ground loops across panel sections. Cable bending radius must remain within standard industrial harness limits to prevent conductor fatigue at connector strain relief zones. Do not apply mechanical tension on connector heads during routing or panel installation.
$200.00 $100.00
-
Yokogawa Yokogawa A2SAM505-H000 S1 Current/Voltage Output Adaptor
Yokogawa A2SAM505-H000 S1 Current/Voltage Output Adaptor Configured for analog current and voltage signal generation in the CENTUM VP N-IO network, the Yokogawa A2SAM505-H000 S1 (A2SAM505 Current/Voltage Output Adaptor) provides direct physical and electrical execution of isolated analog output functions. The adaptor interfaces with N-IO modules and converts internal control commands into configurable 0-10 VDC or 4-20 mA output signals while maintaining galvanic isolation between field circuits and the control system. Suffix Breakdown & Model Matrix Code Element Description A2SAM505 Current/Voltage Output Adaptor -H Standard type, no explosion protection 000 Basic specification code S1 Hardware style revision 1 Hardware Specifications Parameter Specification Model A2SAM505-H000 S1 Brand Yokogawa Product Type Current/Voltage Output Adaptor System Compatibility CENTUM VP N-IO System Output Signal (Voltage) 0-10 VDC Output Signal (Current) 4-20 mA Maximum Voltage Output Range -0.3 to 10.3 VDC Maximum Current Output Range 1-23 mA Load Resistance (Voltage) >= 10 kOhm Load Resistance (Current) 0-750 Ohm at 20 mA; 0-600 Ohm at 23 mA Output Resistance <= 1 Ohm Current Limitation <= 23 mA Voltage Output Current Limit <= 15 mA Open Loop Detection <= 0.65 mA trigger threshold Data Update Period 2 ms adaptor; up to 10 ms through N-IO module Isolation (Output to System) 1500 VAC for 1 minute; 42 VDC continuous Isolation (Adjacent Adaptors) 500 VAC for 1 minute; 42 VDC continuous Power Consumption (24 VDC Supply) 38 mA maximum Power Consumption (5 VDC Internal Supply) 10 mA maximum Dimensions Approx. 13.0 x 1.5 x 4.0 cm Weight Typical 0.072 kg; <= 0.10 kg Operating Temp -40 degC to +70 degC Mounting Method A2BN3D Adaptor Base Plate Channel Isolation and HART Output Integration The A2SAM505 supports isolated analog output operation with channel-level galvanic separation between field-side wiring and the N-IO control domain. For current output operation, the adaptor supports HART 7 communication superimposed on the 4-20 mA loop, allowing simultaneous analog signal transmission and digital device communication. Open-loop monitoring is available during current output operation and activates when loop current falls to 0.65 mA or below. Frequently Asked Questions Q: Does the A2SAM505 require hardware jumpers to change between voltage and current output modes?A: No. Output mode selection between 0-10 VDC and 4-20 mA is performed through system software configuration. Q: Can the adaptor be replaced while the N-IO system remains energized?A: The module is designed for hot-swappable operation when installed on the designated A2BN3D adaptor base plate and used according to Yokogawa maintenance procedures. Q: What output load limitations apply to current mode operation?A: The adaptor supports loads up to 750 Ohm at 20 mA output and up to 600 Ohm at 23 mA output while maintaining specified operating limits. Field Installation Guidelines Mount the adaptor only on a compatible A2BN3D adaptor base plate. Verify field wiring polarity before energizing output circuits. Separate analog output cabling from high-energy power conductors to reduce conducted interference. Connect cable shields according to plant grounding standards and DCS cabinet grounding practices. Confirm field device loop resistance remains within the specified operating range before commissioning. Perform output verification using calibrated measurement equipment after installation or replacement. When HART communication is required, ensure loop components and field devices support HART-compatible operation.
$200.00 $100.00
-
Yokogawa ADR541-P00 | Yokogawa CENTUM Relay Output Module
Yokogawa ADR541-P00 CENTUM Relay Output Module Configured for relay contact signal switching and field device actuation in CENTUM control networks, the Yokogawa ADR541-P00 (ADR541 Relay Output Module) provides direct electrical execution through 16 isolated relay output channels. The module supports status output, pulse width output, and time-proportioning output functions for external loads connected to the control system. Suffix Breakdown & Model Matrix Suffix Element Specification -P Pulse width output function and time-proportioning output function 0 Without status display; no explosion protection 0 Basic type Hardware Specifications Parameter Specification Model Brand Yokogawa Origin Japan Weight Approx. 0.30 kg Power Consumption Maximum current consumption 780 mA at 5 V DC Module Type Relay Output Module Series CENTUM Number of Channels 16 channels Isolation Type Channel-to-system isolation; commons isolated in groups of 8 channels Rated Applied Voltage 24 to 110 V DC, 100 to 240 V AC, 50/60 Hz Resistive Load Capacity 2.0 A/ch at 24 V DC, 0.4 A/ch at 110 V DC, 2.0 A/ch at 100/220 V AC Inductive Load Capacity 0.6 A/ch at 24 V DC, 0.1 A/ch at 110 V DC, 1.0 A/ch at 100/220 V AC Relay Mechanical Life Minimum 100,000 operations Output Response Time <= 12 ms (status output), <= 20 ms (mixed status and pulse output) Pulse Width Range 40 ms to 7200 s Pulse Width Resolution 8 ms Withstanding Voltage 2 kV AC for 1 minute (output to system), 1.35 kV AC for 1 minute (between commons) Insulation Resistance 100 MOhm or greater at 500 V DC External Connections Pressure clamp terminal or AKB334 dedicated cable Channel Isolation Characteristics The ADR541-P00 implements channel-to-system isolation while separating commons into two groups of eight channels. This arrangement reduces electrical interference between output groups and supports independent switching of external loads. The relay outputs can interface with field circuits associated with 4-20 mA control loops, HART-connected instruments, and discrete control devices through external interposing hardware where required by the application. Frequently Asked Questions Q: Can the ADR541-P00 directly switch both AC and DC loads?A: Yes. The module supports relay switching of 24 to 110 V DC loads and 100 to 240 V AC loads within the specified current ratings. Q: Does the module support pulse-based output functions?A: Yes. The ADR541-P00 provides pulse width output and time-proportioning output functions in addition to standard ON/OFF status outputs. Q: Are all 16 channels electrically independent?A: Channel-to-system isolation is provided, while every eight channels share a common minus side. Commons are isolated from each other. Field Installation Guidelines Verify the applied load voltage and current remain within the relay contact ratings before wiring field devices. Separate output wiring from high-energy power cables to minimize electromagnetic coupling into control circuits. Use the specified pressure clamp terminal or AKB334 cable assembly according to the installation design. Connect inductive loads using suitable suppression devices where required by site engineering standards. Confirm insulation resistance and field wiring continuity before energizing the module. Ensure cabinet grounding and shield termination practices comply with the system grounding architecture.
$200.00 $100.00
-
Yokogawa RTD Input Multiplexer Module | AMM31T Yokogawa
Yokogawa AMM31T RTD Input Multiplexer Module The Yokogawa AMM31T also cataloged as the AMM31T RTD Input Multiplexer Module, operates as a dedicated hardware component for resistance temperature detector signal acquisition within Yokogawa CENTUM CS and CENTUM VP I/O subsystems. Configured for multi-channel RTD resistance measurement in Yokogawa distributed control architectures, the Yokogawa AMM31T (AMM31T RTD Input Multiplexer Module) provides direct electrical scanning and multiplexing of field RTD inputs into a unified backplane data stream. Suffix Breakdown & Model Matrix AMM31T: Fixed model designation.No published suffix segmentation or option code structure is defined in available module-level documentation.All functional variation is handled at system configuration and I/O assignment level within CENTUM engineering tools. Hardware Specifications Parameter Specification ModelBrand Yokogawa AMM31T Origin Japan OperatingTemp -10 degC to +55 degC (system module rating) PowerConsumption Supplied via I/O backplane (value not specified) Input Channels 16 RTD channels Supported Sensors Pt100, Pt1000 class RTD elements Wiring Mode 3-wire / 4-wire RTD configurations Measurement Range -200 degC to +600 degC (sensor dependent) Isolation Channel or group isolation (system dependent) Update Method Multiplexed sequential scanning Channel-to-Channel Isolation and RTD Linearization Handling The AMM31T implements RTD signal acquisition through time-division multiplexing across 16 input channels. Each channel undergoes resistance-to-temperature conversion with internal linearization tables executed at module or node processing level. Channel grouping isolation is applied to reduce inter-channel coupling effects under high-density RTD termination conditions. Integration within CENTUM I/O nodes supports continuous scan scheduling aligned with backplane communication cycles, where each RTD channel is periodically sampled and converted into normalized engineering values prior to transmission to the control processor. Frequently Asked Questions Q: Does the AMM31T support hot-swap insertion during active RTD measurement cycles?A: Hot-swap capability is determined by the I/O rack architecture. During insertion or removal, channel scan interruption and temporary invalid data flags may be generated at the node level. Q: How is lead-wire resistance compensated in 3-wire RTD configurations?A: Compensation is handled through differential measurement across excitation and return paths, with correction applied during resistance calculation within the module processing stage. Q: What is the effect of multiplexing on per-channel update latency?A: Channel update latency is dependent on full scan cycle time across all active RTD inputs, resulting in sequential sampling delays across the 16-channel matrix. Field Installation Guidelines Shielded RTD cables shall be grounded at a single termination point, typically at the cabinet entry side to avoid ground loop formation. Twisted-pair routing is required for each RTD channel to maintain measurement integrity under industrial noise conditions. Module seating into the CENTUM I/O rack shall be performed with backplane alignment verification prior to full insertion force application. Terminal torque values must follow cabinet-level wiring standards specified by the system integrator. Separation between power wiring and low-level RTD signal wiring shall be maintained along full routing paths to minimize induced noise coupling.
$200.00 $100.00
-
Yokogawa AMM21T | Thermocouple Input Multiplexer Module | Yokogawa
Yokogawa AMM21T Thermocouple Input Multiplexer Module The Yokogawa AMM21T, also cataloged as the AMM21T Thermocouple Input Multiplexer Module, operates as a dedicated hardware component for consolidating multiple thermocouple signals within CENTUM VP and CENTUM CS distributed control systems. HardwareSpecifications Parameter Specification ModelBrand Yokogawa AMM21T Origin Japan Weight Approximately 200 g Dimensions 95 mm x 115 mm x 40 mm OperatingTemp -10 degC to 55 degC StorageTemp -20 degC to 70 degC Humidity 10% to 90% RH non-condensing PowerConsumption 5 W maximum per module InputChannels 4 channels analog input Resolution 16-bit SamplingRate 10 MS/s per channel Bandwidth 3 MHz maximum frequency response InputVoltageRange 60 VDC + AC peak maximum IsolationVoltage 200 V channel-to-channel Accuracy ±0.1% of reading typical NoiseLevel ±4 μV typical Communication SMARTDAC+ proprietary bus interface Mounting DIN rail or wall mount compatible Protection IP20 front panel Process Control Specifics Supports cold junction compensation (CJC) for all connected thermocouples to ensure linearized temperature readings. Channel-to-channel isolation prevents cross-interference between adjacent measurement circuits. Integrated signal conditioning for low-noise operation at ±4 μV typical. Compatible with 4-20 mA or system-level digital output conversion. Frequently Asked Questions Q: Can the AMM21T support hot-swapping in the I/O nest?A: The module is not designed for hot-swapping; power must be removed before insertion or removal to prevent damage to the backplane or module circuitry. Q: What is the maximum sampling rate per channel?A: Each analog input channel can sample up to 10 MS/s; simultaneous multi-channel sampling may be limited by the backplane bus bandwidth. Q: Does the module include built-in thermocouple fault detection?A: Yes, sensor burnout and disconnection are detected, and the affected channel is isolated to prevent propagation to other channels. Field Installation Guidelines Install on a DIN rail or secure wall mount; ensure module orientation allows proper airflow. Maintain shielded cabling grounded at a single point to minimize noise pickup. Route analog thermocouple signals separately from power or switching circuits to reduce EMI. Verify backplane connection integrity before system power-up to ensure proper channel addressing. Avoid mechanical stress on terminal connectors; torque screws to manufacturer-specified limits.
$200.00 $100.00
You have seen 24 out of 2080 products
